Product Overview

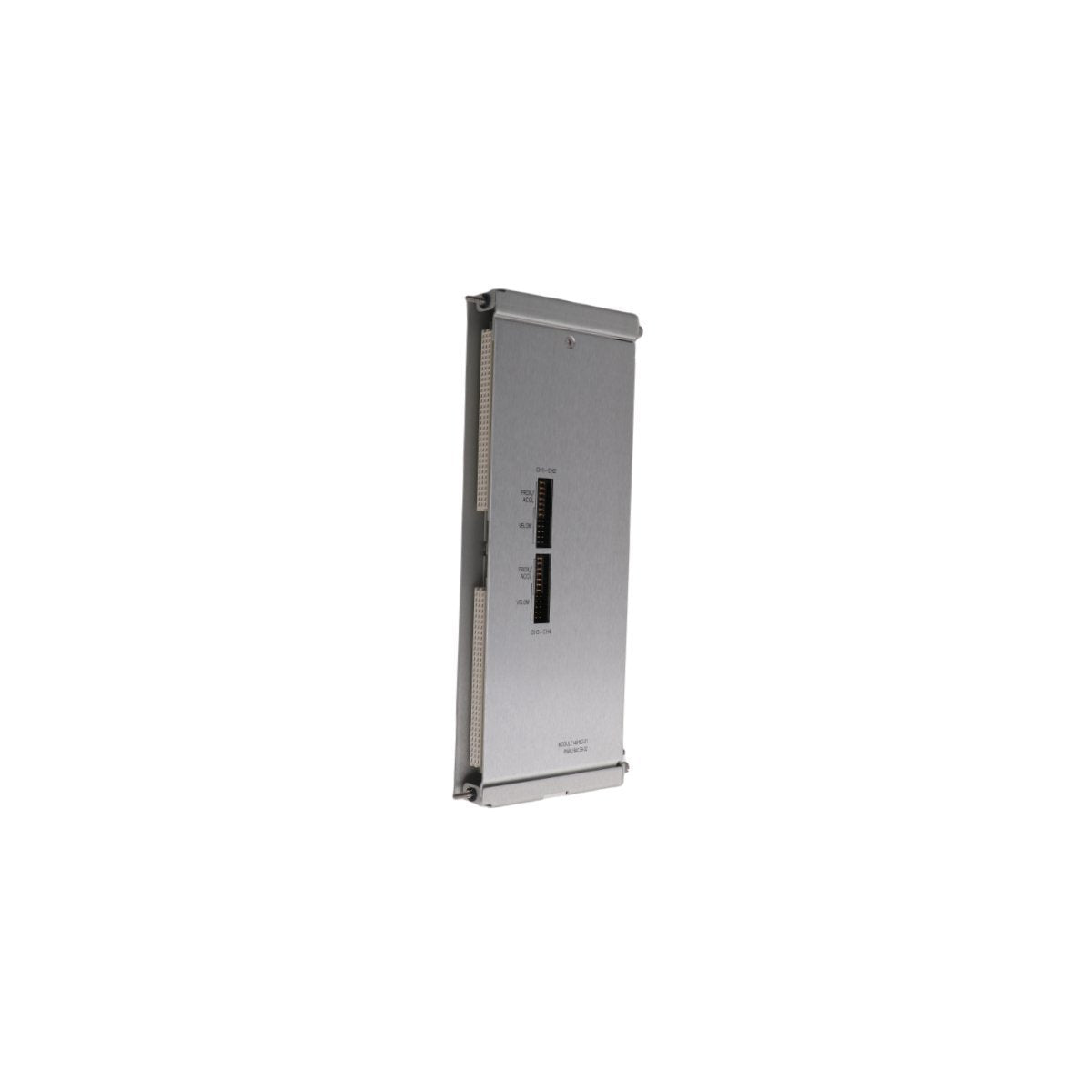

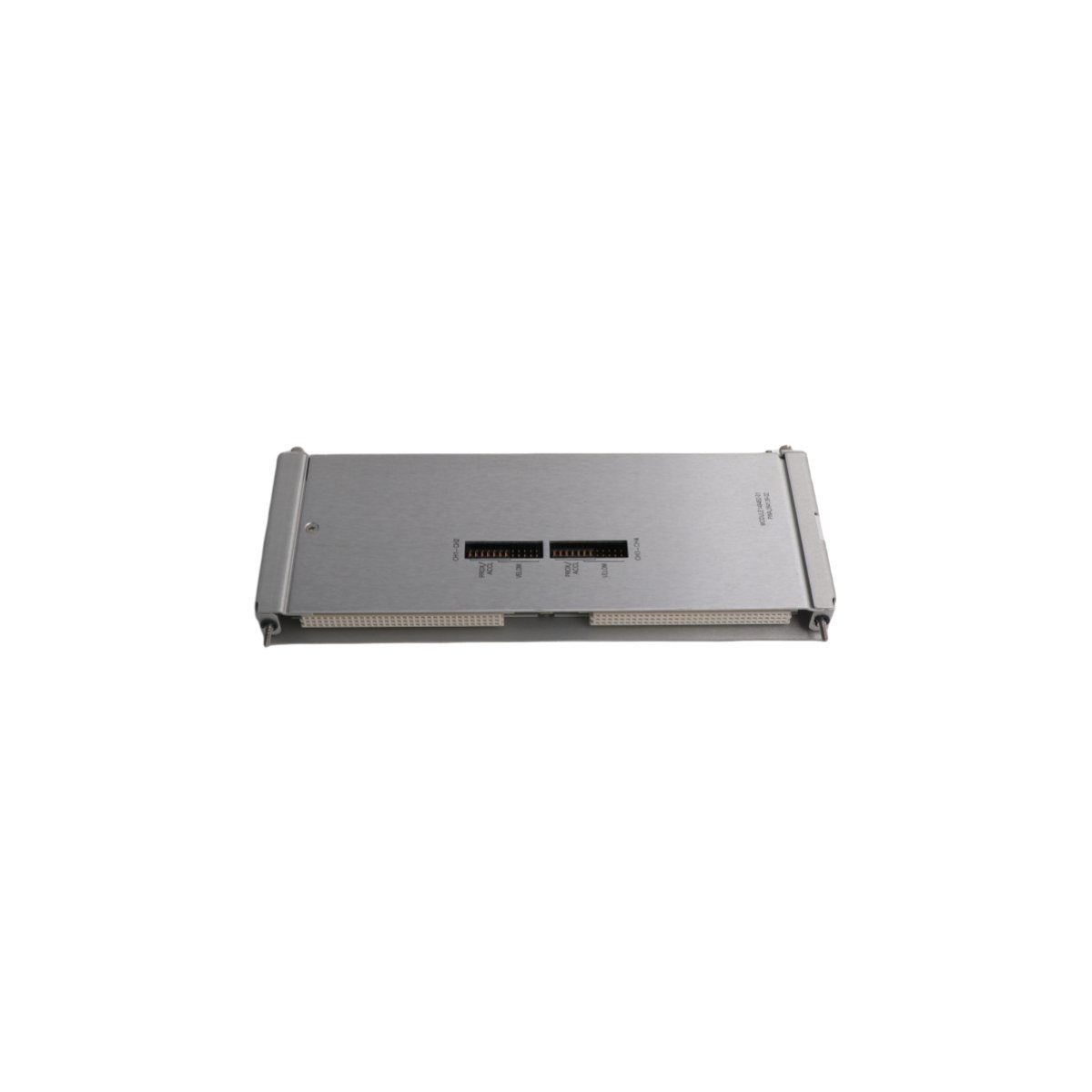

The Bently Nevada 140482-01 is a specialized Proximitor/Seismic I/O Module designed for the 3500/42M monitoring system. This hardware interface serves as the critical bridge between field-mounted sensors and the 3500 series machinery protection rack. It is specifically engineered to process signals from Velomitor piezo-velocity sensors and accelerometers, providing the high-fidelity data required for absolute casing vibration monitoring. By facilitating real-time signal acquisition, the 140482-01 ensures that critical industrial assets operate within safe vibration limits, offering an essential layer of defense against mechanical fatigue and unexpected component failure.

Hardware Parameters and Key Technical Characteristics

The 140482-01 module is built to meet the rigorous demands of Turbine Supervisory Instrumentation (TSI), featuring high-density connectivity and industrial-grade signal conditioning.

• Model Identification 140482-01

• Module Type Velomitor / Seismic I/O Interface

• Rack Compatibility Specifically designed for the Bently Nevada 3500/42M Proximitor Seismic Monitor

• Sensor Support Interfaces with Velomitor sensors, Accelerometers, and Seismoprobes

• Channel Configuration Provides 4 independent channels for transducer signal input

• External Termination Designed for Internal Termination (IT) rack configurations

• Signal Path High-impedance inputs to maintain signal integrity over long cable runs

• Mounting Installs in the rear of the 3500 rack, directly behind the 3500/42M main module

• Environmental Resistance Engineered for stable performance in high-EMI and high-temperature industrial environments

• Weight 0.40 kg

• Dimensions 2.5 x 11.0 x 24.0 cm

Industrial Applications and Operational Use Cases

This I/O module is a core component for monitoring absolute casing vibration on diverse rotating equipment where shaft-relative measurements are insufficient.

• Heavy-Duty Gas and Steam Turbines Tracking absolute casing vibration levels during high-speed operation to detect structural resonances or bearing housing issues.

• Reciprocating Compressors Monitoring frame vibration and cylinder motion to identify mechanical looseness or valve-related impact events.

• Large Industrial Motors Providing continuous health data for high-voltage motors in refineries and chemical plants to prevent stator or bearing failure.

• Hydroelectric Generators Monitoring guide bearing and headcover vibration to ensure structural integrity against hydraulic turbulence.

• Balance of Plant (BoP) Equipment Protecting secondary assets like fans, blowers, and pumps through localized seismic monitoring.

By utilizing the 140482-01 within the 3500/42M system, operators can leverage advanced alarm and trip logic, ensuring that machinery protection is both accurate and responsive.
