Product Overview

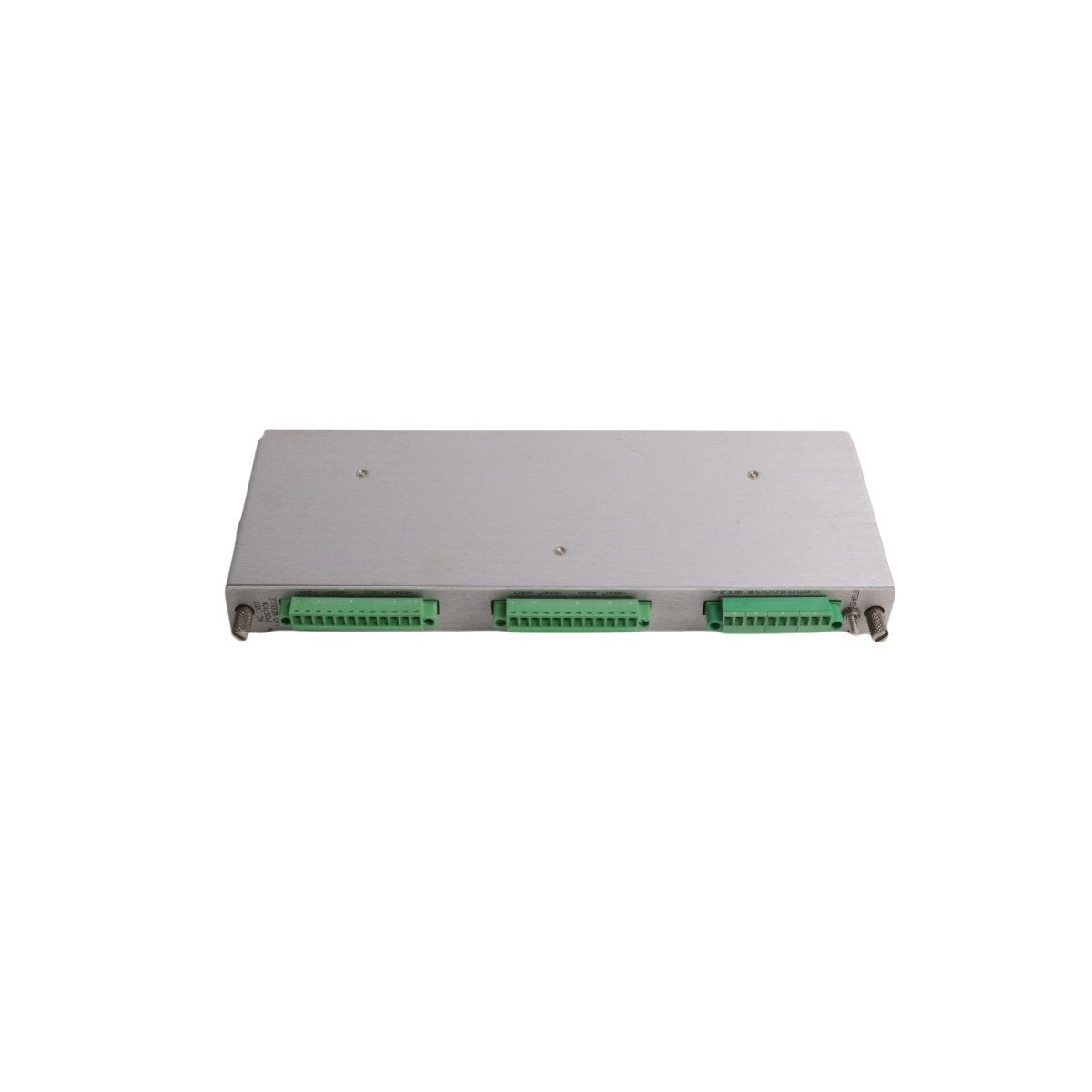

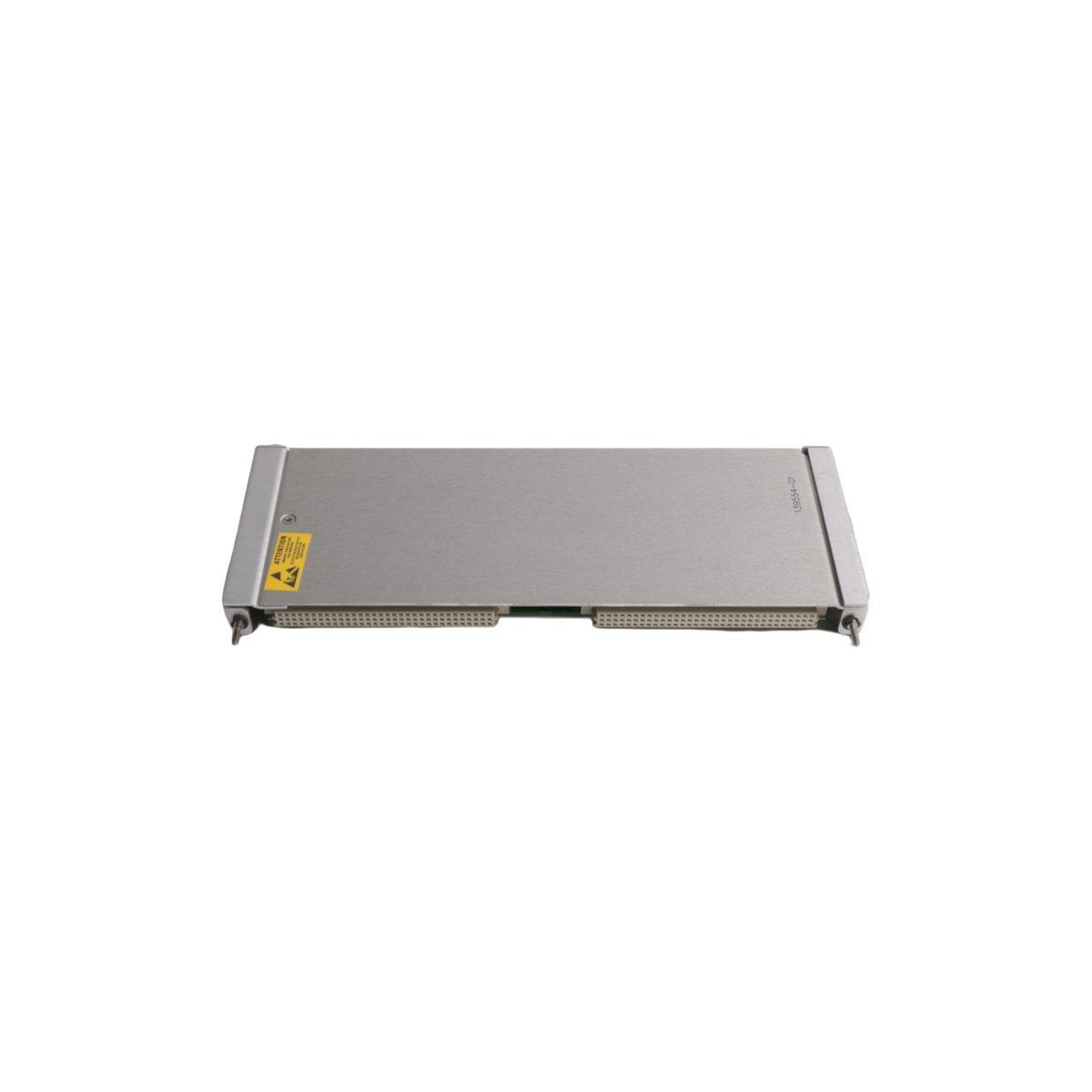

The Bently Nevada 139554-01 is a specialized AC LVDT (Linear Variable Differential Transformer) Position I/O Module designed for the 3500/45 Position Monitor system. This high-precision interface card serves as the backend connectivity point within a 3500 series rack, facilitating the acquisition of displacement signals from various induction-based sensors. By translating raw mechanical position data into processed variables, the 139554-01 allows the monitoring system to track the physical expansion and movement of massive machinery components. It is an essential element for Turbine Supervisory Instrumentation (TSI), providing the critical data needed to maintain safety clearances and operational efficiency in high-temperature rotating equipment.

Key Technical Characteristics and Hardware Parameters

The 139554-01 module is engineered to handle complex inductive signals and convert them into actionable machinery protection data with high linearity and noise immunity.

• Model Identification: 139554-01

• Module Type: AC LVDT / Position I/O Module

• Compatibility: Interfaces specifically with the 3500/45 Position Monitor Main Module

• Input Support: AC LVDTs (Linear Variable Differential Transformers) and RPTs (Rotary Variable Differential Transformers)

• Channel Configuration: Supports 4 independent measurement channels

• Measurement Functions: Programmable for Axial Position, Differential Expansion, and Valve Position

• Signal Processing: Real-time signal conditioning with programmable alarm and danger setpoints

• Mounting Location: Installs in the rear of the 3500 rack, directly behind the 3500/45 main module

• Excitation: Provides necessary AC excitation voltage for inductive sensors

• I/O Termination: Euro-style terminal blocks for secure, high-density field wiring

Industrial Applications and Operational Use Cases

This I/O module is a fundamental component for monitoring the thermal and mechanical growth of large-scale industrial turbines and valves.

• Steam Turbine Differential Expansion: Monitoring the relative displacement between the turbine rotor and the casing during startup and shutdown to prevent internal rubbing.

• Case Expansion (Shell Expansion): Tracking the growth of the outer turbine housing to ensure proper alignment and movement on the sliding feet.

• Main Steam Valve Position: Providing precise feedback on the percentage of opening for throttle, governor, and interceptor valves to optimize load control.

• Hydroelectric Gate Monitoring: Measuring the stroke and position of wicket gates and control valves in hydro-power facilities.

• Gas Turbine Control Systems: Integrated into the control loop to monitor variable vane geometry and secondary air valve positioning.
