Product Overview

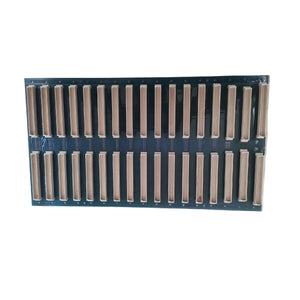

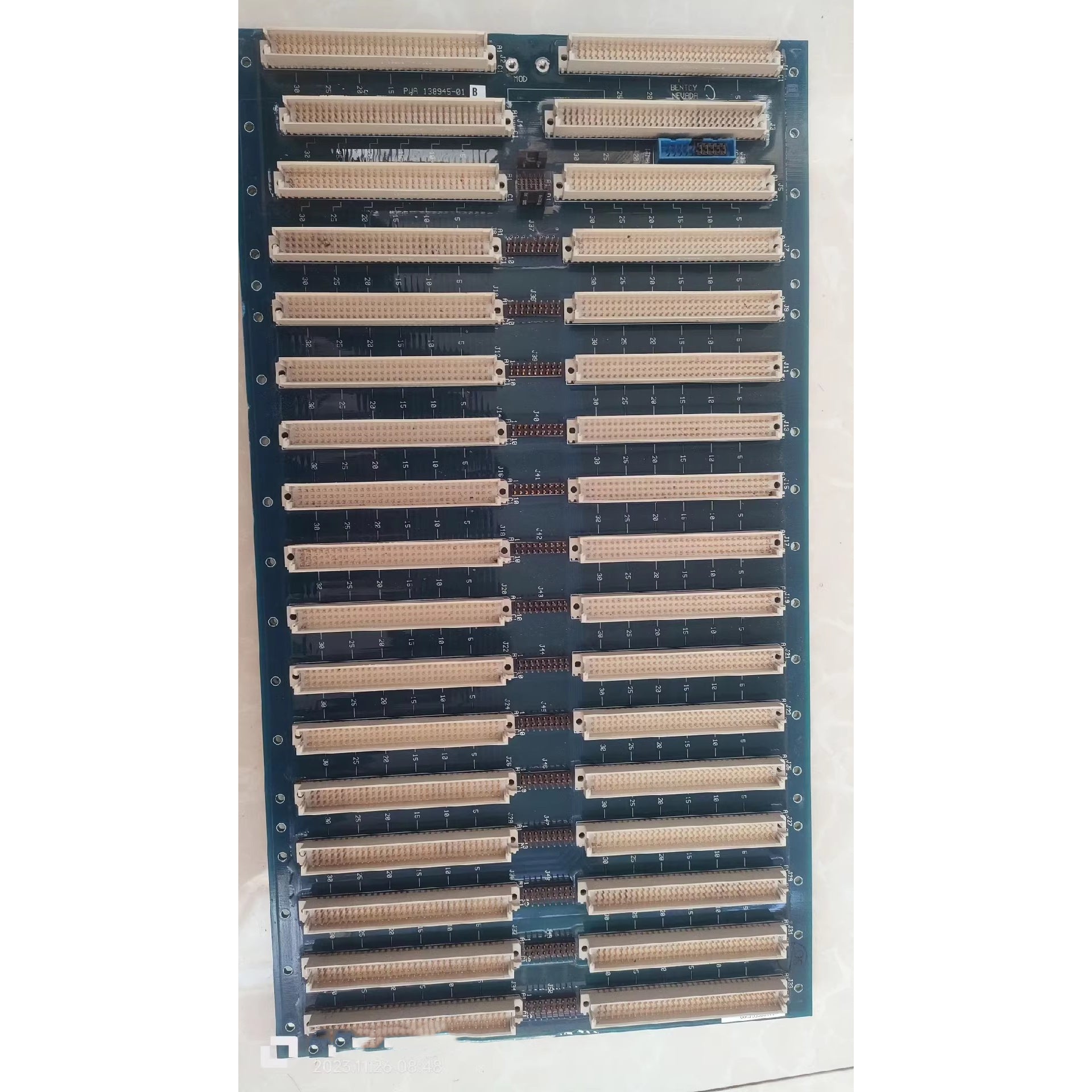

The 138945-01 serves as the central processing engine for specific modules within the Bently Nevada 3500 Machinery Protection System. This primary circuit board is the core hardware responsible for executing complex vibration algorithms, managing data logic, and coordinating communications between the monitor and the rack backplane. As a critical internal component, it ensures high-speed signal processing and the reliable execution of alarm and trip logic. Engineered for maximum uptime in industrial environments, the 138945-01 is essential for maintaining the operational integrity of the 3500 series monitors, providing the necessary computational power to handle multi-channel sensor inputs in real-time.

Essential Component Architecture

• Logic Type: Central Processing and System Control Board

• Module Part Number: 138945-01

• System Series: Compatible with Bently Nevada 3500 Racks

• Net Weight: 0.58 kg (1.28 lbs)

• Board Dimensions: 24.1 cm x 15.2 cm x 2.5 cm

• Manufacturing Standards: High-integrity industrial PCB design

• Origin Locale: USA

• Diagnostic Features: Integrated self-test and hardware status monitoring

• Memory Architecture: Flash-based firmware storage for reliable logic execution

Strategic Industrial Implementations

The 138945-01 main board is utilized during system maintenance, upgrades, or repairs where the primary processing logic of a 3500 module requires replacement. Key applications include:

• Critical Monitor Recovery: Restoring functionality to 3500 series vibration or position monitors following hardware degradation or circuit failure.

• Asset Health Infrastructure: Maintaining the processing core of monitoring systems on steam turbines, large centrifugal compressors, and high-speed fans.

• Plant-Wide Protection: Ensuring that the computational heartbeat of the machinery protection system remains functional to prevent catastrophic machinery failure.

• Redundancy Management: Serving as a reliable spare for facilities that require immediate onsite replacement parts to meet strict safety and operational compliance standards.

FAQ

Q: Is the 138945-01 a standalone module that slides into the 3500 rack?

A: No, the 138945-01 is an internal main board. It is typically housed inside a 3500 series monitor module casing and acts as the internal processing unit for that specific module.

Q: Does this board come pre-loaded with firmware?

A: While the hardware is ready for installation, the specific configuration and firmware version may need to be updated using the 3500 Rack Configuration Software to match your existing system's revision level.

Q: How do I know if the 138945-01 is the correct board for my 3500 monitor?

A: You should verify the part number on the internal PCB of your current module. This board is commonly used in several 3500 series monitor variations, but matching the exact 138945-01 designation is vital for compatibility.

Q: Can this main board be repaired if it fails?

A: Due to the high-density surface-mount components and the critical safety nature of the 3500 system, Bently Nevada generally recommends replacing the entire board with a new 138945-01 to ensure system reliability and warranty compliance.

Q: What is the environmental durability of this internal board?

A: It is designed to operate within the standard temperature and humidity specs of the 3500 rack, featuring industrial coatings to resist the effects of atmospheric contaminants commonly found in petrochemical and power plants.
