Product Overview

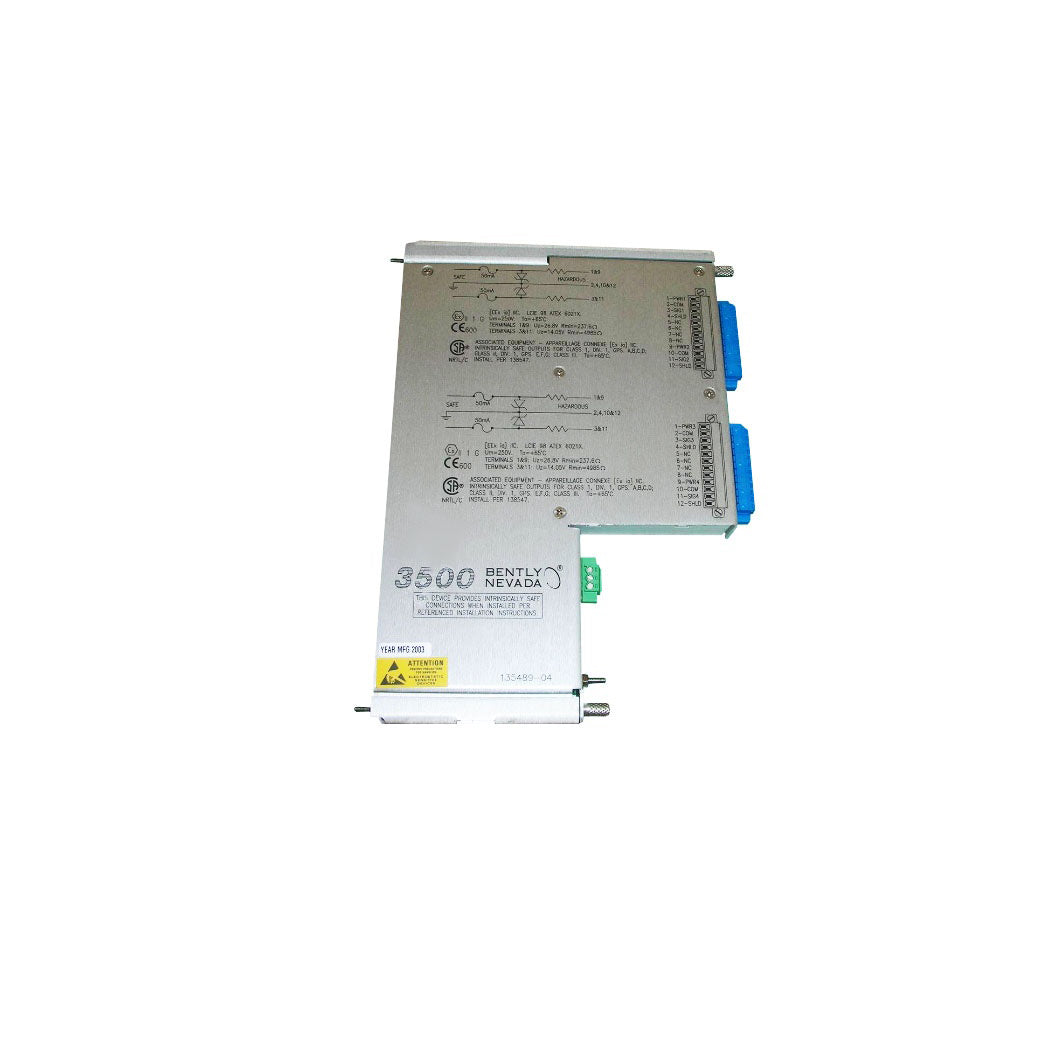

The Bently Nevada 135489-02 is a specialized high-integrity I/O module engineered for the 3500 Machinery Protection System. This specific variant is distinguished by its integrated internal barriers, which provide essential intrinsic safety for sensor loops extending into hazardous industrial zones. Acting as the physical termination point for field wiring, the 135489-02 facilitates the secure intake of signals from proximity probes, accelerometers, and velocity transducers. By isolating sensitive monitoring electronics from potential electrical energy surges in explosive atmospheres, it ensures that critical vibration and displacement data are processed without compromising site safety or equipment longevity.

Technical Architecture and Safety Metrics

• Component Designation I/O Module with Internal Barriers and Terminations

• Ordering Identifier 135489-02

• Input Configuration Support for 2 Displacement/Acceleration and 2 Velocity channels

• Hazardous Area Readiness ATEX and IECEx certified for intrinsic safety compliance

• Operational Voltage 24V DC standard input

• Network Interfacing Fully compatible with Modbus, Ethernet, and SCADA architectures

• Maintenance Logic Hot-swappable design for live-system servicing

• Local Diagnostics Integrated LED status indicators for power, comms, and faults

• Chassis Mounting Standard 3500 rack-mount form factor

• Net Mass 1.2 kg

• Physical Dimensions 78 mm x 78 mm x 56 mm

• Manufacturing Origin USA

Industrial Utility and Hazardous Zone Applications

In the demanding environments of oil and gas refineries, petrochemical plants, and power utility stations, the 135489-02 serves as a frontline safety barrier. Its primary application is the surveillance of rotating machinery located in Class 1, Division 1 or Zone 0/1 areas. Because the module conditions signals from various sensor types—ranging from displacement probes on fluid-film bearings to casing-mounted velocity sensors—it provides a versatile solution for comprehensive asset monitoring. The integrated dry contact relay outputs allow for the direct triggering of local alarms or shutdown sequences, while the seamless integration with 3500 rack software enables precise data trending and predictive maintenance. This module is an essential upgrade for any monitoring system requiring high-density I/O with built-in explosive atmosphere protection.

FAQ

Q: What is the main benefit of the internal barriers in the 135489-02?

A: Internal barriers eliminate the need for external zener barriers or galvanic isolators between the rack and the sensors, simplifying wiring while maintaining intrinsic safety in hazardous locations.

Q: Can I mix different sensor types on a single 135489-02 module?

A: Yes, the 135489-02 is configured to support a combination of two displacement/acceleration channels and two velocity channels, providing flexibility for complex machine monitoring.

Q: Is it safe to replace the 135489-02 while the rest of the 3500 rack is powered?

A: This module is designed to be hot-swappable, allowing maintenance personnel to replace the I/O module without shutting down the entire machinery protection system.

Q: Does the 1.2 kg weight include the termination terminal blocks?

A: Yes, the 1.2 kg weight covers the ruggedized I/O module assembly along with its integrated termination hardware for field wiring.

Q: How do the diagnostic LEDs assist in troubleshooting?

A: The LEDs provide immediate visual feedback regarding the health of the module, the status of communication with the main monitor, and the presence of any channel-level faults or sensor wiring issues.
