Product Overview

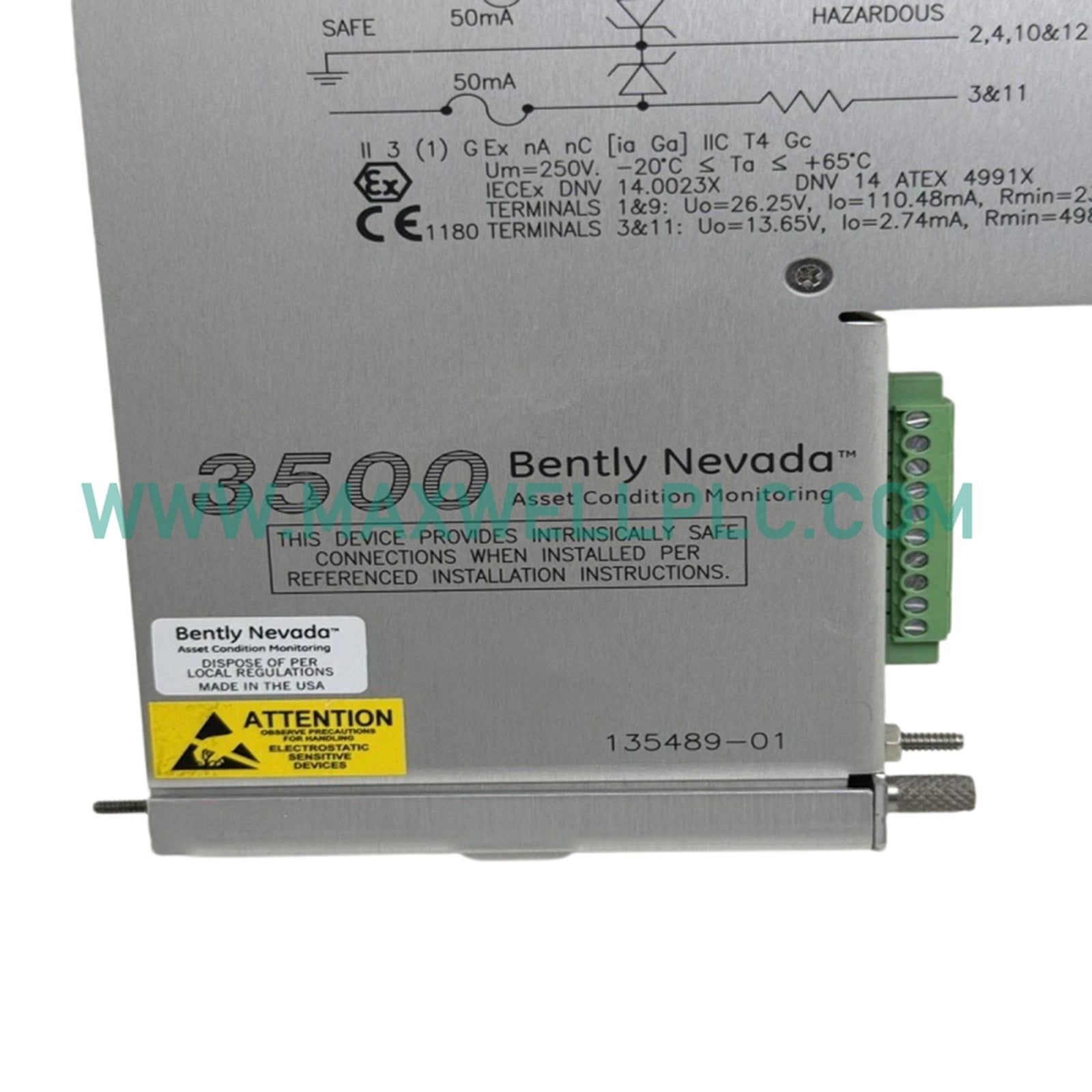

The Bently Nevada 135489-01 is a high-performance I/O module designed specifically for the 3500/42M Proximitor Seismic Monitor system. This module serves as the primary physical interface between field-mounted transducers and the machinery protection rack. It is engineered to process dynamic signals from up to four separate channels, supporting a broad spectrum of sensor types including proximity probes, velocity sensors, and accelerometers.

A defining characteristic of the 135473-01 is its integrated internal safety barrier. This design provides essential galvanic isolation for sensor signals, protecting the delicate data acquisition electronics from industrial electrical faults, transients, and grounding issues. By ensuring high-integrity signal transmission, this I/O module allows for precise measurement of radial vibration, shaft position, and casing expansion in mission-critical hardware such as gas turbines, high-pressure compressors, and large-scale induction motors.

Signal Processing and Hardware Integration

The 135489-01 utilizes advanced filtering circuitry to deliver clean, actionable data to the 3500/42M monitor. The module features a dedicated gap filter with a low-frequency cutoff of 0.09 Hz and a direct filter set at 15.6 Hz, ensuring that static position data and dynamic vibration signals are accurately separated. This precision is vital for implementing reliable machinery trip logic and preventing catastrophic equipment failure due to mechanical unbalance or misalignment.

Designed for high-density rack configurations, the module occupies a single slot and communicates natively with the 3500 backplane. It supports multiple scale factors for radial vibration, including the industry-standard 3.94 mV/μm (100 mV/mil) and 7.87 mV/μm (200 mV/mil) configurations. This versatility ensures compatibility with a wide range of Bently Nevada transducer systems, providing a scalable solution for plant-wide condition monitoring.

Technical Specifications

• Module Type: 4-Channel Internal Barrier I/O

• System Series: Bently Nevada 3500/42M

• Part Number: 135489-01

• Transducer Inputs: Supports 1 to 4 Proximity, Velocity, or Acceleration signals

• Power Requirements: 7.7 Watts (Typical consumption)

• Gap Filter Performance: -3 dB at 0.09 Hz

• Direct Filter Performance: -3 dB at 15.6 Hz

• Radial Vibration Scaling: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)

• Dimensions (H x W x D):  24cm x 24cm x 16cm

• Weight: 0.8kg


• Mounting: Rear-access I/O slot for 3500 Series Rack

Core Functional Advantages

• Integrated Safety Isolation: Internal barrier design eliminates the need for external signal isolators, reducing cabinet space and wiring complexity.

• Deterministic Accuracy: Precision filtering ensures high-resolution feedback for both dynamic vibration and static gap voltage monitoring.

• Ruggedized Construction: Built to withstand the electromagnetic interference and thermal stresses typical of industrial power and processing plants.

• Seamless Scalability: Individual channel configuration allows for a mix of different sensor types within a single I/O footprint.
