Product Overview

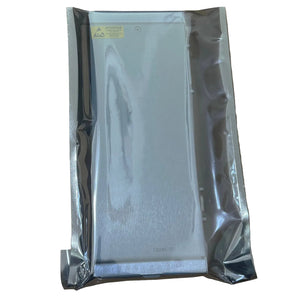

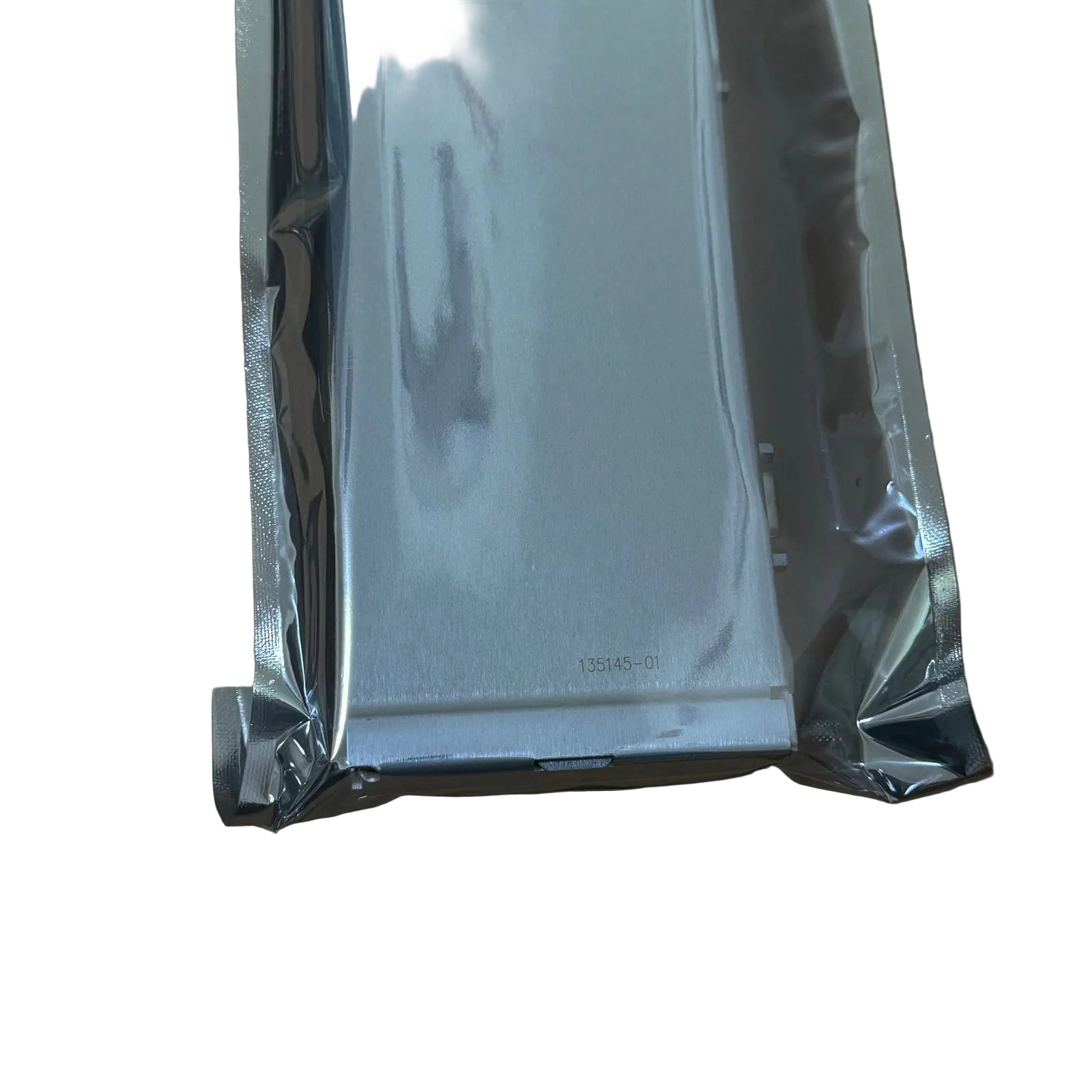

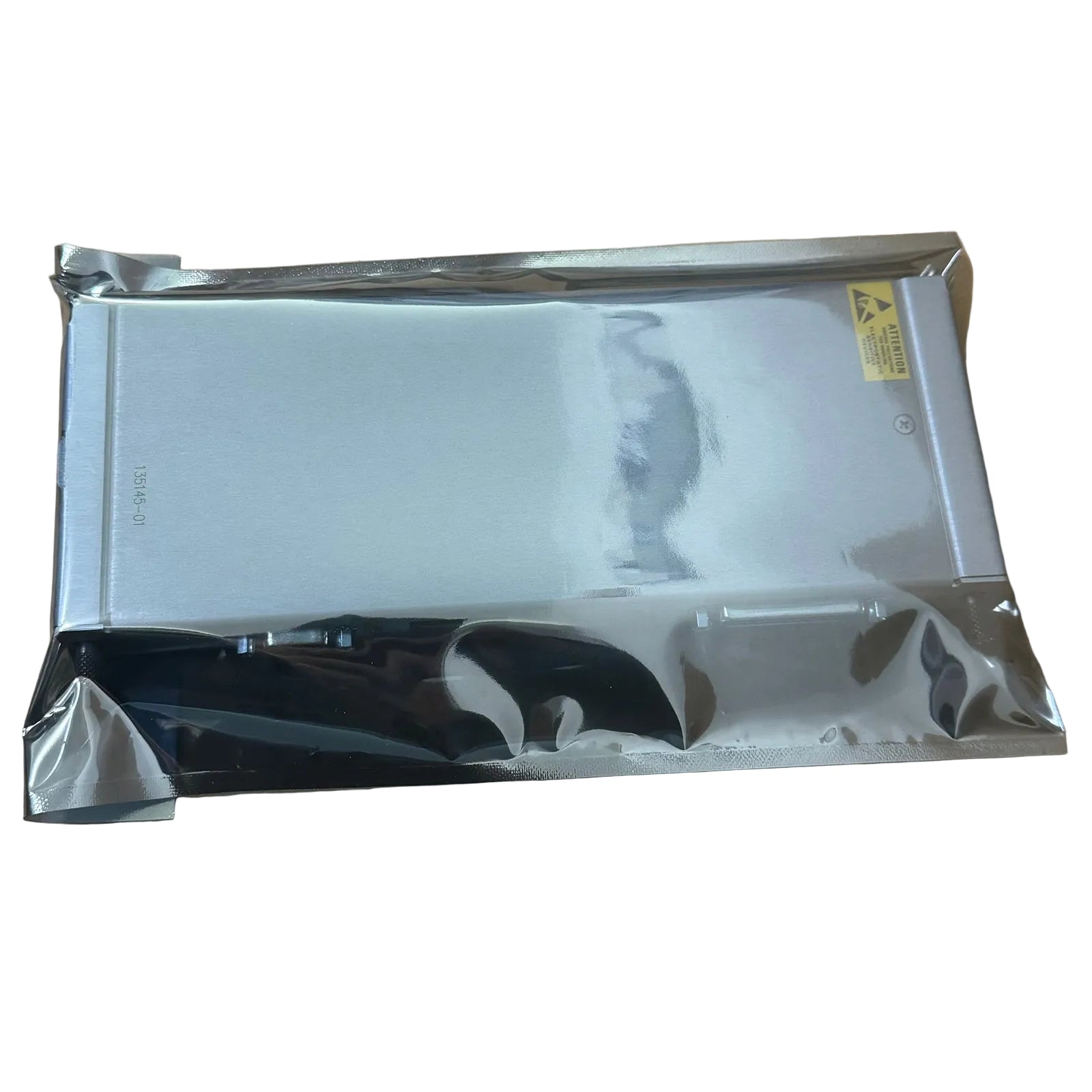

The 135145-01 is a high-performance Position I/O Module designed specifically for the Bently Nevada 3500/45 Position Monitor system. This module serves as the primary backend interface for measuring critical machinery parameters such as axial thrust, valve position, and differential expansion. By utilizing an external termination architecture, this module allows for cleaner cabinet cable management and easier maintenance. It accurately processes signals from various proximity probes and Linear Variable Differential Transformers (LVDTs), converting physical displacement into precise electrical data for real-time machinery protection and diagnostic analysis.

Critical Hardware Parameters

• Model Number: 3500/45

• Order Designation: 125720-02

• Termination Style: External Terminations (ET)

• Sensor Input Compatibility: Proximitor Sensors, LVDTs, and RVDTs

• Physical Mass: 0.40 kg (0.88 lbs)

• Physical Dimensions: 2.5 cm x 11.2 cm x 24.2 cm

• Output Signal: Proportional voltage output for position tracking

• Manufacturing Origin: USA

• System Integration: Compatible with standard 3500 Series Racks

Primary Industrial Deployments

The 135145-01 is essential for monitoring the mechanical tolerances of rotating equipment in high-stakes environments. Common applications include:

• Steam Turbine Management: Monitoring axial thrust position and valve lift to ensure safe operational limits.

• Hydroelectric Power: Measuring the position of wicket gates and large-scale hydraulic actuators.

• Process Control Systems: Providing precise position feedback for industrial robotics and high-accuracy machine tools.

• Motion Control: Integrated into complex machinery where millimetric displacement monitoring is required to prevent contact between rotating and stationary parts.

FAQ

Q: What is the main advantage of the External Termination version of the 135145-01?

A: The external termination design allows the field wiring to land on a separate terminal block rather than directly on the back of the rack. This simplifies module replacement and reduces the risk of wiring errors during maintenance.

Q: Does this module support both axial position and radial vibration?

A: This specific module is optimized for the 3500/45 Position Monitor, which focuses on displacement and position. For radial vibration, the 3500/42M Proximitor module is typically used.

Q: Can I use this I/O module with standard proximity probes?

A: Yes, it is fully compatible with Bently Nevada Proximitor sensors when configured within the 3500/45 monitor settings for thrust or position measurements.

Q: What is the standard warranty for this new-in-stock component?

A: We provide a full 12-month technical warranty on all brand-new 135145-01 modules, ensuring reliability in your machinery protection loop.

Q: Is there any specific maintenance required for the 135145-01?

A: No routine maintenance is required for the hardware itself; however, periodic calibration checks of the associated position sensors are recommended to ensure signal accuracy.
