Product Overview

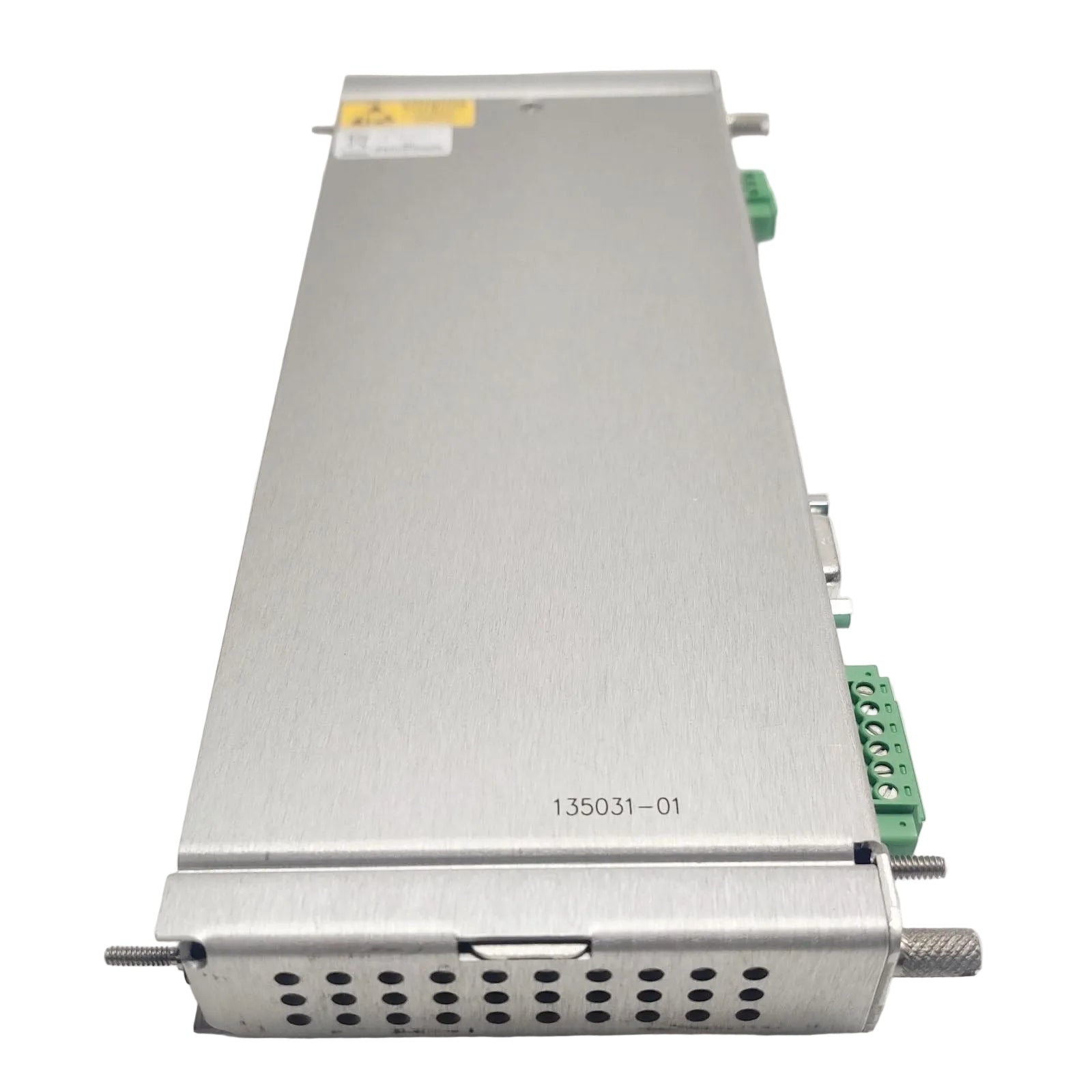

The Bently Nevada 135031-01 is a critical communication and interface component designed specifically for the 3500/20 Rack Interface Module (RIM) architecture. Functioning as the primary hardware gateway for the 3500 monitoring rack, this I/O module facilitates the vital exchange of information between the internal rack backplane and external diagnostic software or control systems. It is engineered to manage a complex stream of analog and digital signals, ensuring that data from various sensors and actuators is synchronized and transmitted with high fidelity. By providing a dedicated modem interface, the 135031-01 enables remote access and diagnostic capabilities, allowing engineers to oversee machinery health from off-site locations.

Hardware Architecture and Mechanical Specifications

The 135031-01 is built to sustain continuous operation in high-availability industrial environments:

• Module Function: Rack Interface I/O with Modem Connectivity

• Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)

• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Net Weight: 0.45 kg

• Physical Geometry: 241.3 mm x 24.4 mm x 99.1 mm (H x W x D)

• Signal Compatibility: Supports both Analog and Digital I/O channels

• Interface Type: Integrated Modem and Serial communication ports

• Manufacturing Standards: Produced in the USA

• System Series: Bently Nevada 3500 Protection System

Industrial Deployment Contexts

This Rack Interface I/O module is a cornerstone of the Turbine Supervisory Instrumentation (TSI) framework, utilized in:

• Remote Diagnostic Services: Enabling off-site specialists to connect via modem to analyze real-time vibration data and perform remote configurations.

• Centralized Rack Management: Serving as the data hub for complex 3500 racks containing multiple vibration, thrust, and temperature monitors.

• Automated Machinery Protection: Ensuring that control signals and trip logic are communicated reliably between the rack modules and the plant's Distributed Control System (DCS).

• Substation Monitoring: Providing a ruggedized communication path for assets located in areas prone to electromagnetic interference.

FAQ

Q: What is the primary role of the 135031-01 within a 3500 rack?

A: It acts as the physical interface for the Rack Interface Module (RIM), providing the connection points for external communications, including modems and serial data links.

Q: Does the 135031-01 support both analog and digital signals?

A: Yes, the module is designed to handle a hybrid of signal types, offering the flexibility to connect various peripheral equipment and sensors to the rack system.

Q: Is this module compatible with the 3500/22 Transient Data Interface (TDI)?

A: No, the 135031-01 is specifically paired with the 3500/20 Rack Interface Module. Newer systems utilizing the 3500/22 TDI require a different I/O module configuration.

Q: Can this module operate in freezing conditions?

A: The 135031-01 is rated for operation down to -30°C, making it suitable for unheated industrial enclosures in many cold-weather climates.

Q: How does the modem interface benefit plant operations?

A: The modem interface allows for legacy remote dial-up or dedicated line access, which is essential for remote troubleshooting and status monitoring in facilities without high-speed local network infrastructure.
