Product Overview

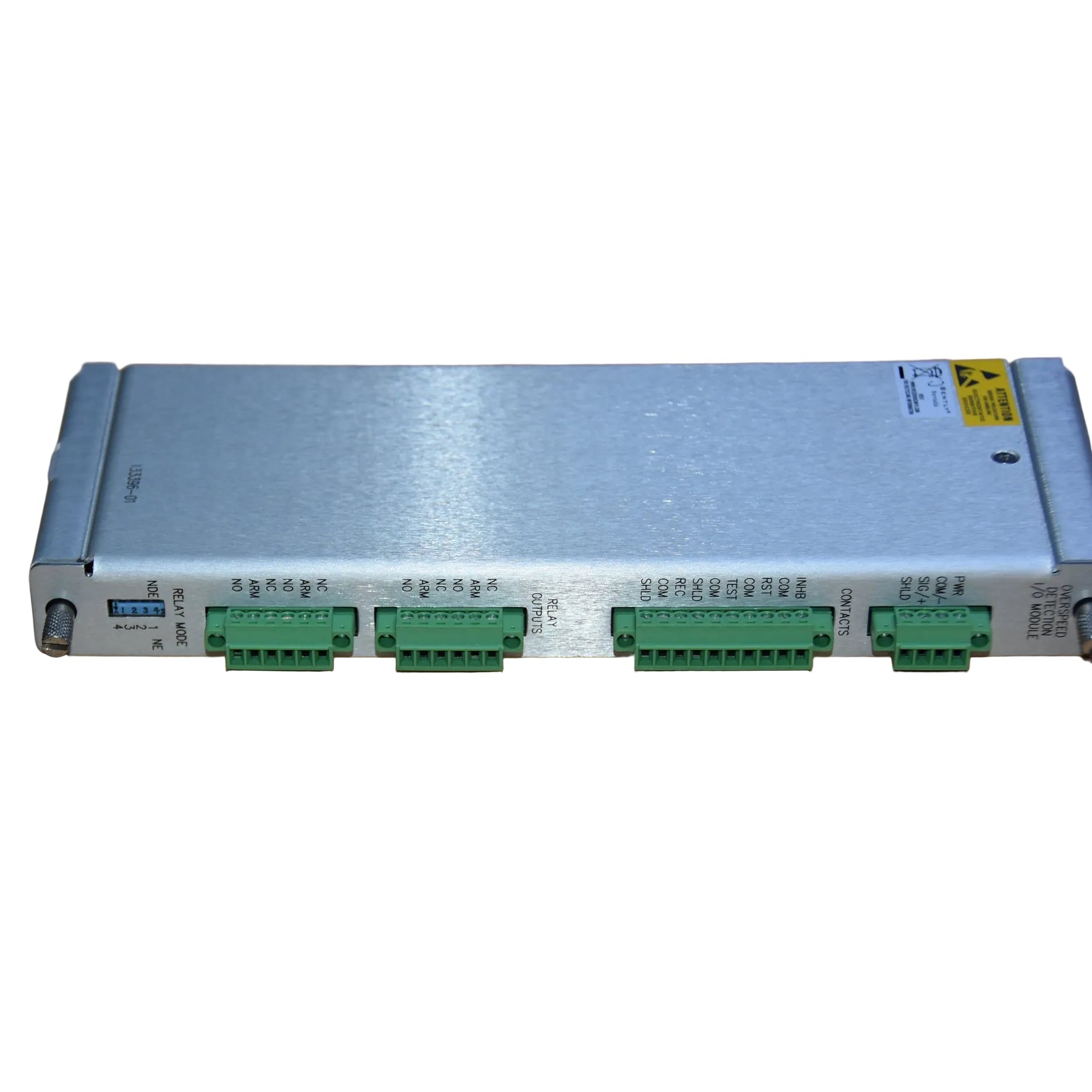

The Bently Nevada 133396-01 is a high-reliability Overspeed Detection I/O Module designed for the 3500/53 electronic overspeed protection system. This module serves as the primary interface for speed sensors, providing the critical signal path required to monitor shaft rotative speeds in real-time. Engineered for high-speed machinery, it processes transducer inputs to detect dangerous overspeed conditions that could lead to mechanical failure. The module is epoxy-sealed to ensure long-term stability in demanding industrial environments and features a dedicated recorder output for continuous speed monitoring via external instrumentation. As a core component of the 3500 Series, the 133396-01 is fundamental to the safety and structural integrity of large-scale rotating assets.

Hardware Infrastructure and Power Dynamics

• Component Identification Overspeed Detection I/O Module

• Ordering Number 133396-01

• Energy Demand 8.0 Watts (Typical)

• Transducer Voltage -24 Vdc supply (40 mA maximum)

• Signal Output +4 to +20 mA analog recorder output (Full-scale proportional to RPM)

• Environmental Integrity Epoxy-sealed circuitry for moisture and contaminant resistance

• Operational Thermal Range -30°C to +65°C (-22°F to +149°F)

• Physical Proportions 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)

• Net Weight 0.45 kg (0.99 lbs)

• Manufacturing Origin USA

Industrial Safety and Deployment Scenarios

In heavy industries such as steam and gas turbine power generation, the 133396-01 is a critical fail-safe element. It is utilized to prevent machine "runaway" by providing ultra-fast response times when speed thresholds are breached. Beyond turbines, this module is essential for large compressors and high-speed pumps where rotational limits must be strictly enforced to comply with API 670 standards. The module’s analog output allows plant operators to integrate real-time speed data into a DCS or SCADA system for trending and historical analysis. Because the module is designed for continuous surveillance, it provides the reliability needed for Emergency Shutdown (ESD) loops, ensuring that any overspeed event triggers an immediate and decisive protective action to save the equipment and personnel.

FAQ

Q: Can a short circuit on the recorder output disable the overspeed protection?

A: No, the 133396-01 is designed with isolated circuitry so that a short circuit on the +4 to +20 mA recorder output will not interfere with the module's primary overspeed detection or protection logic.

Q: What is the benefit of the epoxy sealing on this specific I/O module?

A: The epoxy sealing protects the sensitive electronic components from humidity, dust, and corrosive gases, which is vital for long-term reliability in harsh environments like oil and gas refineries or chemical plants.

Q: Is this module compatible with the standard 3500 rack interface?

A: Yes, the 133396-01 is a standard full-height I/O module that installs in the rear of the 3500 rack, specifically designed to pair with the 3500/53 overspeed monitor.

Q: How is the 4-20mA output scaled?

A: The output is proportional to the full-scale RPM range configured within the 3500 software. For example, if the module is set to a 0-5000 RPM range, 4mA represents 0 RPM and 20mA represents 5000 RPM.

Q: Does this module provide power to the speed sensors?

A: Yes, the module includes an internal -24 Vdc power supply capable of providing up to 40 mA to drive proximity probes or other compatible speed transducers.
