Product Overview

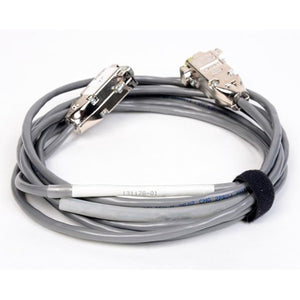

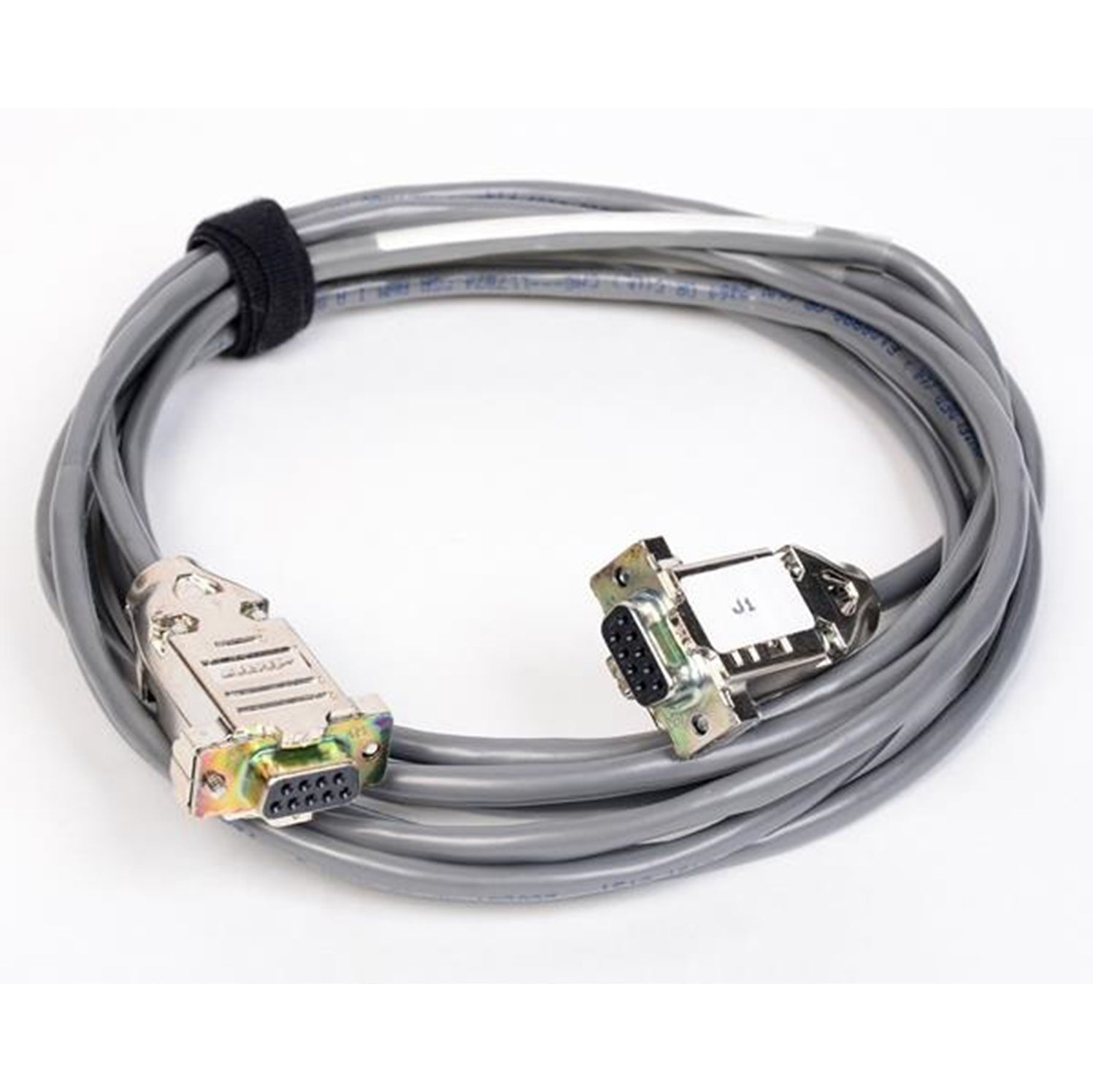

The 131178-01 is a specialized DB9 female-to-female communication cable designed specifically for the Bently Nevada 3500 Machinery Protection System. This cable acts as a primary data link, facilitating the connection between the 3500 monitoring rack and external diagnostic or configuration hardware. It is engineered to support the proprietary protocols required for seamless interaction with the system’s internal architecture. By providing a stable and shielded path for serial data, the 131178-01 ensures that maintenance personnel can accurately configure monitor setpoints, retrieve event logs, and analyze real-time machinery health data without signal degradation.

Core Interface Parameters

• Cable Geometry: DB9 Female to DB9 Female

• Total Length: 3 Meters (9.84 feet)

• Mass: 0.95 kg (2.09 lbs)

• Protocol Support: Proprietary Bently Nevada serial communication

• Rack Location Requirement: Interface typically corresponds to Slot 1 (Power Supply/RIM area)

• Processor Compatibility: Fully supports TDI (Transient Data Interface), DDIX, and TDXnet modules

• Shielding: Industrial-grade EMI/RFI protection

• Connector Material: Corrosion-resistant contacts with molded strain relief

Industrial Data Applications

This communication assembly is critical for the lifecycle management of the 3500 monitoring suite. Key functional applications include:

• System Configuration: Interfacing a laptop running 3500 Rack Configuration Software with the Rack Interface Module (RIM) to define transducer types and alarm levels.

• Diagnostic Data Acquisition: Connecting to TDI modules for the high-speed collection of transient data during machinery startup or coast-down.

• Network Integration: Linking the 3500 rack to communications processors for data export to plant-wide Distributed Control Systems (DCS).

• Firmware Updates: Providing the physical serial path required to perform essential firmware maintenance on various rack modules.

FAQ

Q: Is the 131178-01 a standard RS232 "null-modem" cable?

A: While it utilizes a DB9 form factor, it is specifically pinned and shielded for Bently Nevada proprietary communication protocols. Using a standard off-the-shelf serial cable may result in communication failures or hardware handshaking errors.

Q: Why is "Slot 1" mentioned in the installation requirements?

A: In the 3500 rack architecture, Slot 1 is the dedicated position for the Rack Interface Module (RIM) or Transient Data Interface (TDI). This cable must connect to the I/O module located in that specific position to access the system bus.

Q: What is the maximum distance supported by this cable?

A: The 131178-01 is 3 meters long. For distances exceeding this, signal boosters or different communication interfaces (such as Ethernet) are recommended to maintain data integrity across the serial link.

Q: Can I use this cable for the 3500/92 Communication Gateway?

A: This cable is primarily intended for rack interface modules. While the 3500/92 also uses DB9/serial connections, you should verify the specific I/O module pinout requirements in the 3500/92 manual before cross-application.

Q: Does this cable support the newer TDIX and TDXnet modules?

A: Yes, it is fully compatible with the Bently Nevada TDI, TDIX, and TDXnet communications processors, ensuring longevity as your monitoring system evolves.
