Product Overview

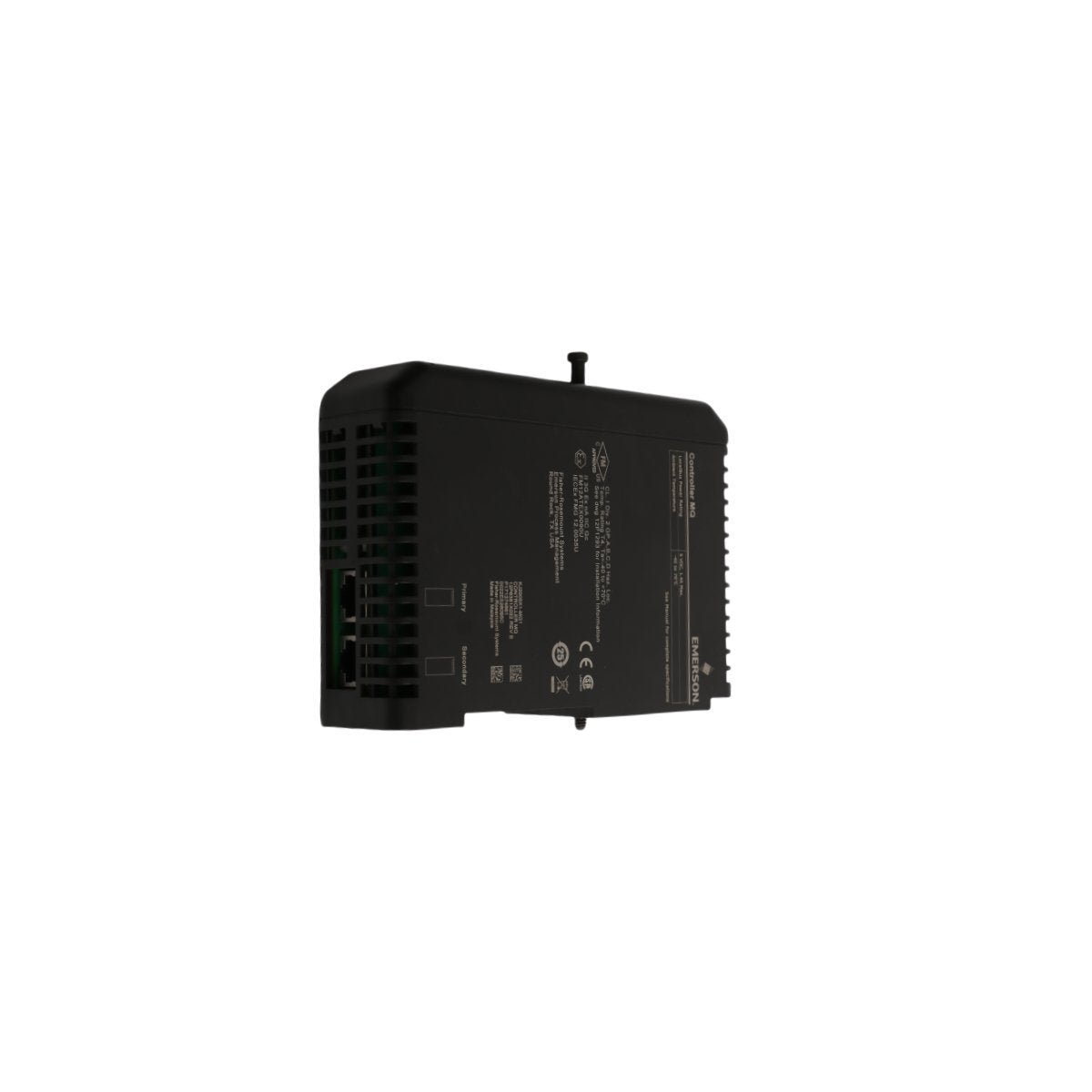

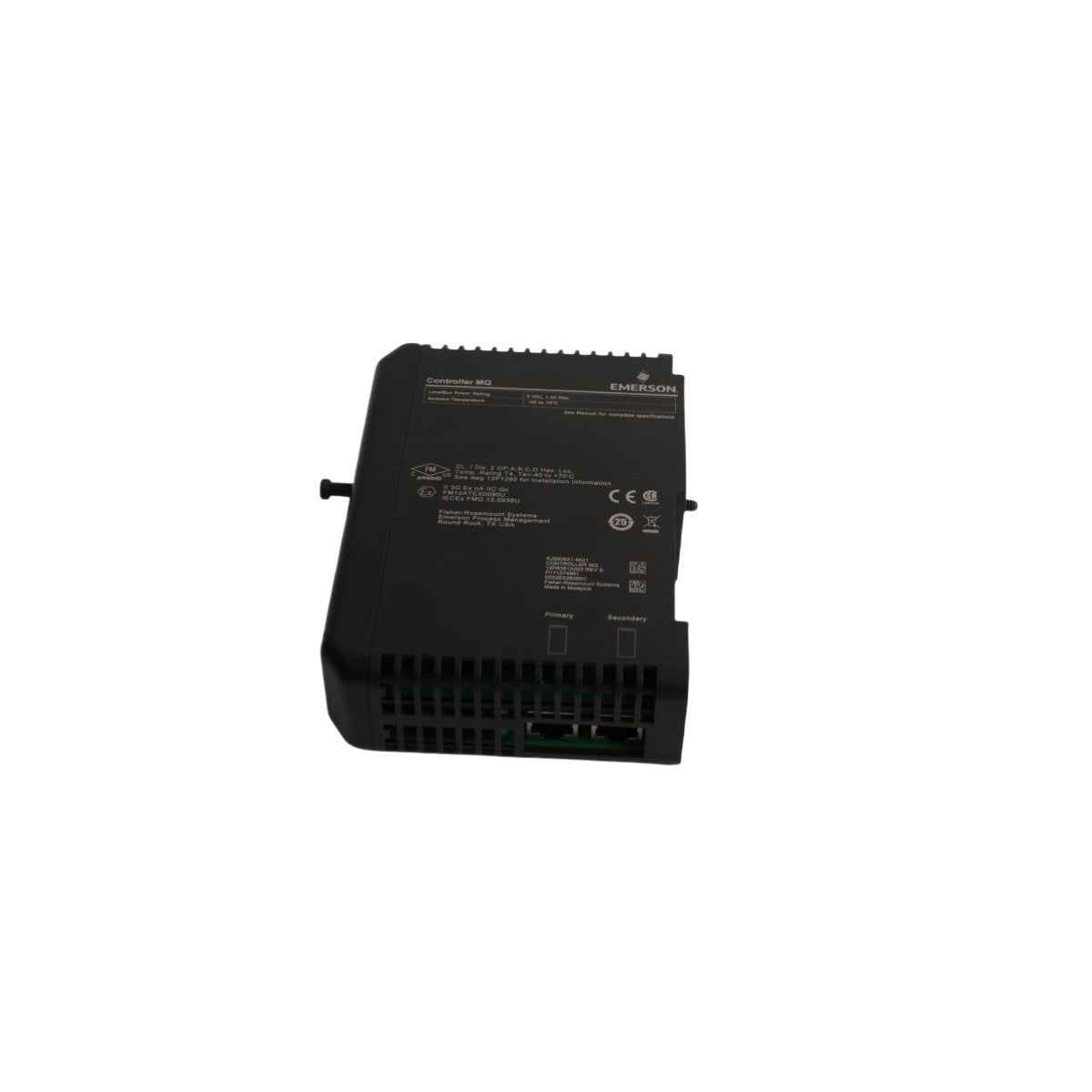

The Emerson VE3008 (also designated as KJ2005X1-MQ1 and 12P6381X022) is a high-performance MQ Controller Module designed for the DeltaV™ Distributed Control System (DCS). This controller acts as the central processing intelligence for the I/O subsystem, executing local control logic and managing communication between field devices and the broader control network. Unlike standard power modules, the MQ Controller is responsible for the real-time execution of function blocks and the coordination of both analog and discrete signals.

The VE3008 is engineered for mission-critical automation, providing the processing power necessary for complex control strategies while maintaining the high availability required by the DeltaV SIS™ process safety system environments. Its modular design allows it to be mounted directly onto a 2nd-wide carrier, ensuring a compact footprint in the control cabinet without sacrificing computational speed.

Technical Characteristics and Logic Execution

The MQ Controller is built to serve as the reliable backbone of process automation, focusing on speed, diagnostic depth, and environmental resilience.

• Advanced Processing Logic: Capable of executing a wide array of DeltaV function blocks for continuous, batch, and discrete control applications.

• Redundancy Support: Can be configured in redundant pairs to ensure bumpless switchover and uninterrupted process control in the event of a primary hardware failure.

• Integrated Diagnostics: Features comprehensive self-testing and system health monitoring, providing real-time alerts through the DeltaV software suite to prevent unplanned downtime.

• Localbus Communication: Efficiently manages the Localbus interface, facilitating rapid data exchange between the controller and the attached I/O modules.

• Field-Hardened Construction: Built to withstand industrial rigors, including significant temperature fluctuations and electrical noise (EMI/RFI) common in marshalling cabinets.

• Plug-and-Play Integration: Designed for rapid commissioning, the module is automatically recognized by the DeltaV configuration software, streamlining system expansion and maintenance.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Designation: VE3008 / KJ2005X1-MQ1

• Part Number: 12P6381X022

• Module Type: MQ Controller Module

• System Range: DeltaV™ DCS / DeltaV SIS™

• Operating Temperature: 0°C to +60°C (Standard industrial range)

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95% (Non-condensing)

• Shock/Vibration: Rated for high-stress industrial environments

• Dimensions: 4.1 cm x 15.9 cm x 10.8 cm

• Unit Weight: 0.3 kg

• Origin: USA

Industrial Applications

The Emerson VE3008 MQ Controller is a vital component for high-stakes process automation in several global industries:

• Petrochemical Refining: Managing complex distillation and catalytic cracking control loops.

• Power Generation: Coordinating boiler-turbine control and emergency shutdown logic.

• Pharmaceutical Batching: Executing precise recipe management and environmental monitoring.

• Specialty Chemicals: Providing stable control for highly exothermic or pressure-sensitive reactions.
