Product Overview

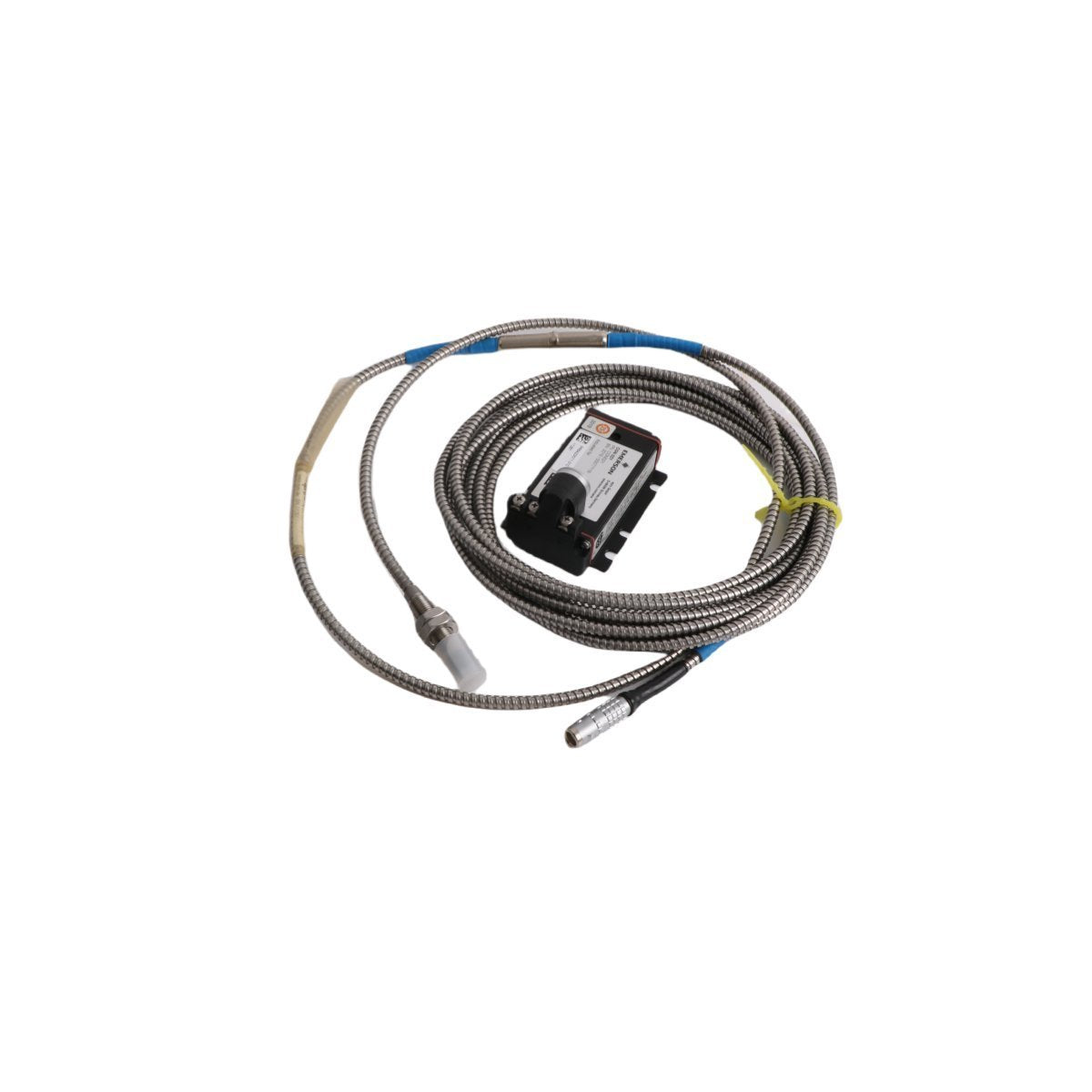

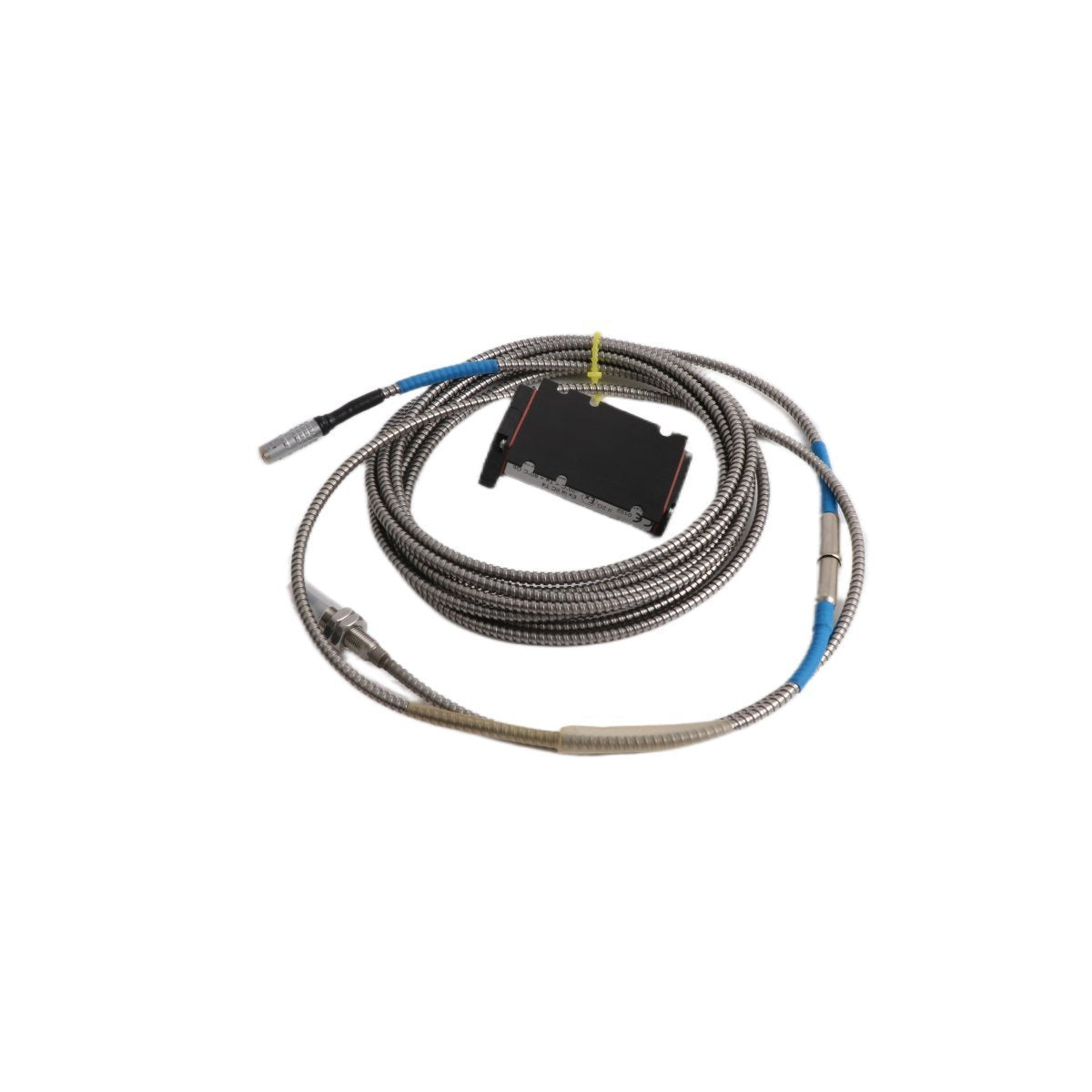

The Emerson PR6423/011-010 (CON021) is a specialized non-contact displacement sensor within the EPRO series, engineered for the precise monitoring of rotating shaft behavior in critical industrial machinery. Utilizing the eddy current measurement principle, this sensor captures high-resolution data regarding shaft vibration, axial position, and radial eccentricity. It is a fundamental component for machinery protection systems, ensuring the mechanical integrity of high-speed assets by detecting sub-micron movements that indicate bearing wear or imbalance.

Designed to withstand the volatile conditions of power plants and refineries, the PR6423/011-010 is typically paired with a signal converter (driver) to provide linearized data to a Distributed Control System (DCS). Its inductive sensing technology allows for continuous, wear-free monitoring, making it a primary choice for long-term predictive maintenance strategies on turbines, compressors, and large-scale industrial pumps.

Key Technical Characteristics and Functionality

The PR6423/011-010 is built to maintain measurement accuracy and signal stability in high-interference environments.

• Inductive Non-Contact Sensing: Operates without physical contact, eliminating mechanical friction and ensuring zero wear on the sensor tip or the target shaft for an extended service life.

• High-Frequency Resolution: Capable of capturing rapid shaft oscillations and complex vibration signatures across a broad frequency spectrum.

• Environmental Resilience: Housed in a hermetically sealed, stainless steel body designed to resist high pressures, hot oil immersion, and corrosive industrial atmospheres.

• Thermal Stability: Integrated temperature compensation ensures that signal drift is minimized, even when the sensor is mounted in close proximity to hot turbine housings.

• Advanced Signal Integrity: Features high-grade shielding to protect the output signal from electromagnetic interference (EMI) typically found near large motors and generators.

• CON021 Connector Interface: Specifically configured for secure connectivity within EPRO machinery health monitoring architectures, facilitating fast and reliable field installation.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Identification: PR6423/011-010

• Configuration Code: CON021

• Measurement Type: Static and Dynamic Displacement / Shaft Vibration

• Housing Material: Ruggedized Stainless Steel

• Dimensions: 24 x 21 x 4 cm

• Net Weight: 0.42 kg

• Protection Rating: IP67 (Standard for industrial immersion)

• Product Origin: USA

Industrial Applications

The Emerson PR6423/011-010 is a critical asset for safeguarding rotating equipment in several key sectors:

• Power Generation: Monitoring radial vibration and axial thrust in steam, gas, and hydro turbines.

• Oil & Gas Refining: Tracking bearing health and shaft stability in high-pressure centrifugal compressors.

• Chemical Processing: Supervising the mechanical integrity of high-speed mixers, centrifuges, and expanders.

• Heavy Utilities: Managing vibration diagnostics for large-scale industrial fan systems and drive motors.
