Product Overview

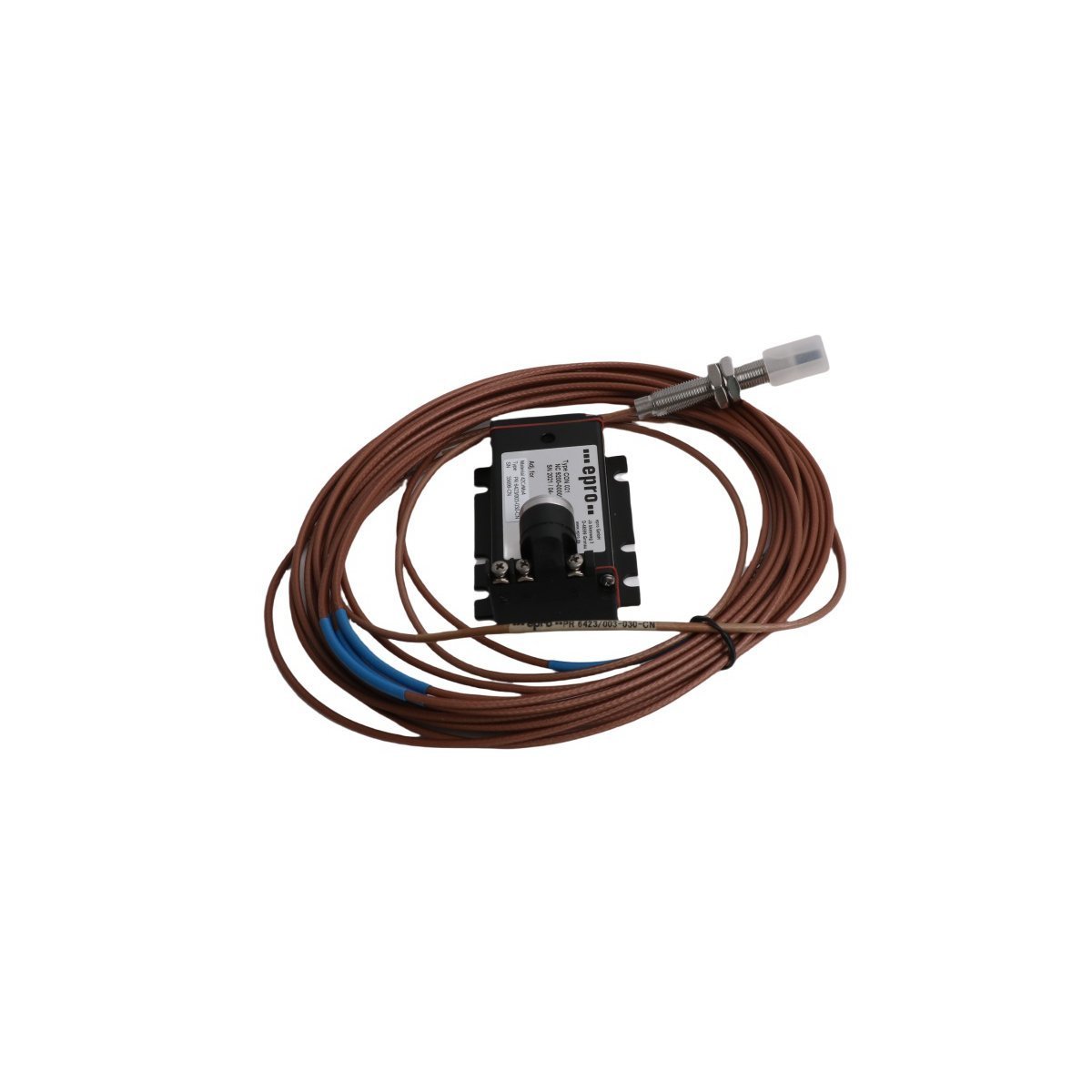

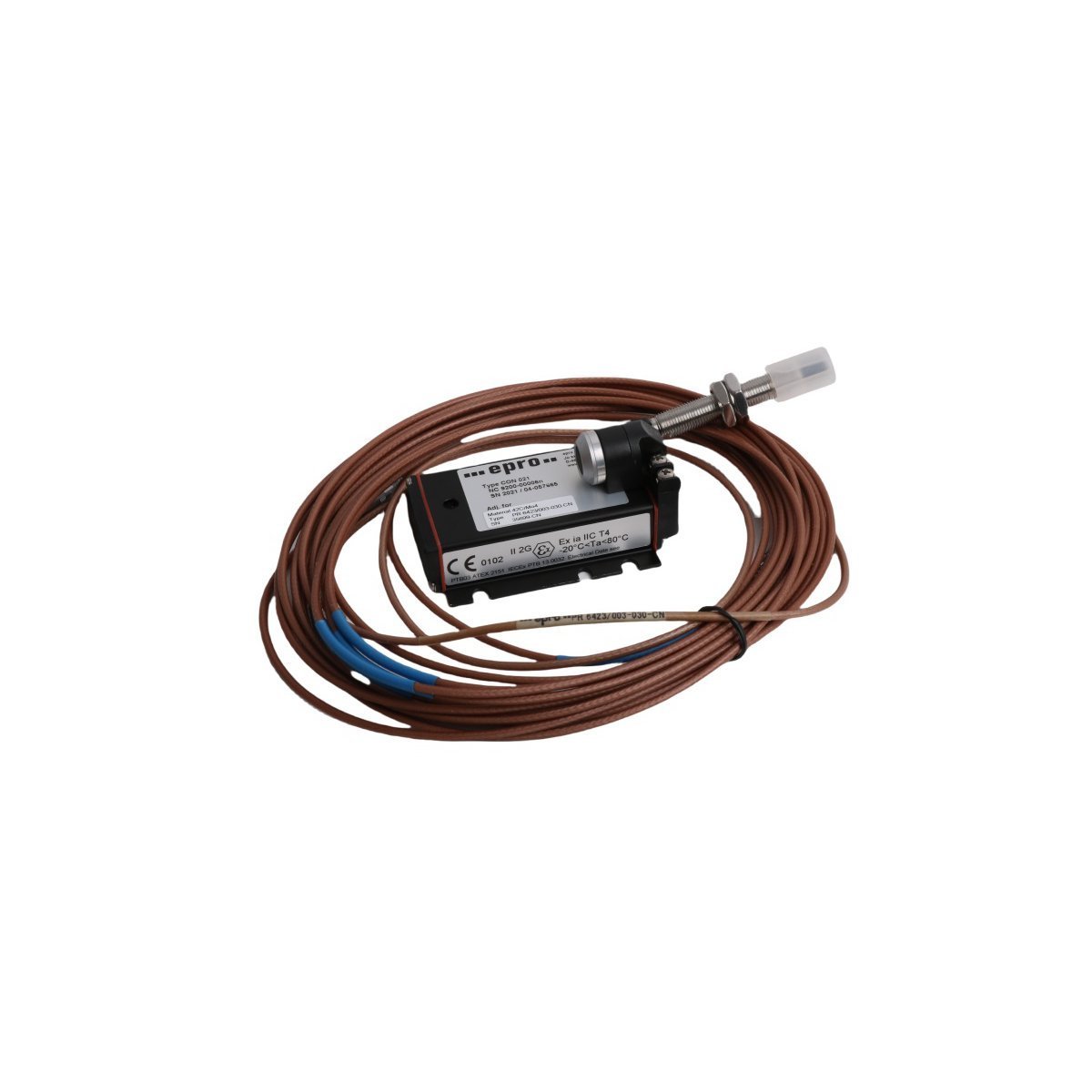

The Emerson PR6423/002-030 (Model CON021) is a high-precision inductive displacement sensor belonging to the EPRO machinery protection family. This non-contact probe utilizes eddy current technology to monitor the mechanical health of rotating shafts in critical industrial machinery. By detecting sub-micron variations in the air gap between the sensor tip and the conductive target, it provides real-time data on radial vibration, axial position, and thermal expansion.

Engineered for the rigorous demands of turbomachinery, the PR6423/002-030 serves as a primary sensing element within a Distributed Control System (DCS) or specialized vibration monitoring rack. It is a vital component for predictive maintenance programs, allowing plant operators to identify mechanical imbalances and bearing degradation before they lead to catastrophic equipment failure. The CON021 configuration is specifically optimized for high-stability signal transmission in volatile automation environments.

Technical Characteristics and Architecture

The PR6423/002-030 is built to maintain measurement linearity and structural integrity under high-stress operational conditions.

• Non-Contact Measuring Principle: Captures high-frequency vibration and static displacement without physical contact, eliminating friction and mechanical wear for a virtually unlimited service life.

• Broad Frequency Response: Optimized to monitor a wide spectrum of machinery motion, from low-frequency structural shifts to high-frequency shaft oscillations.

• Hermetic Environmental Protection: The probe is encased in a ruggedized, corrosion-resistant housing (IP67 rated) capable of withstanding high pressures, oil submersion, and aggressive chemical vapors.

• Advanced Noise Suppression: Integrated shielding and specialized circuitry minimize electromagnetic interference (EMI) from nearby high-voltage motors or generators.

• Thermal Compensation: Designed with internal temperature-compensated components to prevent signal drift in hot-running turbine environments, ensuring accuracy across a broad temperature gradient.

• Standardized System Integration: Features a specialized CON021 connector interface designed for seamless pairing with EPRO signal converters and standard industrial monitoring cabinets.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Identification: PR6423/002-030

• Configuration Code: CON021

• Measurement Principle: Eddy Current (Inductive)

• Primary Function: Radial Vibration, Axial Displacement, and Rotational Speed

• Housing Material: Ruggedized Stainless Steel with Ceramic Tip

• Protection Class: IP67 / G3 Corrosive Environment Rated

• Dimensions: 17 x 24 x 6.5 cm

• Unit Weight: 0.4 kg

• Product Origin: USA

Industrial Applications

The Emerson PR6423/002-030 is an essential asset for safeguarding high-value rotating assets in several key sectors:

• Power Generation: Monitoring radial vibration and axial thrust in gas, steam, and hydro turbines.

• Oil and Gas: Tracking shaft stability and bearing health in centrifugal compressors and high-pressure pumps.

• Chemical Processing: Supervising the mechanical integrity of high-speed mixers, expanders, and centrifuges.

• Heavy Utilities: Managing vibration diagnostics for large-scale industrial fan systems and drive motors.
