Product Overview

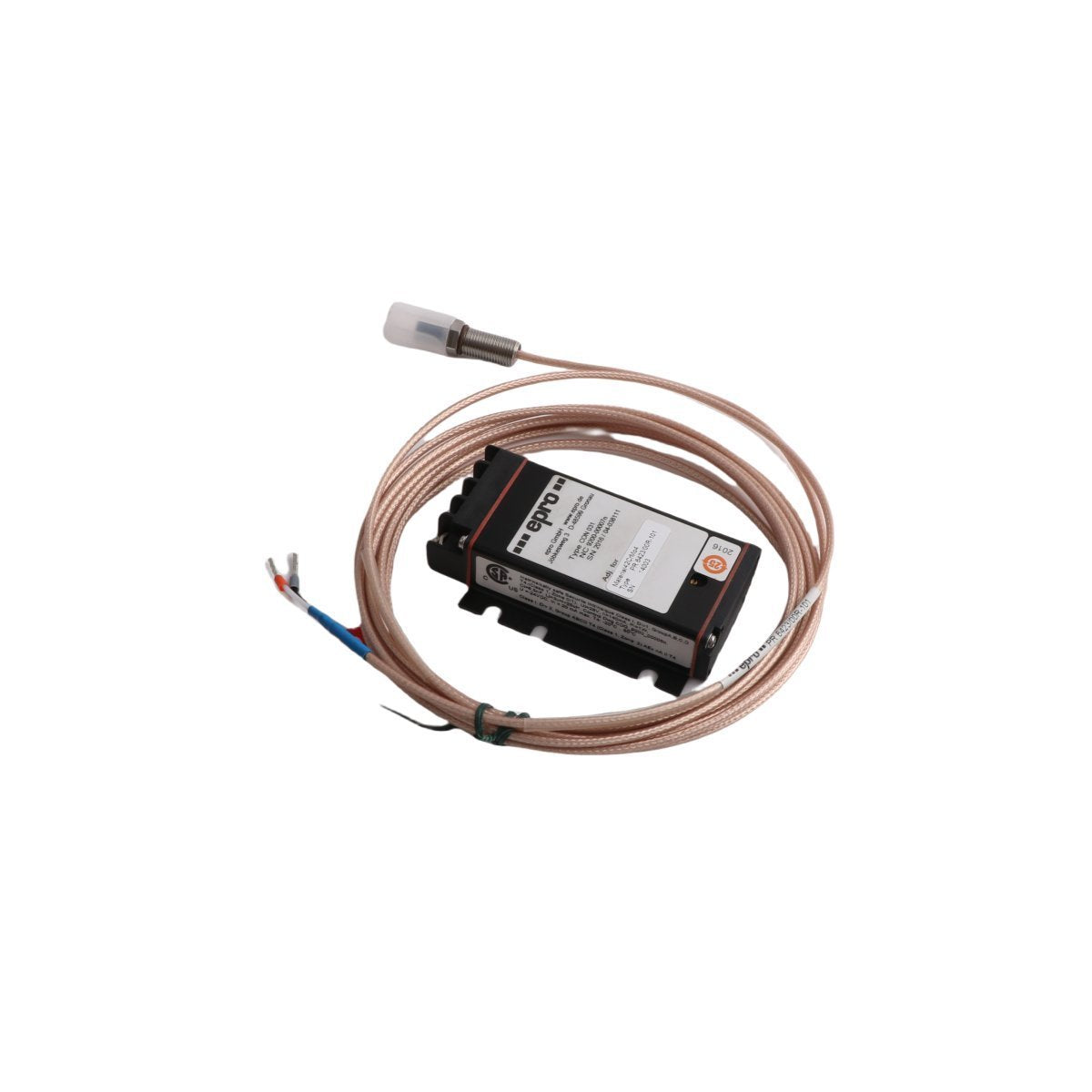

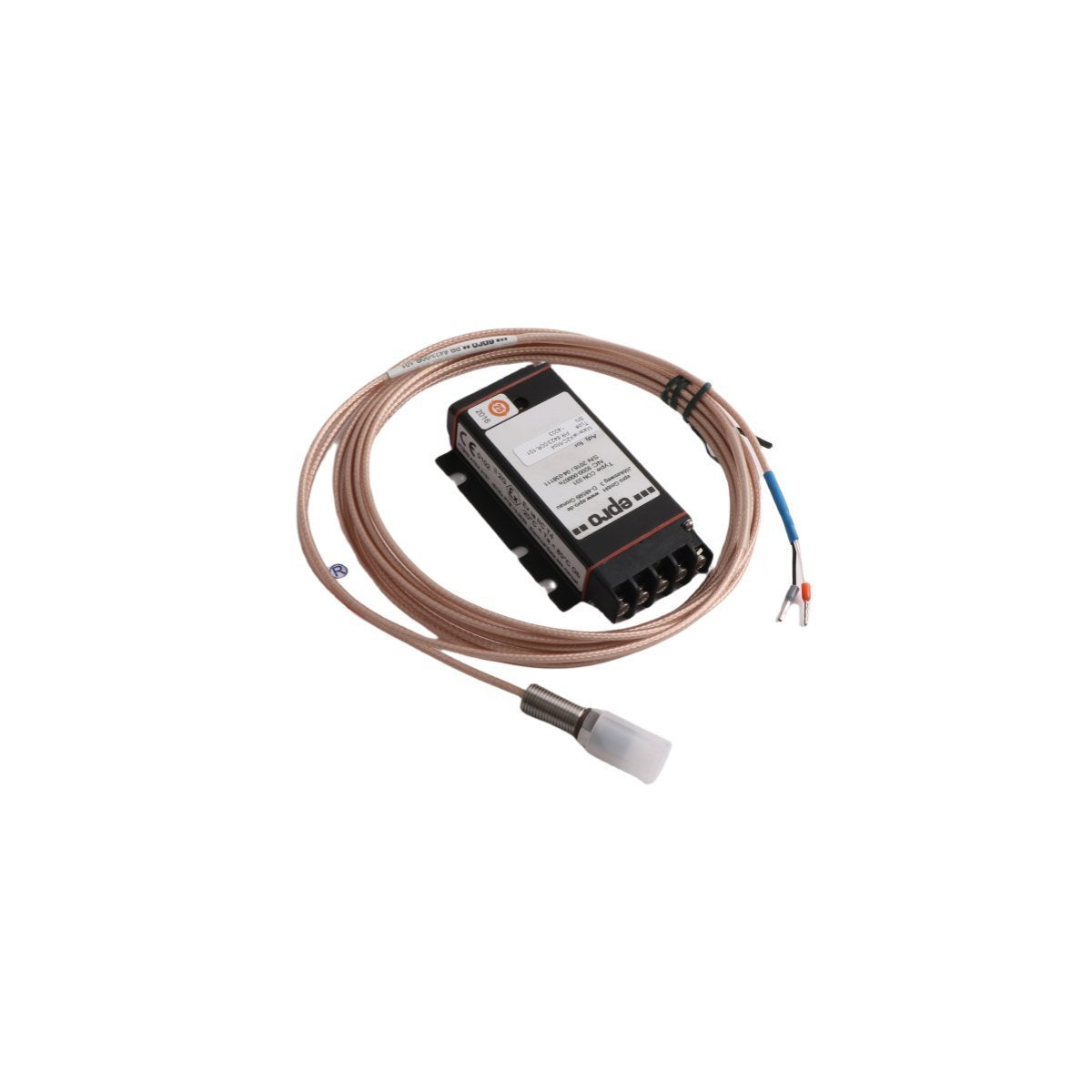

The Emerson PR6423/00R-101 (CON031) is a precision non-contact eddy current sensor developed under the EPRO product line for industrial machinery protection and condition monitoring. This electromagnetic transducer is engineered to measure the distance between the probe tip and a rotating metallic target, such as a turbine shaft or compressor bearing. By detecting minute variations in the magnetic field, the sensor provides real-time data on shaft vibration, axial position, and thermal expansion.

Unlike traditional contact sensors, the PR6423 series utilizes a non-wear measuring principle, ensuring long-term stability and high-resolution signal output. The CON031 variant features specialized connectivity and housing characteristics designed for seamless integration into Distributed Control Systems (DCS) and vibration monitoring racks, acting as a critical early-warning component for predictive maintenance programs.

Core Technical Characteristics and Resilience

The PR6423/00R-101 is built to deliver high-integrity measurement data within the volatile environments of heavy industry.

• Non-Contact Displacement Sensing: Measures shaft motion without physical contact, eliminating friction and mechanical wear while ensuring zero load on the measured object.

• High-Frequency Signal Conditioning: Optimized for a wide frequency response, allowing the capture of high-speed shaft oscillations and complex vibration harmonics.

• Advanced Noise Suppression: Integrated shielding and specialized circuitry minimize electromagnetic interference (EMI) from nearby motors or generators, providing a clean analog output.

• Ruggedized Construction: Encased in high-grade stainless steel with a ceramic-capped tip, the probe is resistant to high pressures, oil submersion, and chemical contaminants.

• Stable Thermal Performance: Designed to maintain measurement accuracy across a wide temperature gradient, preventing signal drift in hot-running turbine environments.

• System Interoperability: Standardized electrical characteristics ensure compatibility with EPRO signal converters (drivers) and standard industrial monitoring interfaces.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Identification: PR6423/00R-101

• Configuration Code: CON031

• Measurement Principle: Eddy Current (Inductive)

• Function: Displacement, Vibration, and Position Measurement

• Target Material: Conductive Metals (Standardized to Ferromagnetic Steel)

• Dimensions: 16 x 15 x 2 cm

• Unit Weight: 0.16 kg

• Country of Origin: USA

Industrial Applications

The PR6423/00R-101 is an essential tool for safeguarding high-value rotating assets in various sectors:

• Power Generation: Monitoring axial thrust and radial vibration in steam and gas turbines.

• Oil and Gas: Tracking shaft stability in centrifugal compressors and high-pressure pumps.

• Chemical Processing: Supervising the mechanical health of high-speed agitators and expanders.

• Heavy Manufacturing: Measuring eccentricity and thermal expansion in large-scale industrial motors.
