Product Overview

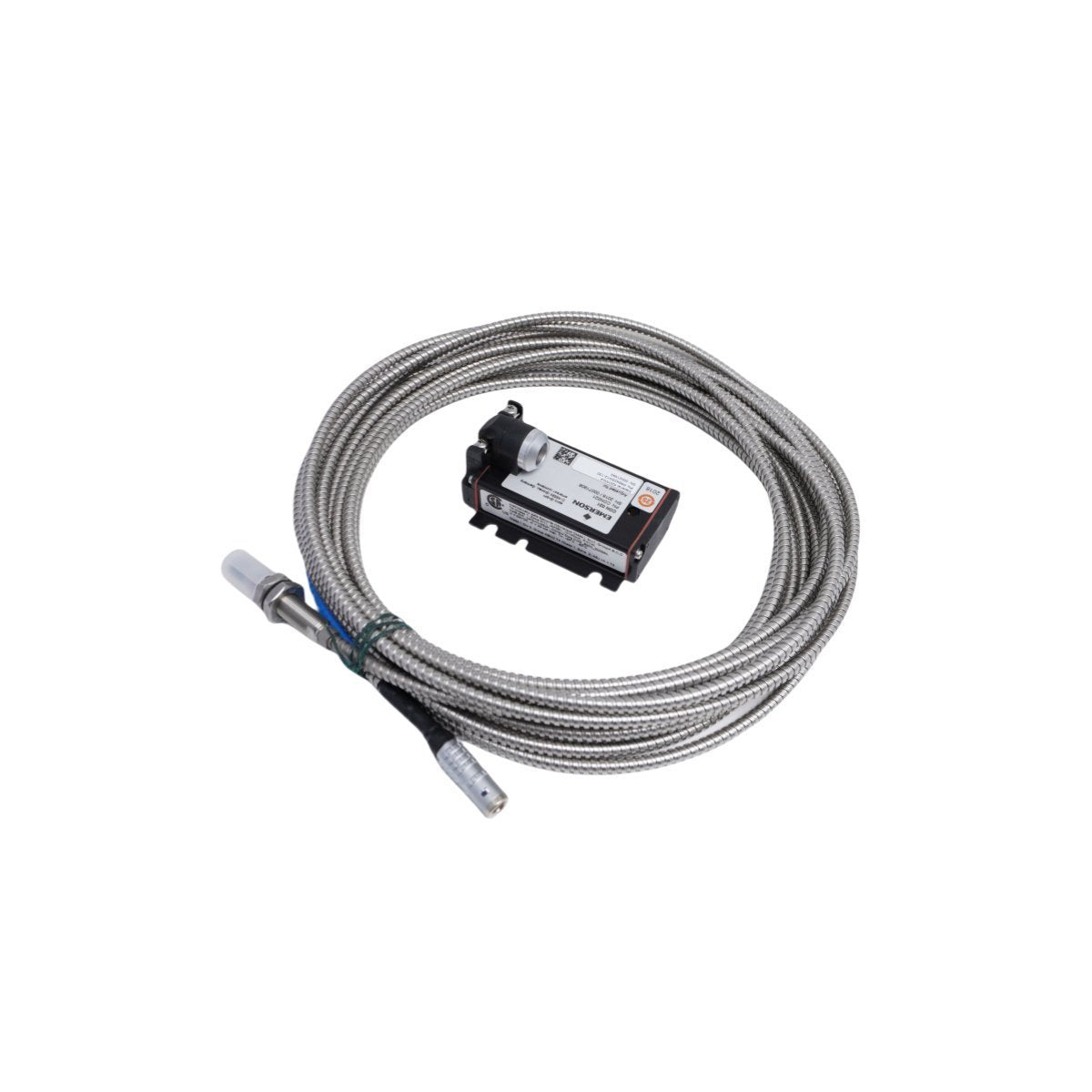

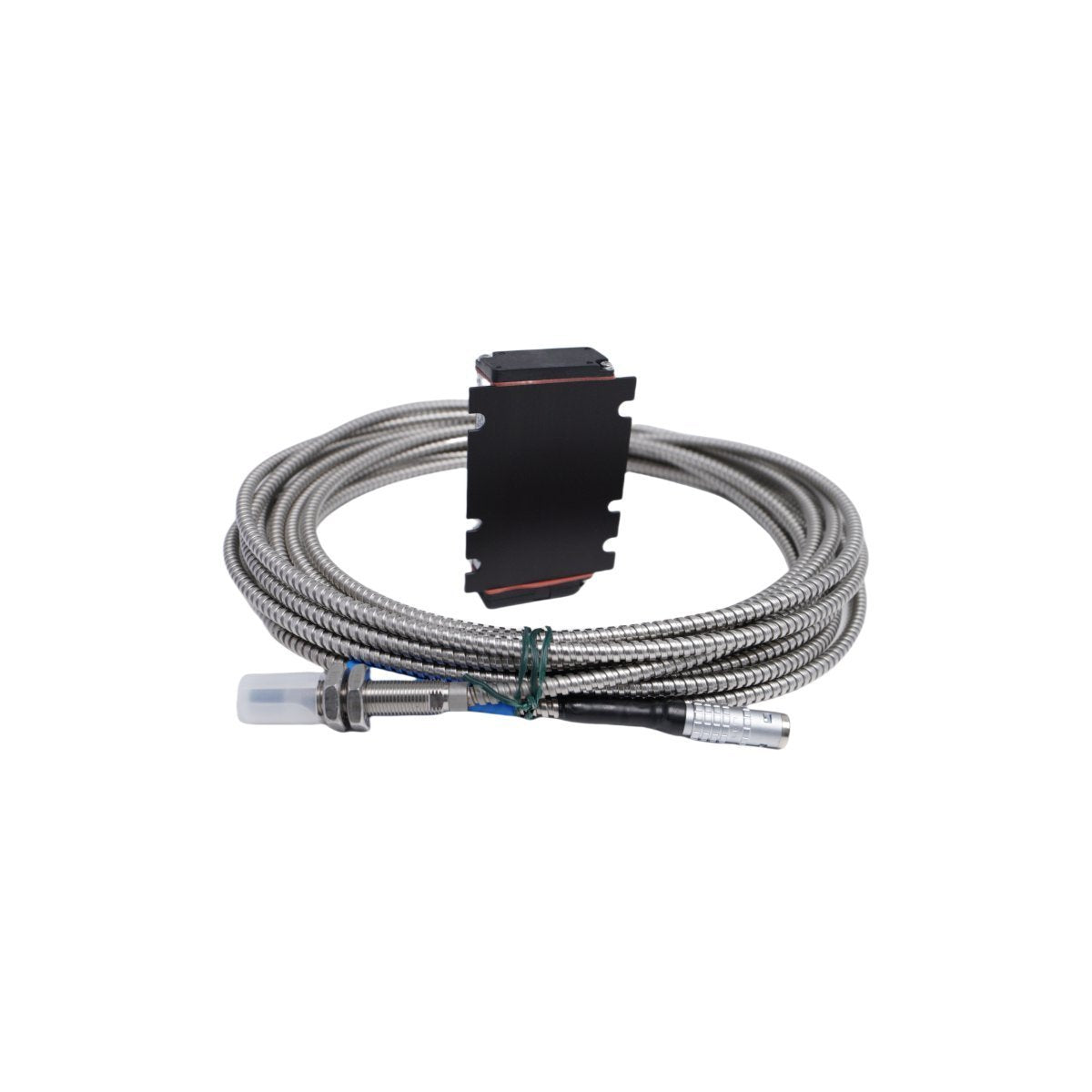

The Emerson PR6423/012-130 (Model CON021) is a high-performance Eddy Current Sensor from the EPRO machinery protection series. This inductive, non-contact transducer is specifically designed for the precise measurement of shaft displacement and vibration in high-speed rotating equipment. By generating an electromagnetic field at the probe tip, the sensor detects minute changes in the distance between the probe and a conductive target, such as a turbine shaft, without making physical contact.

Engineered for the critical monitoring of turbomachinery, the PR6423/012-130 provides the essential raw data required for determining axial position, radial vibration, and rotational speed. When integrated with a Distributed Control System (DCS) or a dedicated vibration monitor, it acts as a primary defense against mechanical failure, facilitating predictive maintenance strategies and safeguarding high-capital industrial assets.

Technical Characteristics and Architecture

The CON021 configuration is built to maintain signal fidelity and structural endurance in the most volatile industrial environments.

• Non-Contact Inductive Technology: Eliminates mechanical wear and tear by measuring displacement across an air gap, ensuring long-term calibration stability.

• High-Resolution Signal Acquisition: Capable of detecting sub-micron changes in position, making it ideal for monitoring bearing clearances and subtle shaft oscillations.

• Thermal and Drift Compensation: Integrated design features minimize the impact of ambient temperature fluctuations and sensor drift, ensuring accurate readings across a wide operating gradient.

• Environmental Resistance: The probe is hermetically sealed and constructed from corrosion-resistant materials, capable of withstanding high pressures, oil immersion, and chemical exposure.

• Electromagnetic Immunity: Advanced shielding protects the measurement signal from interference generated by large motors, generators, and industrial power equipment.

• Flexible System Integration: Standardized electrical characteristics allow the sensor to interface seamlessly with EPRO signal converters (drivers) and standard DCS I/O modules.

Technical Specifications

• Manufacturer: EMERSON (EPRO Series)

• Model Identification: PR6423/012-130

• Configuration Code: CON021

• Module Type: Eddy Current Displacement Sensor

• Measurement Function: Static and Dynamic Displacement, Vibration, Speed

• System Environment: DCS / PLC / Machinery Health Monitor

• Dimensions: 20 x 18 x 4 cm

• Unit Weight: 0.2 kg

• Product Origin: USA

Industrial Applications

The Emerson PR6423/012-130 is a fundamental component for monitoring rotating machinery in the following sectors:

• Power Generation: Measuring axial thrust and radial vibration in gas, steam, and hydro turbines.

• Oil and Gas: Tracking shaft stability and bearing wear in centrifugal compressors and high-pressure pumps.

• Chemical Refining: Supervising high-speed mixers, expanders, and critical reactor equipment.

• Manufacturing: Monitoring the mechanical integrity of large-scale industrial fans and drive motors.
