Product Overview

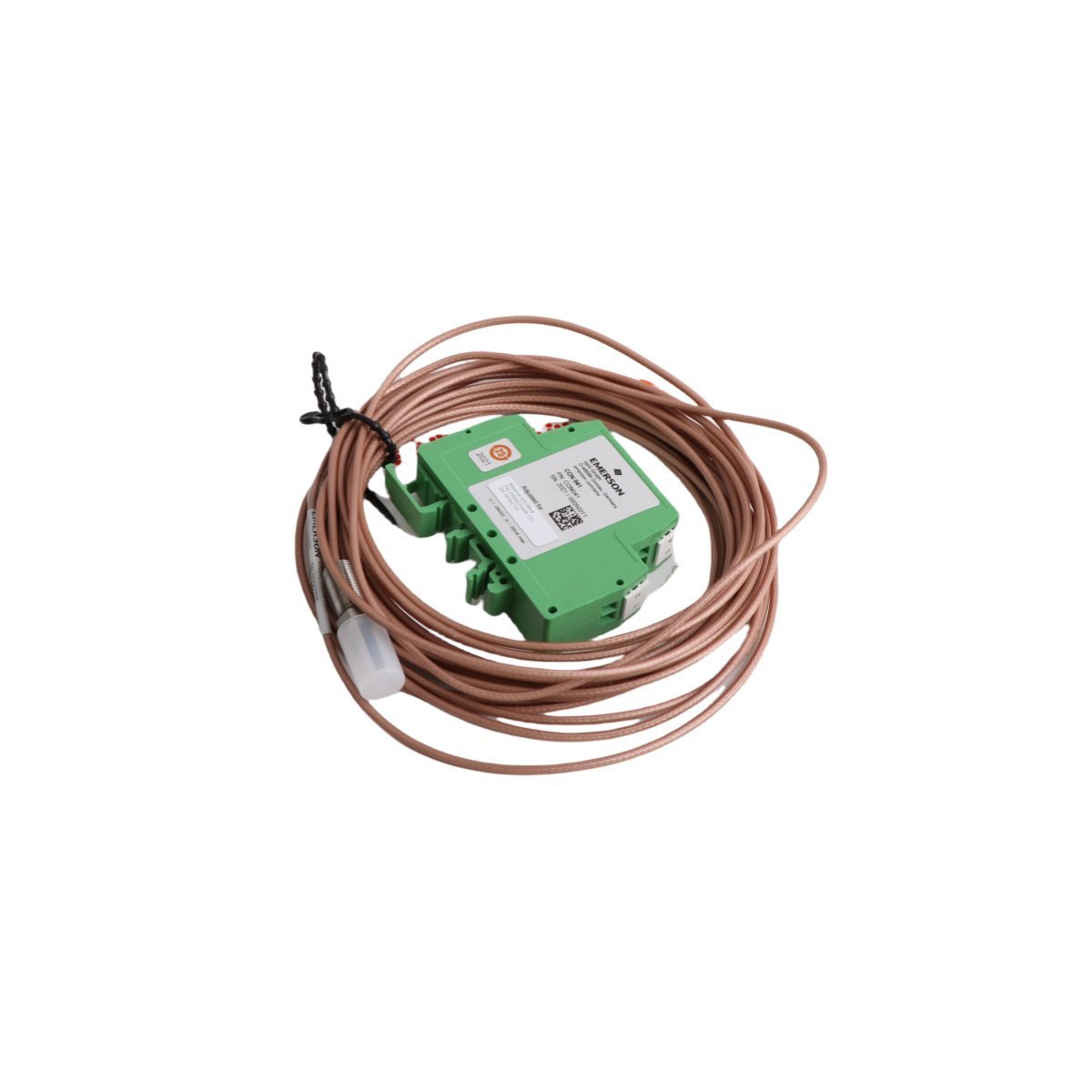

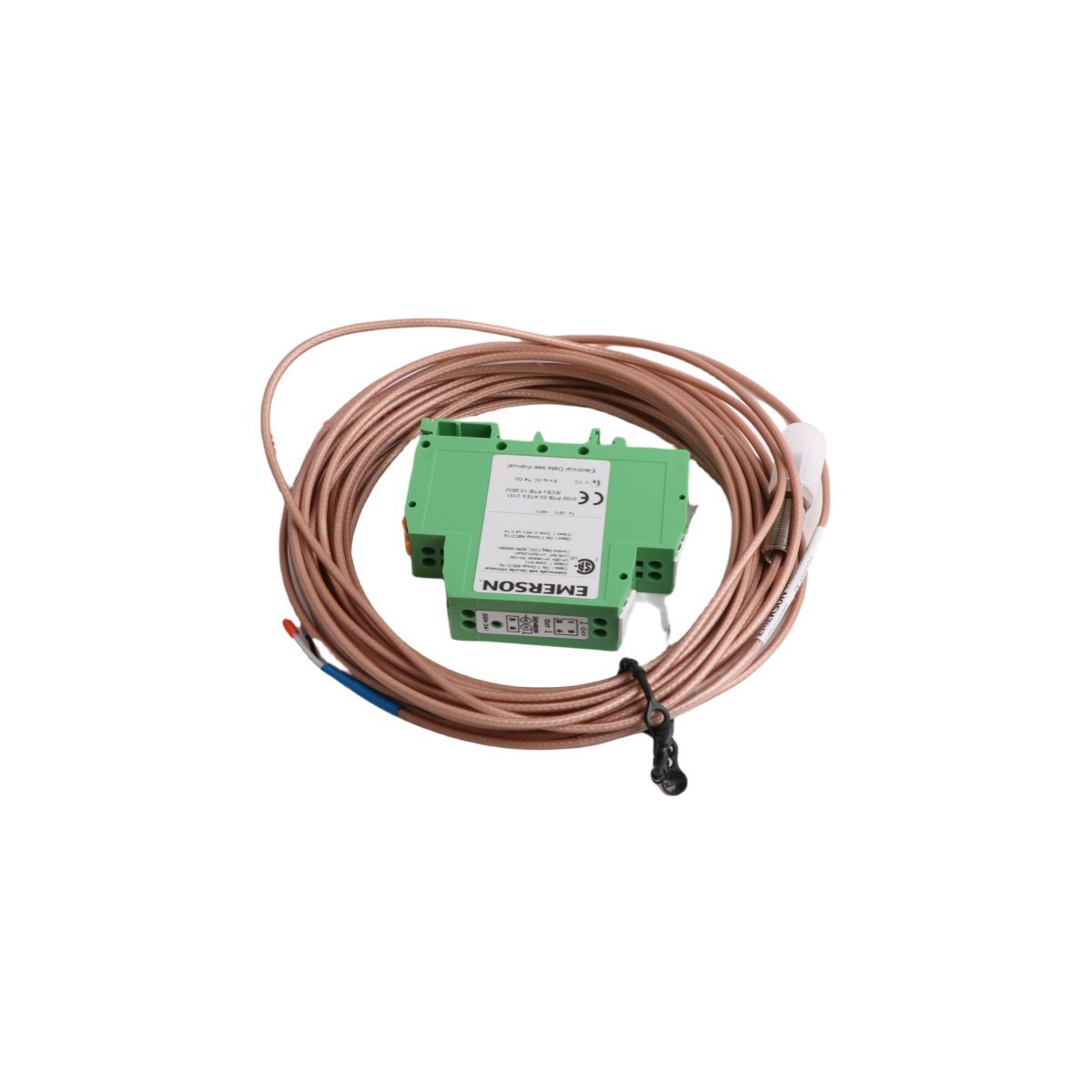

The Emerson PR6423/00R-111 (Model CON041) is a high-performance inductive displacement sensor from the EPRO machinery protection series. This non-contact probe is engineered to measure the distance between the sensor tip and a conductive target, such as a turbine shaft or rotating gear, using eddy current technology. By detecting sub-micron variations in the electromagnetic field, the sensor provides critical data for monitoring shaft vibration, axial position, and rotational speed.

Specifically optimized for high-speed turbomachinery, the PR6423/00R-111 acts as a primary sensing element within a Distributed Control System (DCS) or PLC environment. It is a vital component for predictive maintenance programs, allowing plant operators to identify mechanical imbalances, bearing wear, and thermal expansion before they lead to catastrophic equipment failure. The CON041 configuration ensures enhanced signal stability and mechanical robustness, tailored for the most demanding industrial automation infrastructures.

Core Technical Characteristics and Resilience

The PR6423/00R-111 is built to maintain measurement linearity and structural integrity under high-stress operational conditions.

• Non-Contact Measuring Architecture: Utilizes an electromagnetic field to sense displacement without physical contact, eliminating friction and mechanical wear while ensuring a virtually unlimited service life.

• High-Fidelity Signal Conditioning: Features advanced onboard circuitry to minimize electromagnetic interference (EMI) and signal noise, delivering a clean analog output for real-time analysis.

• Hermetic Environmental Sealing: The probe is encased in a ruggedized, corrosion-resistant housing capable of withstanding high pressures, oil submersion, and chemical vapors.

• Wide Frequency Response: Capable of capturing both low-frequency structural shifts and high-frequency dynamic vibrations, providing a comprehensive view of machinery health.

• Thermal Stability: Engineered with temperature-compensated components to prevent signal drift in hot-running turbine environments, ensuring consistent accuracy across a wide temperature gradient.

• Standardized System Integration: Features a specialized CON041 connector interface designed for seamless pairing with EPRO signal converters and standard industrial monitoring racks.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Identification: PR6423/00R-111

• Configuration Code: CON041

• Measurement Principle: Eddy Current (Inductive)

• Function: Static and Dynamic Displacement, Vibration, Speed

• System Environment: DCS / PLC / Machinery Health Monitor

• Housing Material: Stainless Steel with Ceramic Tip

• Dimensions: 16 x 16 x 2 cm

• Unit Weight: 0.22 kg

• Product Origin: USA

Industrial Applications

The Emerson PR6423/00R-111 is an essential asset for safeguarding rotating equipment in several key sectors:

• Power Generation: Monitoring radial vibration and axial thrust in gas, steam, and hydro turbines.

• Oil and Gas: Tracking shaft stability and bearing health in centrifugal compressors and high-pressure pumps.

• Chemical Processing: Supervising the mechanical integrity of high-speed mixers and industrial expanders.

• Heavy Utilities: Managing vibration diagnostics for large-scale industrial fan systems and drive motors.
