Product Overview

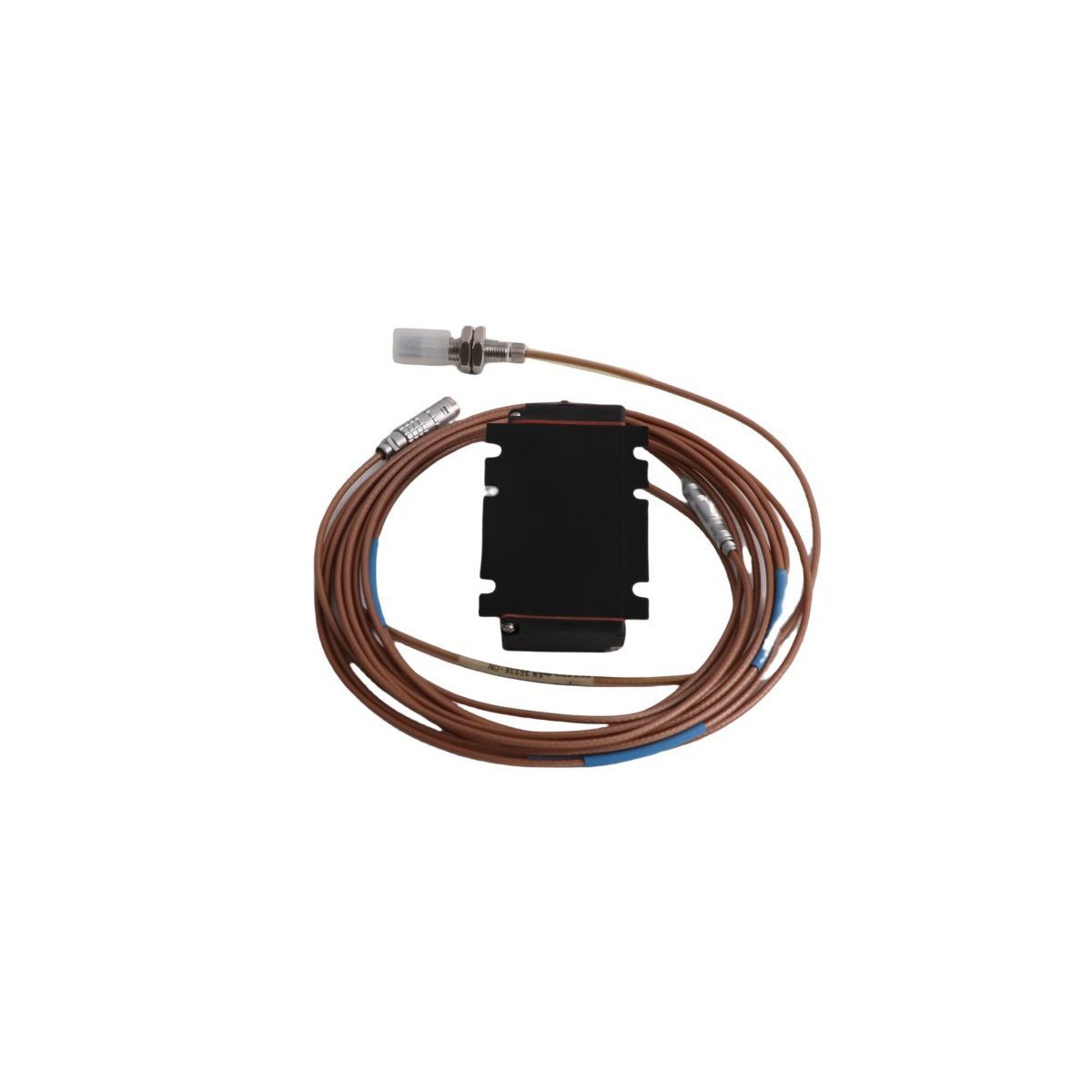

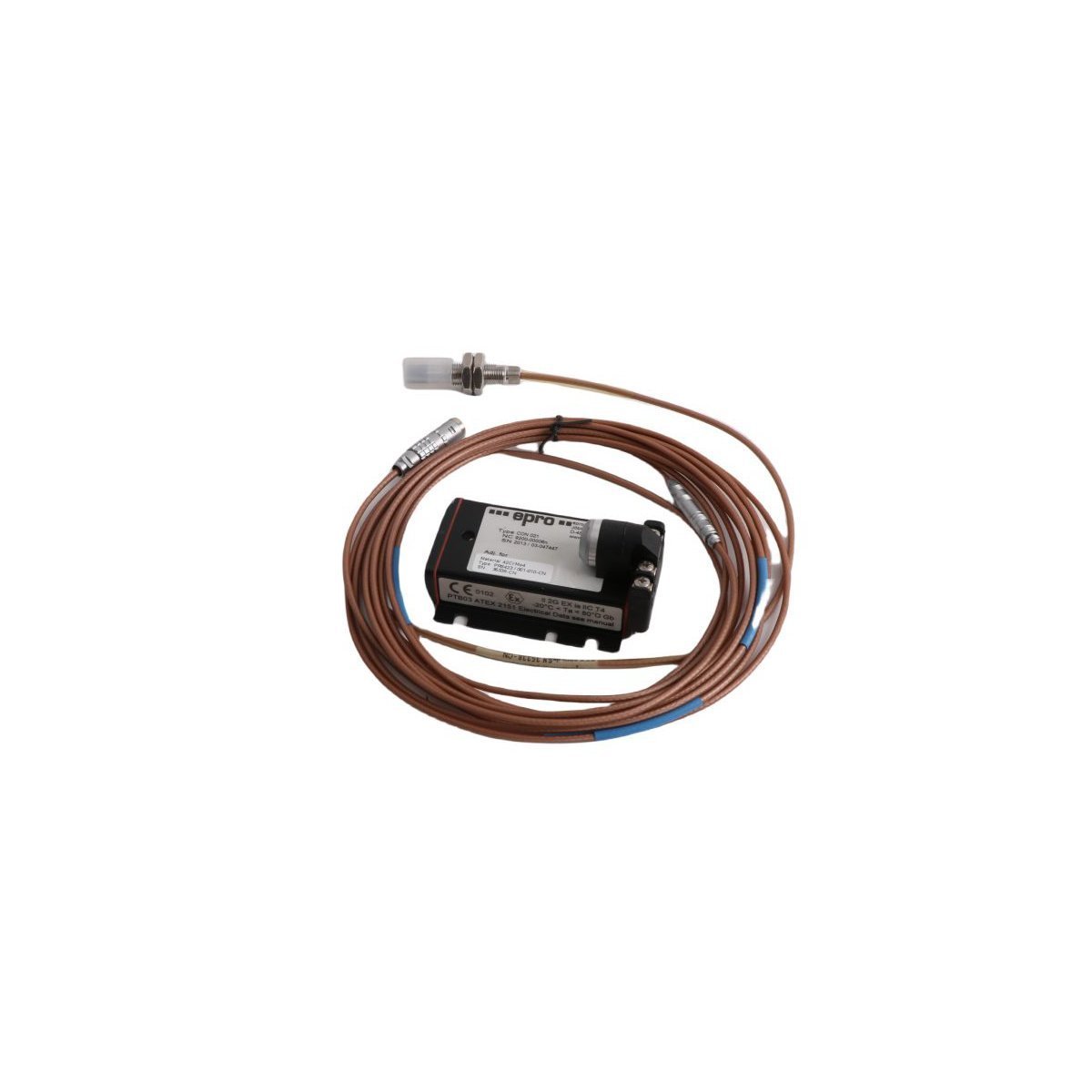

The Emerson PR6423/001-010-CN (Configuration CON021) is a precision-engineered inductive displacement sensor within the EPRO machinery protection portfolio. This non-contact transducer is specifically designed to measure the gap between the probe tip and a rotating conductive target. It provides high-resolution data regarding shaft vibration, axial position, and radial eccentricity, which are critical parameters for the health monitoring of high-speed turbomachinery.

Engineered for the most demanding Distributed Control System (DCS) environments, this sensor enables predictive maintenance by identifying mechanical anomalies before they result in equipment failure. Its non-contact architecture ensures that there is no mechanical wear on the sensor or the target, providing a reliable long-term solution for assets such as large-scale compressors, steam turbines, and industrial generators.

Technical Characteristics and Architecture

The PR6423/001-010-CN is built to maintain measurement linearity and signal integrity under extreme industrial stress.

• Non-Contact Measurement: Captures dynamic vibration and static displacement without physical interaction, ensuring no load on the measured object and a virtually unlimited operational life.

• Environmental Hardening: Housed in a ruggedized, hermetically sealed casing designed to withstand high-pressure environments, oil submersion, and corrosive atmospheres.

• Advanced Signal Conditioning: Optimized for high-frequency response, allowing the detection of subtle shaft oscillations and high-speed rotational faults.

• Thermal Drift Compensation: Integrated internal mechanisms compensate for ambient temperature fluctuations, ensuring measurement accuracy across a wide temperature gradient in turbine halls.

• EMI/RFI Immunity: Sophisticated shielding prevents electromagnetic interference from high-voltage motors or generators from distorting the displacement signal.

• Seamless System Integration: The CON021 interface is fully compatible with EPRO signal converters and standard industrial monitoring racks for immediate data processing and visualization.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Designation: PR6423/001-010-CN

• Configuration Code: CON021

• Transducer Type: Eddy Current (Inductive)

• Application: Radial/Axial Vibration, Displacement, and Speed

• System Compatibility: DCS / PLC / Machinery Health Monitors

• Housing Material: Ruggedized Stainless Steel

• Dimensions: 40 x 30 x 5 cm

• Unit Weight: 1.5 kg

• Product Origin: USA

Industrial Applications

The Emerson PR6423/001-010-CN is a critical component for asset protection in several key sectors:

• Power Generation: Monitoring shaft vibration and thrust in gas, steam, and hydro turbines.

• Petrochemical & Refining: Tracking bearing clearances and shaft stability in centrifugal compressors.

• Heavy Manufacturing: Supervising large-scale industrial fan systems and drive motors.

• Water & Utilities: Managing mechanical health for high-capacity vertical and horizontal pumps.
