Product Overview

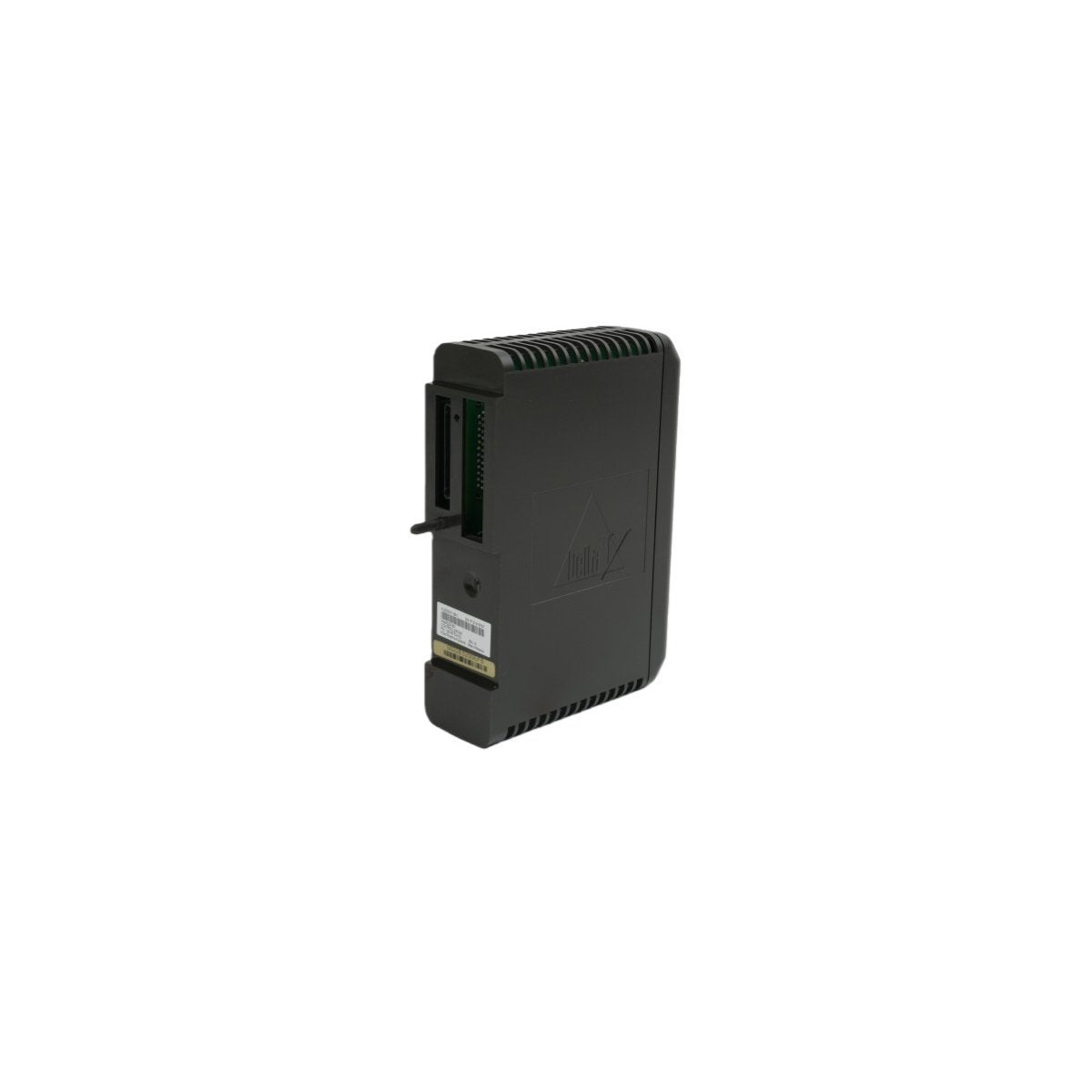

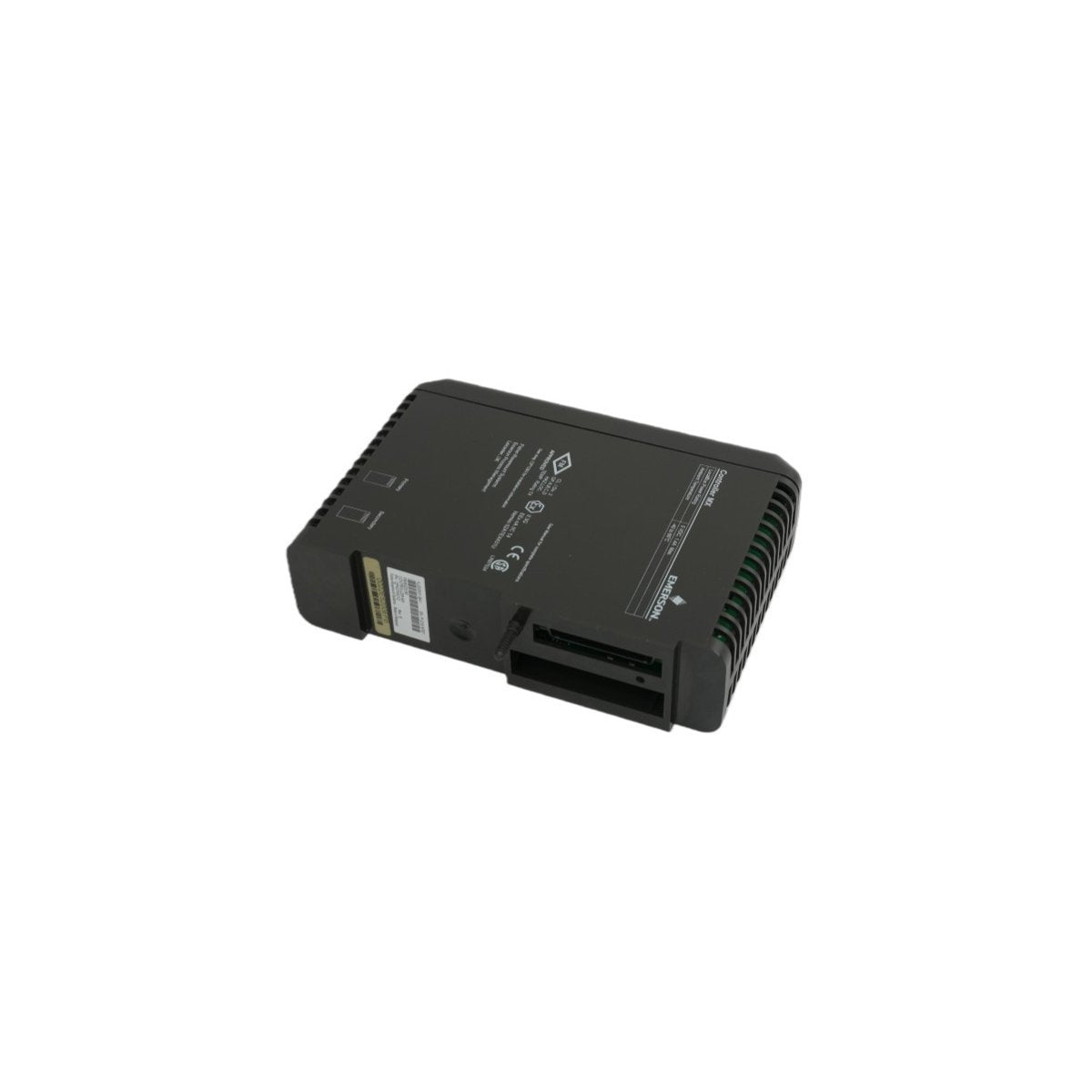

The Emerson KJ2005X1-BA1 (Part Number 12P4375X012) is a high-capacity MX Controller designed for the DeltaV™ Distributed Control System (DCS). Engineered to handle demanding computational tasks, the MX controller provides the processing power required for large-scale I/O environments and complex control strategies. It facilitates high-speed data exchange via 100MB/second full-duplex Ethernet, ensuring that real-time process information is communicated across the plant network with minimal latency.

This module serves as the primary intelligence for DeltaV M-series hardware, offering a significant leap in memory capacity and execution speed compared to previous controller generations. By managing both continuous and batch control logic, the KJ2005X1-BA1 ensures operational consistency in mission-critical industrial sectors, including power generation and chemical refining.

Key Technical Characteristics and Performance

The MX Controller is built to maximize system availability while simplifying the integration of smart field devices.

• High-Speed Execution: Capable of processing complex control algorithms at rapid scan rates while maintaining low CPU overhead.

• Plug-and-Play I/O Detection: Automatically identifies and configures connected I/O modules and field device characteristics, drastically reducing engineering and commissioning labor.

• Redundant Reliability: Supports fully redundant hardware configurations with automatic failover, ensuring that a single controller fault does not lead to process downtime.

• Flexible Communication: Native support for multiple industrial protocols, including Modbus and Profibus, allowing for seamless data integration from diverse field instrumentation.

• Hot-Swappable Maintenance: Allows for the replacement of controller modules under power, ensuring that maintenance activities do not disrupt active process control.

• Robust Diagnostic Suite: Equipped with a hardware watchdog timer and comprehensive LED indicators for real-time monitoring of power, CPU health, and Ethernet activity.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ2005X1-BA1

• Order Reference: 12P4375X012

• Module Type: MX Automation Controller

• System Platform: DeltaV™ M-series DCS

• Network Speed: 100 Mbps Full-Duplex Ethernet

• Operating Temperature: Standard industrial range (G3 Corrosive rating compatible)

• Dimensions: 12.1 x 5.2 x 16.6 cm

• Net Weight: 0.34 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ2005X1-BA1 MX Controller is a staple in large-scale facilities where precision and uptime are paramount:

• Power Generation: Coordinating complex burner management systems and turbine controls.

• Oil & Gas Refining: Managing high-density safety interlocks and distillation column logic.

• Chemical Manufacturing: Executing sophisticated batch sequences and thermal regulation.

• Water Treatment: Supervising distributed pump stations and large-scale filtration sequences.
