Product Overview

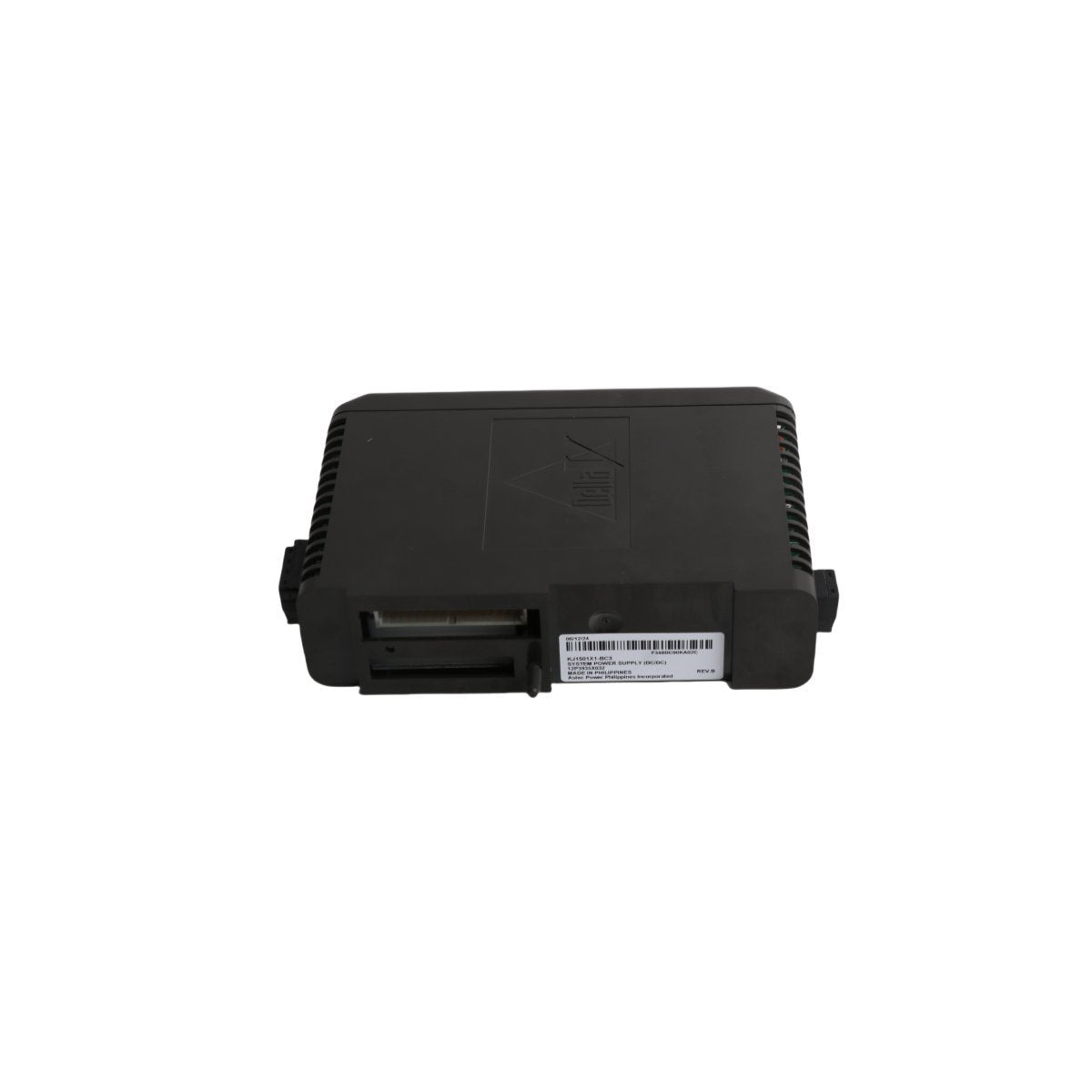

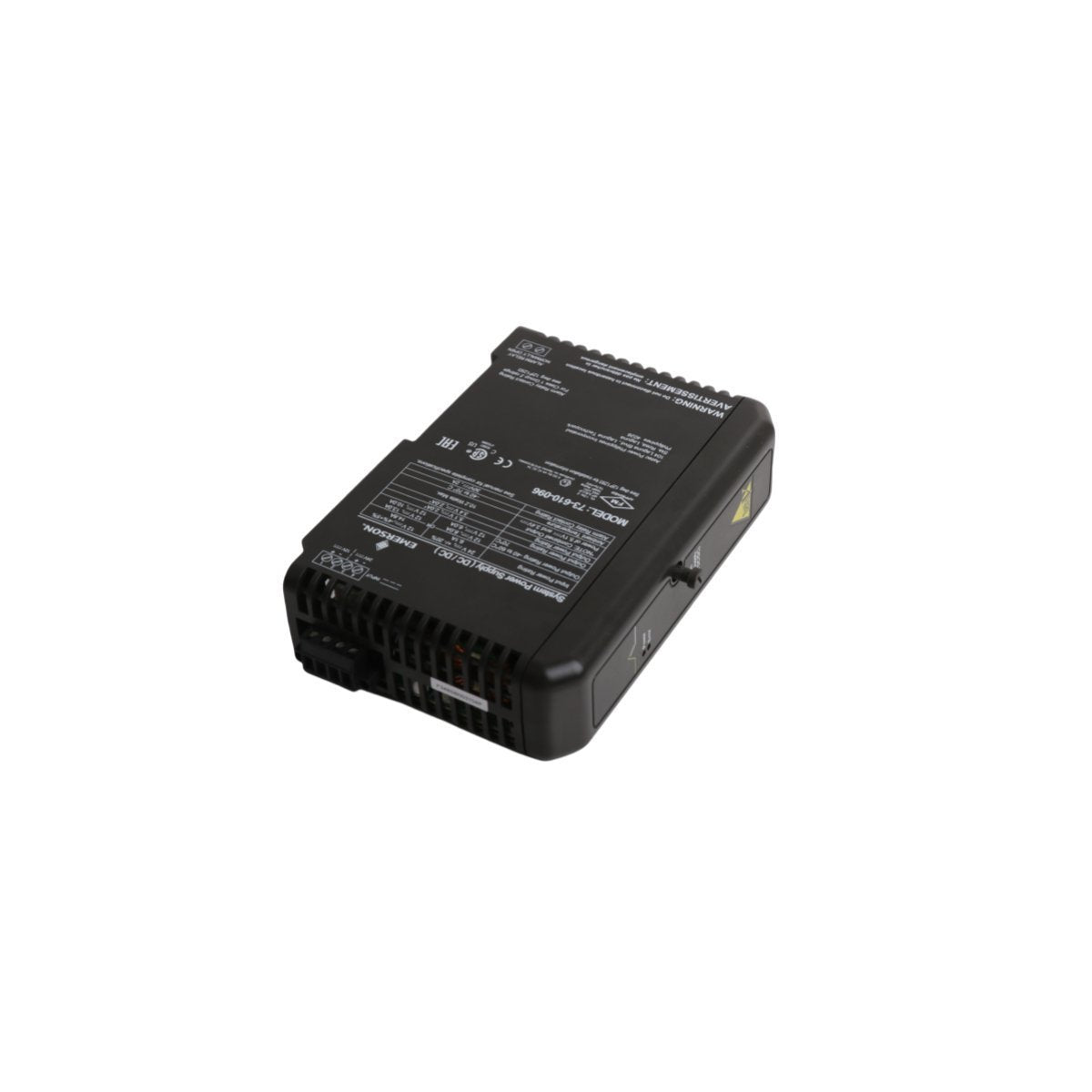

The Emerson KJ1501X1-BC3 (Part Number 12P3935X032, Model VE5009) is an Enhanced System Power Supply designed to provide regulated DC power to the DeltaV™ M-series and DeltaV SIS™ process safety subsystems. This high-capacity DC/DC converter module is engineered to accept a 24 VDC input and transform it into the precise 12 VDC required for the local bus (L-Bus) to power controllers and I/O modules. As a critical infrastructure component, the VE5009 ensures that the distributed control system maintains electrical stability even under fluctuating load conditions.

Constructed for mission-critical automation, this module supports redundant power configurations. When installed in pairs on a redundant power carrier, it provides fault-tolerant energy delivery, ensuring that a single supply failure does not result in a system shutdown or loss of process visibility. Its enhanced circuitry is specifically designed to meet the rigorous availability standards of Safety Instrumented Systems (SIS).

Technical Characteristics and Performance

The KJ1501X1-BC3 is characterized by its high power density, diagnostic depth, and resilience in demanding industrial climates.

• Dual DC Regulation: Efficiently manages 24/12 VDC conversion with high thermal efficiency, minimizing heat dissipation within the control cabinet.

• Redundancy Support: Supports 1:1 hardware redundancy, allowing for seamless load sharing and bumpless transfer if one power model loses input voltage.

• Advanced Diagnostics: Features integrated health monitoring that communicates directly with the DeltaV diagnostic software, providing real-time alerts for input/output voltage deviations.

• High-Resolution Status LEDs: Front-panel indicators provide immediate visual confirmation of power health, input status, and internal hardware faults.

• Enhanced Electrical Isolation: Protects sensitive L-Bus logic from field-side electrical noise and transients, maintaining signal integrity across the I/O backplane.

• Scalable Architecture: The modular 4.4cm wide form factor allows for easy system expansion by adding additional power models to high-density I/O carriers.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ1501X1-BC3 / VE5009

• Order Reference: 12P3935X032

• Module Type: Enhanced System Power Supply

• Input Voltage: 24 VDC

• Output Voltage: 12 VDC (Regulated Local Bus Power)

• System Platform: DeltaV™ M-series / DeltaV SIS™

• Enclosure Rating: IP20

• Dimensions: 4.4 x 17.8 x 11.4 cm

• Net Weight: 0.7 kg

• Origin: USA

Industrial Applications

The Emerson KJ1501X1-BC3 is a vital component for maintaining 24/7 operations in high-availability industrial sectors:

• Refining and Petrochemical: Supplying stable power to safety logic solvers in explosive atmospheres.

• Oil and Gas Upstream: Providing redundant power for offshore platform safety instrumented systems.

• Continuous Manufacturing: Ensuring uninterrupted DCS bus power for large-scale chemical reactors.

• Power Generation: Supporting the critical control network for steam and gas turbine automation.
