Product Overview

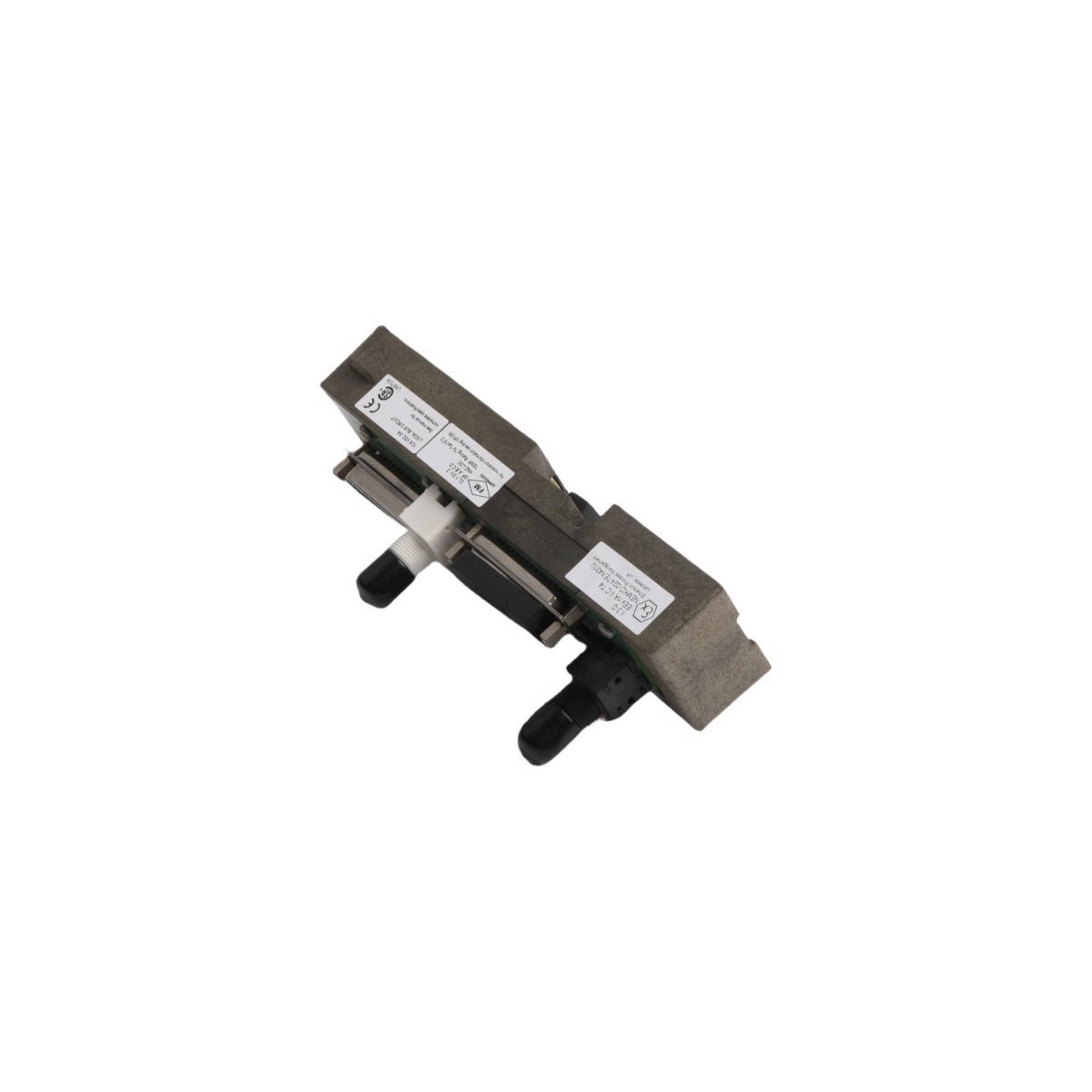

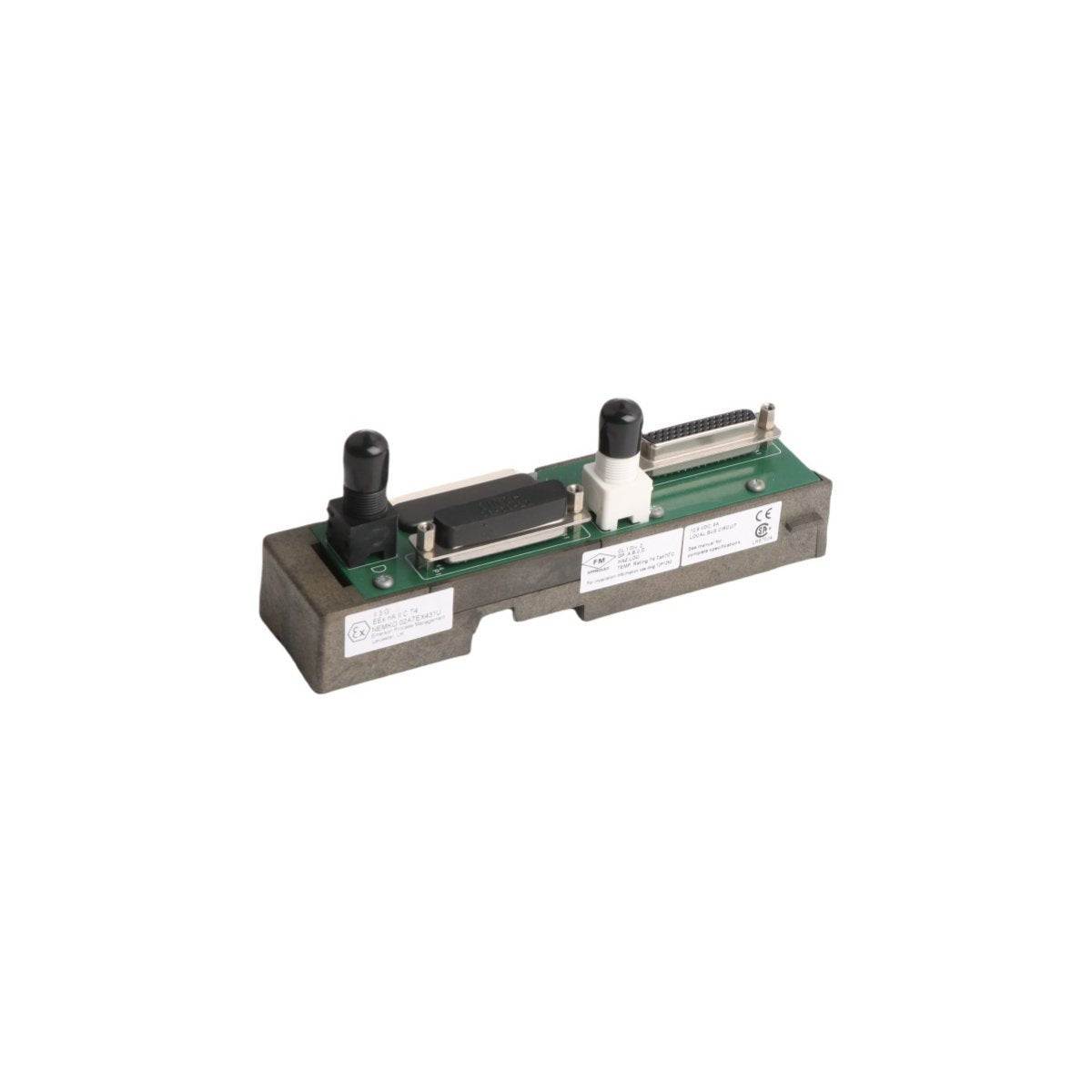

The Emerson KJ4001X1-NA1 with order number 12P3373X012 is a Horizontal LocalBus Dual Right cable extender designed for the DeltaV™ M-series I/O subsystem. This module enables reliable extension of LocalBus connections between DeltaV I/O carriers, supporting flexible cabinet layouts and scalable system architectures in distributed control environments.

By extending the LocalBus pathway, this right-side cable extender allows I/O assemblies to be positioned across wider panel spans without compromising communication integrity. It is engineered for consistent signal continuity and mechanical stability, ensuring dependable operation in mission-critical automation systems.

Key Technical Characteristics

• Module Type: Horizontal LocalBus Dual Right Cable Extender

• Compatible Platform: DeltaV™ M-series I/O Subsystem

• Orientation: Right-side LocalBus extension

• Mechanical Design: Compact, rigid housing for panel mounting

• Electrical Function: Maintains LocalBus signal integrity across extended distances

• Installation: Tool-free alignment with DeltaV I/O carriers

• Net Weight: Approx. 0.18 kg

• Dimensions: 4.7 × 16.6 × 6.7 cm

• Manufacturing Origin: USA

Industrial Applications

The KJ4001X1-NA1 cable extender is commonly used in process control cabinets where DeltaV I/O modules must be distributed across multiple horizontal sections. Typical applications include power generation facilities, chemical processing plants, oil and gas installations, and large manufacturing systems requiring modular I/O expansion.

It is particularly suitable for system upgrades, cabinet reconfiguration, and maintenance of existing DeltaV M-series installations where reliable LocalBus continuity is essential for stable operation.
