Product Overview

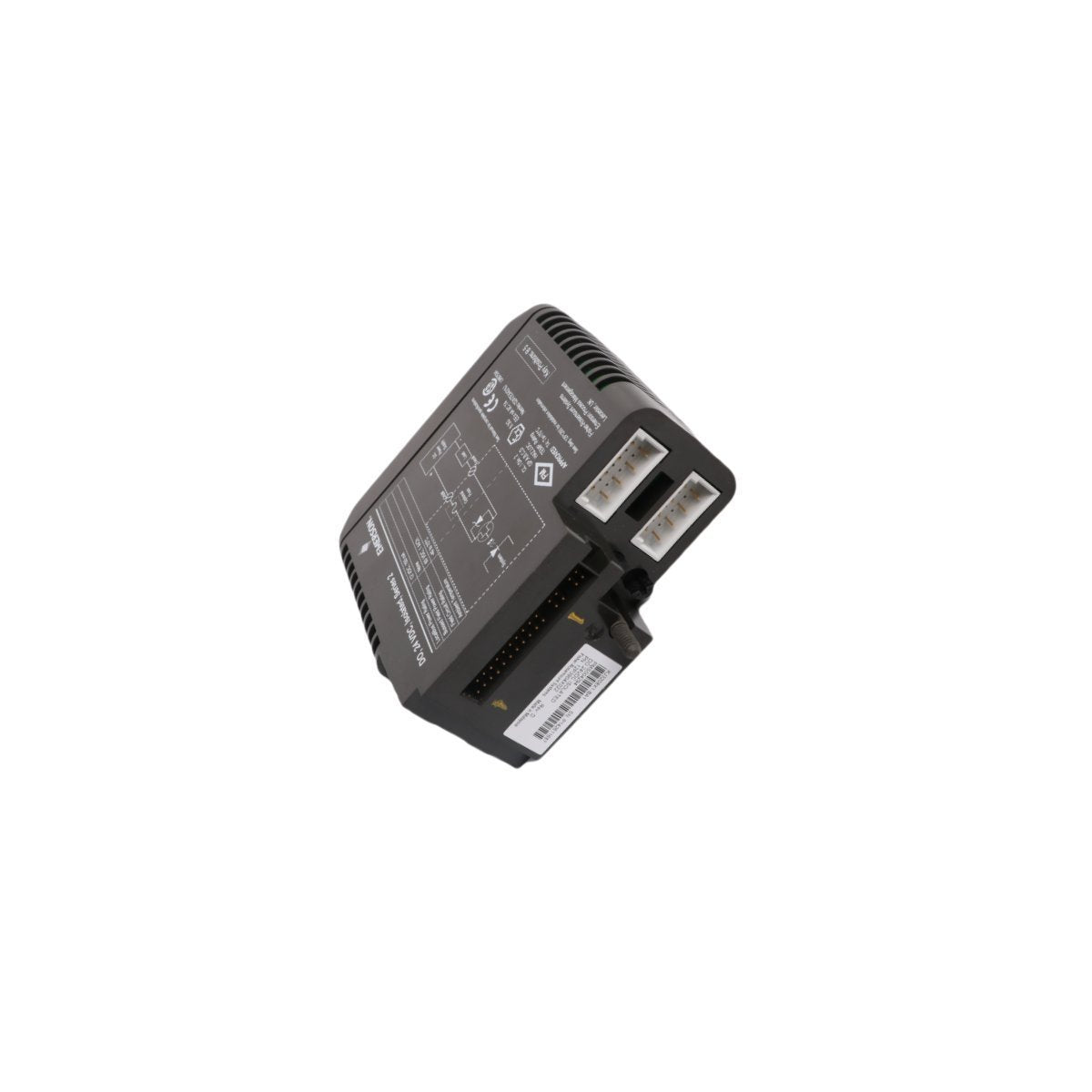

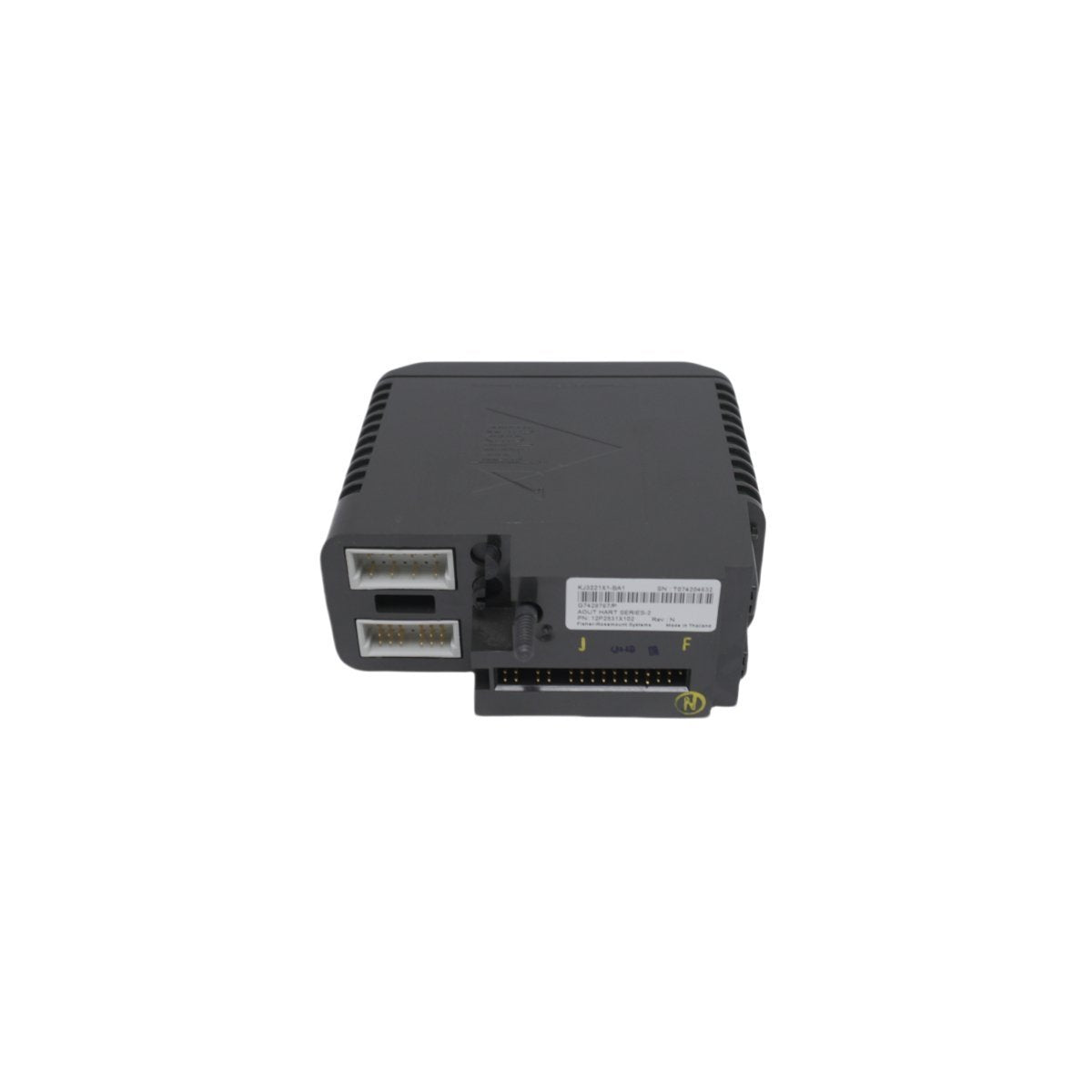

The Emerson KJ3203X1-BA1, cross-referenced as 12P3270X042 and VE4001S2T2B4, is a high-density 32-channel discrete input interface designed for the DeltaV™ M-series Distributed Control System (DCS). This module is specifically engineered to process 24 VDC dry contact signals, providing the primary link between field-level binary switches and the system's control logic. By utilizing advanced optical isolation, the KJ3203X1-BA1 ensures that the sensitive backplane electronics are shielded from external electrical transients. Its role in the M-series subsystem is critical for real-time monitoring of equipment states, alarm conditions, and sequence-of-events recording in high-uptime industrial environments.

System Specifications and Hardware Capabilities

• Model Identification KJ3203X1-BA1

• Part Numbers 12P3270X042 / VE4001S2T2B4

• Input Configuration 32-Channel Discrete (Binary)

• Signal Type 24 VDC Dry Contact

• Series Subsystem DeltaV™ M-series Traditional I/O

• Diagnostics Channel-level fault detection and status reporting

• Isolation Galvanic isolation between field side and LocalBus

• Unit Weight 0.2 kg

• Module Dimensions 16.8 cm x 8.7 cm x 4.4 cm

• Lifecycle Status Brand New (Supporting systems discontinued as of Dec 2018)

• Origin USA

• HS Classification 8537101190

Industrial Deployment and Field Utility

The KJ3203X1-BA1 provides essential monitoring capabilities across various high-stakes automation sectors:

Refining and Petrochemical ProcessingMonitoring the open/closed status of manual block valves and the state of safety-critical limit switches to ensure process integrity and prevent unauthorized fluid movement.

Power Generation InfrastructureExecuting rapid data acquisition for auxiliary system alarms, such as lube oil pressure switches and cooling fan status indicators, where millisecond-accurate reporting is vital.

Legacy Hardware MaintenanceServing as a "Plug-and-Play" replacement for established M-series racks. This brand-new module allows operators to extend the life of their existing DCS assets without requiring expensive wiring changes or software upgrades.

Water and Wastewater ManagementTracking level switches and pump motor contactor feedbacks in remote lift stations, leveraging its robust design to withstand high-humidity and corrosive atmospheres.

System Expansion and ScalabilityProviding a modular solution for increasing I/O density within existing carriers. Its hot-swappable design allows for expansion or replacement without interrupting the operation of adjacent control modules.
