Product Overview

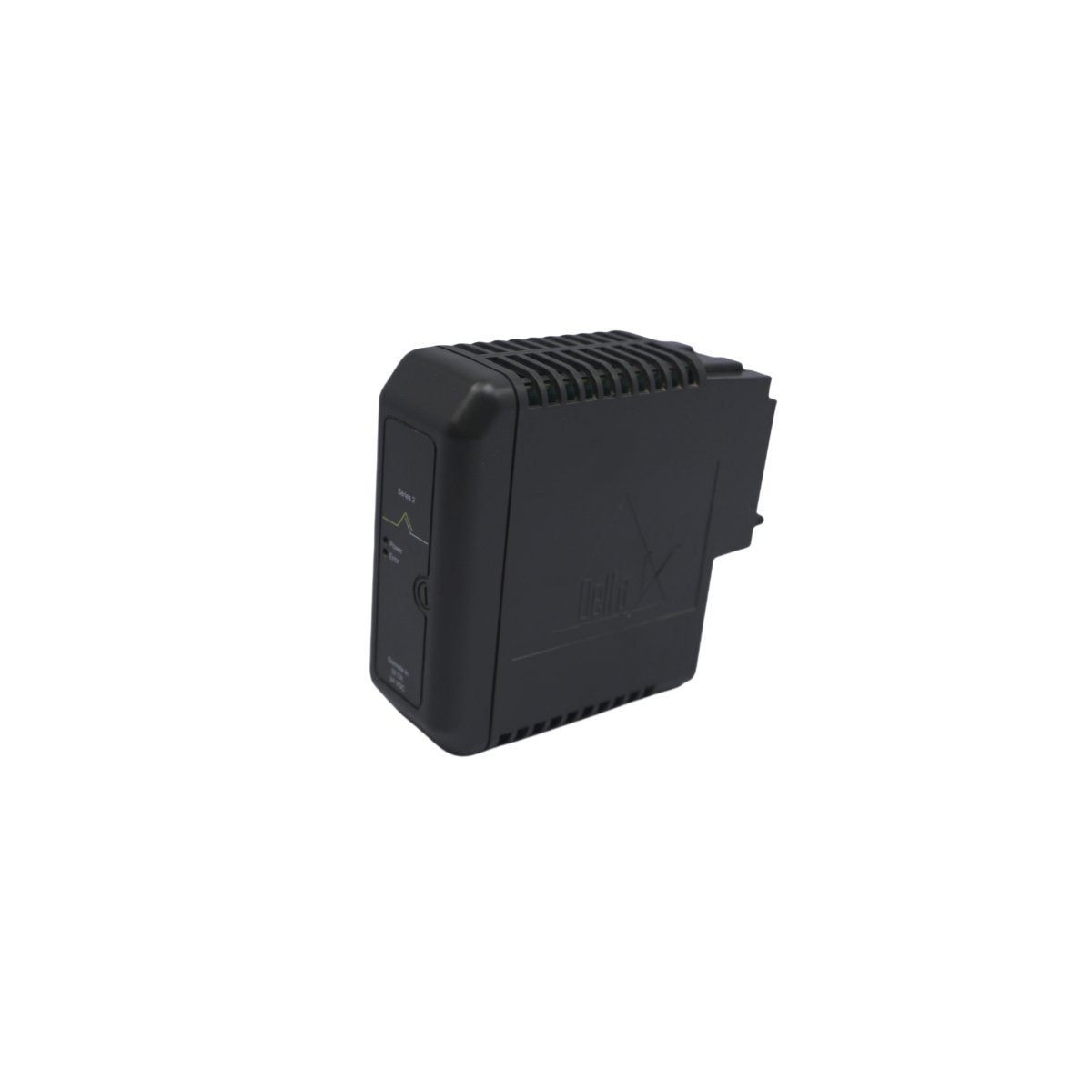

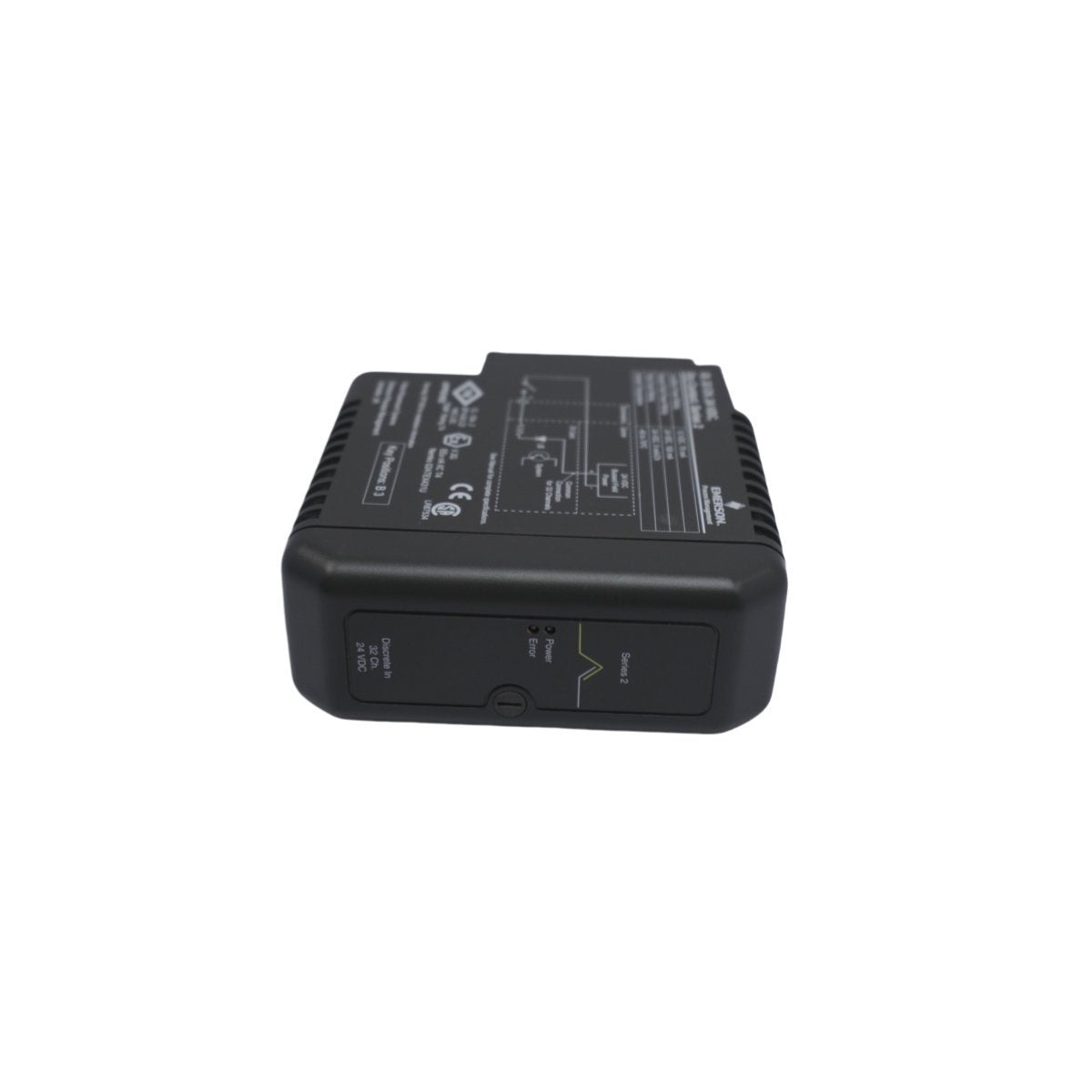

The Emerson KJ3203X1-BA1 (Part Number 12P3270X032) is a specialized 32-channel discrete input module engineered for the DeltaV™ M-series I/O subsystem. This high-density component is designed to interface with 24 VDC dry contact field devices, serving as a reliable gateway for binary signals such as switch positions, alarm contacts, and equipment status. By converting field-level "on/off" states into digital data, the module provides the central Distributed Control System (DCS) with the real-time visibility required for complex logic execution.

The KJ3203X1-BA1 is optimized for high-availability environments where space and reliability are paramount. Its 32-channel capacity allows for significant I/O density within a single carrier slot, effectively reducing cabinet footprint. Furthermore, the module features advanced internal diagnostics that continuously monitor circuitry health, providing early warning of hardware degradation to prevent unplanned process interruptions.

Technical Characteristics and Performance

Designed for the rigors of heavy industry, this module combines high-speed processing with rugged electrical protection.

• 32-Channel High Density: Supports up to 32 discrete inputs, making it an ideal choice for large-scale marshalling where high signal counts must be managed efficiently.

• Dry Contact Sensing: Specifically calibrated for 24 VDC dry contact inputs, ensuring compatible and accurate sensing for a wide array of industrial switches and relays.

• Rapid Signal Processing: Engineered for high-speed data acquisition, minimizing signal latency to ensure the DCS can respond to process changes in real-time.

• Intelligent Self-Diagnostics: Integrated firmware performs continuous background checks on module integrity, identifying faults at the channel level to simplify troubleshooting.

• Hot-Swappable Design: Allows for the removal and replacement of the module under power without disrupting the operation of adjacent I/O modules on the same carrier.

• Industrial Resilience: Built to withstand the thermal and electrical noise found in power plants, refineries, and chemical processing facilities.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ3203X1-BA1

• Part Number: 12P3270X032

• Module Type: Discrete Input (DI)

• Signal Type: 32-Channel, 24 VDC Dry Contact

• Subsystem: DeltaV M-series I/O

• Isolation: Galvanic isolation between field and system logic

• Dimensions: 4.3 cm x 12.5 cm x 10.5 cm

• Net Weight: 0.18 kg

• Origin: USA

Industrial Applications

The Emerson KJ3203X1-BA1 is a critical asset for automation architectures in sectors where process continuity is essential:

• Oil and Gas: Monitoring valve limit switches and flare ignition status.

• Power Generation: Tracking breaker status and boiler trip contacts.

• Chemical Refining: Integrating safety interlock switches and motor run-status signals.

• Water Treatment: Supervising float switches and pump relay feedbacks.
