Product Overview

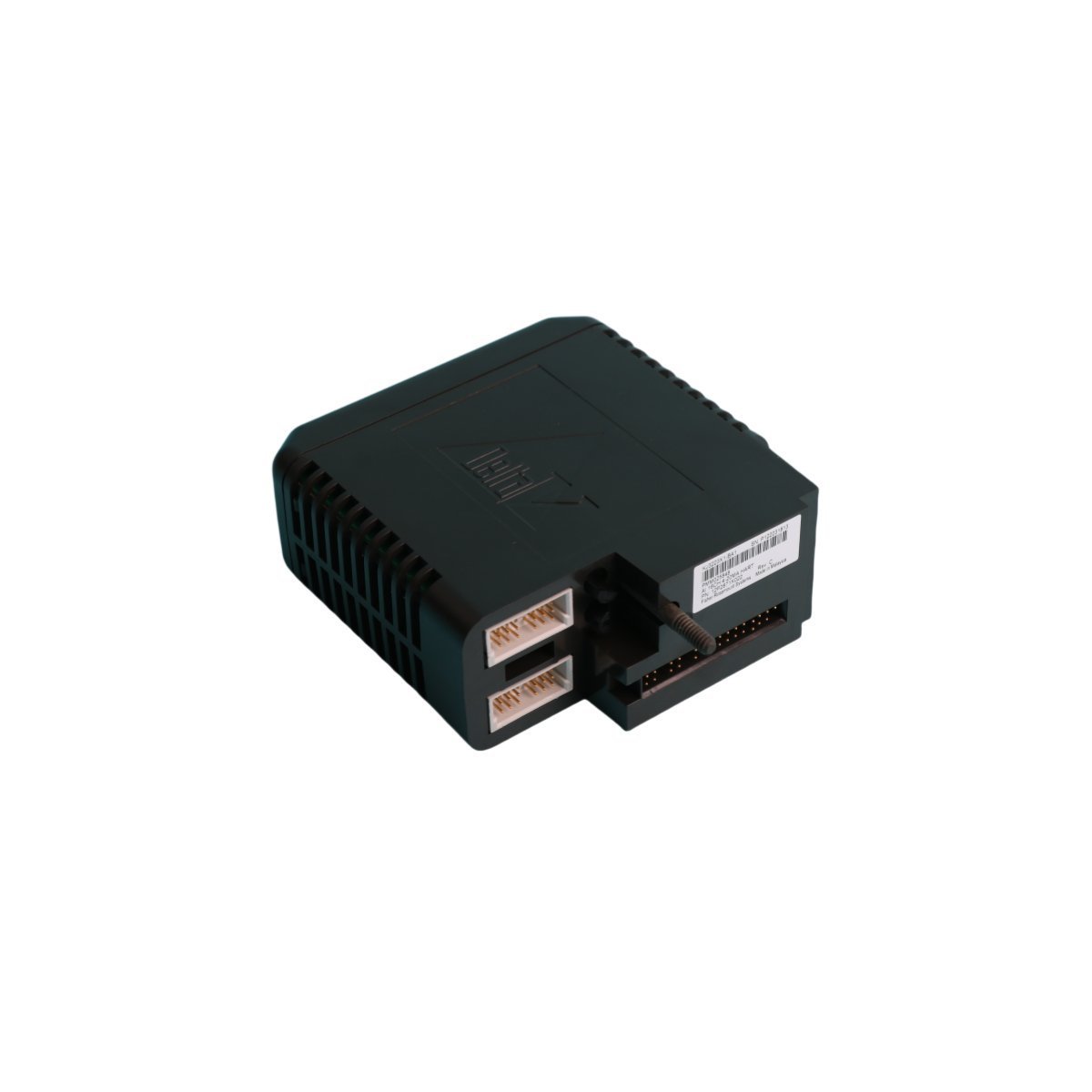

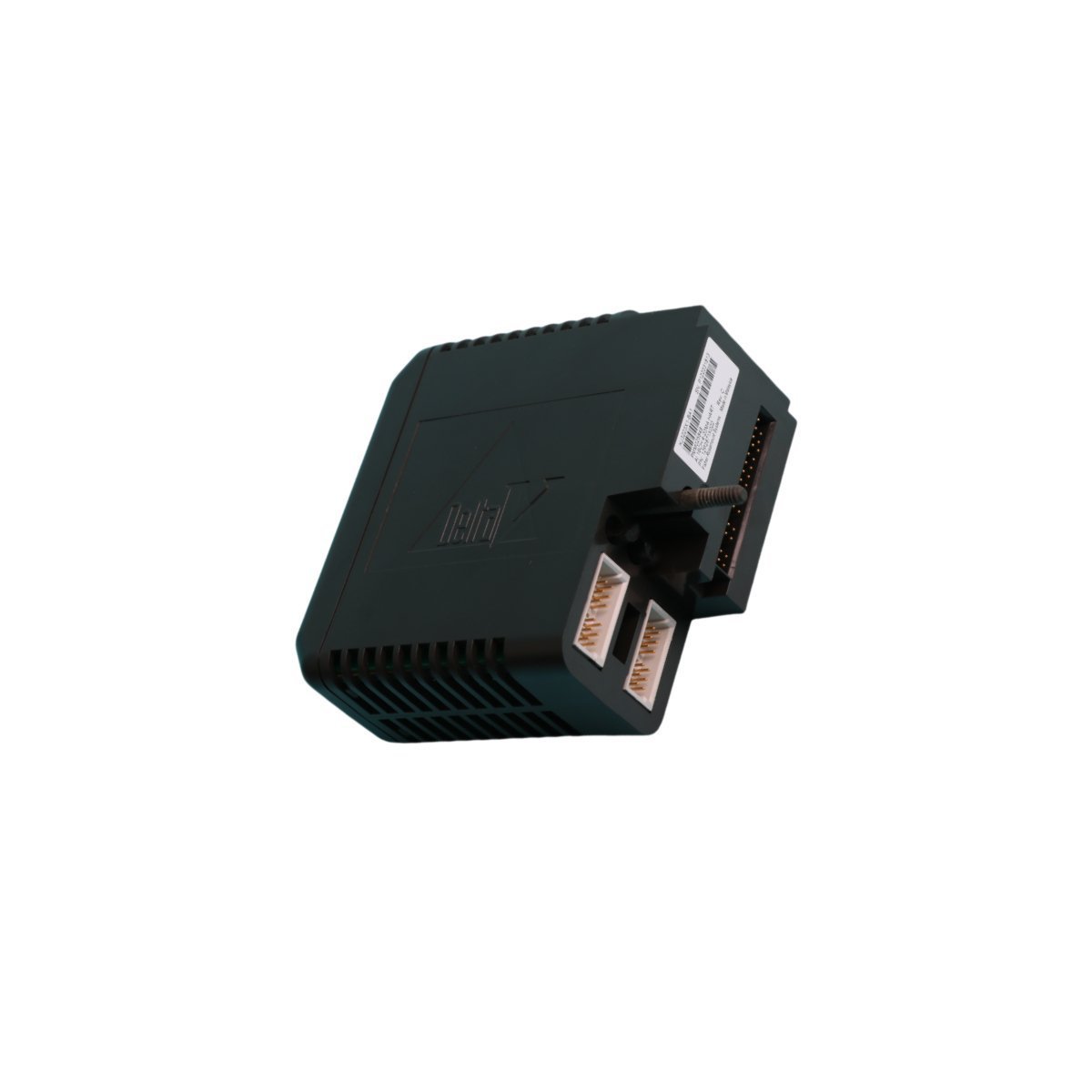

The Emerson KJ3223X1-BA1 is a sophisticated 16-channel analog input card developed for the DeltaV™ M-series I/O subsystem. Identified by assembly numbers 12P2871X022 and VE4003S2B6, this Series 2 module is specifically engineered to interface with 4-20mA field transmitters, providing the high-resolution data acquisition required for precise process control. As a primary component of a Distributed Control System (DCS), the KJ3223X1-BA1 digitizes field signals with high accuracy, enabling the controller to execute complex automation logic based on real-time environmental variables. Its rugged, modular design is optimized for continuous operation in mission-critical industrial infrastructures.

Hardware Performance and Interface Specifications

• Model Number KJ3223X1-BA1

• Part Reference 12P2871X022 / VE4003S2B6

• Input Density 16 Channels

• Signal Protocol 4-20mA Analog (Series 2)

• System Family DeltaV™ M-series I/O Subsystem

• Internal Resolution High-precision analog-to-digital conversion for low-drift monitoring

• Module Mass 0.2 kg

• Physical Dimensions 10.2 cm x 5.1 cm x 19.1 cm

• Isolation Capabilities Galvanic isolation per channel to prevent ground loop interference

• Installation Requirements Occupies a single slot on an M-series I/O carrier

• Manufacturing Origin USA

• Compliance Built to withstand Class 1 Div 2 hazardous industrial environments

Practical Automation Scenarios

The KJ3223X1-BA1 module is a cornerstone for signal processing in several demanding sectors:

Refinery Process MonitoringTracking pressure, temperature, and flow transmitters across distillation columns, where the 16-channel density allows for consolidated wiring and efficient cabinet space utilization.

Chemical Batch ManagementProviding the fast-response analog feedback necessary for pH and level sensors, ensuring that batch reactions remain within strict chemical tolerances.

Power Utility OversightInterfacing with auxiliary sensors on turbine trains and boiler feed systems, where the module’s Series 2 hardware ensures long-term stability and minimal maintenance.

Legacy System ContinuityActing as a critical "Brand New" replacement for M-series components discontinued in 2018, allowing facilities to maintain current DCS certifications without a complete platform overhaul.

Wastewater Treatment FacilitiesManaging distributed sensor arrays for dissolved oxygen and turbidity, leveraging the module’s robust protection against electrical noise and environmental stressors.
