Product Overview

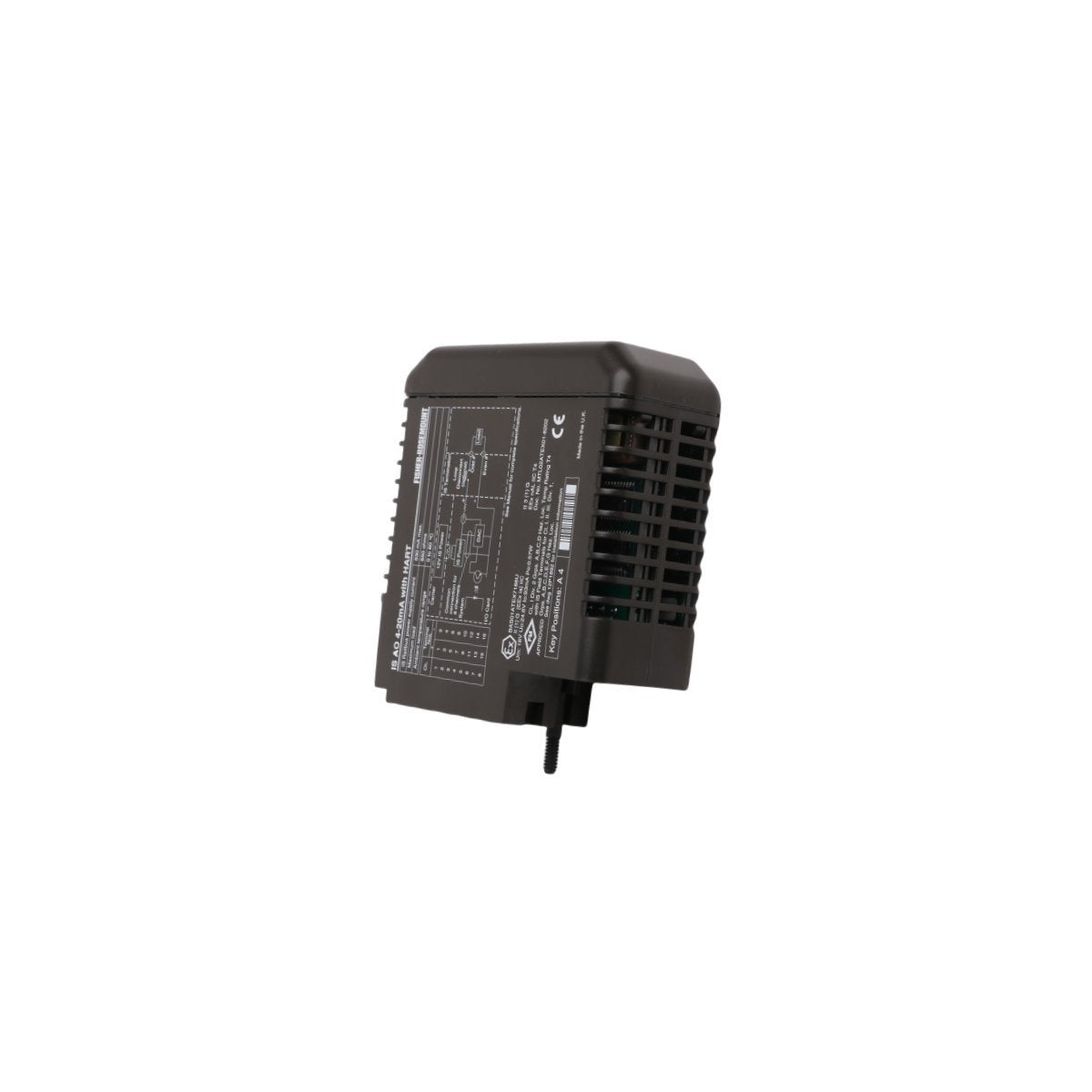

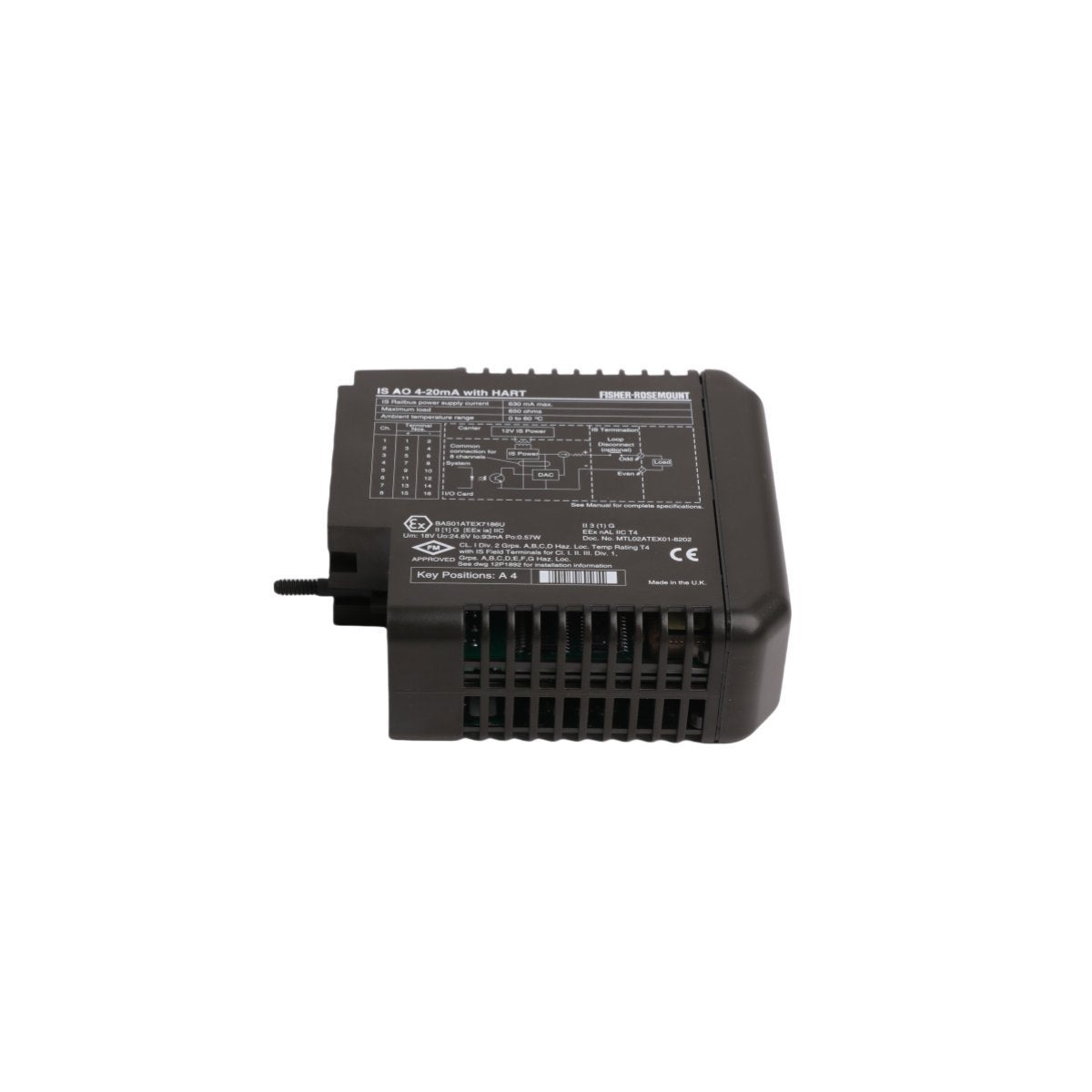

The Emerson KJ3102X1-BE1 (Part Number 12P2703X022, Model VE4013S2B1) is a specialized 8-channel analog output module designed for the DeltaV™ M-series I/O subsystem. This module provides precise 4–20 mA DC control signals to field actuators, such as control valves and variable speed drives. A standout feature of this card is its integrated HART (Highway Addressable Remote Transducer) protocol support, which allows the Distributed Control System (DCS) to communicate digitally with smart field devices over the existing analog wiring.

By utilizing the KJ3102X1-BE1, plant operators gain access to advanced instrument diagnostics and configuration parameters without needing a separate handheld communicator. The module is engineered for high-integrity process control, offering optional redundancy and a robust electrical design that ensures stable signal delivery in electrically noisy environments. Its seamless integration into the DeltaV architecture facilitates enhanced asset management and proactive maintenance strategies.

Technical Characteristics and Strategic Functionality

The VE4013S2B1 module is defined by its ability to merge traditional analog control with modern digital device management.

• HART Pass-Through Capability: Enables the DCS to capture secondary variables and device health status from smart actuators while maintaining primary control via the 4–20 mA signal.

• Redundancy Support: Compatible with redundant I/O carriers and terminal blocks, ensuring that critical control loops remain active even if a single module hardware fault occurs.

• Intrinsically Safe Design: Built to interface with safety-critical loops, providing the necessary isolation required for operation in hazardous industrial zones.

• Enhanced Signal Stability: Features advanced filtering and low temperature drift specifications to maintain output accuracy across varying ambient conditions.

• Hot-Swappable Architecture: Allows for the removal and replacement of the module under system power, significantly reducing mean time to repair (MTTR) and preventing process interruptions.

• Self-Diagnostic Suite: Integrated firmware continuously monitors the health of the output channels and internal circuitry, providing real-time alerts for open loops or hardware anomalies.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ3102X1-BE1

• Order Number: 12P2703X022

• Secondary Model: VE4013S2B1

• Output Type: 8-Channel Analog Output (4–20 mA)

• Digital Communication: HART Protocol (Version 5, 6, and 7 compatible)

• System Series: DeltaV™ M-series I/O Subsystem

• Dimensions: 4.1 x 12.5 x 10.5 cm

• Net Weight: 0.28 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ3102X1-BE1 is a critical component for high-precision modulation in various process-heavy sectors:

• Oil & Gas Refining: Precise positioning of control valves in high-pressure distillation and separation units.

• Chemical Processing: Accurate dosing and flow regulation for exothermic reactor cooling and feed loops.

• Power Generation: Coordinating feedwater control valves and turbine auxiliary modulation.

• Pharmaceutical Manufacturing: Managing sensitive pressure and temperature regulation in validated batch environments.
