Product Overview

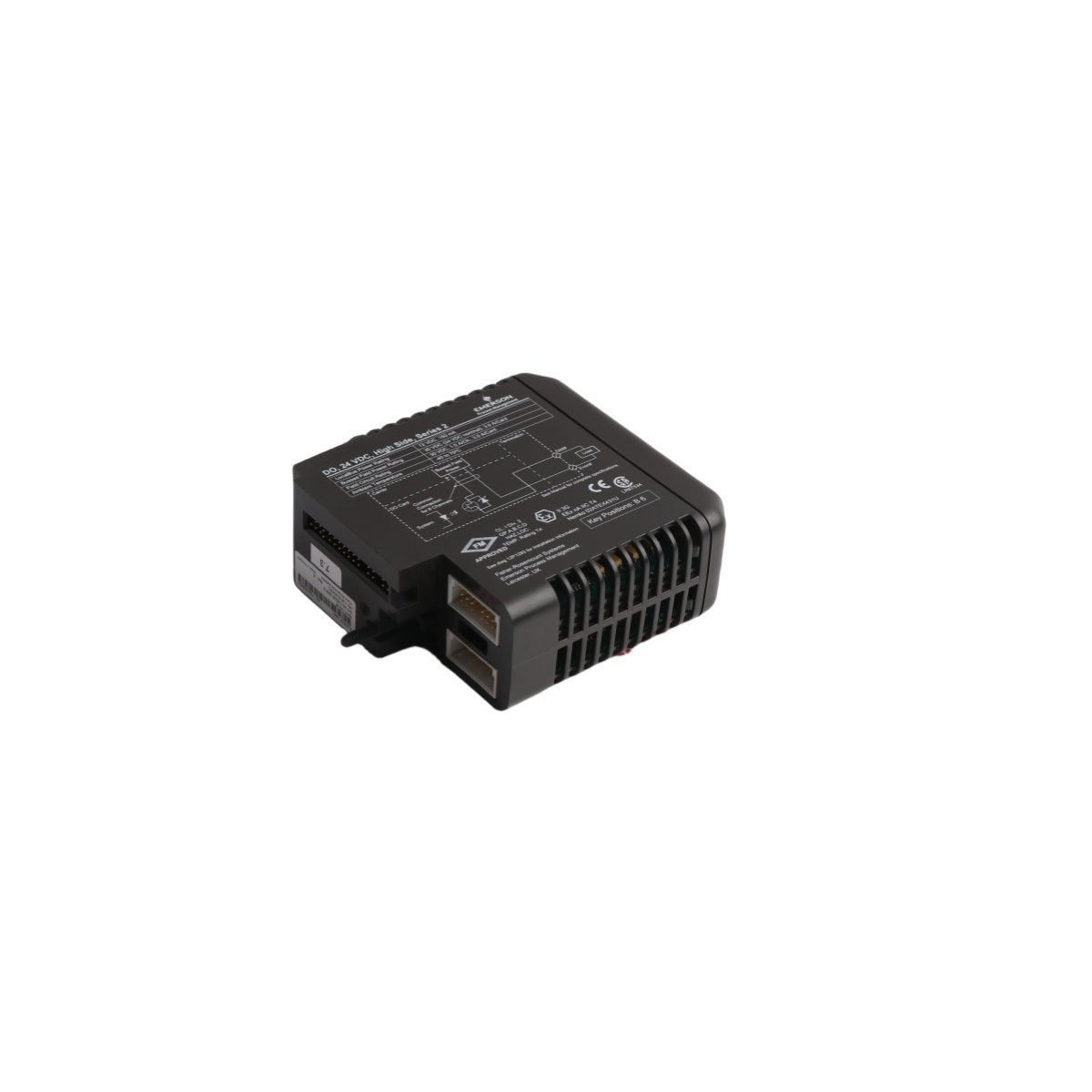

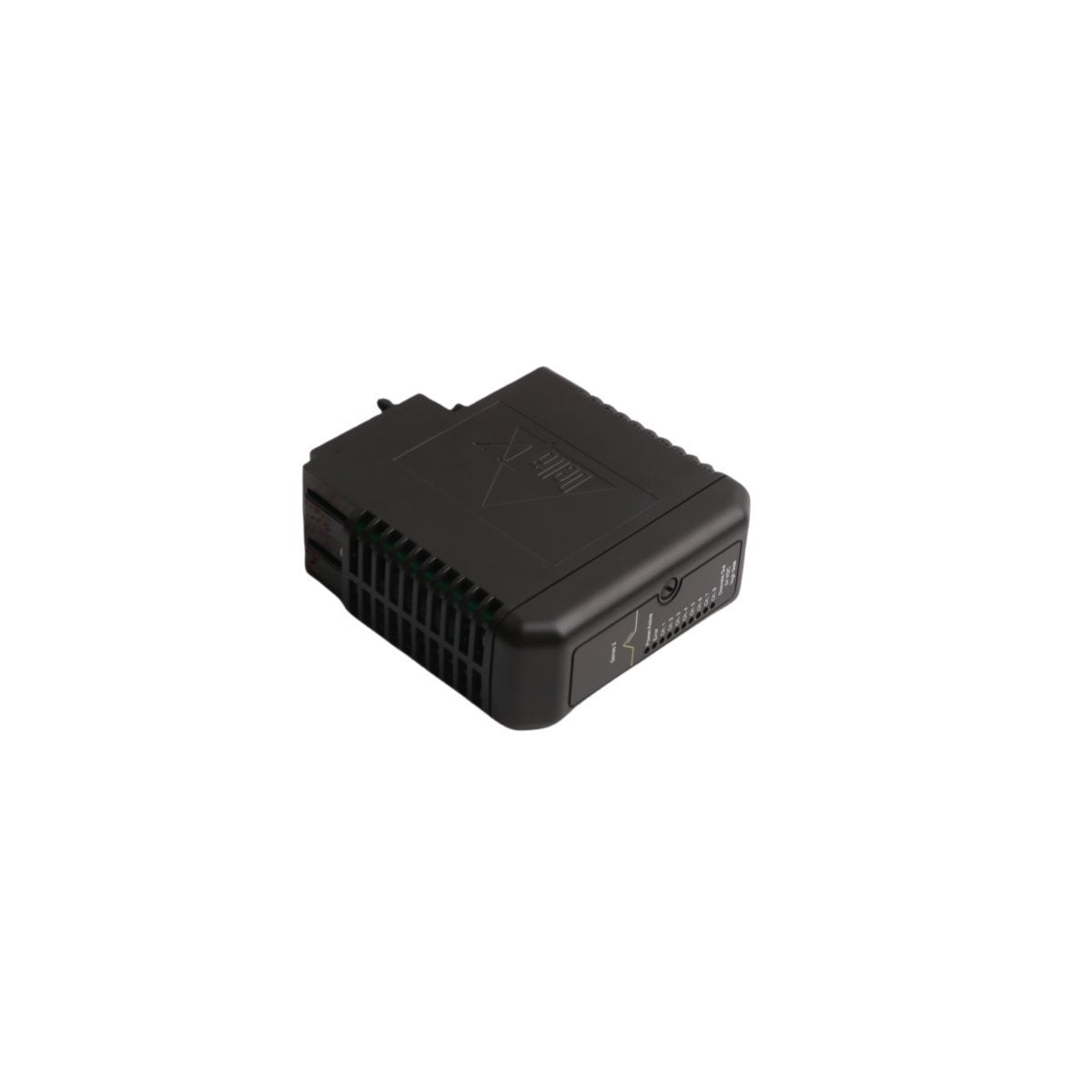

The Emerson KJ3202X1-BA1 (Part Number 12P2536X042) is a specialized 8-channel discrete output module engineered for the DeltaV™ M-series I/O Subsystem. This "High Side" switching module is designed to drive field-mounted loads—such as solenoid valves, relay coils, and pilot lights—by switching the positive side of a 24 VDC circuit. By providing a clean digital interface between the Distributed Control System (DCS) logic and field actuators, this module ensures precise execution of automated sequences and interlocks.

Designed for high-availability process environments, the KJ3202X1-BA1 provides robust electrical isolation between the sensitive system backplane and the external field wiring. The module is fully integrated into the DeltaV Explorer environment, allowing for rapid configuration and real-time monitoring of output states. Its "Hot-Swappable" design ensures that the module can be replaced under power, maintaining system uptime during routine maintenance or hardware upgrades.

Technical Characteristics and Performance

The KJ3202X1-BA1 is built to industrial B2B standards, prioritizing signal integrity and circuit protection.

• High-Side Switching: Designed for 24 VDC sourcing applications, where the module provides power to the load, simplifying grounding and troubleshooting in standard industrial panels.

• 8-Channel Density: Features eight independent output channels, allowing for efficient use of carrier space while managing multiple field actuators.

• Intelligent Diagnostics: Integrated firmware monitors the health of the output circuitry, providing the DCS with status feedback and detecting potential faults at the channel level.

• Galvanic Isolation: Robust isolation barriers protect the Localbus from field-side electrical surges, transients, and ground loops.

• Environmental Resilience: Engineered to operate reliably in harsh industrial settings, including chemical processing plants and refineries, where temperature and humidity fluctuations are common.

• Status Indication: Front-panel LED indicators provide instantaneous visual confirmation of the "On/Off" state for each individual channel, assisting in rapid field troubleshooting.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Designation: KJ3202X1-BA1

• Part Number: 12P2536X042

• Module Type: Discrete Output (High Side)

• Channel Count: 8 Channels

• Operating Voltage: 24 VDC

• System Series: DeltaV™ M-series I/O Subsystem

• Dimensions: 4.0 x 12.5 x 10.5 cm

• Net Weight: 0.18 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ3202X1-BA1 is a critical component for discrete control in sectors requiring high reliability:

• Oil & Gas Refining: Actuating emergency isolation valves and status indicators.

• Power Generation: Controlling auxiliary relays and burner management system interlocks.

• Chemical Processing: Managing batch sequence solenoids and manifold valve banks.

• Water Treatment: Supervising motorized valve actuators and chemical dosing pump starts.
