Product Overview

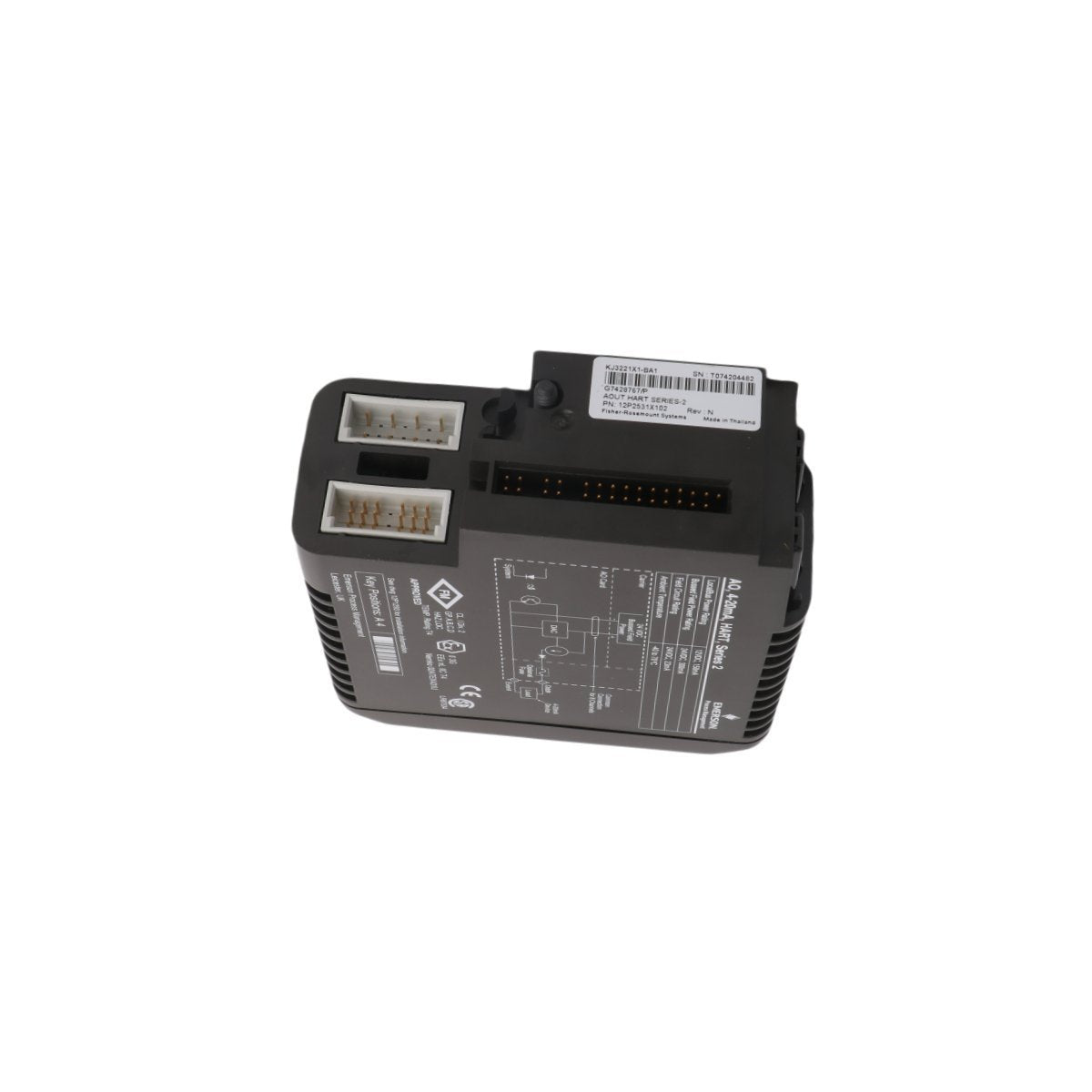

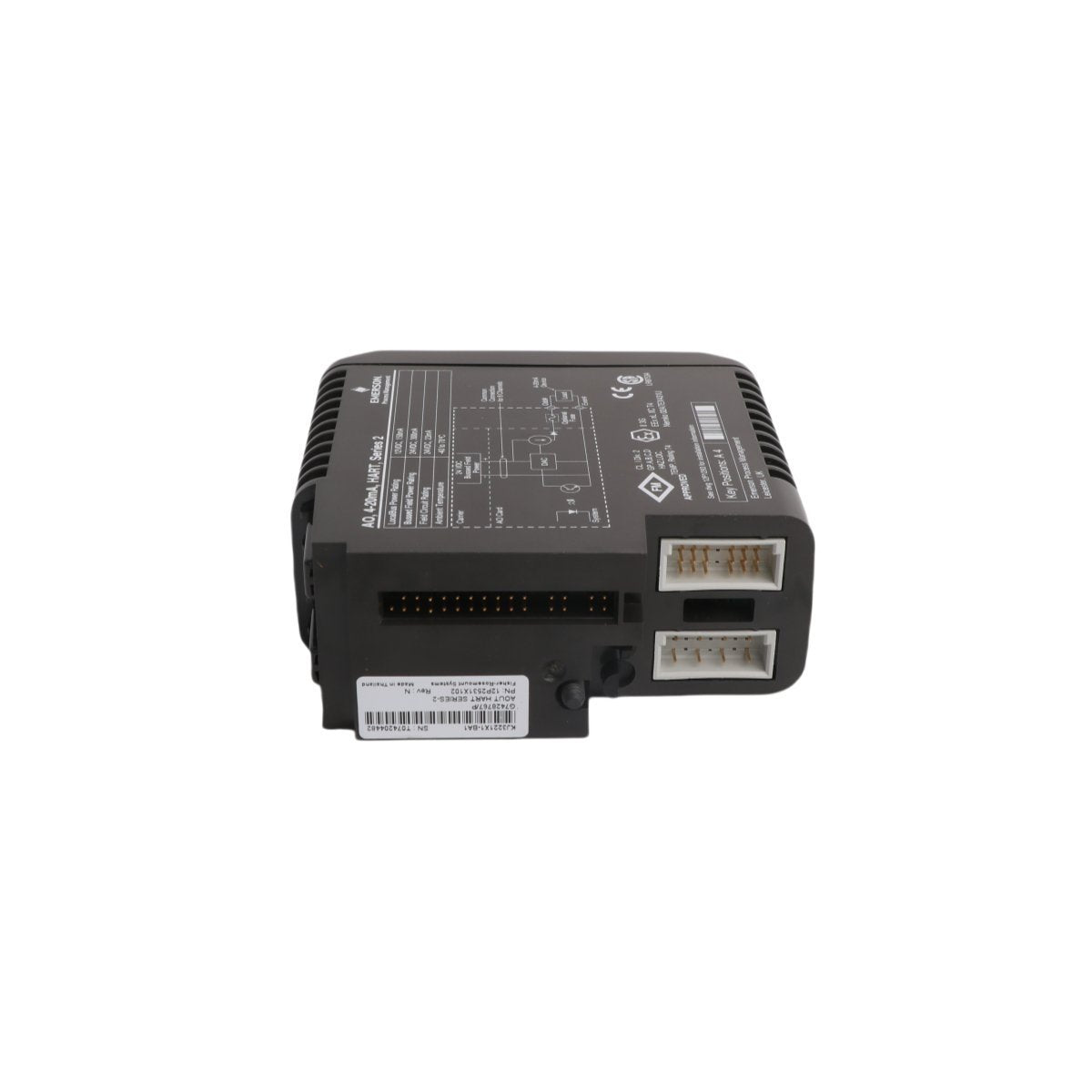

The Emerson KJ3221X1-BA1, also recognized by assembly number 12P2531X122 and VE4003S2B2, is a Series 2 high-density Analog Output module for the DeltaV™ M-series I/O Subsystem. This 8-channel 4-20mA interface is engineered to provide precise control signals to field-side actuators, positioners, and variable speed drives. Featuring integrated HART (Highway Addressable Remote Transducer) protocol support, the module facilitates bidirectional digital communication, allowing for advanced asset management and remote calibration of smart field devices directly from the Distributed Control System (DCS).

Key Technical Characteristics

• Channel Configuration: 8-channel Analog Output (AO).

• Signal Range: 4-20 mA DC current loops.

• HART Functionality: Full HART pass-through support for smart device diagnostics and parameterization.

• Series Generation: Series 2 Redundant Card (Rev R) optimized for high availability.

• System Integration: Native DeltaV M-series bus compatibility with plug-and-play recognition.

• Redundancy: Supports dual-redundant module pairing to ensure uninterrupted control in mission-critical loops.

• Termination Compatibility: Designed for use with the VE4003S2B2 fused I/O termination block for enhanced circuit protection.

• Physical Weight: 0.2 kg.

• Dimensions: 4.4 x 10.8 x 11.4 cm.

• Diagnostic Features: Active loop current monitoring and fault detection for open or shorted lines.

Operational Use Cases and Industrial Applications

The KJ3221X1-BA1 is a vital component in industrial sectors where precision and uptime are non-negotiable, such as Oil & Gas refining, Chemical processing, and Power Generation. It is frequently utilized to drive safety-critical control valves and modulating dampers. In the Petrochemical industry, the module's HART capabilities allow maintenance teams to monitor valve seat wear and actuator health without entering hazardous zones. By utilizing the redundant architecture of the DeltaV system, this Analog Output card ensures that plant processes remain stable even during hardware maintenance or component failure, significantly reducing the risk of unscheduled shutdowns and improving overall operational efficiency.
