Product Overview

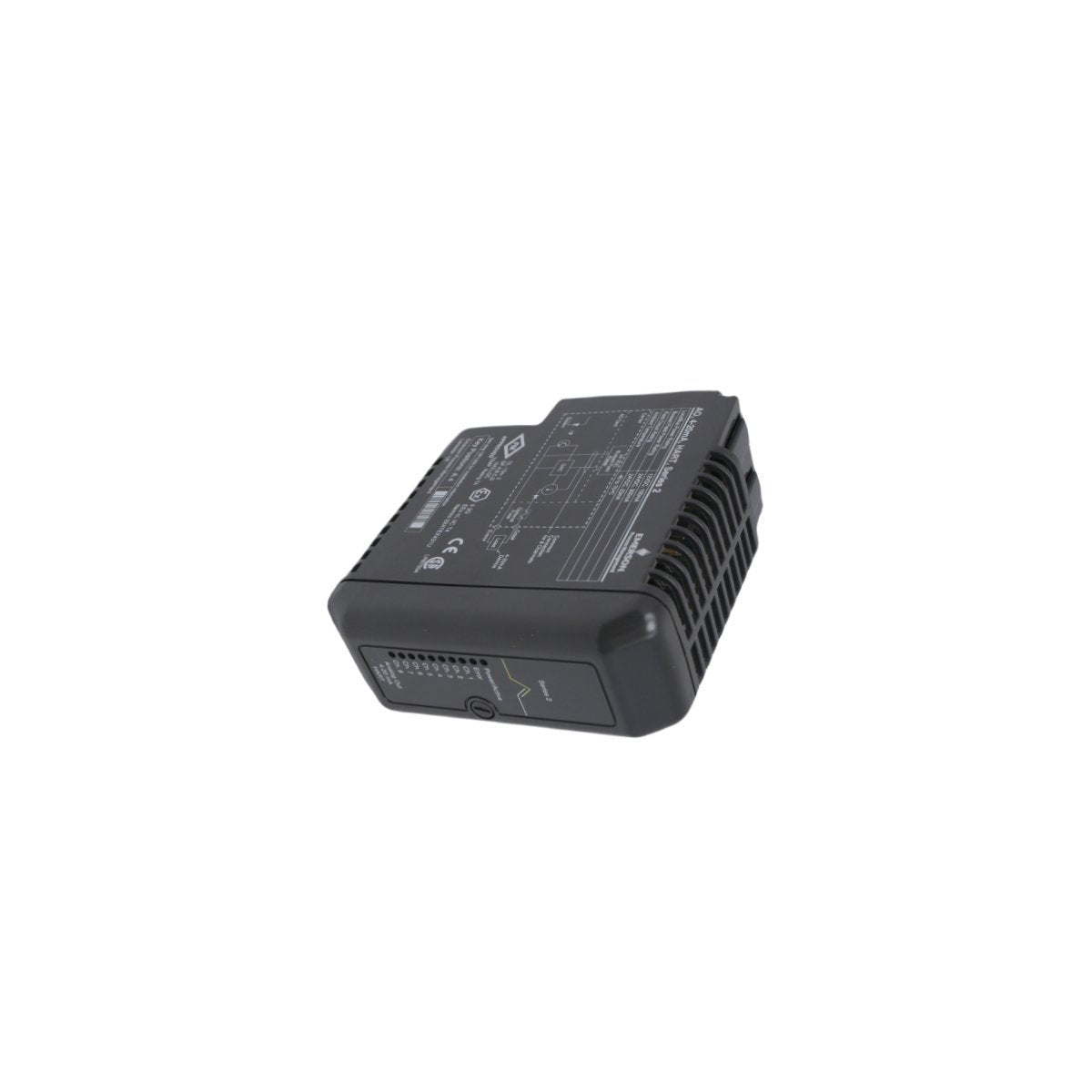

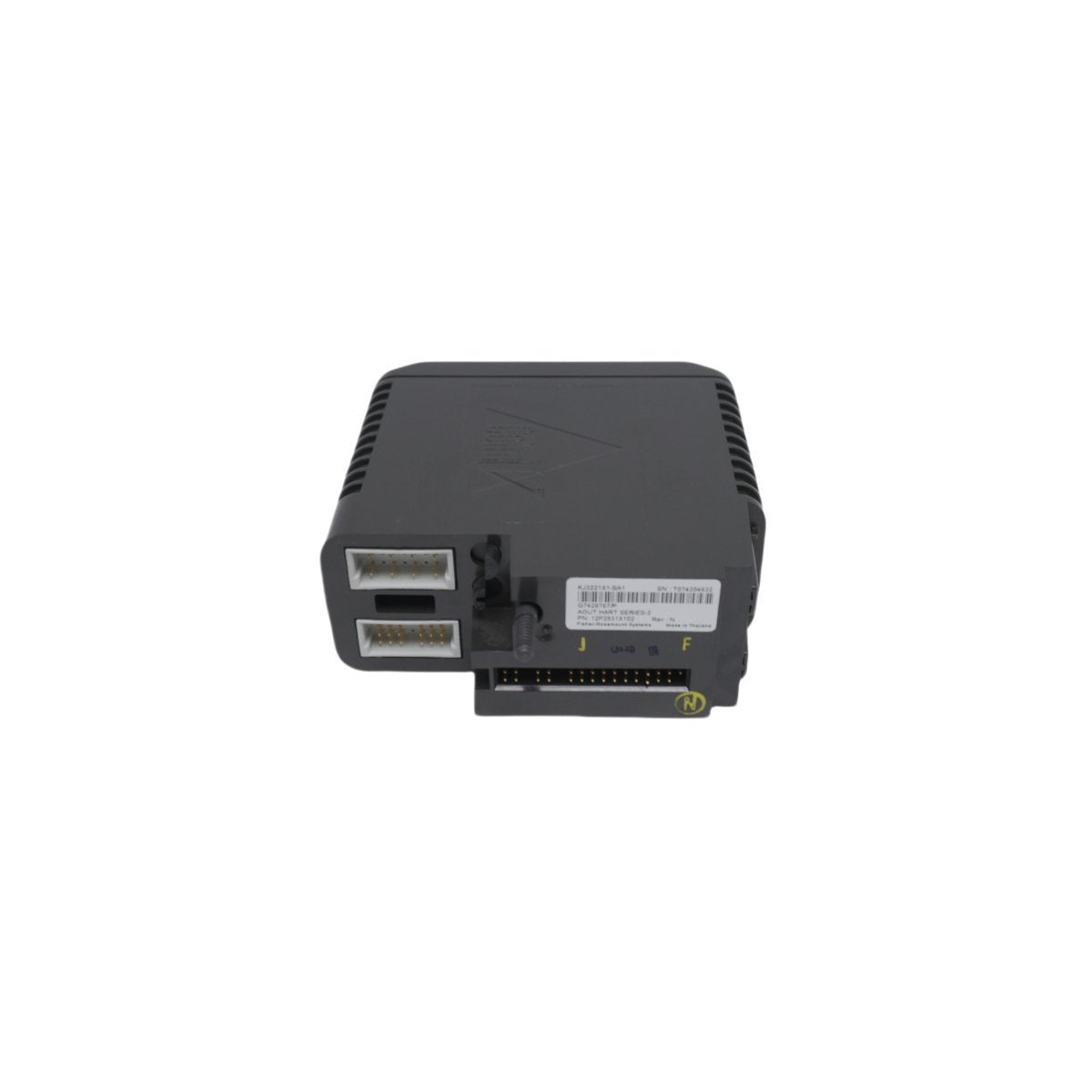

The Emerson KJ3221X1-BA1 terminal block, order number 12P2531X102, is a field wiring interface component developed for the DeltaV™ M-series I/O subsystem. It provides a stable and organized termination point between field-level wiring and DeltaV I/O cards, supporting reliable signal transmission within distributed control system architectures.

Designed for use in industrial control cabinets, this terminal block ensures secure mechanical mounting and consistent electrical contact. While it does not perform signal processing itself, it plays a critical role in maintaining signal integrity, simplifying installation, and reducing wiring errors in complex automation systems. Although discontinued at the end of 2018, it remains an essential spare part for maintaining and servicing installed DeltaV M-series systems.

Key Technical Characteristics

• Module Function: Field wiring termination and interface

• Hardware Family: DeltaV M-series I/O subsystem

• Mounting Style: Fixed terminal block assembly

• Electrical Role: Passive signal connection and distribution

• Design Focus: Secure wiring, vibration resistance, long-term stability

• Model Number: KJ3221X1-BA1

• Order Number: 12P2531X102

• Dimensions: 8.1 × 7.9 × 8.8 cm

• Net Weight: Approx. 0.2 kg

• Country of Origin: USA

Industrial Applications

This terminal block is widely used in DeltaV control cabinets where reliable and clearly organized field wiring is required. Typical applications include oil and gas processing units, chemical plants, power generation facilities, and large manufacturing systems that rely on DeltaV M-series I/O hardware.

It is particularly valuable during maintenance, system retrofits, or I/O card replacement, as it allows technicians to manage field connections efficiently without disturbing upstream control logic. For legacy DeltaV installations, the KJ3221X1-BA1 provides a direct replacement that preserves original system layout and wiring standards.
