Product Overview

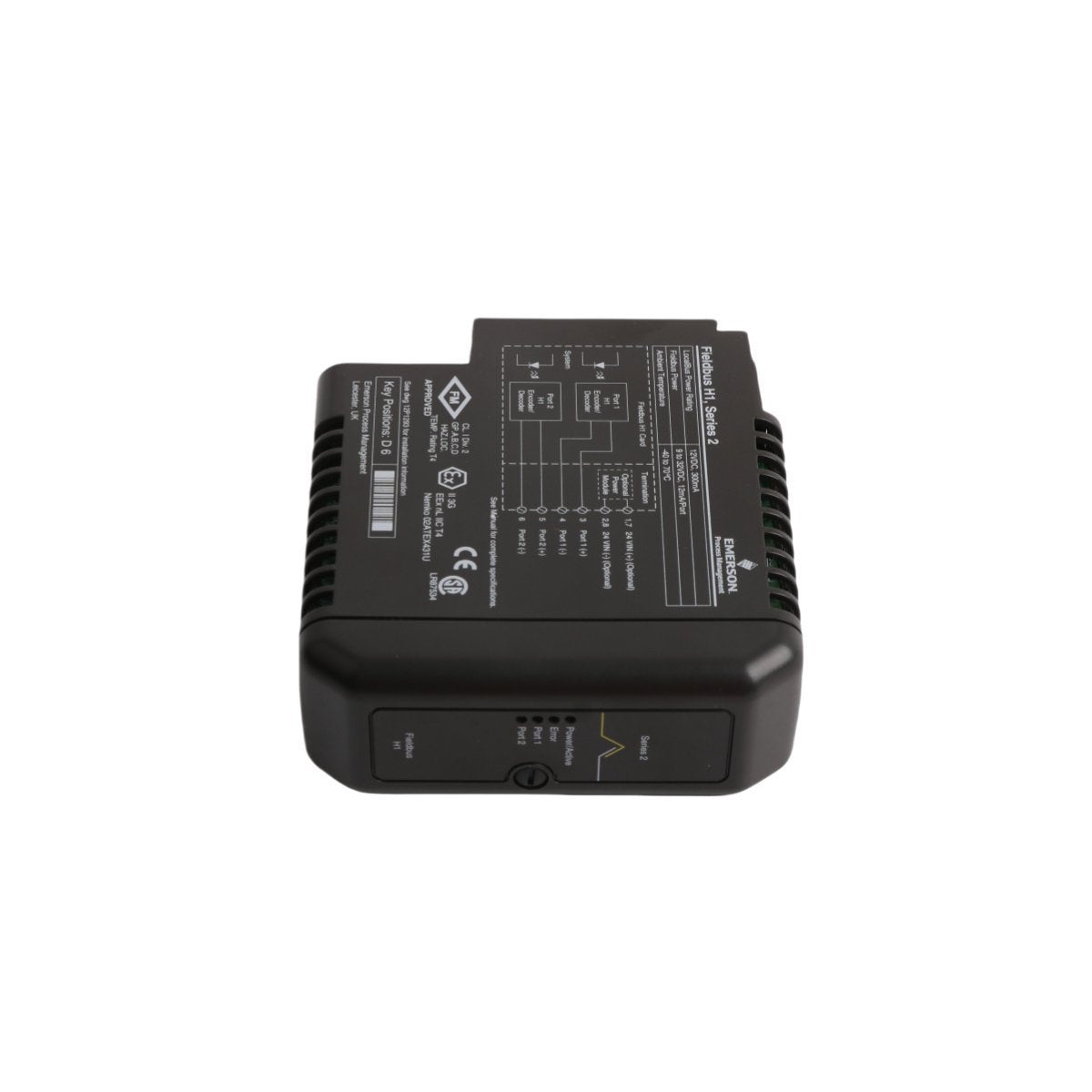

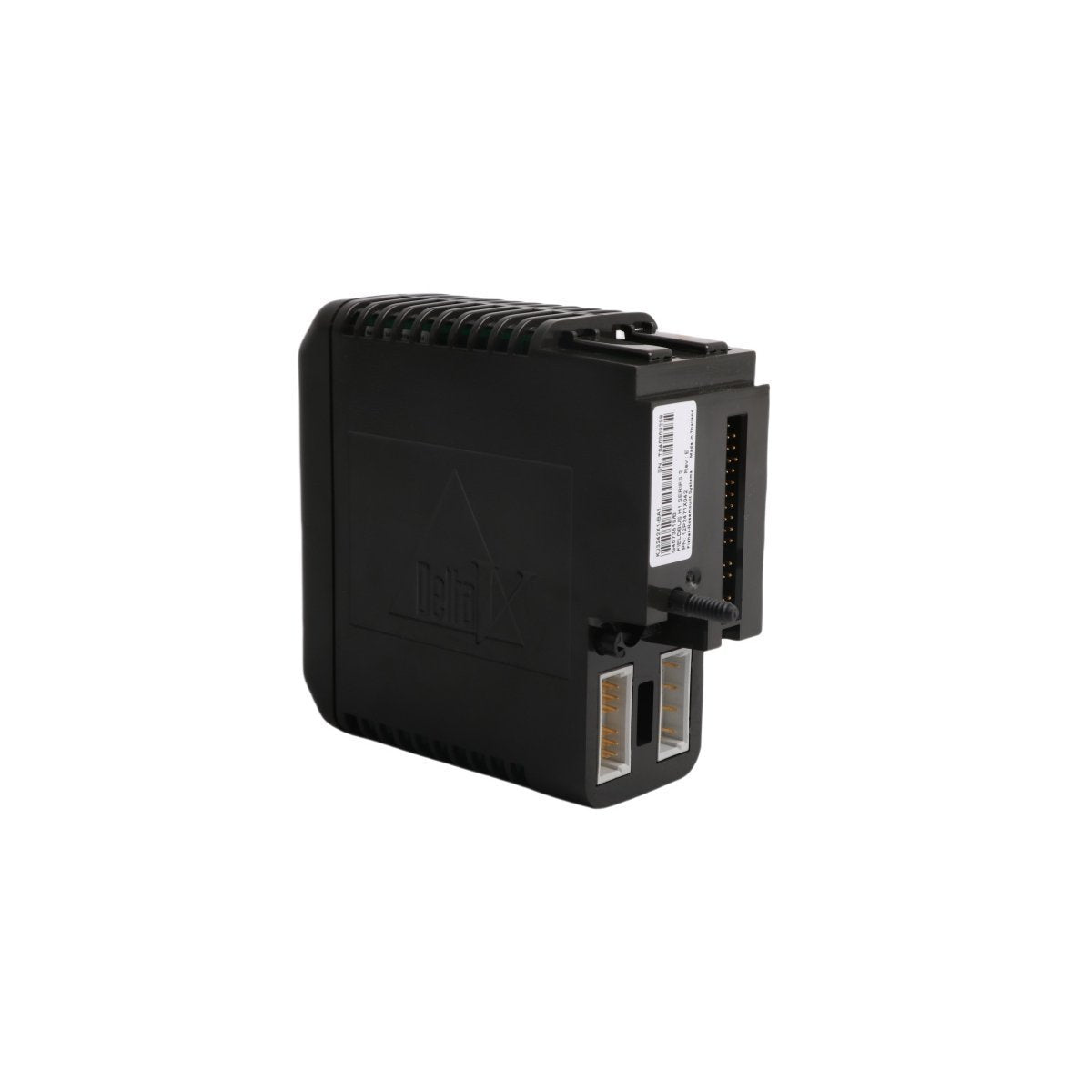

The Emerson KJ3242X1-BA1, part number 12P2471X042, is a high-performance Foundation Fieldbus H1 communication module designed for the DeltaV™ M-series I/O subsystem. This Series 2 interface card acts as the digital bridge between the control system and field instrumentation, supporting bidirectional communication and control-in-the-field (CiF) capabilities. It is specifically engineered to maintain network integrity in demanding process environments where precision and uptime are non-negotiable.

Operating within the Fisher-Rosemount VE4017P0 architecture, this card facilitates the integration of smart field devices into the Distributed Control System (DCS). While the manufacturer discontinued this series on December 31, 2018, it remains a critical component for the maintenance and expansion of existing DeltaV installations in the global energy and chemical sectors.

Technical Characteristics and Safety Features

• Advanced Communication: Optimized for Foundation Fieldbus H1 protocols, providing steady 31.25 kbit/s data transmission for digital instrumentation.

• Environmental Resilience: Rated for extreme industrial temperatures ranging from -40°C to +70°C, ensuring stability in outdoor or unconditioned equipment rooms.

• Atmospheric Protection: Fully compliant with ISA-S71.04-1985 Class G3 standards, offering high resistance to corrosive airborne contaminants and moisture (5-95% non-condensing).

• Mechanical Robustness: Built to withstand 10g shock pulses and persistent vibration, making it suitable for mounting near high-vibration machinery.

• Hardware Keying: Utilizes a mandatory rotary keying system at Position D6 to prevent accidental hardware mismatch during module insertion or replacement.

• Hazardous Area Readiness: Designed for non-incendive installations, provided that proper loop assessments and de-energization protocols are followed during service.

Technical Specifications

• Manufacturer: Emerson Process Management

• Model Designation: KJ3242X1-BA1

• Order Reference: 12P2471X042

• Local Bus Power: 12 VDC at 300 mA

• Fieldbus Port Power: 9–32 VDC at 12 mA

• Ingress Protection: IP20

• Physical Dimensions: 4.2 x 12.5 x 10.4 cm

• Net Weight: 0.1 kg

• Standard Compliance: ISA G3 Corrosion Resistance

Industrial Applications

• Upstream Oil & Gas: Reliable data link for remote wellhead monitoring and subsea tie-backs.

• Petrochemical Refining: High-density smart instrument management in corrosive atmospheres.

• Power Generation: Coordination of digital field actuators and boiler sensor arrays.

• Chemical Processing: Failsafe communication for hazardous area control loops.
