Product Overview

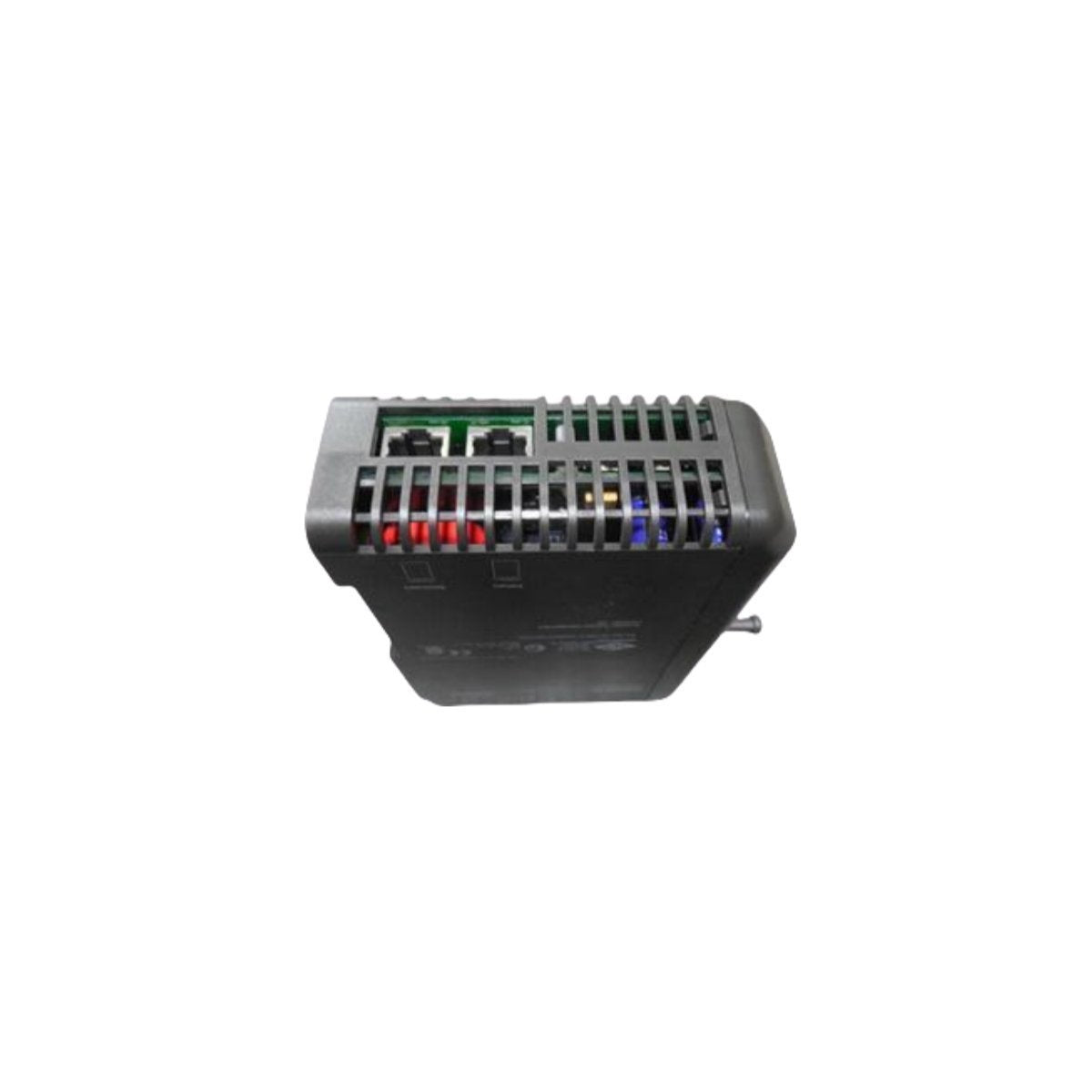

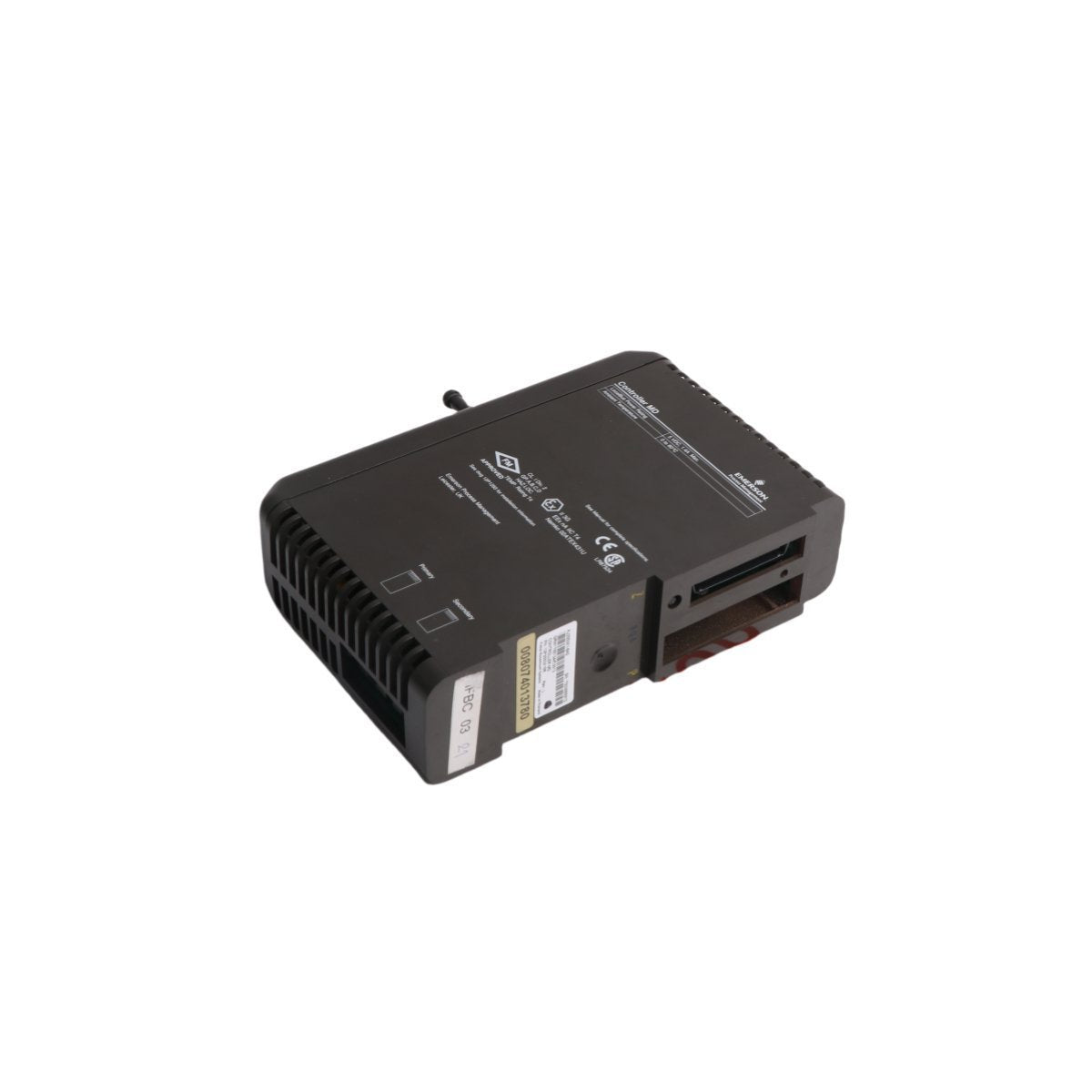

The Emerson KJ2003X1-BA2 (Part Number 12P2093X102, Model VE3005) is a high-integrity MD Controller designed for the DeltaV™ Distributed Control System (DCS). This central processing unit acts as the primary execution engine for control strategies, managing data from various I/O subsystems and maintaining real-time communication across the DeltaV control network. Engineered for scalability, the VE3005 supports both traditional process control and safety-instrumented functions within the DeltaV SIS™ framework.

As a foundational component of the DeltaV M-series, the MD Controller offers a robust platform for continuous and batch process control. It is designed to handle complex logic execution with high-speed data throughput, ensuring that critical process variables are monitored and adjusted with extreme precision. The module is hot-swappable, allowing for hardware replacement without shutting down the entire system, provided it is installed in a redundant configuration.

Technical Characteristics and Strategic Capabilities

The KJ2003X1-BA2 is characterized by its superior computational stability and native support for advanced automation protocols.

• Integrated Redundancy: Supports 1:1 hardware redundancy. When paired with a second MD controller on a redundant carrier, the system provides bumpless switchover in the event of a hardware fault, ensuring maximum plant availability.

• Autonomous Logic Execution: Once the control strategy is downloaded, the module operates independently of the higher-level workstation, ensuring process safety even if network communication is lost.

• Comprehensive Self-Diagnostics: Features internal monitoring that detects memory errors, CPU health issues, and communication bus anomalies, reporting status directly to the DeltaV diagnostics explorer.

• Large Memory Capacity: Equipped with non-volatile flash memory to protect the control database and configuration during power loss, eliminating the need for battery-backed RAM.

• Hazardous Location Certification: Designed to meet industrial standards for installation in G3-rated environments, offering protection against airborne contaminants and thermal stress.

• Unified Control Interface: Manages up to 64 individual I/O modules, providing a centralized point of command for hundreds of field devices through the Localbus.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Designation: KJ2003X1-BA2 / VE3005

• Order Number: 12P2093X102

• Module Type: MD Controller (M-series)

• System Integration: DeltaV™ DCS and DeltaV SIS™

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Dimensions: 4.4 x 10.8 x 12.7 cm

• Net Weight: 0.2 kg

• Country of Origin: USA

Industrial Applications

The Emerson VE3005 MD Controller is a vital asset for maintaining operational stability in high-stakes industries:

• Petrochemical & Refining: Coordinating large-scale distillation and separation logic in safety-critical zones.

• Pharmaceutical Manufacturing: Managing precise batch recipes and environmental monitoring in validated systems.

• Pulp and Paper: Controlling high-speed machine logic and chemical additive synchronization.

• Energy Production: Supervising auxiliary plant equipment and coordinating with turbine control platforms.
