Product Overview

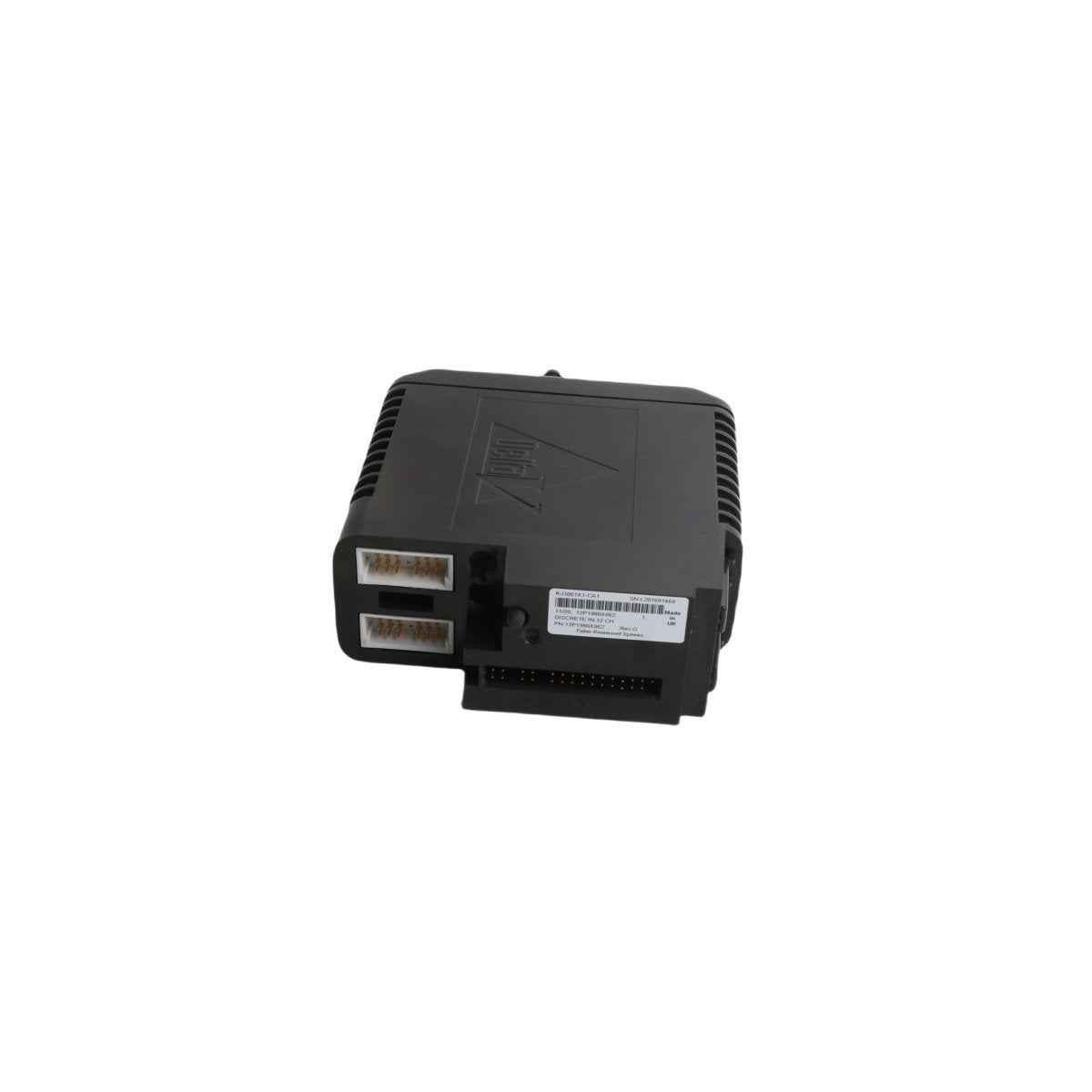

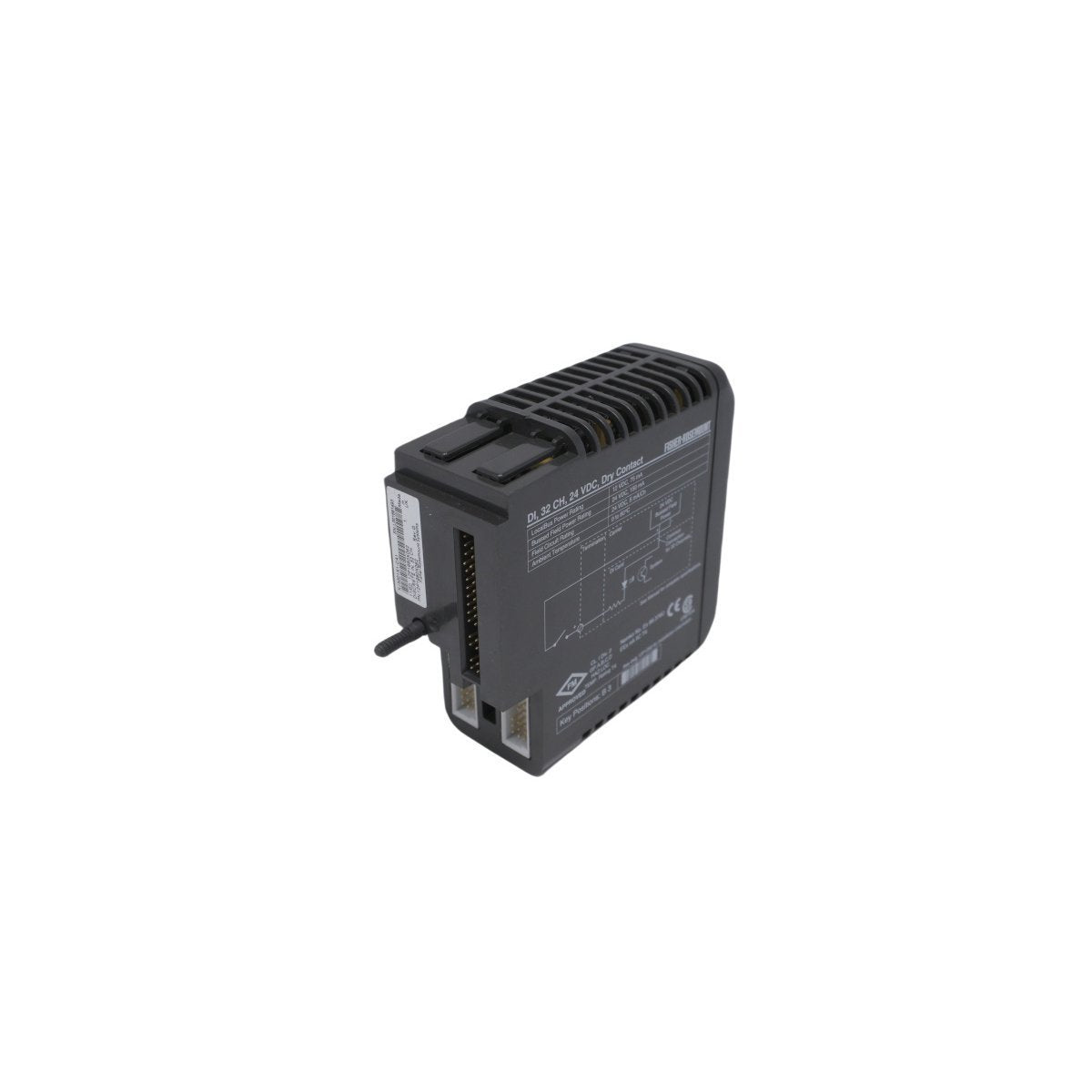

The Emerson KJ3001X1-CA1, identified by part number 12P1980X062, is a specialized discrete input module engineered for the DeltaV SIS™ (Safety Instrumented System). This Dry Contact Card is a fundamental component for process safety applications, designed to monitor the status of volt-free (dry) contacts from field equipment. It serves as a reliable interface for safety-critical sensors, limit switches, and push buttons, translating physical contact closures into digital logic for the safety logic solver.

Unlike standard I/O modules, the KJ3001X1-CA1 is built to meet the rigorous demands of Safety Integrity Level (SIL) environments. It provides high-speed sensing and internal diagnostics to ensure that safety loops remain intact and responsive. By integrating this module into a DeltaV SIS architecture, operators can achieve precise monitoring of emergency shutdown (ESD) triggers and fire and gas (F&G) detectors, ensuring that the system reacts instantaneously to hazardous process conditions.

Technical Performance and Safety Integrity

The 12P1980X062 card is designed for maximum uptime and fault tolerance. It features advanced circuit protection to prevent field-side electrical noise or surges from affecting the safety backplane. The module's "dry contact" architecture means it does not require external voltage to be supplied by the field device; instead, the card provides the necessary sensing voltage to detect a closed or open circuit state.

This module excels in high-demand industrial sectors such as hydrocarbon processing, offshore drilling, and chemical manufacturing. Its compact form factor allows for high-density installation in DeltaV M-series carriers, while its ruggedized construction ensures stable performance despite vibration or thermal fluctuations within the control cabinet. The card’s seamless integration with DeltaV SIS software allows for easy configuration of sequence-of-events (SOE) recording, providing microsecond-level timestamps for forensic analysis following a safety trip.

Technical Specifications

• Manufacturer: Emerson

• Model Designation: KJ3001X1-CA1

• Part/Order Number: 12P1980X062

• Module Type: Dry Contact Input Card

• System Family: DeltaV SIS™ (Safety Instrumented System)

• Signal Type: Discrete (On/Off) volt-free contacts

• Diagnostic Features: Internal self-test and safety loop monitoring

• Dimensions (W x H x D): 4.1 cm x 12.5 cm x 10.5 cm

• Net Weight: 0.18 kg

• Country of Origin: USA

• HS Code: 8537101190

• Environmental Suitability: Harsh industrial environments (G3 Corrosive compliant)

Core Functional Advantages

• SIL Rated Reliability: Purpose-built for safety instrumented functions where failure is not an option.

• Simplified Field Wiring: Volt-free input design eliminates the need for separate field power supplies for digital sensors.

• High-Speed SOE Capture: Enables precise event logging to identify the "first-out" cause during a multi-point system shutdown.

• Plug-and-Play Integration: Fully compatible with DeltaV M-series carriers and SIS logic solvers for rapid deployment and hot-swappable maintenance.
