Product Overview

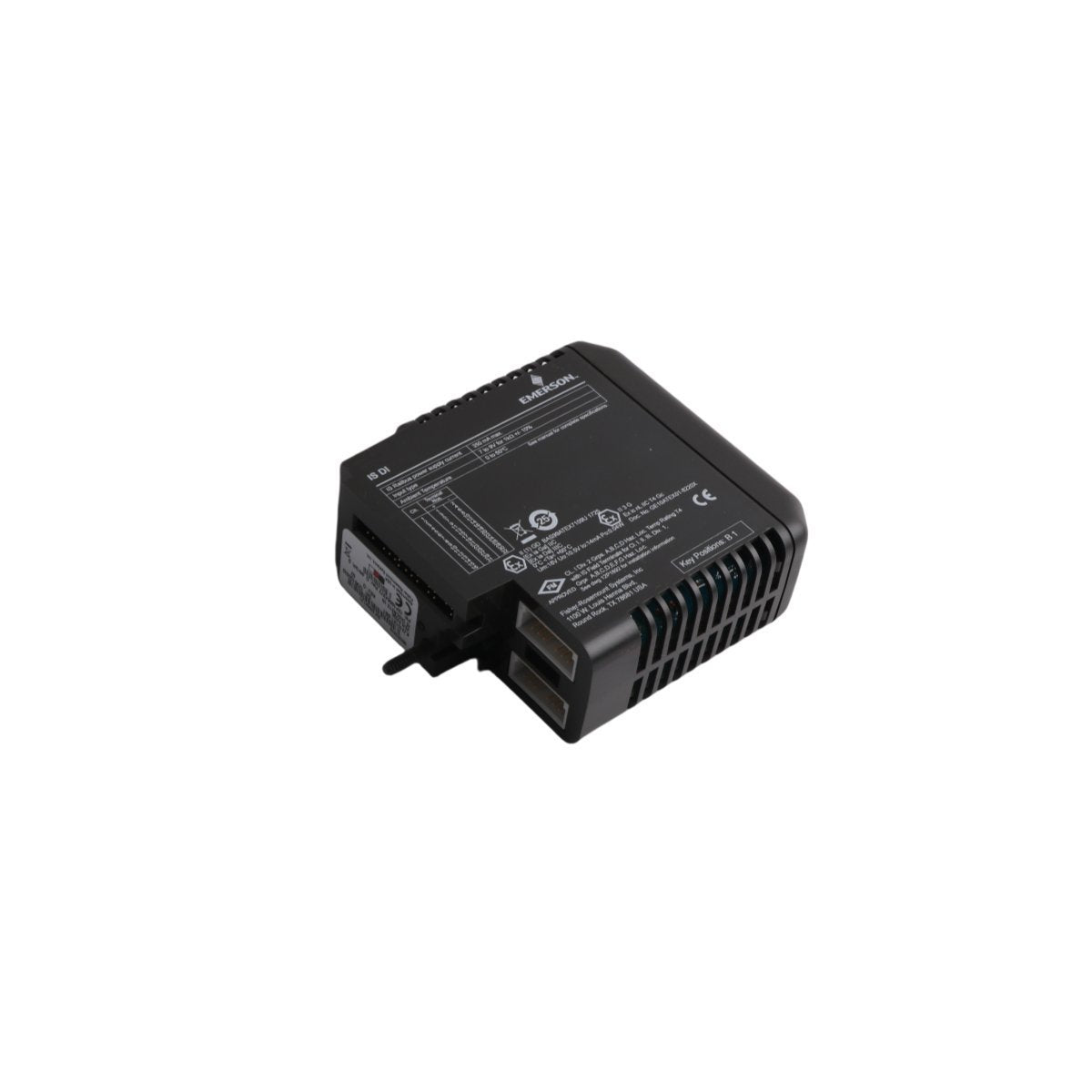

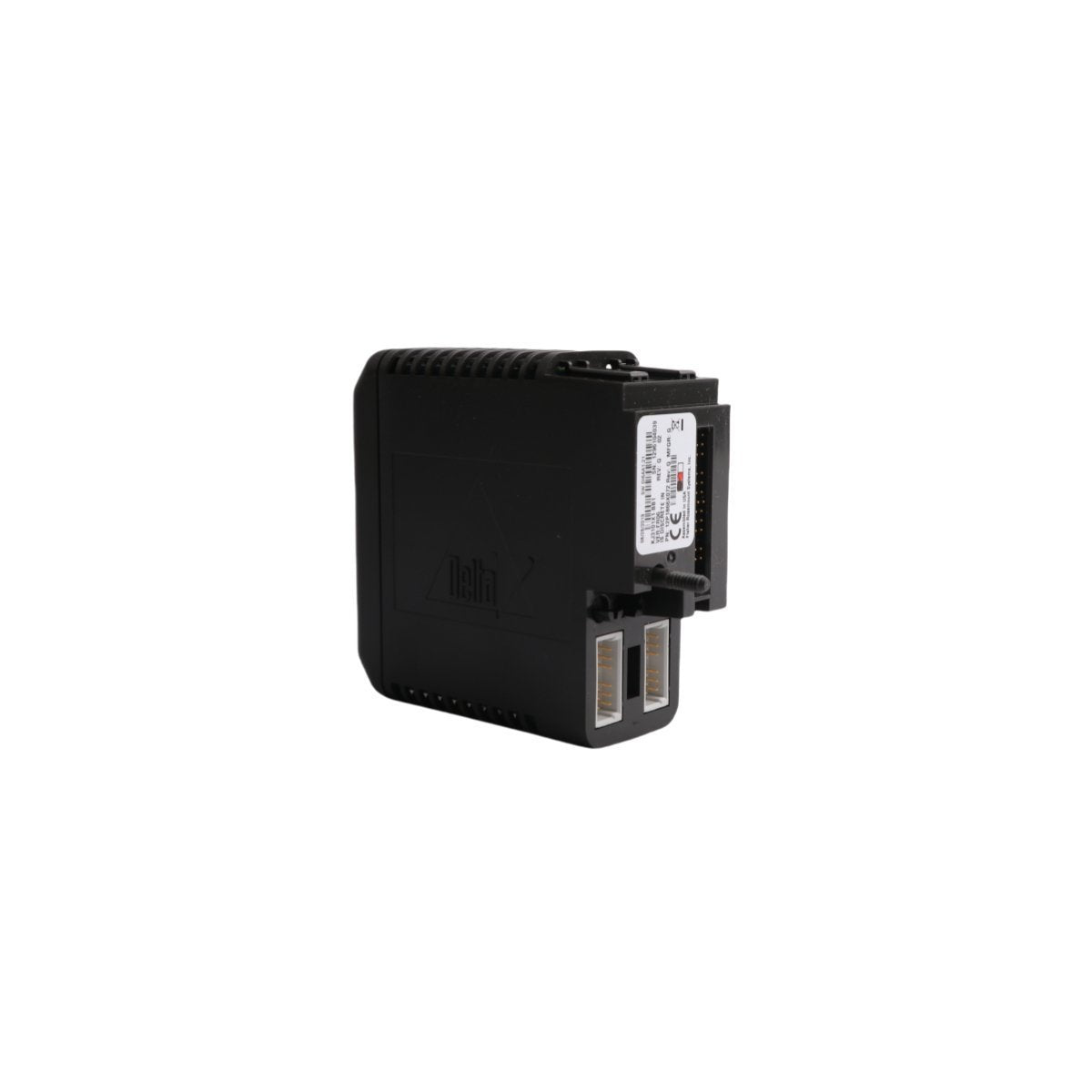

The Emerson KJ3101X1-BB1 (Part Number 12P1866X072, Model VE3006) is a specialized 8-channel Intrinsically Safe (IS) Digital Input module designed for the DeltaV™ M-series I/O subsystem. This module is engineered to interface directly with discrete field devices—such as NAMUR sensors or dry contacts—located in hazardous areas. By incorporating built-in galvanic isolation and energy-limiting circuitry, the KJ3101X1-BB1 eliminates the need for external safety barriers, significantly reducing cabinet space and wiring complexity.

As a core component of the DeltaV distributed control system (DCS), the VE3006 provides real-time detection of switch states and sensor pulses. It is particularly suited for safety-critical monitoring where explosive atmospheres may be present. The module's hardware supports advanced diagnostics, including line fault detection for open or short circuits, ensuring that the control system can distinguish between a process state change and a physical wiring failure.

Key Technical Characteristics and Safety Features

The KJ3101X1-BB1 is defined by its ability to provide high-integrity data acquisition in volatile industrial environments.

• Intrinsically Safe Interface: Built-in isolation for 8 discrete channels allows for direct connection to devices in Zone 0, Zone 1, or Division 1 hazardous locations.

• Line Fault Diagnostics: When used with compatible field devices, the module can detect and report open-wire and short-circuit conditions, enhancing the reliability of safety-instrumented functions.

• Modular Scalability: The "plug-and-play" design allows for easy mounting on DeltaV M-series carriers, supporting both standard and redundant configurations for maximum system uptime.

• Ruggedized Construction: Designed to perform in harsh conditions, withstanding high levels of electromagnetic interference (EMI) and mechanical vibration.

• Hot-Swappable Capability: The module can be replaced under power without disrupting the communication bus or the operation of other I/O cards on the same carrier.

• Unified Configuration: Fully integrated with DeltaV Explorer software, allowing for seamless channel assignment, filtering, and diagnostic setup from a central engineering station.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Designation: KJ3101X1-BB1 / VE3006

• Order Reference: 12P1866X072

• Module Type: 8-Channel IS Digital Input

• Input Compatibility: Dry Contacts, NAMUR Proximity Sensors

• System Platform: DeltaV™ M-series DCS

• Isolation: Galvanic isolation between field and system logic

• Dimensions: 4.1 x 12.5 x 10.5 cm

• Unit Weight: 0.23 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ3101X1-BB1 IS DI module is a critical asset for process monitoring in high-risk sectors:

• Chemical and Specialty Gas: Monitoring valve limit switches and pressure triggers in reactive environments.

• Oil and Gas Production: High-integrity sensing for offshore platforms and wellhead control.

• Pharmaceutical Processing: Precision monitoring of sterile batch sequences where flammable solvents are present.

• Water and Wastewater: Ensuring reliable status feedback from remote pumping stations and treatment facilities.
