Product Overview

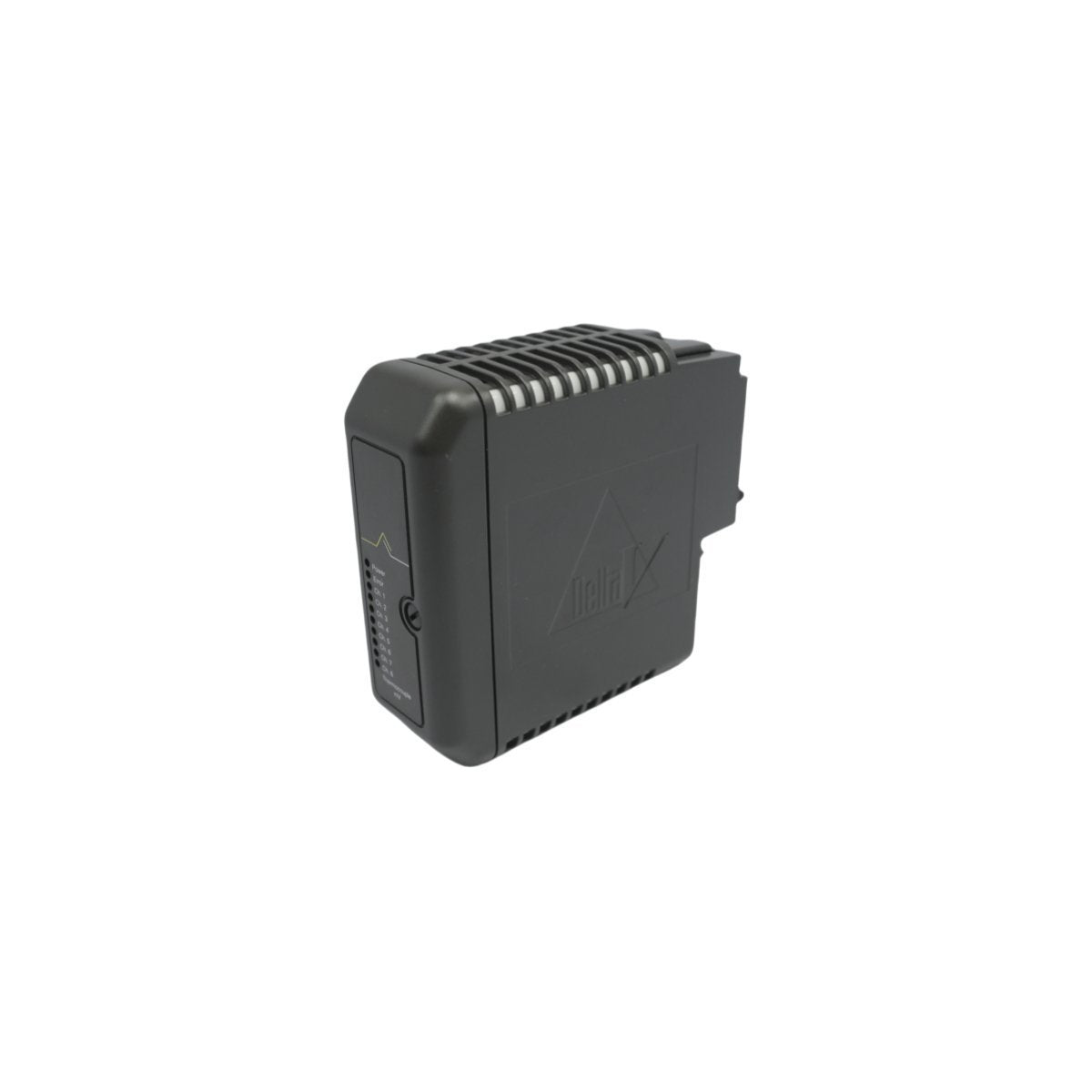

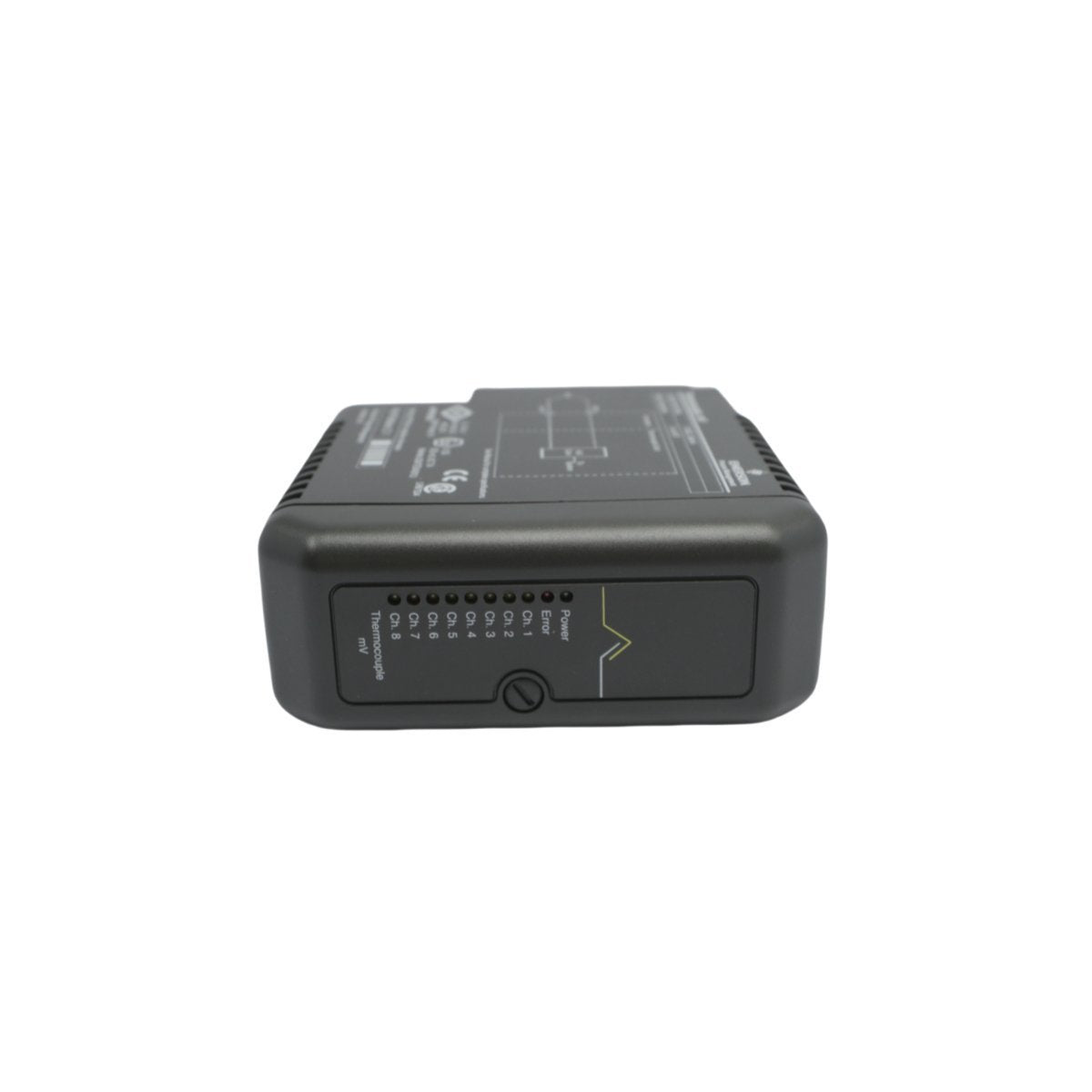

The Emerson VE4003S5B1, identified by part numbers KJ3002X1-BG2 and 12P1731X082, is a high-integrity I/O interface card engineered for the DeltaV SIS™ (Safety Instrumented System). This PLC module is a core component of the process safety framework, designed to handle critical safety logic and signal processing. It provides the essential interface between field-level sensors and the logic solver, ensuring that emergency shutdown (ESD) systems and fire and gas (F&G) protection loops operate with maximum reliability.

As part of the DeltaV SIS architecture, the VE4003S5B1 is built to meet stringent Safety Integrity Level (SIL) requirements. Unlike standard control modules, this card focuses on deterministic performance and hardware fault tolerance. It excels in high-demand industrial environments such as hydrocarbon processing, chemical manufacturing, and offshore power generation, where the accurate acquisition of discrete and analog safety signals is non-negotiable for personnel and asset protection.

Technical Performance and Safety Integrity

The KJ3002X1-BG2 module is characterized by its robust signal conditioning and rapid response times. It is designed to monitor field inputs continuously, utilizing onboard microprocessors to perform real-time diagnostics on the hardware and the connected loops. This "self-aware" capability allows the system to detect open circuits, short circuits, and internal component failures before they can compromise the safety function.

The hardware is physically hardened for industrial use, featuring a compact form factor that mounts directly onto DeltaV M-series carriers. It supports seamless communication with the DeltaV logic solver via the safety bus, providing transparent data integration while maintaining the logical separation required by international safety standards (IEC 61508/61511). This ensures that process safety functions remain autonomous even during heavy traffic on the primary DCS network.

Technical Specifications

• Manufacturer: Emerson

• Model Designation: VE4003S5B1

• Part Numbers: KJ3002X1-BG2 / 12P1731X082

• Product Series: DeltaV SIS™ Safety Instrumented System

• Module Type: Safety PLC I/O Module

• Safety Rating: Suitable for use in SIL 1-3 applications

• Diagnostics: Comprehensive hardware and loop-level fault detection

• Net Weight: 0.2 kg

• Dimensions: 8.1 cm x 7.9 cm x 8.8 cm

• Customs Tariff Number: 8537101190

• Manufacturing Origin: USA

• Environmental Protection: G3 Corrosive-compliant circuitry

Core Functional Characteristics

• Safety Logic Integration: Directly interfaces with SIS logic solvers to execute shutdown protocols with microsecond-level precision.

• Hot-Swappable Maintenance: Supports module replacement while the system is energized, minimizing the duration of safety bypasses during repair.

• Redundancy Support: Can be configured in redundant pairs to eliminate single points of failure in critical safety loops.

• Industrial Ruggedness: Engineered to withstand the thermal stress and vibration typical of petrochemical and power plant control rooms.
