Product Overview

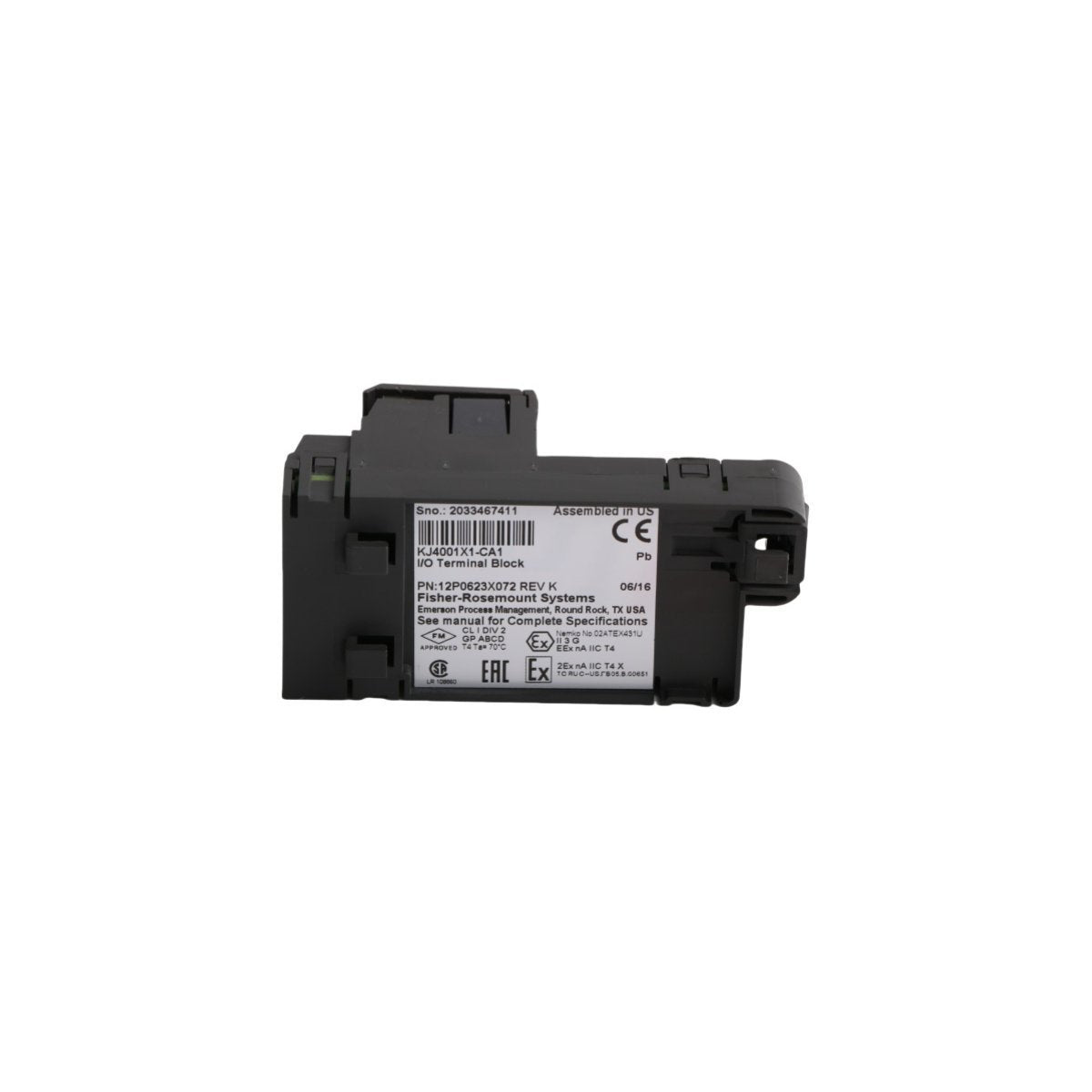

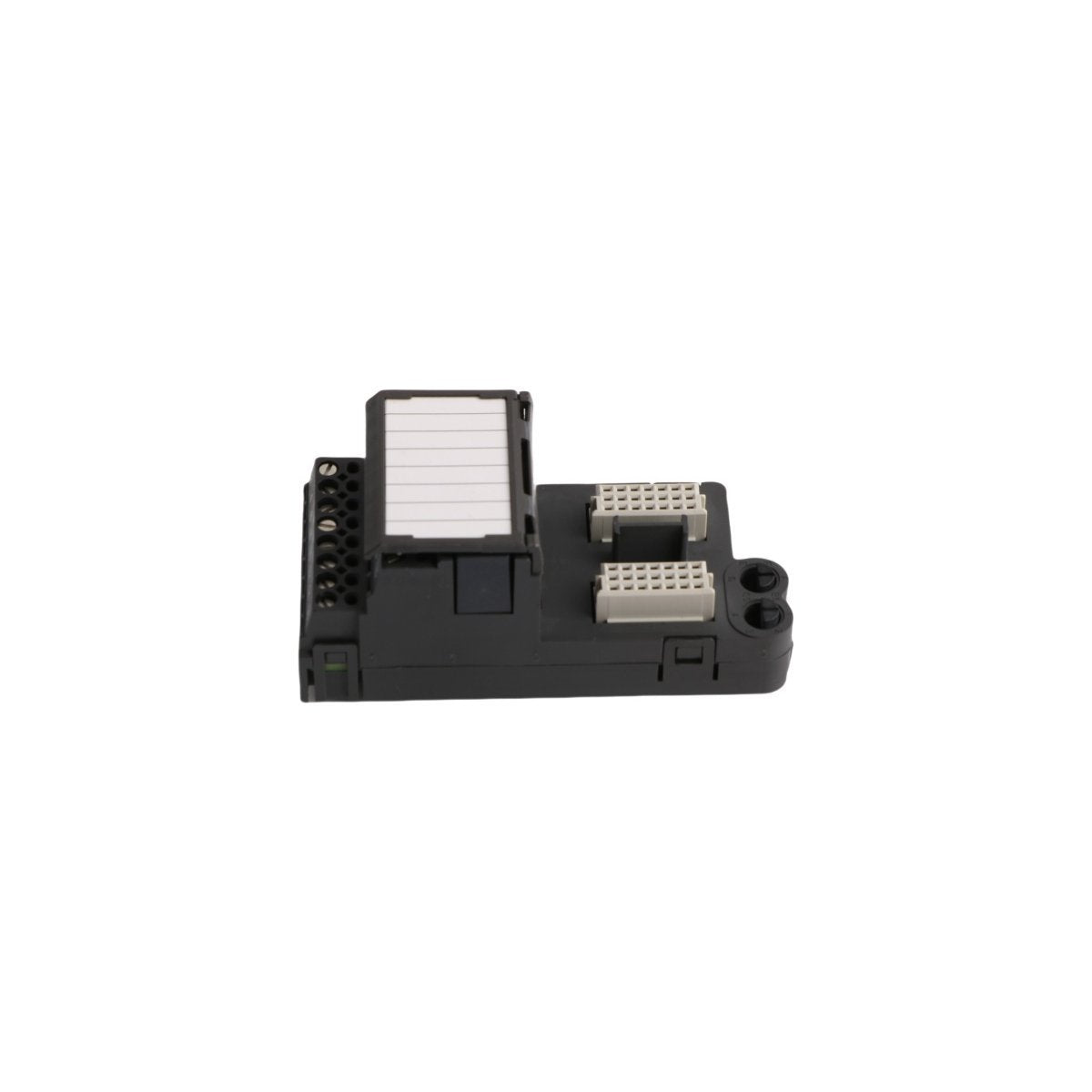

The Emerson KJ4001X1-CA1 with order number 12P0623X072 is a 4-wire I/O terminal block engineered for the DeltaV™ M-series I/O subsystem. This component provides a secure and organized field wiring interface between DeltaV I/O cards and plant instrumentation. Its design emphasizes signal integrity, consistent termination, and straightforward maintenance in distributed control system cabinets.

Built for long-term service in industrial environments, the terminal block supports stable connections for analog and discrete field devices while maintaining compatibility with standard DeltaV mounting and wiring practices. Its compact footprint allows efficient panel layout without compromising accessibility.

Key Technical Characteristics

• Control System Compatibility: DeltaV™ M-series I/O subsystem

• Module Function: Field wiring termination and signal distribution

• Wiring Type: 4-wire terminal configuration

• Mechanical Design: Panel-mounted terminal block

• Electrical Characteristics: Suitable for low-voltage control and signal circuits

• Protection Rating: IP20 for control cabinet installation

• Model Number: KJ4001X1-CA1

• Order Number: 12P0623X072

• Dimensions: Approx. 5.1 × 7.6 × 5.1 cm

• Net Weight: Approx. 0.1 kg

• Country of Origin: USA

Industrial Applications

The KJ4001X1-CA1 terminal block is used in DeltaV-based automation systems across process industries such as oil and gas, chemical processing, power generation, and manufacturing. It provides reliable termination for field instruments including transmitters, switches, and actuators connected to DeltaV I/O cards.

This terminal block is particularly suitable for system expansions, panel retrofits, and maintenance activities where consistent wiring standards and dependable electrical connections are required. Its simple structure supports efficient troubleshooting and reduces downtime during commissioning or replacement tasks.
