Product Overview

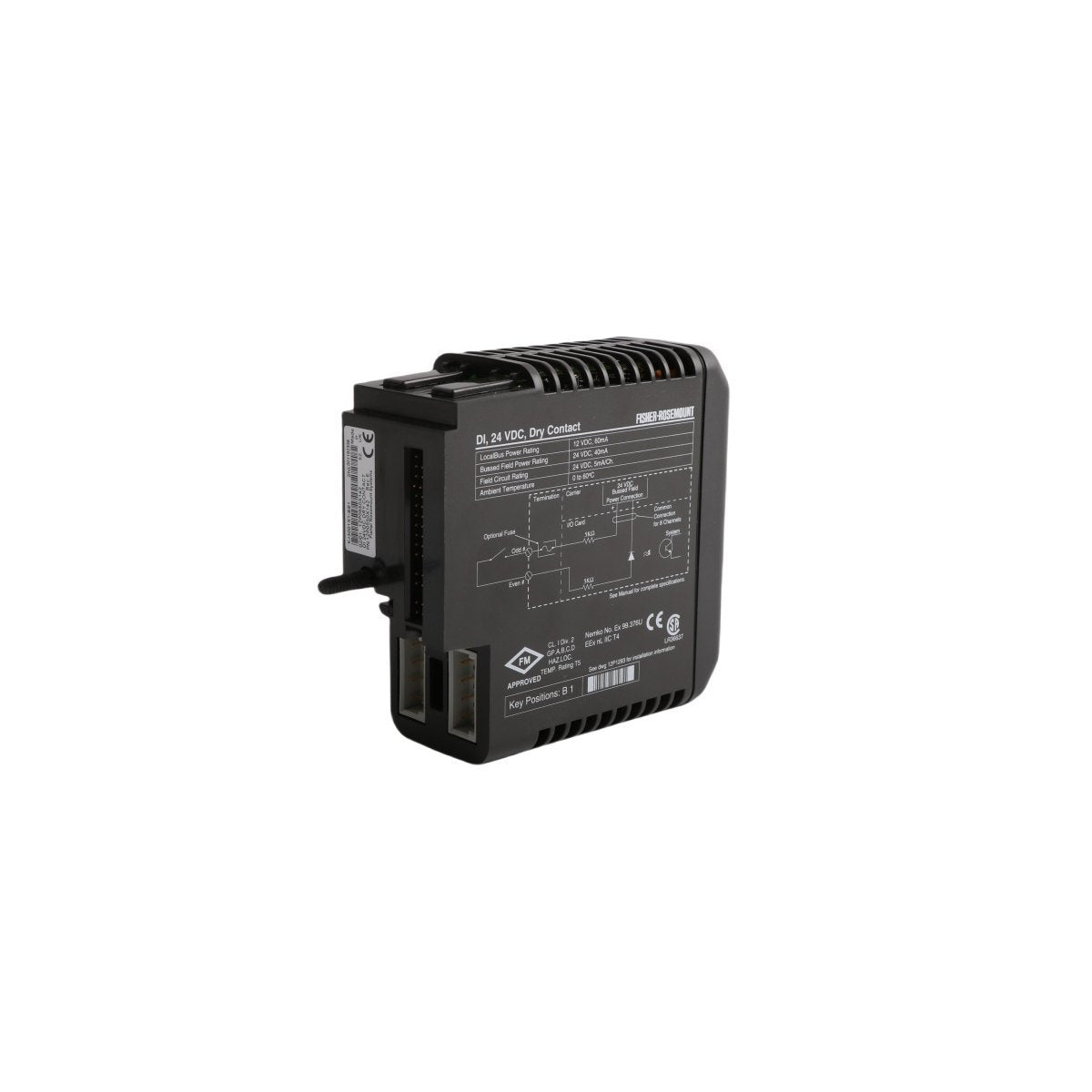

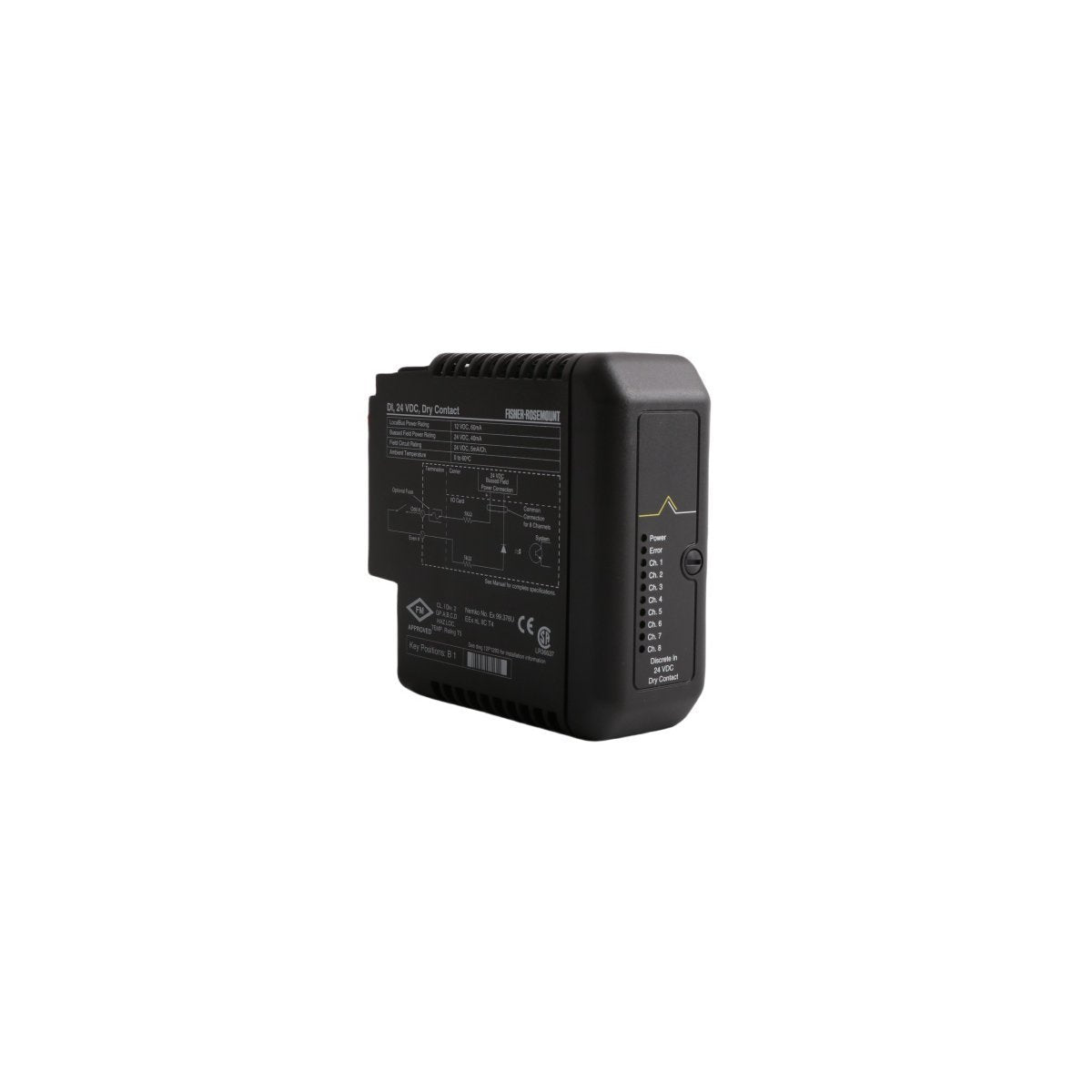

The Emerson KJ3001X1-BB1 (Part Number 12P0550X142, Model VE4001S2T2) is a high-performance 8-channel digital input module designed for the DeltaV™ M-series and DeltaV SIS™ process safety system. This module serves as the primary interface for binary field signals, converting discrete states from dry contact devices—such as emergency stop buttons, limit switches, and pressure switches—into digital data for the distributed control system (DCS).

Engineered for mission-critical reliability, the KJ3001X1-BB1 ensures high-speed signal registration while maintaining total galvanic isolation between the field circuitry and the system backplane. This isolation is vital for protecting the controller's logic from electrical transients, ground loops, and field-side interference. Its integration into the DeltaV environment allows for advanced event sequence recording and real-time status monitoring in high-stakes industrial applications.

Technical Characteristics and Performance

The VE4001S2T2 module is built to provide maximum uptime and signal integrity in demanding automation architectures.

• 8-Channel Discrete Acquisition: Independently monitors eight separate digital inputs, providing high-density signal management within a compact form factor.

• Integrated Electrical Isolation: Protects the internal Localbus and controller logic from field-side disturbances through robust optical and galvanic barriers.

• Flexible Contact Monitoring: Specifically optimized for dry contact sensing, providing the necessary wetting voltage to ensure reliable transition detection even across long cable runs.

• Hot-Swap Functionality: Supports modular replacement under system power, allowing operators to swap modules on the carrier without interrupting the operation of adjacent I/O cards.

• Environmental Hardening: Designed to withstand the thermal and mechanical stresses of industrial control cabinets, ensuring stable performance in environments with high electromagnetic noise.

• Plug-and-Play Integration: Fully compatible with DeltaV configuration software, enabling automatic module recognition and simplified channel-level hardware assignment.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3001X1-BB1 / VE4001S2T2

• Order Number: 12P0550X142

• Module Type: Digital Input (DI) Module

• Channel Density: 8 Channels

• Input Type: Dry Contact / Discrete

• Series Compatibility: DeltaV™ M-series / DeltaV SIS™

• Dimensions: 4.3 cm x 12.5 cm x 10.5 cm

• Net Weight: 0.18 kg

• Standard Origin: USA

• System Type: Distributed Control System (DCS) / Safety Instrumented System (SIS)

Industrial Applications

The Emerson KJ3001X1-BB1 is an essential component for discrete state monitoring across a variety of process industries:

• Oil and Gas Safety: Monitoring emergency trip switches and fire door status in safety instrumented functions.

• Chemical Processing: Tracking valve position feedback and level switch activations in reactor vessels.

• Power Generation: Capturing turbine trip signals and auxiliary equipment interlocks.

• Manufacturing Automation: Integrating conveyor limit switches and operator control station push-buttons.
