Product Overview

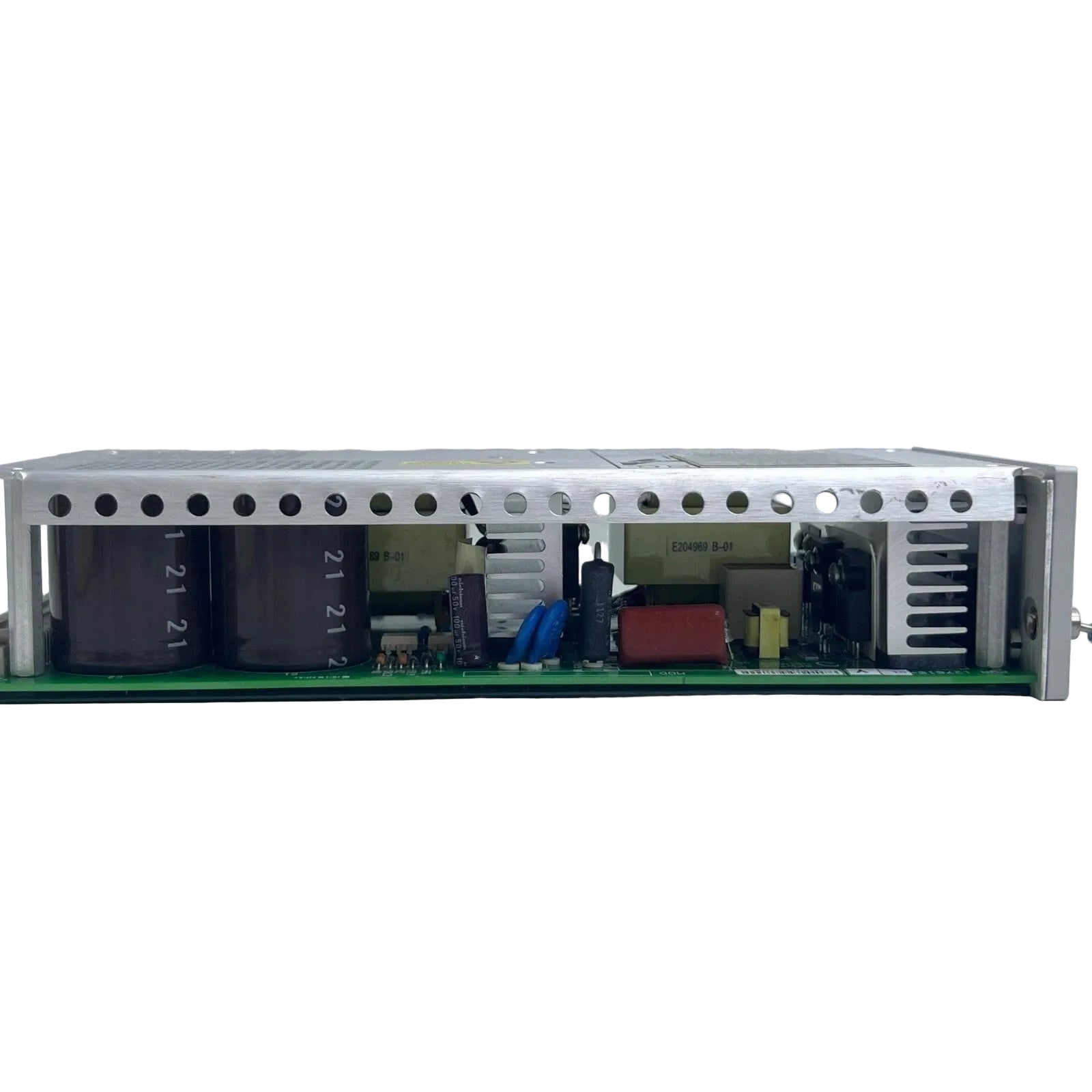

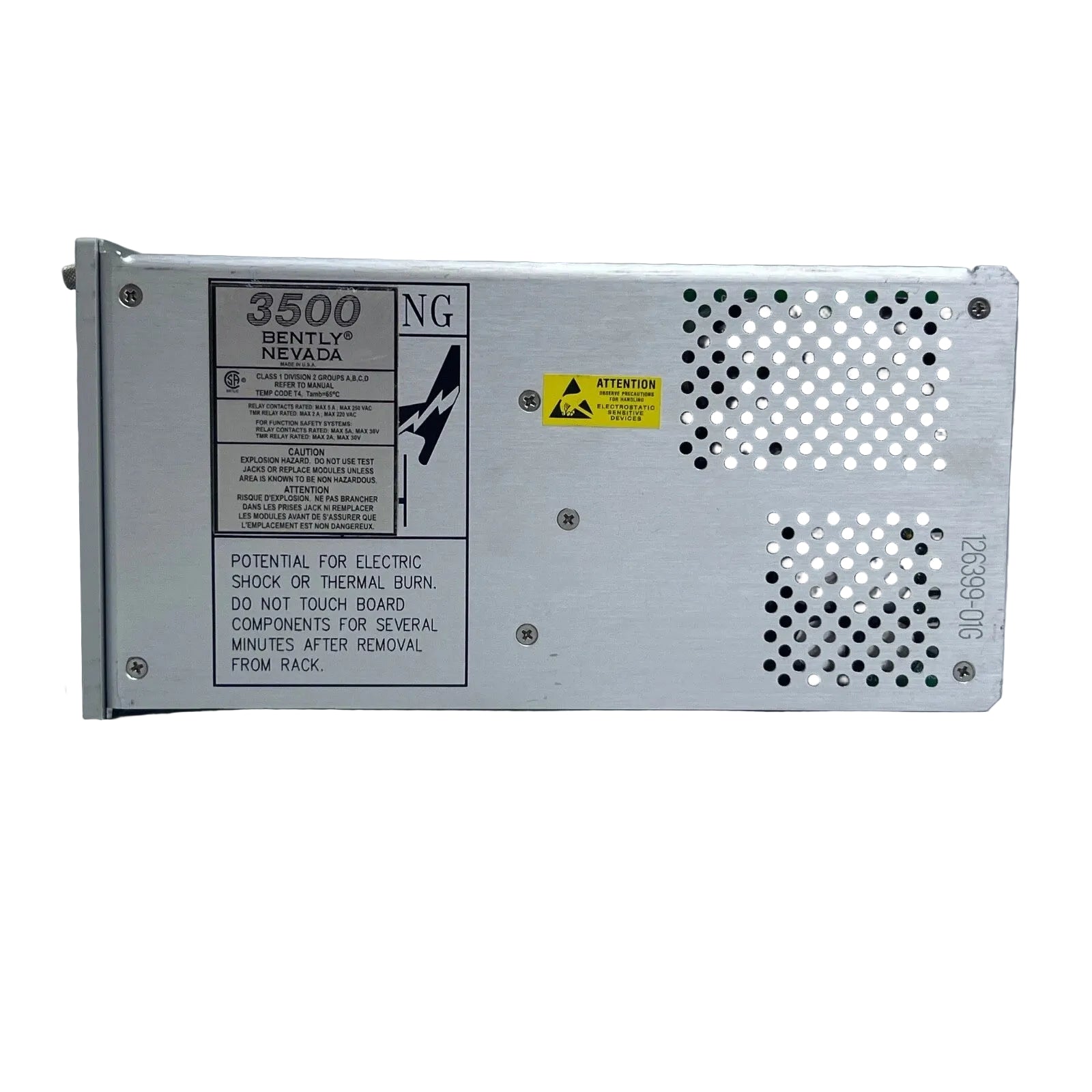

The Bently Nevada 126399-01G is a high-availability AC Power Supply Module specifically designed for the 3500 Series Machinery Protection System. This module serves as the primary power conversion interface, transforming external AC line voltage into the regulated DC power required by the rack’s monitoring modules, keyphasors, and transducers. Engineered for industrial resilience, the 126399-01G ensures that critical machinery protection remains uninterrupted even in electrically noisy or harsh environments. While often misidentified in legacy documentation as a transducer, this component is functionally the "heart" of the 3500 rack power infrastructure, featuring advanced surge protection and EMI filtering to safeguard sensitive internal logic from line transients.

Engineering Specifications and Physical Attributes

The following parameters define the operational boundaries and physical footprint of the 126399-01G power unit within a standard 3500 rack configuration.

• Input Voltage Range: 85 to 264 Vac (Universal AC Input)

• Input Frequency: 47 to 63 Hz

• Nominal Output: Regulated DC power for 3500 backplane

• Weight: 1.25 kg (approx. 2.75 lbs)

• Dimensions: 241 mm x 121 mm x 51 mm (Standard Full-Height Slot)

• Installation Location: Left-hand side of the 3500 rack (Power Supply Slot)

• Operating Temperature: -30°C to +65°C

• Storage Temperature: -40°C to +85°C

• Humidity Resistance: 95% non-condensing

• Isolation Rating: 2200 Vdc input-to-output

• Manufacturing Origin: USA

Industrial Operational Deployment

• Turbomachinery Protection Racks: Provides the foundational power for 3500/42M and 3500/45 modules monitoring high-speed steam and gas turbines.

• Redundant Power Configurations: Designed to work in tandem with a second 126399-01G module in a "Power Supply High" configuration to ensure zero-downtime if one AC source fails.

• Refinery Control Rooms: Supplies stabilized power to vibration monitoring systems in petrochemical plants where electrical line stability may fluctuate.

• Remote Pumping Stations: Ideal for unmanned sites due to its robust thermal management and high Mean Time Between Failure (MTBF).

• Critical Asset Overspeed Protection: Ensures that overspeed detection modules remain powered and active, providing a critical layer of safety for large rotating motors.

FAQ

Q: Is the 126399-01G a transducer or a power supply?

A: Despite some conflicting descriptions, the 126399-01G is a Power Supply Module for the Bently Nevada 3500 rack. It is not a proximity transducer or displacement sensor.

Q: Can this module be used in a rack that requires DC input?

A: No. The 126399-01G is specifically an AC-to-DC converter. If your site provides 24Vdc or 125Vdc source power, you would require the DC version of the 3500 power supply series.

Q: Does this module occupy a standard monitor slot in the 3500 rack?

A: No, it is designed to fit only in the designated power supply slots located on the far left of the 3500 rack frame, leaving the standard slots available for monitoring modules.

Q: What happens if the input voltage drops below 85 Vac?

A: The module is rated down to 85 Vac. If the voltage drops significantly below this threshold, the module will trigger a "Supply OK" fault, and the rack will switch to the redundant supply if one is installed.

Q: Does the 126399-01G include the faceplate and handle for installation?

A: Yes, the module comes as a complete assembly with a front-panel handle and securing screws for easy insertion and removal from the 3500 system chassis.
