Product Overview

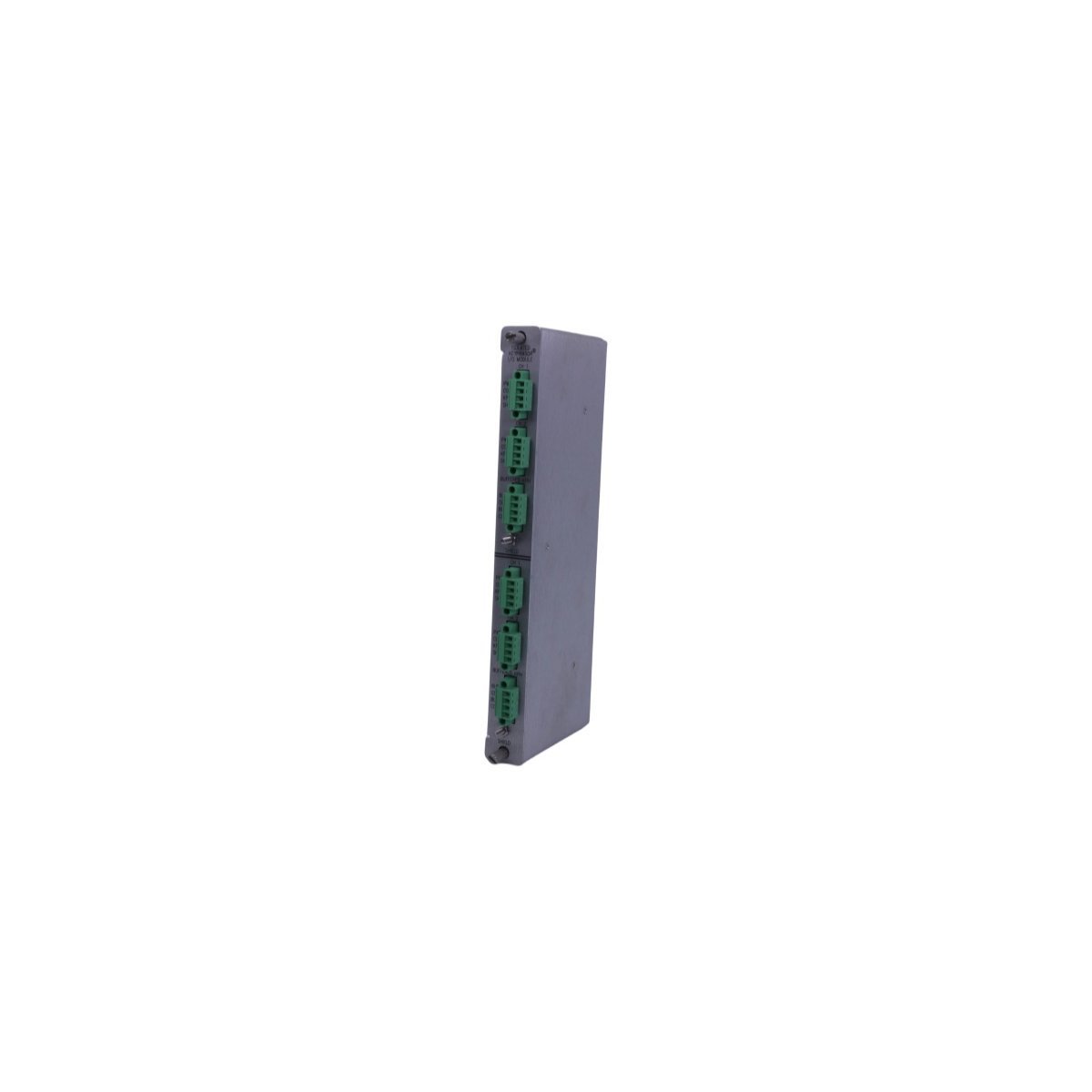

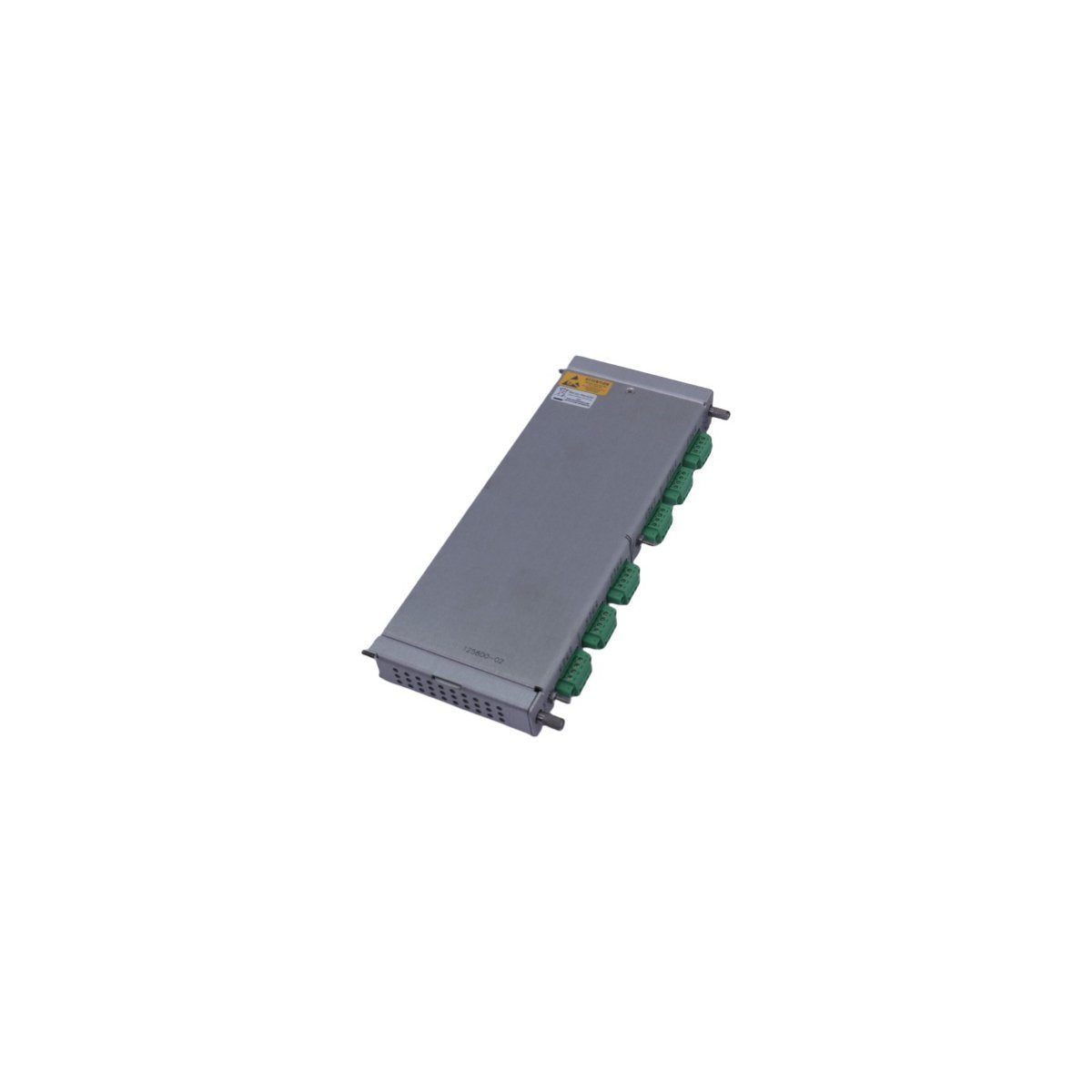

The 125800-02 is a specialized interface component designed for the Bently Nevada 3500/25 Enhanced Keyphasor system. Its primary role is to provide galvanic isolation for speed and phase signals, protecting the integrity of the monitoring rack from external electrical interference or ground loops. This module is essential for translating raw pulses from shaft-sensing transducers—such as magnetic pickups or proximity probes—into digitized Keyphasor signals. These signals serve as the critical timing reference for vibration analysis, allowing the system to perform phase-locked measurements and accurately determine rotational speeds across a wide variety of industrial machinery.

Core Hardware Parameters

• Model Number: 3500/25

• Order Designation: 125800-02

• Module Function: Signal Isolation and Keyphasor Processing

• Safety Integrity Level: Rated for SIL 1 to SIL 2 applications

• Termination Style: Internal Termination Support

• Transducer Compatibility: Primarily magnetic pickups; proximity probes (requires external power source)

• Physical Weight: 454g (1.00 lbs)

• Dimensions: 24.1 cm x 2.4 cm x 10.3 cm

• Manufacturing Locale: United States (USA)

Field Application Scenarios

The 125800-02 Isolated I/O Module is deployed in environments where precise timing data is mandatory for asset health monitoring. Typical installations include:

• Vibration Phase Analysis: Providing the "Once-Per-Turn" reference pulse necessary for plotting polar and Bode diagrams to diagnose shaft imbalances.

• Rotational Speed Monitoring: Calculating high-precision RPM data for steam turbines, centrifugal compressors, and electric motors.

• Electrically Noisy Environments: Implementing isolation in plants with significant electromagnetic interference (EMI) to prevent signal distortion.

• Multi-Rack Synchronization: Distributing a single Keyphasor signal across multiple 3500 racks while maintaining electrical separation between systems.

FAQ

Q: What is the benefit of using an "Isolated" I/O module like the 125800-02?

A: Isolation prevents ground loops and protects the 3500 monitor modules from high-voltage transients that may occur at the transducer site, ensuring more stable data and increased hardware longevity.

Q: Does the 125800-02 provide power to proximity probes?

A: No, this specific I/O module does not provide power for proximity sensors. When using proximity probes as Keyphasor sources, an external power supply or a different I/O configuration is required.

Q: Can this module be installed in any slot of the 3500 rack?

A: The I/O module must be installed in the backplane slot directly behind the corresponding 3500/25 Keyphasor Monitor module to function correctly.

Q: Is the 125800-02 suitable for safety-instrumented systems?

A: Yes, it is certified for use in SIL 1 and SIL 2 environments, making it appropriate for critical machinery protection loops where high reliability is required.

Q: What is the typical warranty period for this Bently Nevada part?

A: We offer a 12-month technical warranty on this brand-new, in-stock module, covering any operational defects under standard industrial use.
