Product Overview

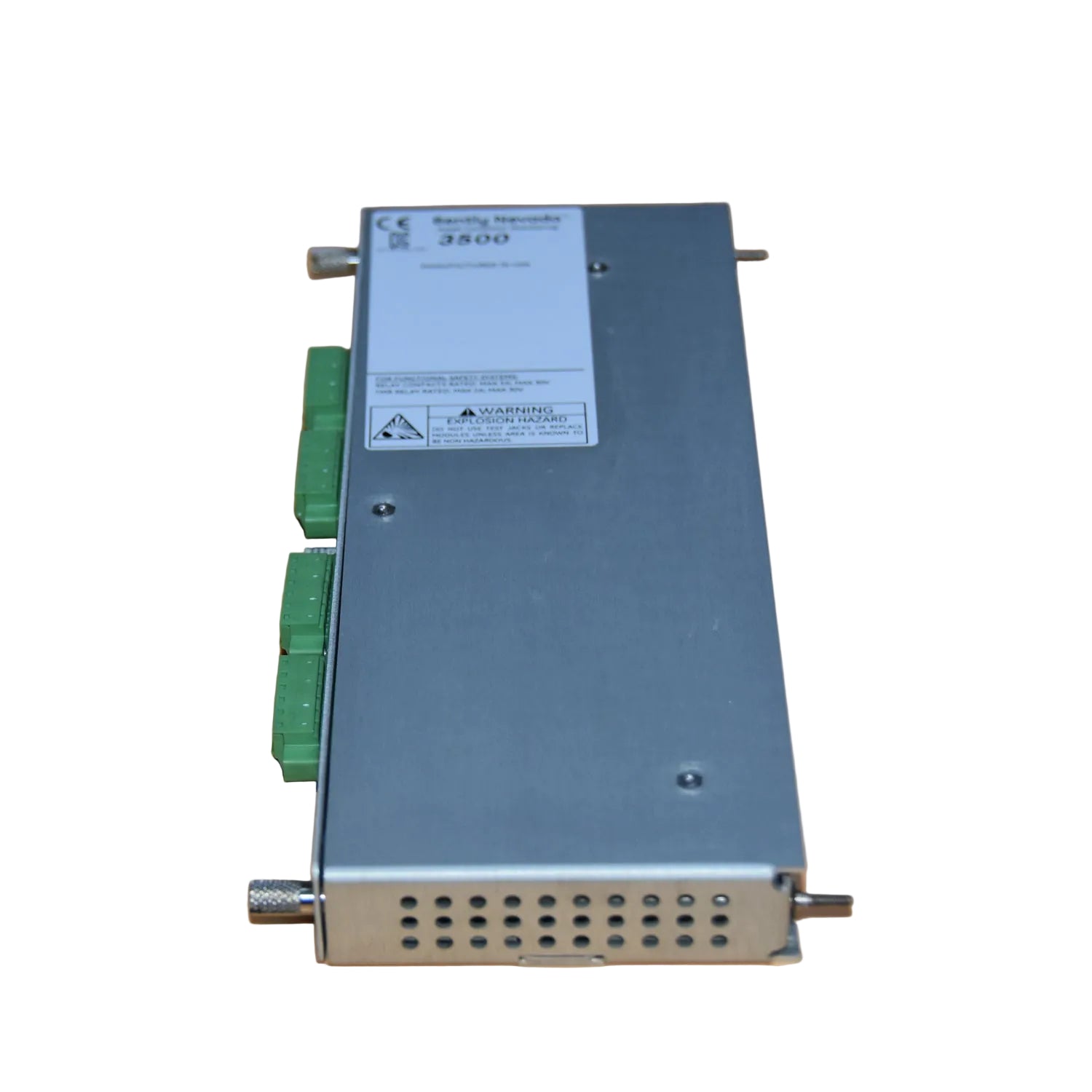

The Bently Nevada 125720-01 is a high-reliability Relay I/O Module designed for the 3500 Series machinery protection system. As a four-channel output component, this module provides the physical contact closures necessary to trigger machine trips, sirens, or annunciator panels based on specific alarm conditions. It is a full-height module that integrates seamlessly into any universal slot within the 3500 rack, positioned to the right of the Rack Interface Module. The 125720-01 is essential for converting electronic alarm logic into actionable mechanical switching, ensuring that high-value rotating assets are automatically protected when vibration, temperature, or speed parameters exceed safety thresholds.

Hardware Infrastructure and Switching Parameters

• Module Configuration 4-Channel Independent Relay Outputs

• Part Number 125720-01

• Voting Logic Fully programmable via 3500 Configuration Software

• Installation Slot Any universal slot (right of RIM)

• Thermal Performance -30°C to +65°C (Operating) / -40°C to +85°C (Storage)

• Moisture Resistance 95% non-condensing relative humidity

• Contact Integrity Designed for mission-critical fail-safe or non-fail-safe operation

• Net Weight 0.4 kg

• Physical Dimensions 241 mm x 24.4 mm x 99.1 mm

• Manufacturing Origin USA

Industrial Control Strategy and Deployment

In heavy industrial environments such as petrochemical plants and power utility stations, the 125720-01 acts as the final element in the automated safety loop. Each of its four relays can be independently assigned to specific monitoring modules using complex voting logic (e.g., 2-out-of-3 or 1-out-of-2). This prevents nuisance trips while ensuring that genuine fault conditions result in an immediate machine shutdown. The module’s rugged design and wide operating temperature range make it suitable for installation in remote instrument enclosures or near high-heat machinery. Maintenance teams often stock the 125720-01 as a critical spare to maintain the integrity of the plant’s Emergency Shutdown (ESD) system, ensuring that machinery protection remains active and compliant with safety standards.

FAQ

Q: Can I use the 125720-01 for 2-out-of-4 voting logic?

A: Yes, the 125720-01 is fully programmable through the 3500 software, allowing you to configure various voting combinations across its four independent channels to meet your site's specific safety protocols.

Q: Does this module occupy a full slot in the 3500 chassis?

A: Yes, the 125720-01 is a full-height module. It must be installed in a standard rack slot to the right of the Rack Interface Module (RIM).

Q: Is the 125720-01 a front-loading or rear-loading module?

A: The 125720-01 is the rear-loading I/O module where the actual wiring terminations for the relay contacts are made. It works in conjunction with the front-loading 3500/32 relay processor.

Q: Can I mix this relay module with other types of 3500 I/O modules?

A: Yes, the 3500 system architecture allows for a mixture of relay, vibration, and temperature I/O modules within the same rack, provided they are placed in the correct slot positions.

Q: What is the benefit of the 0.4 kg lightweight design?

A: The compact 0.4 kg mass allows for easy handling during installation and minimizes mechanical stress on the backplane connectors, even in high-vibration environments.
