Configured for high-precision, narrow-view non-contacting shaft displacement measurements in Machinery Protection Systems, the Bently Nevada 109549-01 (109549-01 Proximity Probe) provides direct physical/electrical execution. This eddy-current transducer targets restricted operational clearance locations, converting mechanical micro-displacements relative to rotating shafts into continuous analog voltage feedback signals within the supervisory monitor ring.

Transducer Parameter Matrix

Eddy-Current Probe Scaling & Cross-Talk Suppression

The architectural footprint of this component is physically optimized for tight installation constraints, dictating custom eddy-current probe scaling characteristics across its compact linear spectrum. To preserve raw signal integrity for rotor dynamics analysis, the mechanical layout requires a specific target gap voltage validation window. The specialized narrow field-of-view configuration guarantees maximum cross-talk suppression when sensors are deployed in close spatial proximity, eliminating side-view magnetic boundary errors from adjacent target housing faces.

Diagnostics & Technical Queries

Q: How does the narrow side view (NSV) tip design modify standard target side-clearance constraints?

A: The NSV tip projects a constricted, directional magnetic field geometry. This allows the probe body to operate correctly with smaller lateral metal clearances than standard 8mm assemblies, without introducing uncalibrated side-view errors into the linear output.

Q: What specific data changes occur during field gap voltage validation if the tip collects metallic debris?

A: Conductive fouling changes the reluctance path of the generated eddy-current field. This distorts the constant-current calibration scale, pushing the static gap voltage reading outside baseline limits and adding false variables to the active vibration channel loop.

Q: Is field modification or direct wire-splicing of the integral coaxial lead allowed?

A: No. Splicing or modifying the physical cable length changes the exact line capacitance and electrical impedance parameters per unit length. This mismatch invalidates the factory eddy-current probe scaling, rendering the transducer inaccurate.

Mechanical Position & Installation Protocols

• Thread Insertion Calibration: Thread the probe body into the bracket guide manually to avoid thread damage. Monitor the raw DC gap output voltage at the Proximitor test terminal points to establish the correct target offset before tightening the locknuts.

• Coaxial Connector Security: Always tighten the miniature coaxial connections to the designated torque specifications using a connector wrench. Insulate the outer connection sleeve completely using clear self-fusing tape to prevent ground loops and fluid contamination.

• Conduit Path Stabilization: Route all transducer lead extensions inside rigid or liquid-tight flexible metallic conduits. Avoid running the lines parallel to high-voltage power feeds or motor lines to minimize induction noise coupling.

Procurement Manifest

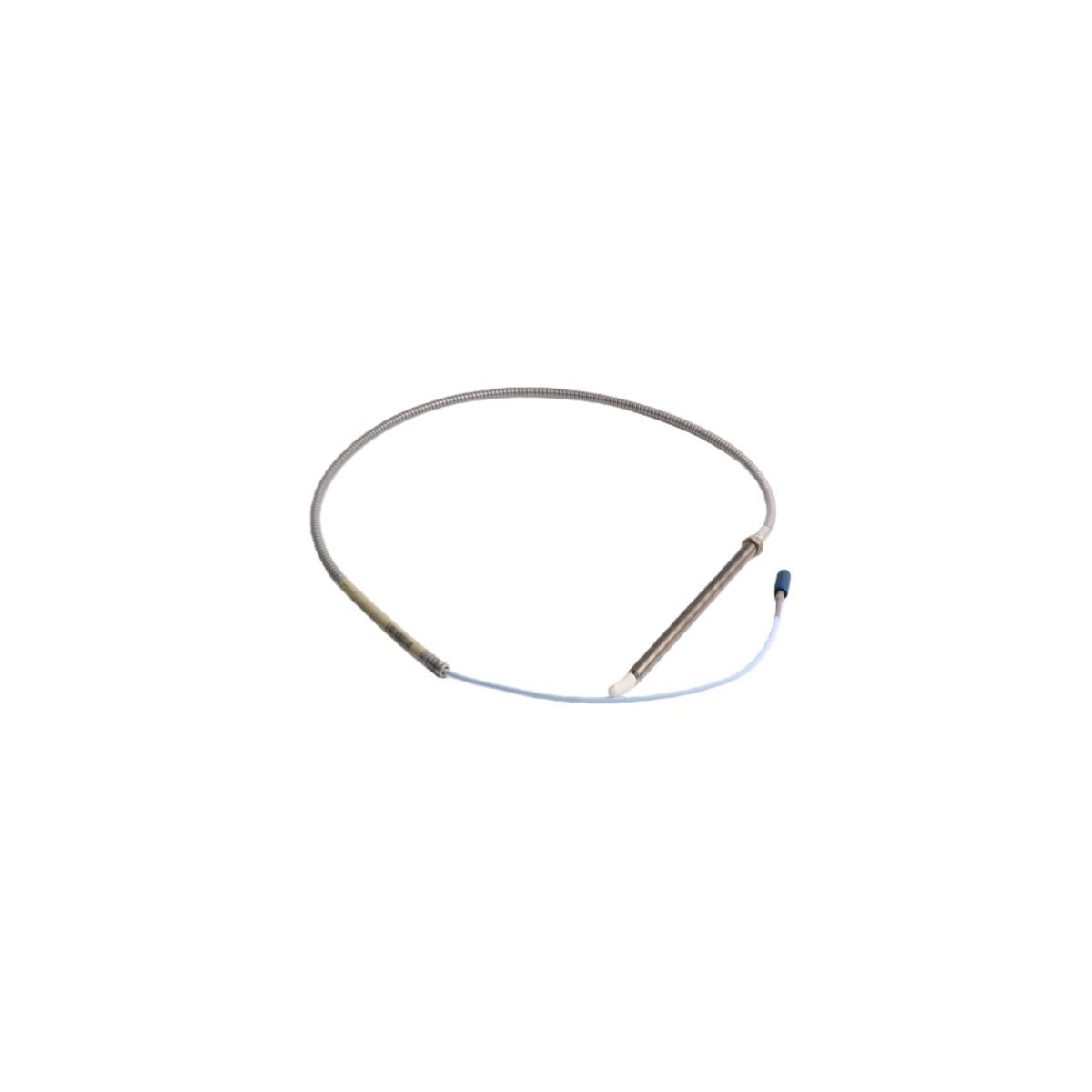

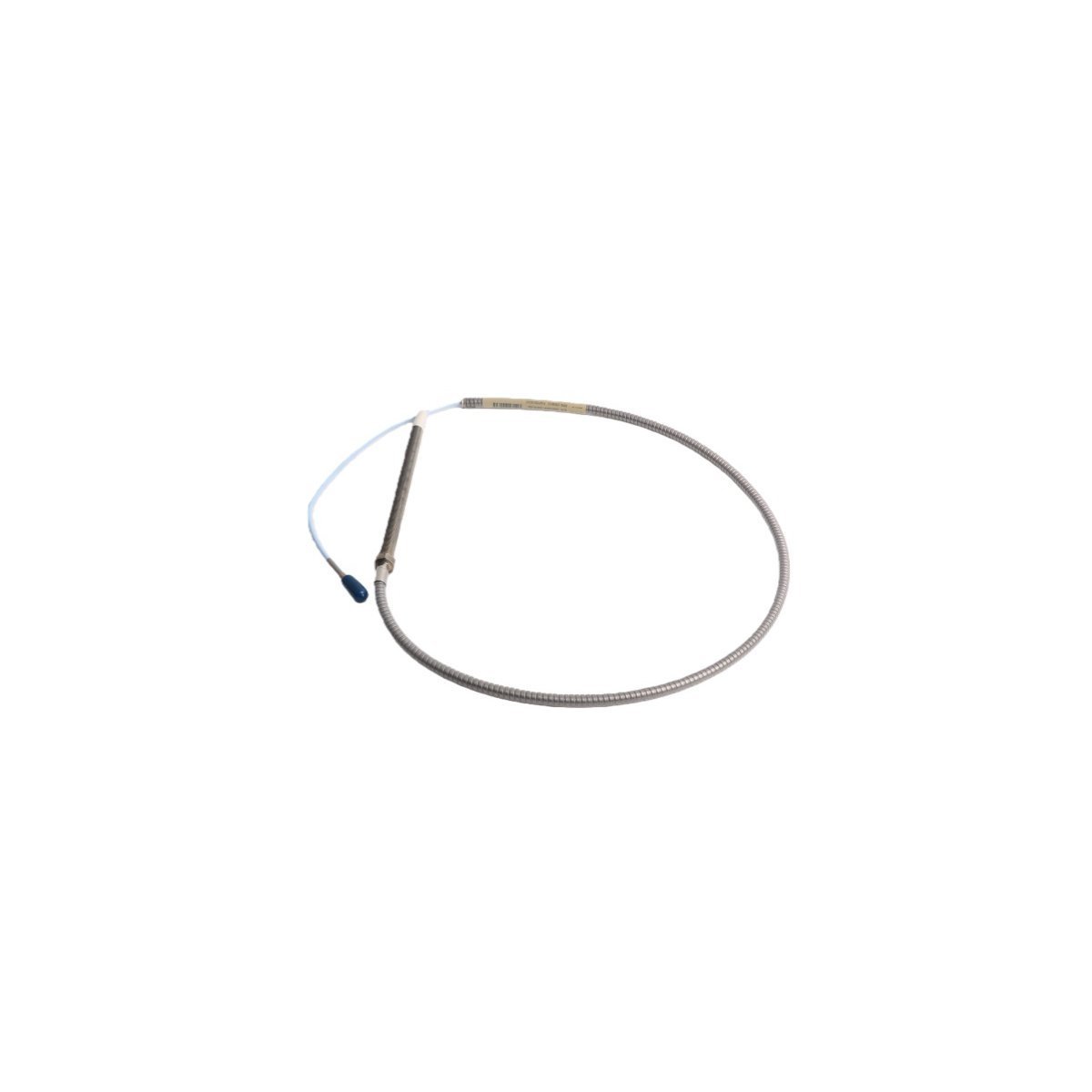

• 1 x Bently Nevada 109549-01 3300 XL NSV Proximity Probe

• 2 x Zinc-Plated Locking Hex Jam Nuts

• Note: Matching extension lines, external Proximitor sensors, and terminal enclosure junction boxes are sold as individual items.

Logistics Packaging Framework

Delivery time: 2-7 days when payment finish validation is completed within the database interface. Consignments move directly from the Xiamen, China transit depot utilizing international express couriers including DHL, FEDEX, or UPS. Every component is packaged within heat-sealed anti-static industrial packaging complete with shock-absorbent internal supports to eliminate transit friction and static discharge hazards.
