Product Overview

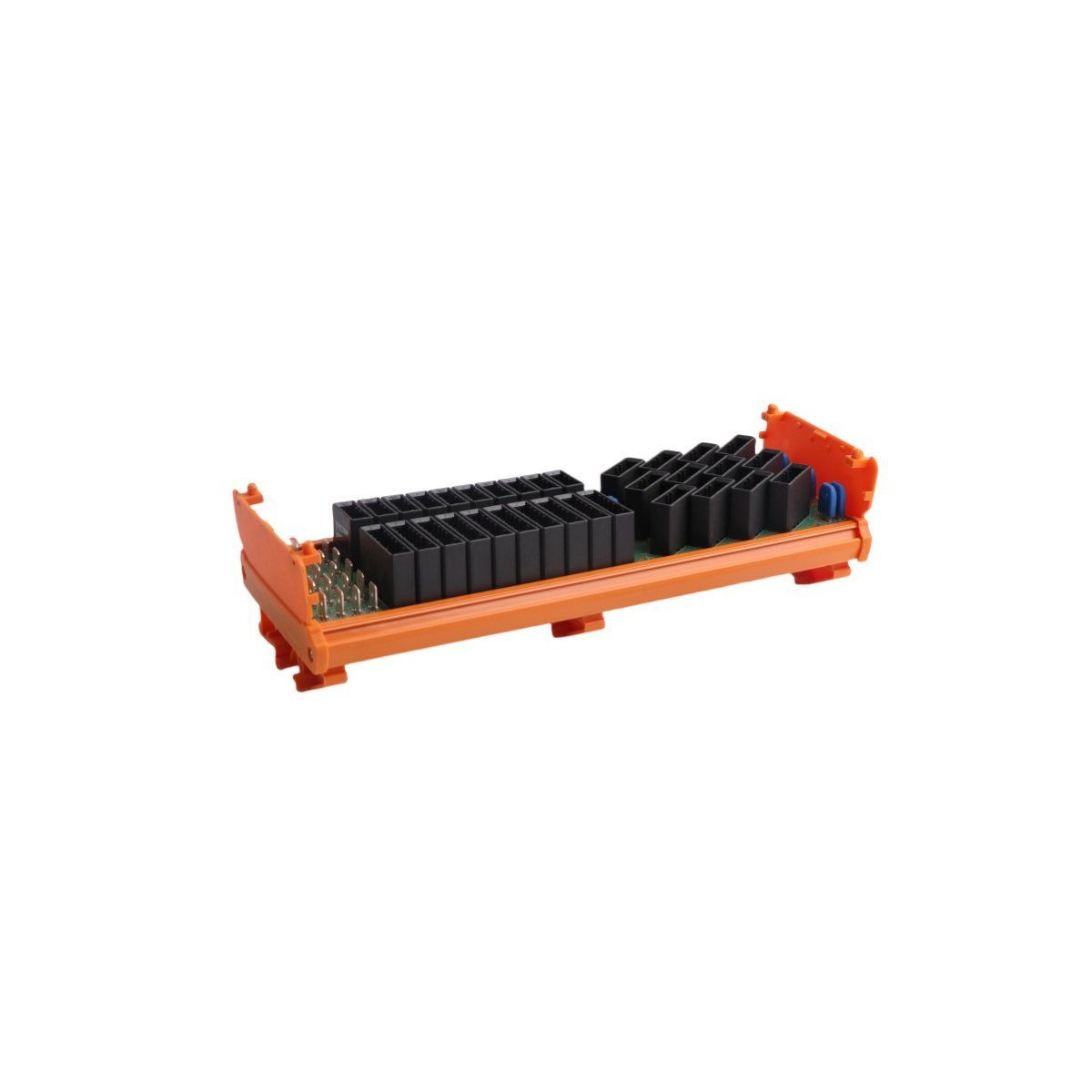

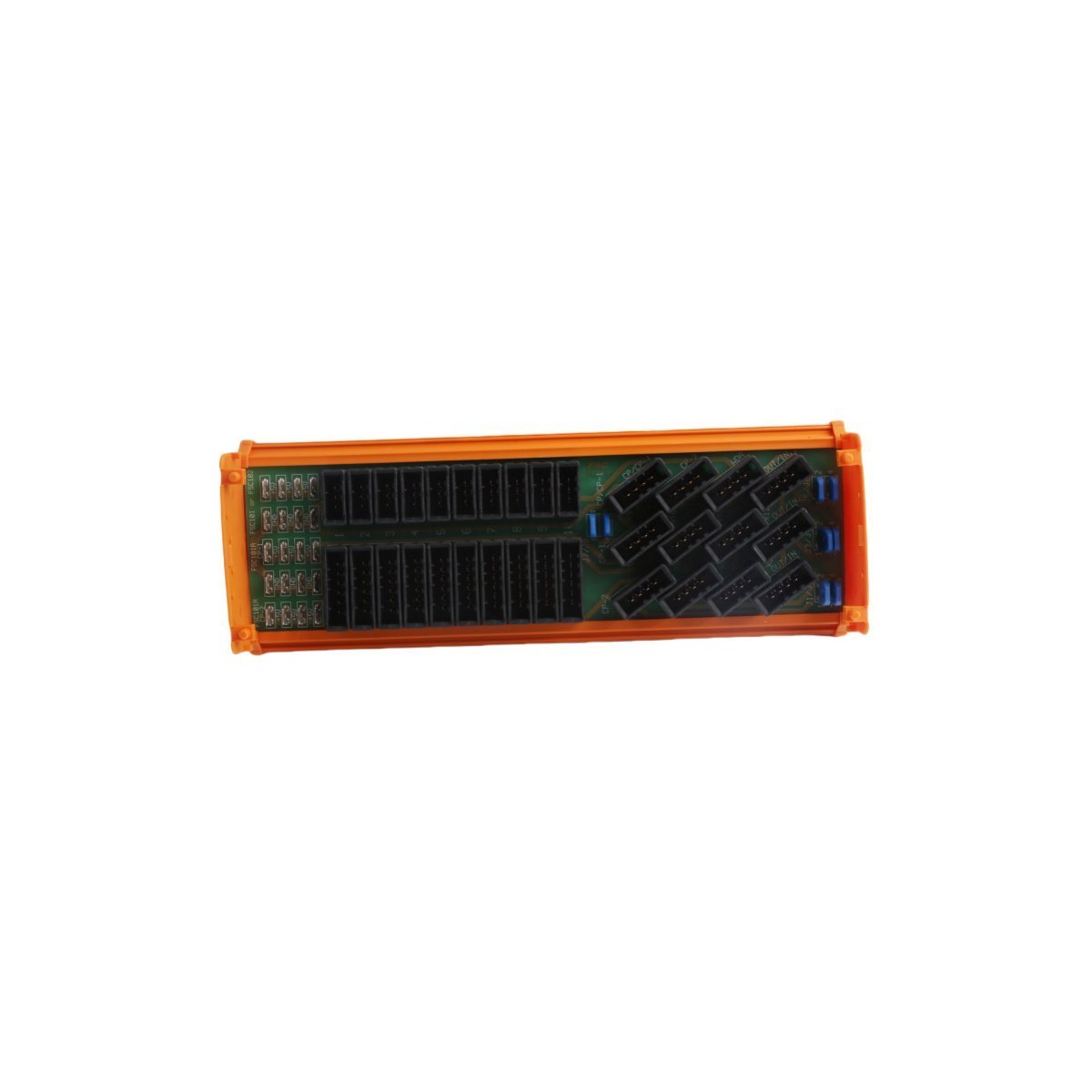

The Honeywell 10313/1/1 is a high-integrity Fail Safe Control (FSC) Termination Module specifically engineered for advanced flame supervision in industrial combustion systems. Functioning as a critical safety interface, this module provides the deterministic logic and signal processing required for continuous burner oversight. It is designed to interpret complex optical data from flame scanners and execute immediate safety protocols, such as fuel valve closure, upon the detection of a "flame out" condition or unstable combustion.

By integrating this module into a Safety Instrumented System (SIS), plant operators can ensure high-speed protective responses across diverse fuel types and burner geometries. The 10313/1/1 represents the intersection of precision optical monitoring and fail-safe hardware, making it an essential component for high-stakes thermal processing and energy production.

Core Technical Characteristics and Safety Logic

The 10313/1/1 is defined by its ability to maintain measurement accuracy in high-EMI and high-temperature environments.

• Dual-Spectrum Signal Processing: Engineered to work with UV/IR detection technologies, allowing for accurate flame verification while filtering out background radiation from hot refractory walls.

• Deterministic Safety Response: Features ultra-low latency circuitry that ensures fuel-trip solenoids are de-energized within milliseconds of a confirmed hazard detection.

• Programmable I/O Flexibility: Supports configurable input/output parameters, enabling the module to adapt to various burner control sequences and startup interlocks.

• Advanced Hardware Diagnostics: Includes self-checking routines that monitor sensor health and wiring integrity, preventing "fail-to-danger" scenarios and reducing nuisance trips.

• Ruggedized Industrial Housing: The 24.5x8.7x6.8cm enclosure is built to resist thermal stress and vibration, common in industrial boiler decks and furnace rooms.

• Global Compliance: Certified for use in Safety Integrity Level (SIL) rated loops, meeting international standards for industrial combustion safety and automated protection.

Technical Specifications

• Manufacturer: Honeywell

• Model Number: 10313/1/1

• Module Type: FSC Termination Module (Flame Monitoring)

• Detection Support: UV and IR Spectrum Analysis

• Dimensions: 24.5 x 8.7 x 6.8 cm

• Unit Weight: 0.34 kg

• HS Code: 8537101190

• System Series: Fail Safe Control (FSC)

• Country of Origin: USA

• Condition: Brand New

Industrial Applications

The Honeywell 10313/1/1 is a standard-setting component in sectors requiring rigorous thermal safety:

• Utility Power Generation: Monitoring main burners and igniters in large-scale steam boilers to prevent furnace explosions.

• Petrochemical Refining: Providing flame supervision for process heaters and thermal oxidizers in hazardous processing units.

• Steel & Glass Manufacturing: Ensuring consistent combustion in high-temperature furnaces and kilns.

• Waste-to-Energy: Managing complex flame profiles in multi-fuel incineration systems.
