Product Overview

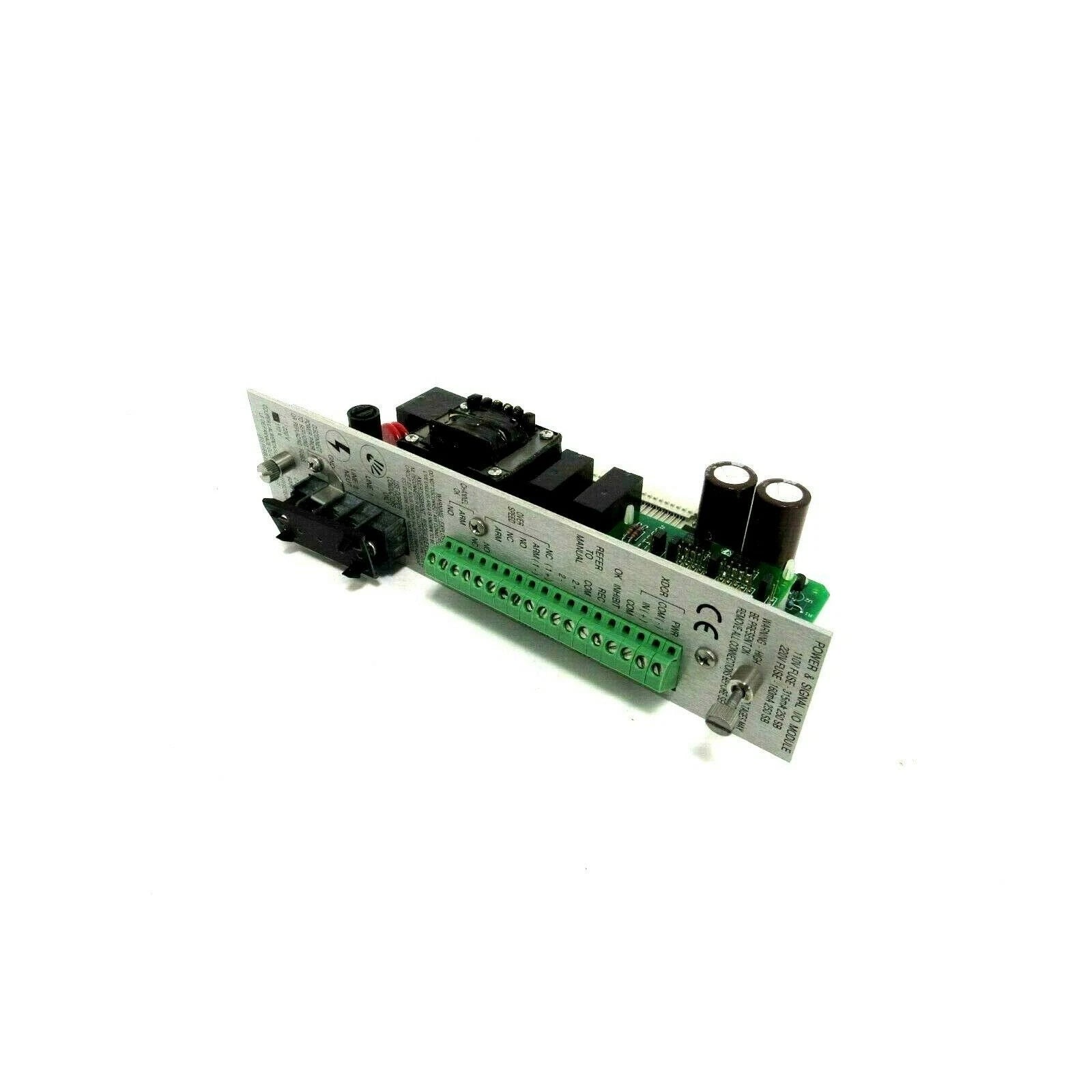

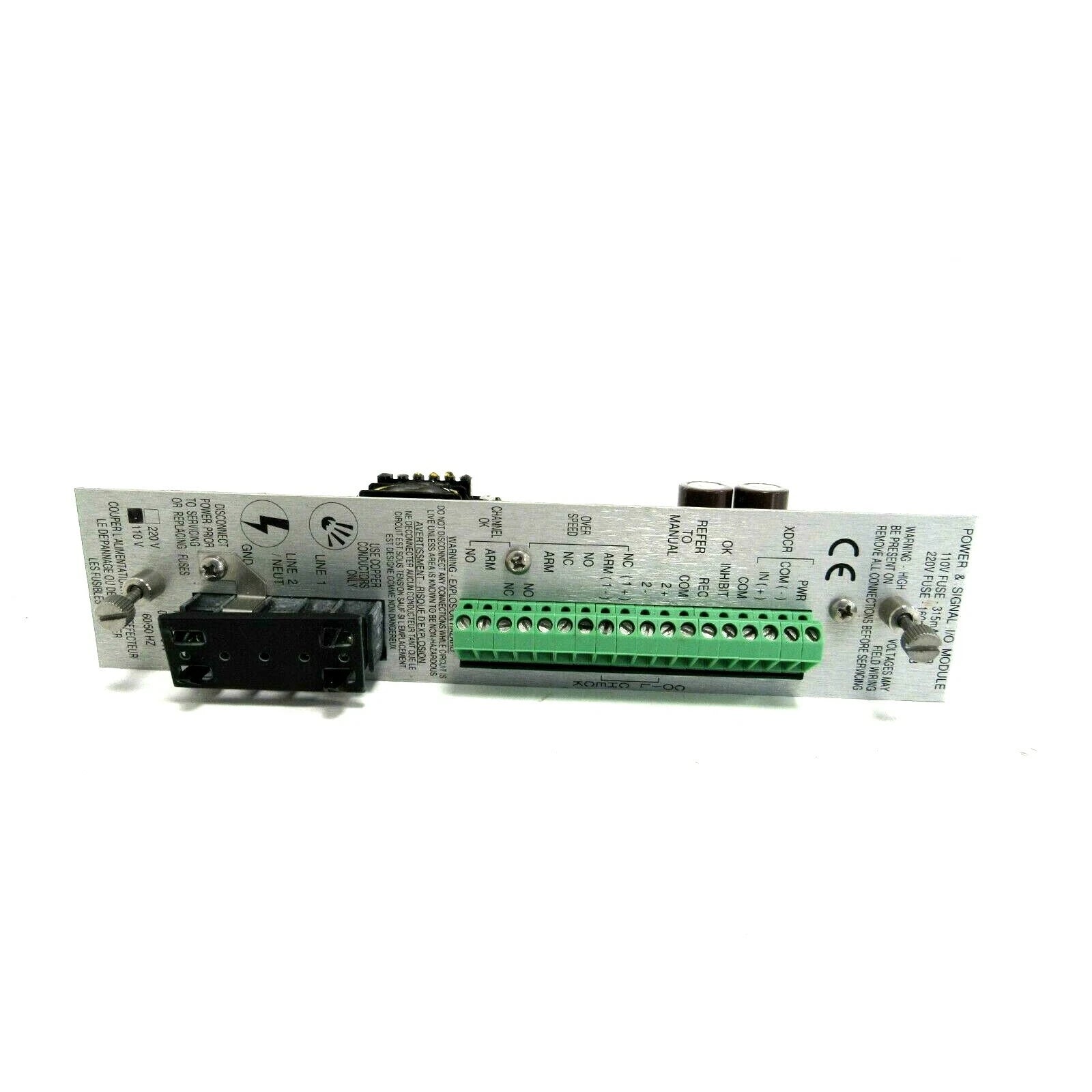

The 102618-01 is a high-reliability Signal/Power Input Card engineered by Bently Nevada to act as a vital bridge between field-mounted machinery sensors and centralized monitoring infrastructure. This module is specifically designed to handle the dual responsibility of distributing stable power to transducers while simultaneously receiving and conditioning incoming health signals. By ensuring the integrity of raw data from the point of origin, the 102618-01 allows for high-precision analysis of vibration, position, and other critical metrics. It is built to maintain performance in electrically noisy and physically demanding industrial settings, providing the foundational stability required for continuous asset protection.

Comprehensive Hardware Parameters

• Standard Input Voltage: 24V DC

• Environmental Ingress Protection: IP65 rated against dust and moisture

• Thermal Endurance: -40°C to +85°C (-40°F to +185°F)

• Physical Profile: 25.3 cm x 24 cm x 2.6 cm (9.96 in x 9.45 in x 1.02 in)

• Component Weight: 0.8 kg (1.76 lbs)

• Coil Voltage Compatibility: Supports a wide range of DC and AC options (12V to 240V) via specific wiring configurations (W-series designators)

• Reliability: Integrated signal filtering and surge suppression for sensitive transducer loops

Industrial Utility and Deployment Scenarios

The 102618-01 is indispensable in large-scale rotating equipment monitoring, particularly in the oil and gas, power generation, and chemical processing sectors. It is typically deployed within weather-protected enclosures or local junction boxes to interface with proximity probes and accelerometers mounted on steam turbines and high-speed compressors. Because it supports various voltage options (from 12V DC to 240V AC through coil selection), it is highly adaptable to existing facility electrical standards. In predictive maintenance programs, this card ensures that the data reaching the DCS or machinery protection rack is free from external interference, making it a critical link for the early detection of bearing wear, shaft misalignment, and other potential failure modes.

FAQ

Q: Can this card be used with sensors other than vibration probes?

A: Yes, while commonly used for vibration monitoring, the 102618-01 is designed as a general-purpose signal and power interface capable of supporting various transducer types within its voltage and current specifications.

Q: What is the significance of the IP65 rating for this module?

A: An IP65 rating indicates that the card is protected against total dust ingress and low-pressure water jets, making it suitable for mounting in enclosures located in damp or dusty industrial environments.

Q: How do the coil voltage options (W-series) affect the installation?

A: The different "W" designators allow the card to be matched to the specific control voltage of your facility, ensuring that the power input stage is compatible with 12V, 24V, 110V, or 220V systems without additional transformers.

Q: Does this card provide isolation between the input and output signals?

A: The card is engineered with industrial-grade circuit protection to minimize noise and prevent ground loops, ensuring that the conditioned signal remains accurate over long cable runs to the control room.

Q: Is the 102618-01 suitable for use in extreme cold weather environments?

A: With an operating floor of -40°C, this card is specifically rated for extreme climate deployments, including outdoor enclosures in arctic or high-altitude locations.
