Product Overview

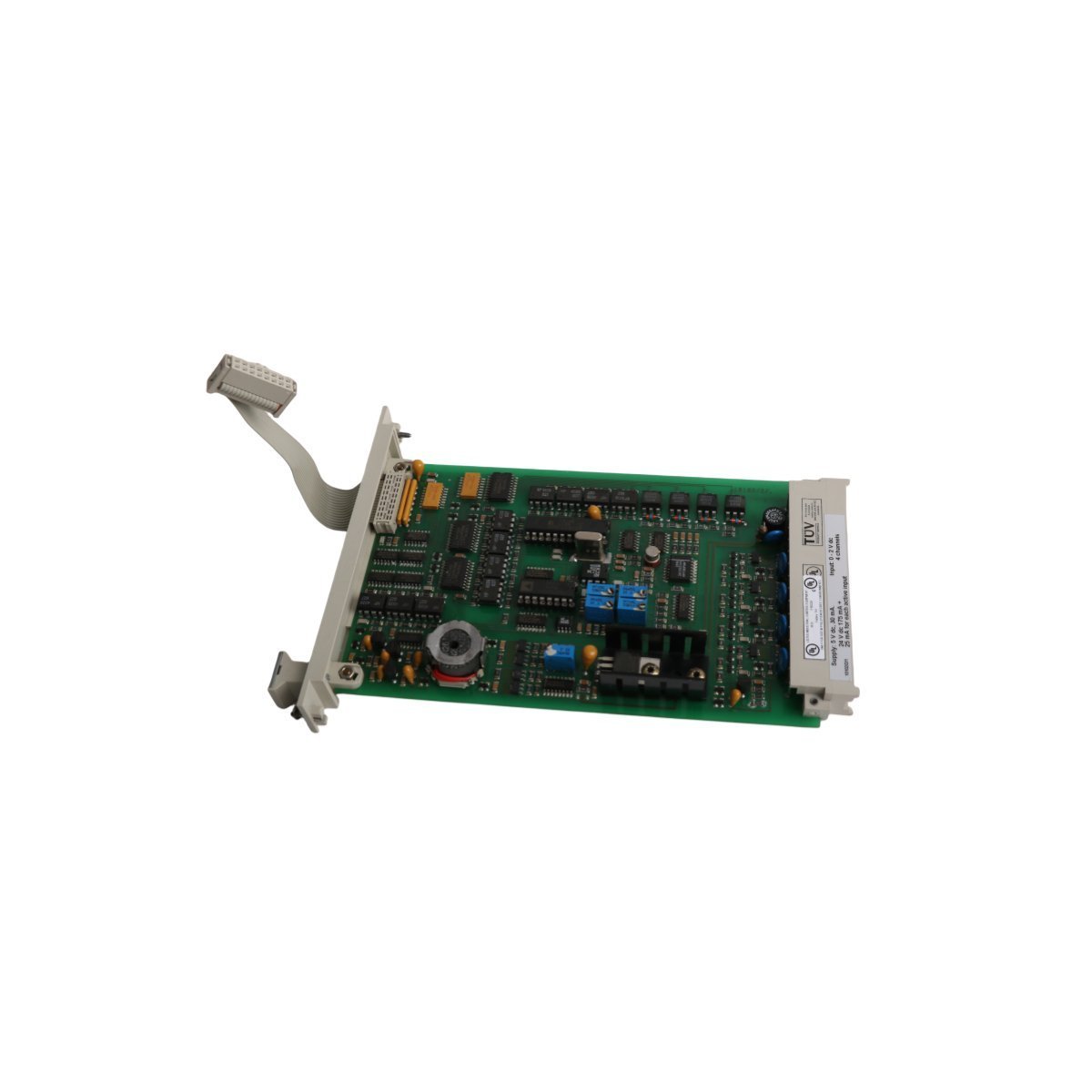

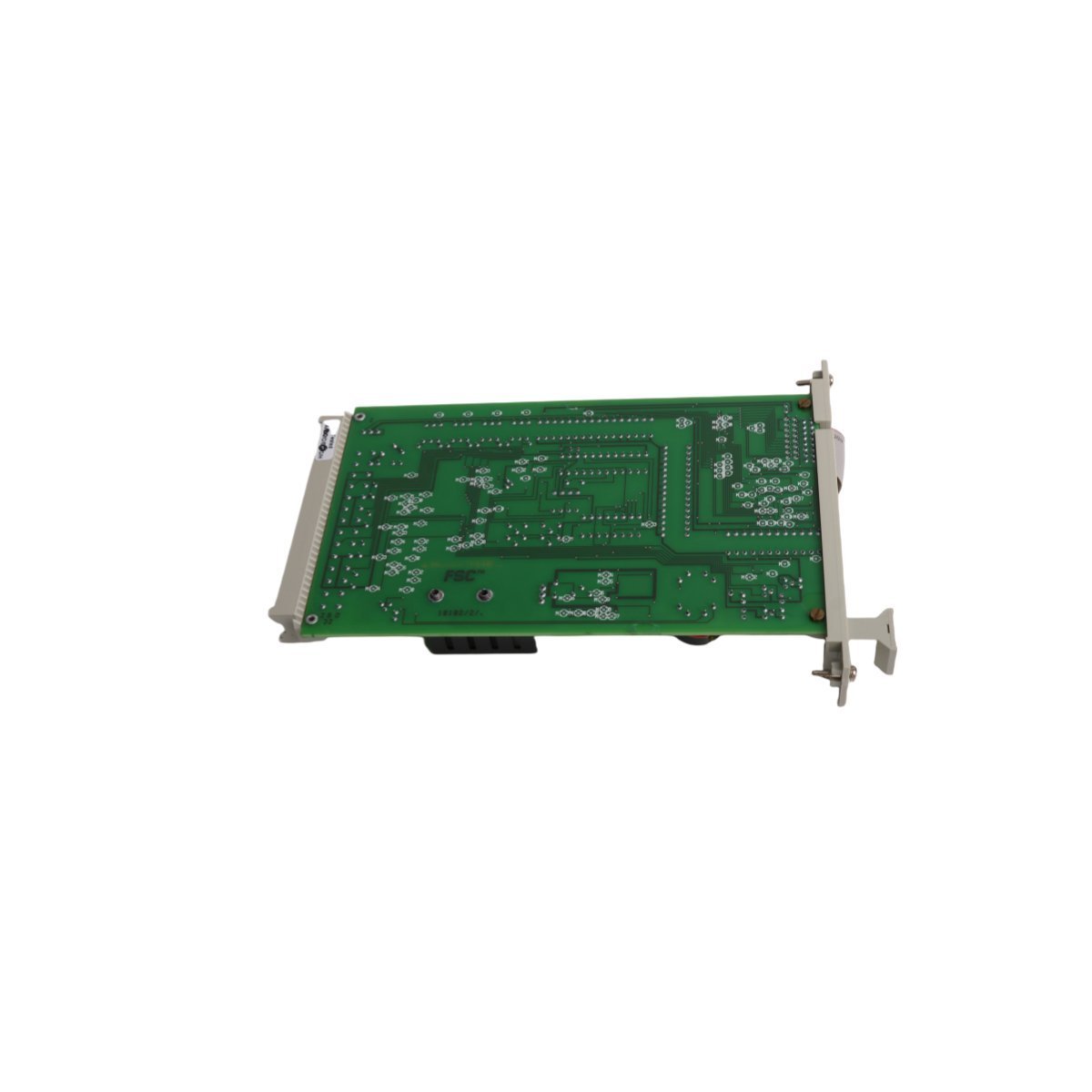

The Honeywell 10102/2/1 is a high-integrity Digital Input module purpose-built for the Fail Safe Control (FSC) system. This module is a cornerstone of Safety Instrumented Systems (SIS), providing the critical interface for monitoring discrete field devices such as emergency stop buttons, pressure switches, and valve position limiters. Engineered for deterministic safety logic, the 10102/2/1 ensures that binary signals from the field are captured with absolute reliability, supporting the "de-energize to trip" philosophy essential for industrial risk mitigation. While the FSC series reached its end-of-life phase in late 2018, this brand-new module remains an essential hardware component for maintaining the safety certification and operational continuity of established DCS infrastructures.

Hardware Infrastructure and Safety Parameters

The 10102/2/1 architecture focuses on signal purity and fault tolerance, utilizing internal diagnostics to maintain the highest levels of safety integrity within the FSC rack.

• Primary Function Fail-safe Discrete Signal Acquisition (Digital Input)

• Nominal Operating Voltage 24V DC

• System Ecosystem Honeywell Fail Safe Control (FSC)

• Processing Logic Integrated fail-safe self-testing and internal diagnostic routines

• Channel Configuration Multiple independent discrete input banks

• Safety Integrity Designed for use in SIL-rated safety loops

• Circuit Protection Galvanic isolation between field-side signals and the system backplane

• Mounting Standard FSC chassis slot compatible

• Physical Weight 0.14 kg

• Module Dimensions 2 x 18.8 x 12.8 cm

• Production Origin USA

• Harmonized Tariff HS 8537101190

Industrial Security and Operational Deployments

This Fail-safe Digital Input module is specifically utilized in heavy industrial sectors where the failure to detect a safety state change could lead to catastrophic events.

• Emergency Shutdown (ESD) Systems Monitoring high-integrity pushbuttons and pull-cords to initiate immediate plant-wide shutdown sequences.

• Burner Management Systems (BMS) Capturing flame detector signals and fuel-valve limit switch data to ensure safe furnace and boiler ignition.

• Fire and Gas Detection Networks Interfacing with discrete smoke, flame, and toxic gas sensors to trigger localized suppression or evacuation alarms.

• Critical Interlock Monitoring Managing the safety-state inputs for high-pressure chemical reactors to prevent over-pressurization or vessel rupture.

• Legacy SIS Maintenance Providing a brand-new, certified replacement for aging 10102/2/1 cards to avoid the high costs and downtime associated with a full system migration.
