Product Overview

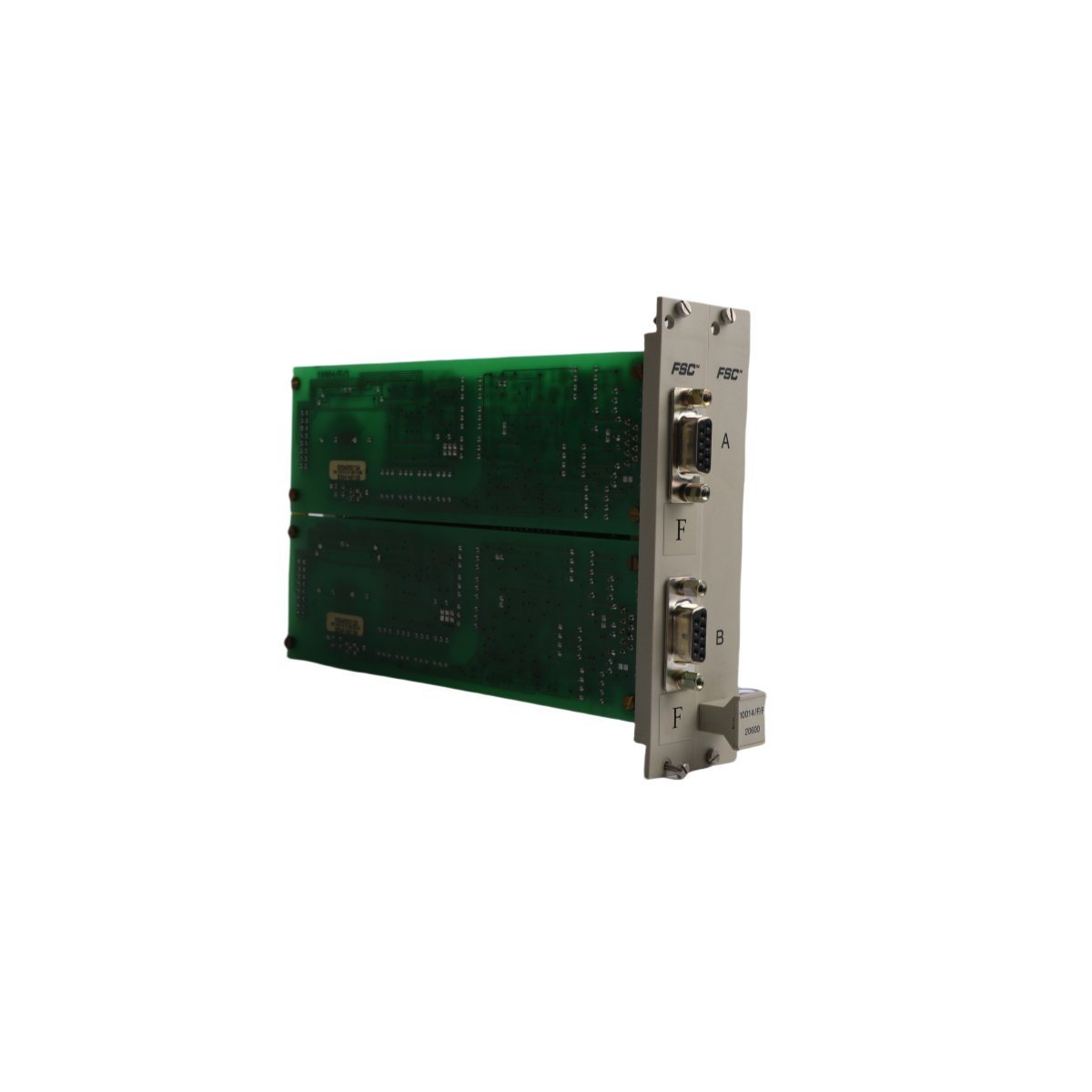

The Honeywell 10014/F/F is a specialized Dual Port Communication Module engineered for the Fail Safe Control (FSC) system architecture. This module serves as a critical bridge for high-integrity data exchange, enabling the safety system to communicate with external DCS controllers, HMI stations, or redundant peer racks without compromising the safety loop's deterministic timing. By providing independent communication pathways, the 10014/F/F ensures that diagnostic data and process variables are transmitted with high availability. Although the FSC product line reached its official end-of-sale in late 2018, this brand-new hardware remains an essential replacement component for maintaining the safety certification and operational uptime of established industrial safety instrumented systems (SIS).

Critical Hardware Metrics and Interface Details

Designed for high-speed logic synchronization, the 10014/F/F incorporates internal fault-checking to maintain the strict "fail-safe" requirements of the FSC platform.

• Module Type Dual Port Communication / Interface Module

• System Ecosystem Honeywell Fail Safe Control (FSC)

• Port Configuration Two independent, high-speed communication channels

• Data Transmission Real-time, low-latency synchronization of safety variables

• Diagnostic Features Integrated hardware self-test and port-level status monitoring

• Installation Architecture Standard FSC rack-mount slot compatible

• Physical Integrity Hardened PCB design for industrial vibration and EMI resistance

• Component Weight 0.36 kg

• Module Dimensions 4 x 18.5 x 12.8 cm

• Production Origin USA

• Harmonized Code 8537101190

Industrial Deployment and Connectivity Scenarios

The 10014/F/F module is utilized in complex industrial networks where the separation of safety data and supervisory control is mandatory for risk mitigation.

• Redundant Rack Synchronization Facilitating the bumpless transfer of data between primary and secondary FSC safety racks in high-availability ESD systems.

• DCS Interface Integration Providing a secure pathway for the Honeywell Experion PKS or TDC 3000 to monitor safety interlock states and alarm histories.

• Emergency Shutdown (ESD) Networking Linking multiple safety logic solvers across a plant-wide network to coordinate synchronized shutdown sequences.

• Critical Alarm Telemetry Ensuring that high-priority diagnostic alerts from the safety system are delivered to the operator HMI without delay.

• Legacy Safety Maintenance Replacing aging or failed communication cards in existing FSC installations to restore system redundancy and prevent nuisance trips.
