Product Overview

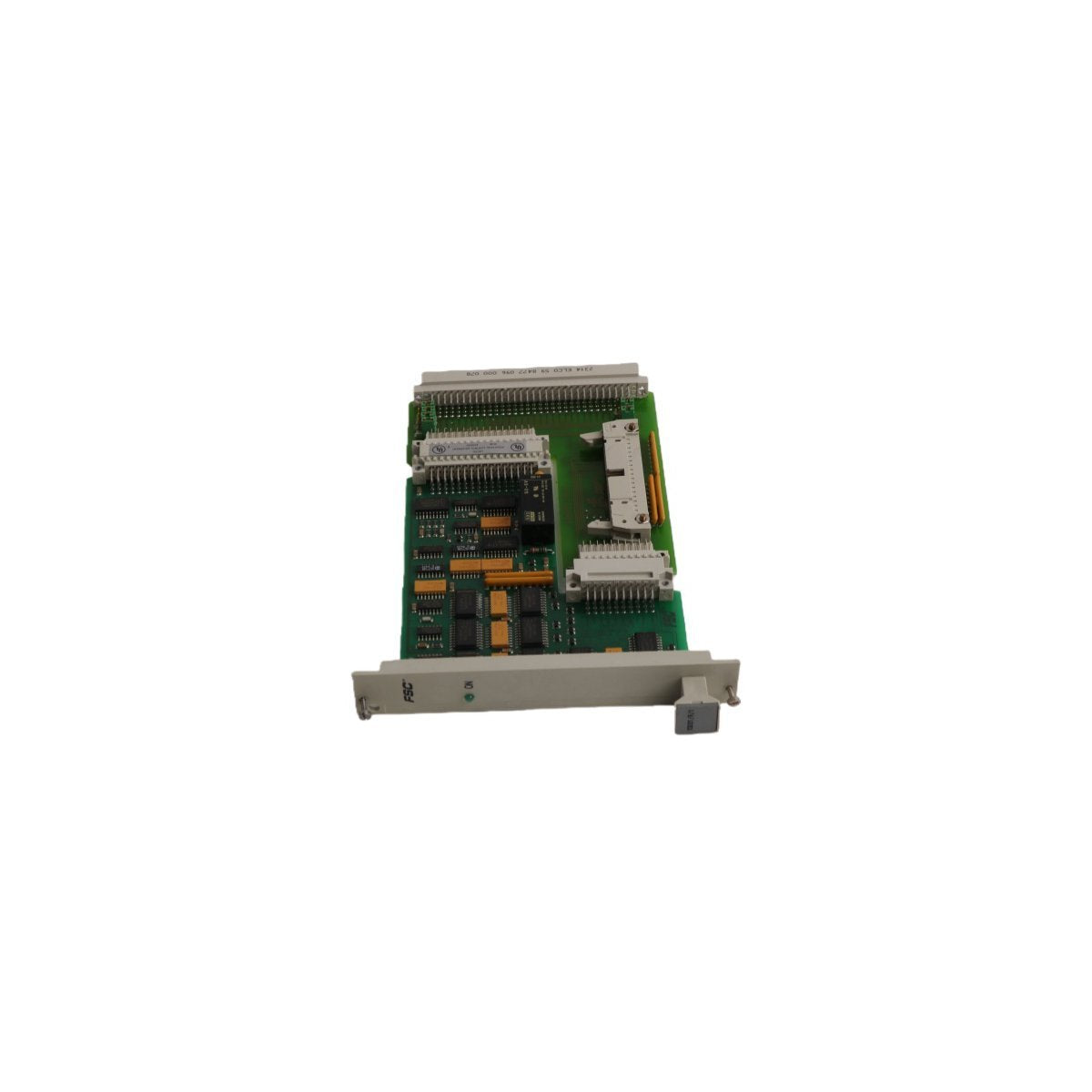

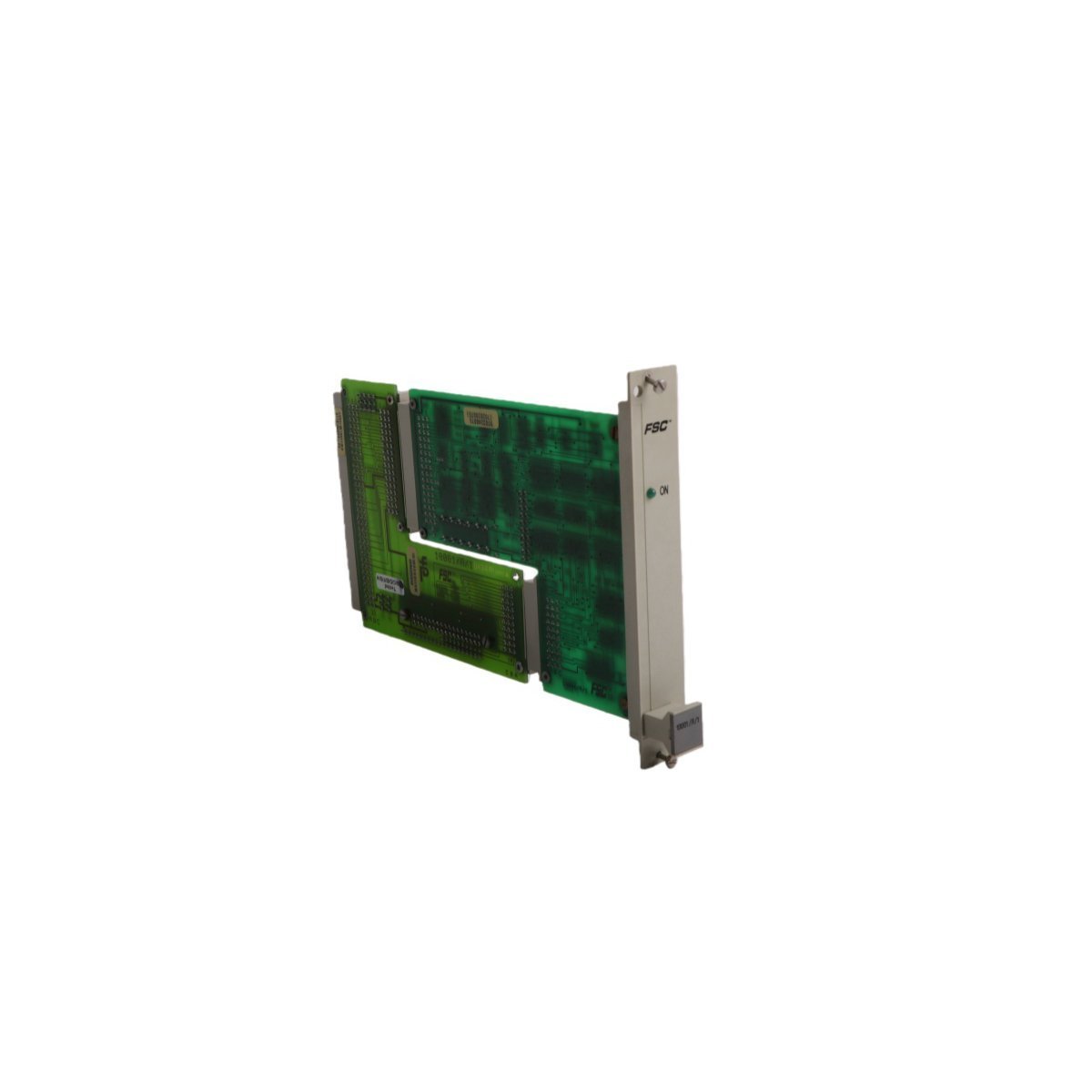

The Honeywell 10001/R/1 is a specialized Vertical Bus Driver Card developed for the Fail-Safe Control (FSC) system architecture. This critical communication component serves as the high-speed data bridge between different levels of the controller rack, ensuring synchronized signal transmission across the system’s vertical backplane. Engineered for safety-critical environments, the 10001/R/1 manages the integrity of internal bus traffic, allowing for the seamless flow of diagnostic and process data between central processing units and I/O sub-systems. Its high-reliability design is a staple in legacy Honeywell safety installations, where maintaining communication uptime is essential for the continuous monitoring of protective loops.

Essential Hardware Metrics and System Data

Strategic Utility and Industrial Roles

The 10001/R/1 Vertical Bus Driver is fundamental to maintaining the structural communication hierarchy within a complex safety logic solver.

• Backplane Data Synchronization: Driving vertical bus signals to ensure that all I/O modules within an FSC rack remain perfectly synchronized with the central logic processor.

• Safety System Maintenance: Utilizing the card’s integrated diagnostics to identify communication bottlenecks or bus faults before they impact plant safety.

• Redundant Architecture Support: Providing the signal strength required to maintain communication across redundant rack configurations in Emergency Shutdown (ESD) systems.

• Refinery Control Reliability: Operating as a robust communication link in petrochemical facilities where electromagnetic interference (EMI) requires high-integrity signal drivers.

• Legacy System Support: Serving as a direct replacement component for aging FSC installations, ensuring long-term hardware availability for discontinued but active safety systems.
