Product Overview

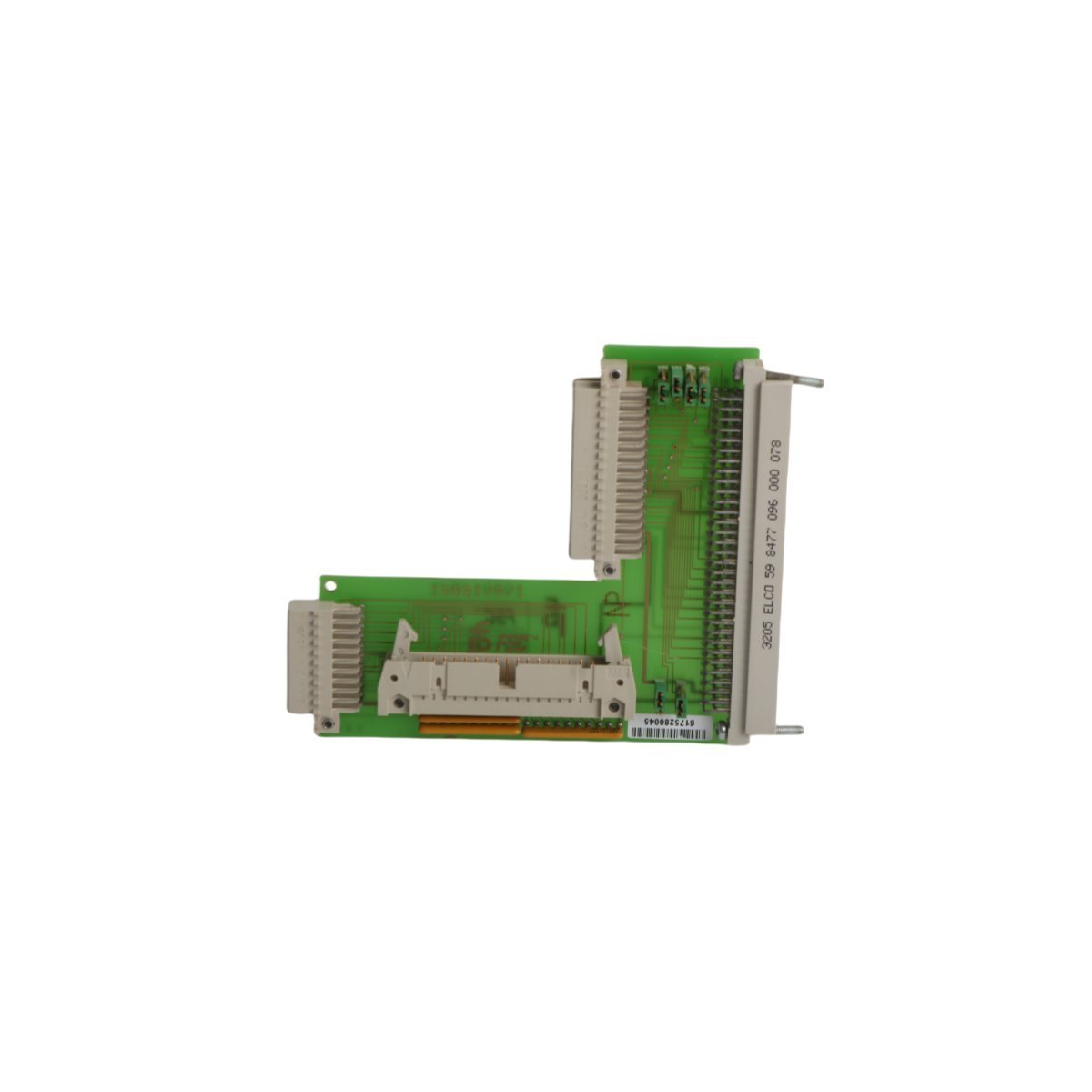

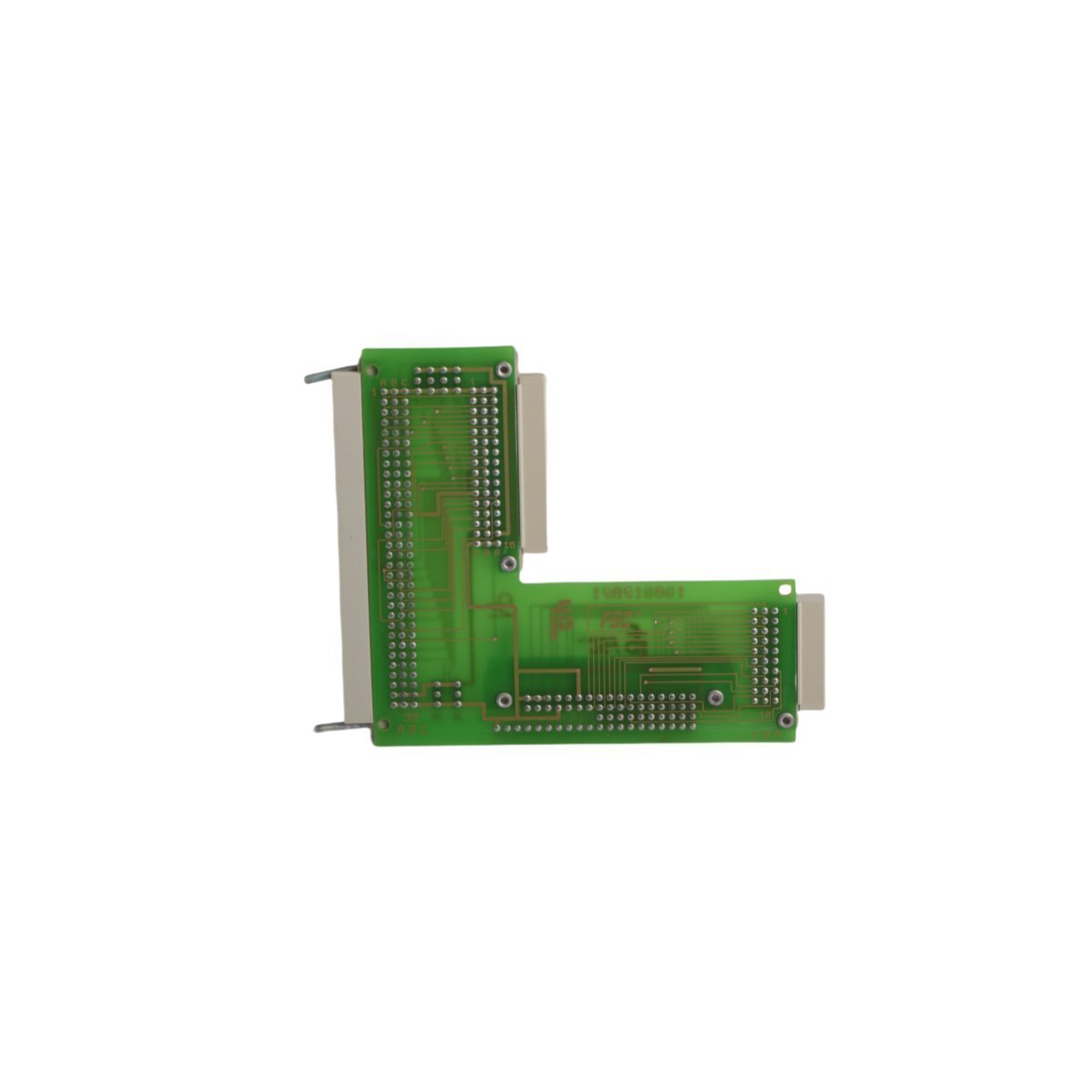

The Honeywell 10001/A/1 is a specialized Vertical Bus Driver Card engineered for the Fail Safe Control (FSC) system architecture. This critical interface component manages the high-speed data flow between the central processor and the various I/O modules distributed across the system rack. By serving as the primary bridge for the vertical backplane bus, the 10001/A/1 ensures that safety-critical logic is transmitted with zero latency and high signal integrity. Although the product was officially discontinued in late 2018, it remains a vital component for the maintenance and repair of existing FSC installations, providing the necessary bus amplification and synchronization required for stable, deterministic safety operations.

Hardware Infrastructure and Communication Benchmarks

The 10001/A/1 is built on a compact PC board footprint, utilizing high-reliability components to maintain bus stability in demanding industrial safety environments.

• Primary Functionality Vertical Bus Driving and Backplane Signal Amplification

• System Ecosystem Honeywell Fail Safe Control (FSC) System

• Interface Compatibility Designed for standard FSC rack PC connectors

• Signal Integrity Low-latency data transmission for safety-critical inter-module communication

• Durability Standard Engineered for 24/7 operation in high-availability safety loops

• Physical Mass 0.06 kg

• Module Dimensions 12.8 x 10 x 1 cm

• Manufacturing Origin USA

• Customs Tariff HS Code 8537101190

Industrial Deployment and System Utility

This Vertical Bus Driver is an essential asset for facility managers looking to extend the lifecycle of their proven safety instrumented systems.

• FSC System Lifecycle Support Providing a reliable, brand-new replacement for aging bus driver cards to prevent backplane communication failures in legacy safety racks.

• Safety Instrumented Systems (SIS) Ensuring consistent data exchange between logic solvers and I/O sub-systems in petrochemical emergency shutdown networks.

• Bus Signal Stabilization Eliminating communication errors and bus-timing jitter in expanded FSC configurations with high module counts.

• Preventative Maintenance Replacing existing cards during planned turnarounds to ensure the continued reliability of high-availability safety loops in power generation and chemical processing.

• Industrial Hardening Maintaining consistent bus performance in environments subject to electromagnetic interference (EMI) and temperature fluctuations within control cabinets.
