The ABB 086444-005, also cataloged as the 086444-005 Direct Fiber Optic Module, operates as a dedicated hardware component for optical signal conversion and noise-immune data transmission within Accuray process control networks.

Hardware Variant & Part Identifier Matrix

• Primary Part Number: 086444-005

• Assembly Type: Printed Wire Assembly (PWA) MPRC

• Functional Designation: Direct Fiber Optic Module

• Harmonized Tariff Code: 8537101190

Physical & Environmental Specifications

High-Speed Fiber Optic Communication Architecture

The 086444-005 optical module integrates directly into the Accuray rack backplane bus communication velocity framework, establishing noise-free serial or parallel communication across long distances. By translating backplane logic levels into optical light pulses, the card eliminates ground loops and electromagnetic interference across industrial process environments. The module maintains full firmware flash compatibility with MPRC architecture sub-racks, ensuring high-speed data integrity across distributed Accuray quality control systems.

Package Delivery Contents

• 1 x ABB 086444-005 Direct Fiber Optic Module PWA

Field Installation & Fiber Handling Instructions

• Power down the host rack enclosure before inserting or removing the module.

• Wear a grounded antistatic wrist strap to prevent ESD damage to sensitive optical transceivers.

• Align the 39.5 cm circuit board edges with the target sub-rack card guides.

• Slide the module inward until the rear connectors lock firmly into the backplane chassis socket.

• Remove protective dust caps from optical ports only when ready to attach clean fiber optic patch cables.

Technical Clarifications

• What primary system series utilizes the 086444-005 module?

  The 086444-005 is built specifically for ABB Accuray MPRC quality control and process measurement rack assemblies.

• Does this module require external signal converters for fiber communication?

  No. The card features onboard direct fiber optic transceivers that process optical input and output signals natively.

• Can the 086444-005 be hot-swapped while the rack is fully energized?

  No. Host rack power should be shut off prior to module extraction or insertion to protect backplane pin connections.

• What function do the optical connections serve in this architecture?

  They provide complete galvanic isolation and high-speed noise immunity when sending control data across long physical distances.

• How is the module secured inside the target rack chassis?

  The card glides into internal guide slots and secures to the front chassis frame using integrated captive mounting screws.

• Is special cleaning required for the fiber ports prior to commissioning?

  Yes. Inspect and clean all optical cable connectors with isopropyl alcohol or a lint-free optical cleaner before mating.

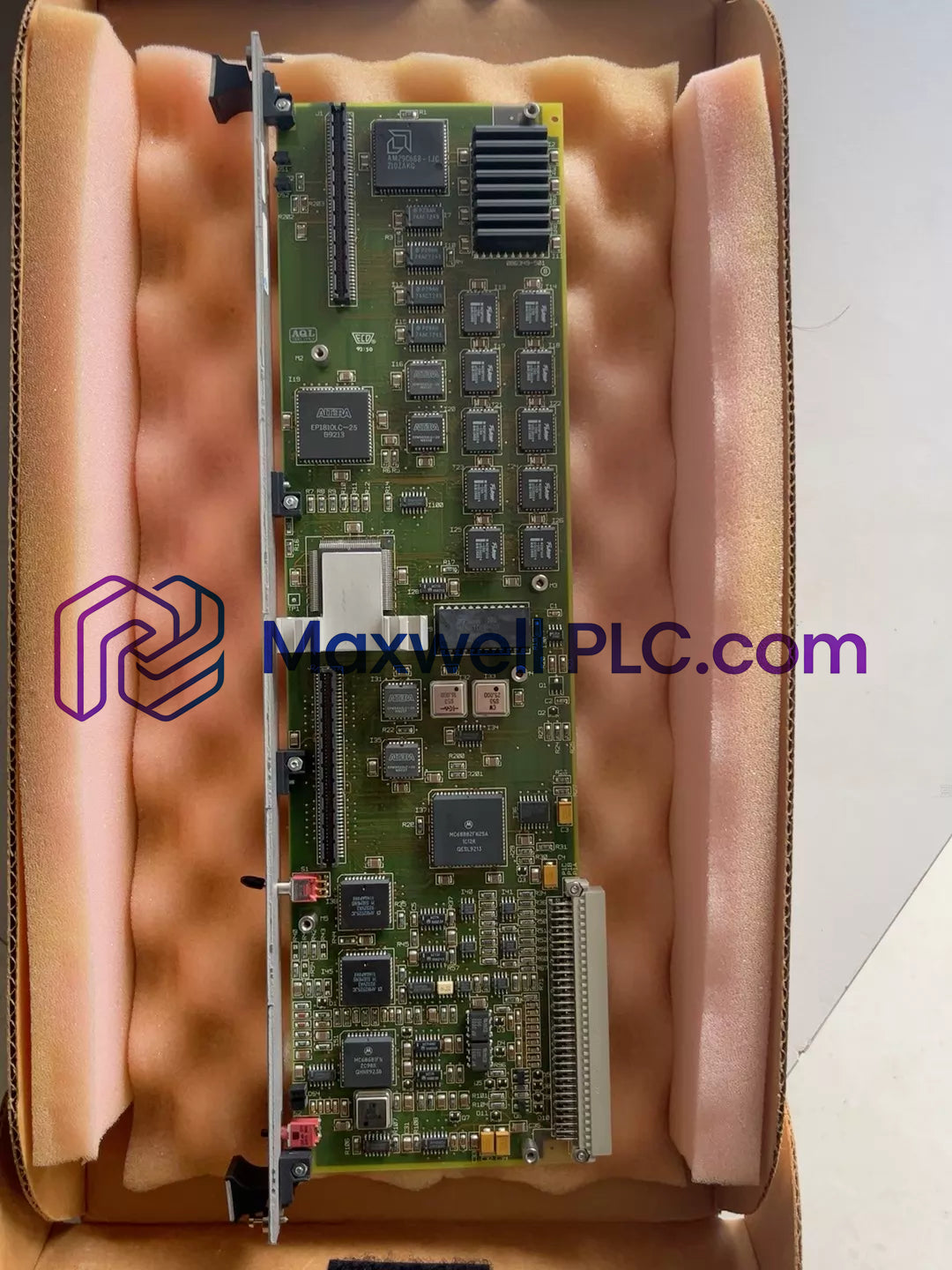

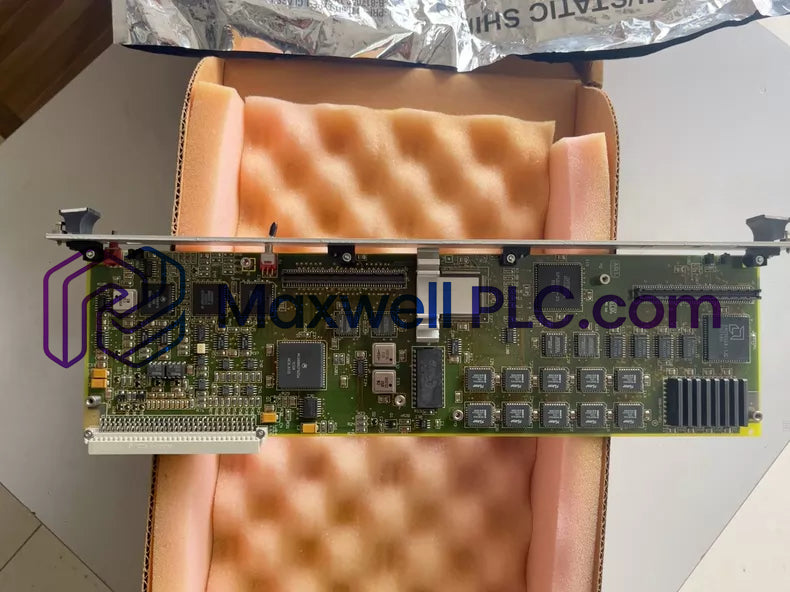

• What physical form factor does this circuit board assembly use?

  The board features an elongated PCB profile with shipping dimensions measuring 2.5 x 13.0 x 39.5 cm and weighing 0.38 kg.

• Does the board contain onboard programmable flash memory?

  Yes. The PWA hardware architecture supports firmware flash compatibility for seamless integration into host system software.
