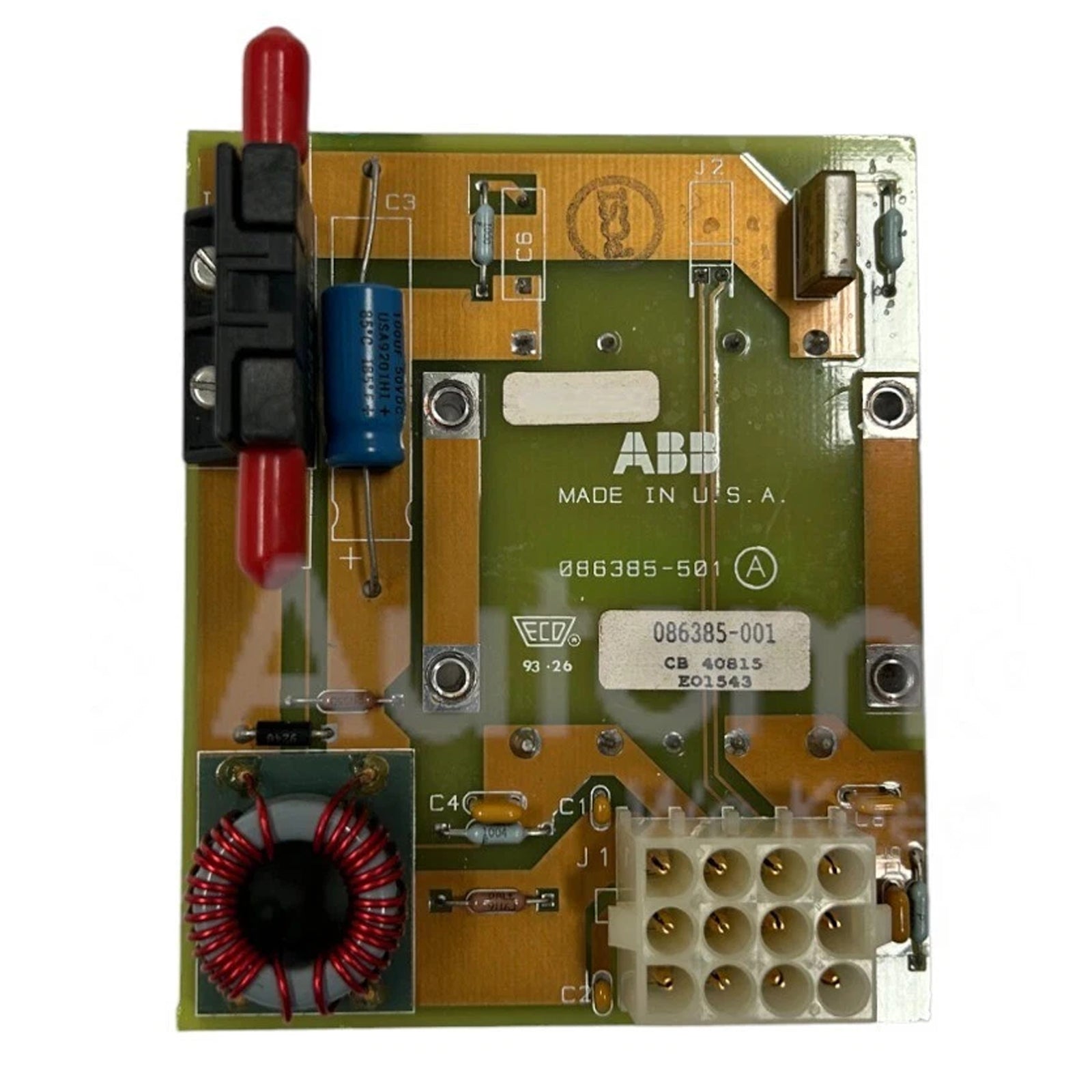

The ABB 086385-001 serves as the primary 086385-001 Printed Circuit Board utilized to execute high-speed digital signal isolation and analog input data routing across Procontic platforms. The hardware processes 0-10 V and 4-20 mA analog field loops while enforcing a physical separation boundary between low-voltage internal logic architectures and external electrical interfaces.

Hardware Specifications

Deterministic Sync and I/O Density Scaling

Engineered for integration into real-time industrial drive and control environments, this board relies on fixed firmware flash compatibility profiles to sync timing metrics with host processors. The module maintains data throughput rates over the backplane bus without inducing packet collisions or phase noise. This baseline communication speed allows predictable I/O density scaling when多个 boards are multiplexed onto the same logic rack. The embedded reinforced isolation layer of 2500 VAC protects the internal 5 VDC logic side from voltage differentials originating on the 15 VDC isolated loop side, maintaining deterministic data transitions for high-speed digital paths.

Field Installation Guidelines

• ESD Protection Constraints: Personnel must connect an approved ESD wrist strap to an unpainted metal surface on the system chassis prior to removing the board from its protective packaging layer.

• Component Positioning and Airflow: The unit must be secured within an enclosure that prevents ambient dust and conductive particulates from accumulating on the exposed surface traces. Ensure clearance profiles conform to standard subrack airflow clearances to maintain ambient temperature below +70 deg C.

• Wiring and Ground Integrity: Separate the 5 VDC logic wiring from the 15 VDC isolated lines and external analog signal loops. Shielding for the 4-20 mA and 0-10 V analog input lines must be grounded exclusively at the cabinet entry bar to eliminate ground loop voltage errors.

Technical Engineering FAQ

Q: Can the 086385-001 module be hot-swapped while the system backplane bus is energized?

A: No. The circuit board is not engineered with staggered pins or current-limiting surge hardware. Performing a live insertion or extraction can corrupt the memory registers of adjacent cards sharing the 5 VDC logic supply rail.

Q: How does a variation in the 15 VDC isolated supply affect the analog input channels?

A: The isolated side expects a stable 15 VDC rail to biased the input conversion circuits. Significant variations below this limit degrade the tracking accuracy of the 0-10 V and 4-20 mA analog inputs, potentially shifting calibrated industrial signal scales outside linear tolerances.

Q: What specific function does the 2500 VAC isolation rating provide during field electrical faults?

A: The reinforced isolation boundary isolates the sensitive 5 VDC logic architecture from cross-talk and high-voltage transients on the 15 VDC side. This prevents field-side short circuits or grounding faults from destroying the upstream processor or backplane network.
