Product Overview

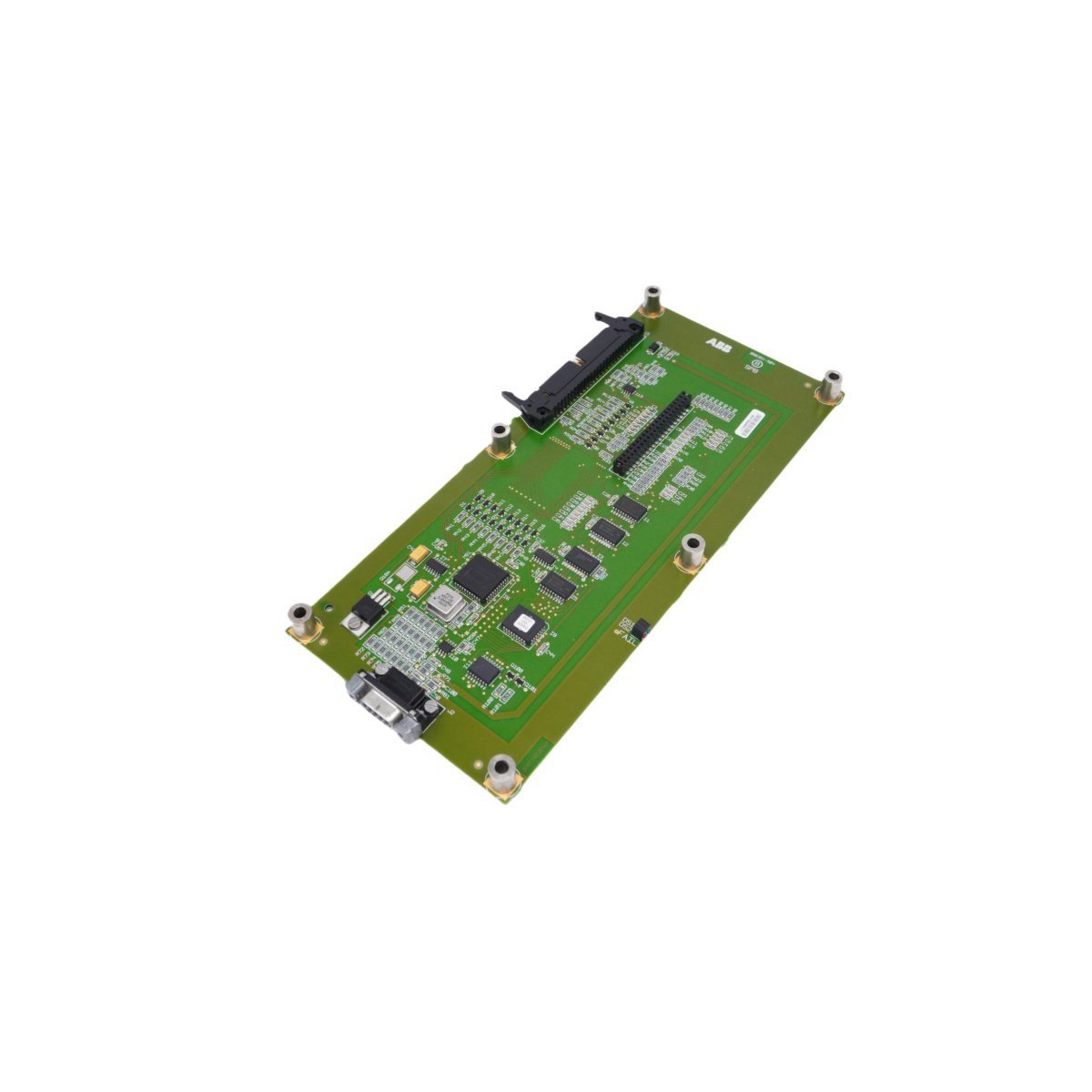

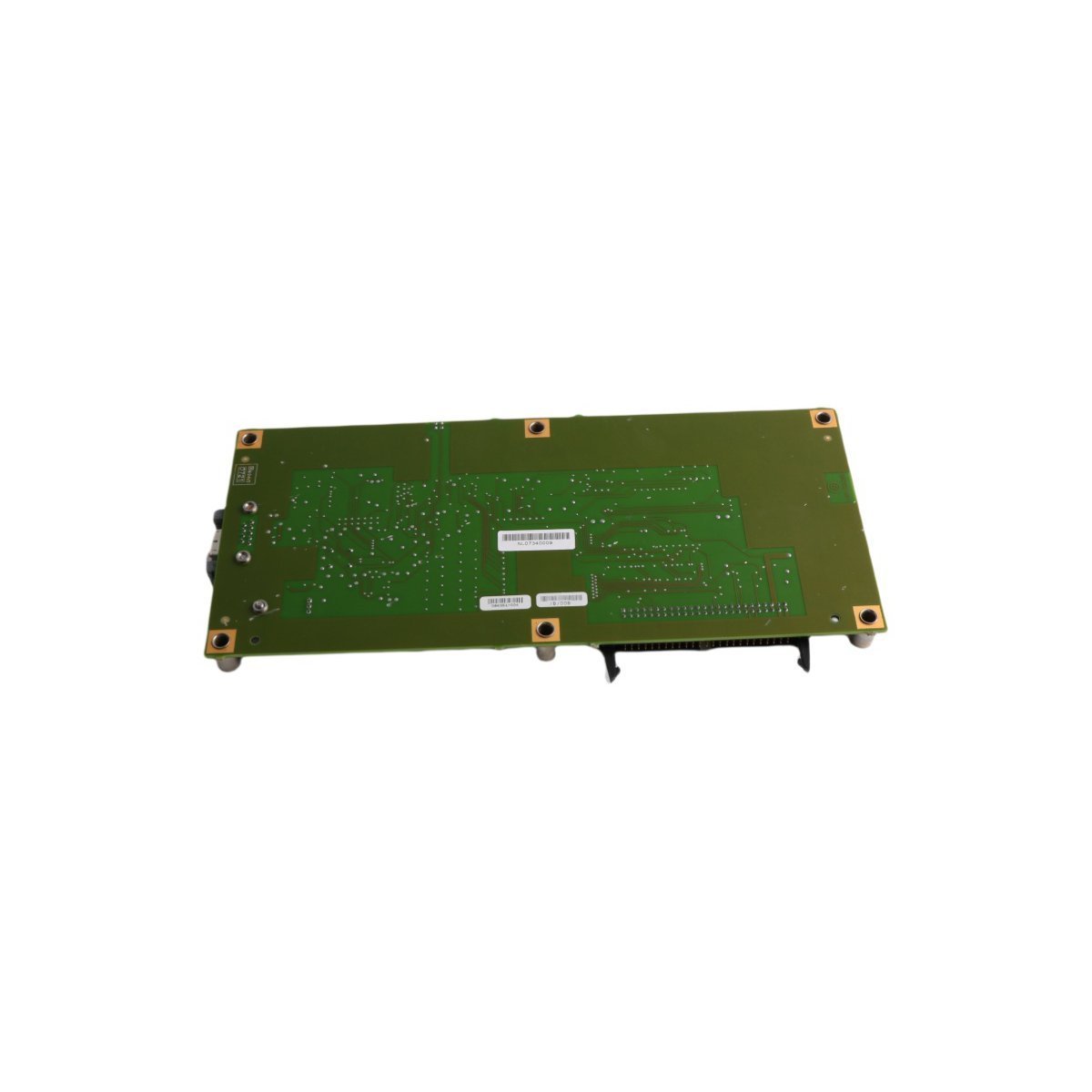

The ABB 086351-004 is a specialized 16-channel digital input circuit board assembly designed to facilitate high-speed signal acquisition in distributed control environments. This Swedish-engineered PCBA serves as a bridge between field-level digital sensors and high-level automation controllers, converting 24V DC discrete signals into actionable data for the system logic. Known for its robust noise immunity and PROFIBUS DP compatibility, the 086351-004 is built to maintain signal integrity in electrically "noisy" settings where electromagnetic interference is common. Its slim architecture allows for efficient integration into existing control cabinets, making it an essential component for system expansions or the maintenance of legacy automation infrastructure.

Technical Performance Parameters

This PCB assembly is optimized for durability and rapid data throughput, featuring a low-mass design and high-density circuit layout.

• Net Weight: 0.2 kg

• Physical Dimensions: 26 x 12.8 x 1.5 cm

• Signal Input Capacity: 16 independent digital channels

• Operating Voltage: 24V DC nominal

• Communication Protocol: PROFIBUS DP compatible

• Temperature Resilience: Functional from -25°C to +60°C

• Form Factor: Low-profile PCB for high-density DIN-rail or rack mounting

• Processing Speed: Optimized for rapid signal sampling and logic feedback

• Manufacturing Standards: Industrial grade with high vibration resistance

Industrial Deployment and Field Applications

The 086351-004 is utilized across diverse sectors that prioritize fail-safe digital monitoring and localized control.

• Automotive Assembly Lines: Monitoring the status of proximity switches, light curtains, and pushbutton stations throughout robot-heavy production zones.

• Packaging and Bottling: Coordinating high-speed sensor inputs for sorting, capping, and labeling machinery where timing is critical.

• Food and Beverage Processing: Managing discrete inputs from stainless steel processing equipment in environments subject to thermal fluctuations.

• General Manufacturing: Serving as a reliable digital I/O interface for machine-level control systems and decentralized automation racks.

Q: What is the primary function of the 086351-004 PCB Assembly?

The module is designed to capture 16 individual digital signals from field devices, such as pushbuttons or sensors, and transmit that data to a central controller via industrial communication protocols.

Q: Can this board withstand cold-start conditions in unheated facilities?

Yes, the 086351-004 is rated for operation down to -25°C, making it suitable for cold storage facilities or outdoor control cabinets provided they are appropriately sealed against moisture.

Q: Is this assembly compatible with standard PROFIBUS networks?

The board is engineered for seamless integration into PROFIBUS DP environments, allowing for reliable data exchange between the I/O signals and various ABB or third-party PLC systems.

Q: Does the 086351-004 require special mounting hardware?

Due to its standardized 26 x 12.8 cm dimensions and low profile, it is designed for integration within standard industrial subracks or designated carrier modules compatible with the ABB product range.

Q: How does the module handle electrical interference from heavy machinery?

This PCB assembly features advanced industrial-grade shielding and circuit filtering specifically designed to provide high noise immunity, preventing false triggers from nearby motors or high-voltage lines.
