Product Overview

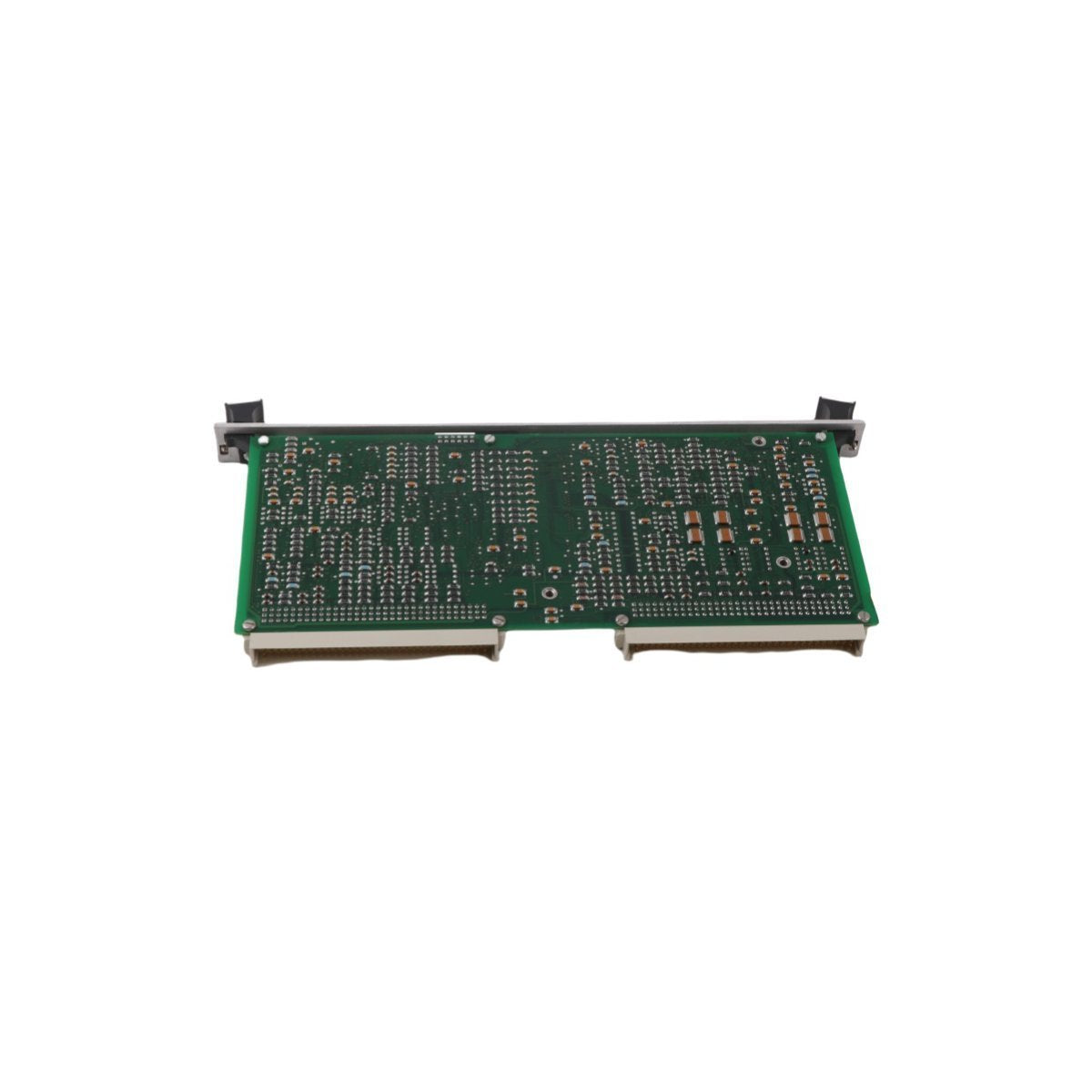

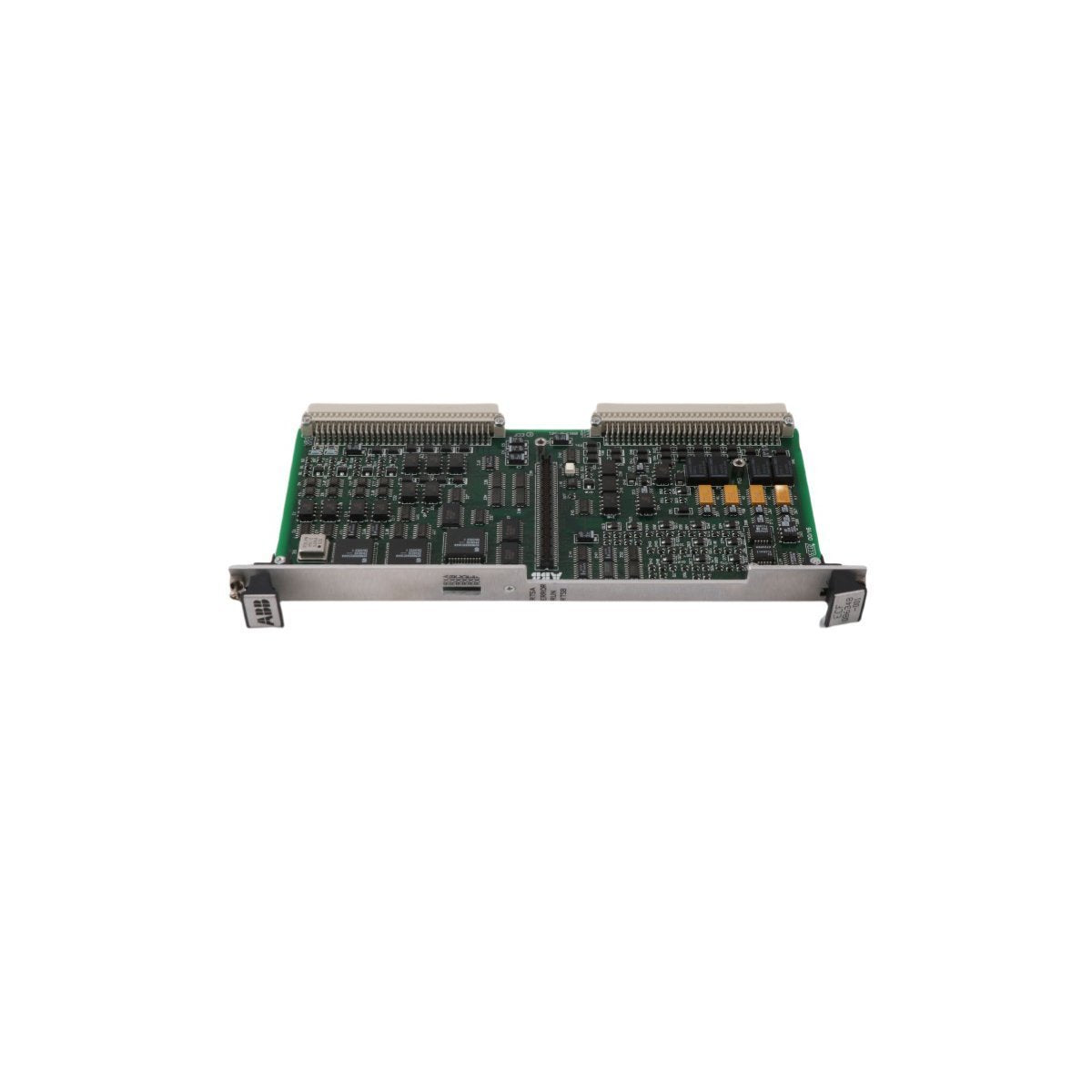

The ABB 086348-001 is a high-precision digital control module engineered for the demands of modern Distributed Control Systems (DCS). This PC board-based controller acts as a central logic processor, executing complex automation algorithms to maintain operational stability in heavy industrial environments. Designed with a modular architecture, the 086348-001 allows for seamless integration into existing ABB control racks, facilitating high-speed data processing and deterministic control over field-side devices.

This module is constructed using industrial-grade components specifically selected to withstand the rigors of continuous process industries. Its slim, space-saving design is optimized for high-density control cabinets, ensuring that facilities can maximize their I/O and processing capacity without expanding their physical footprint.

Technical Capabilities and Resilience

The 086348-001 excels in signal integrity and environmental endurance. It is built to neutralize the effects of electromagnetic interference (EMI) and localized vibration, which are common in manufacturing plants and power generation facilities. By utilizing real-time monitoring and advanced diagnostic protocols, the module proactively identifies potential system discrepancies, allowing operators to intervene before hardware failure leads to unscheduled downtime.

Furthermore, the unit supports rapid scalability. As plant requirements evolve, the 086348-001 can be reconfigured or expanded within the modular system framework. This flexibility, combined with ABB’s heritage in Swedish engineering, ensures that the module remains a future-proof asset for both discrete manufacturing and complex process automation.

Technical Specifications

• Model Identification: 086348-001

• Component Type: DCS Logic Control Module

• Manufacturer: ABB

• Backplane Connectivity: High-speed parallel interface

• Input Power: Logic-level DC (System-supplied)

• Physical Weight: 0.2 kg

• Module Dimensions: 2 x 12.8 x 26.1 cm

• Operating Origin: Sweden

• HS Code: 8537101190

• Environmental Tolerance: Industrial-hardened for vibration and thermal variance

• Diagnostic Features: Real-time health monitoring and LED status indicators

Core Industrial Applications

• Process Control: Executing PID loops and logic sequences in chemical, oil, and gas facilities.

• Power Generation: Managing auxiliary control systems and monitoring turbine parameters.

• Discrete Manufacturing: Coordinating high-speed assembly lines and robotic cell synchronization.

• System Modernization: Serving as a direct replacement part for maintaining legacy ABB DCS infrastructures.
