Product Overview

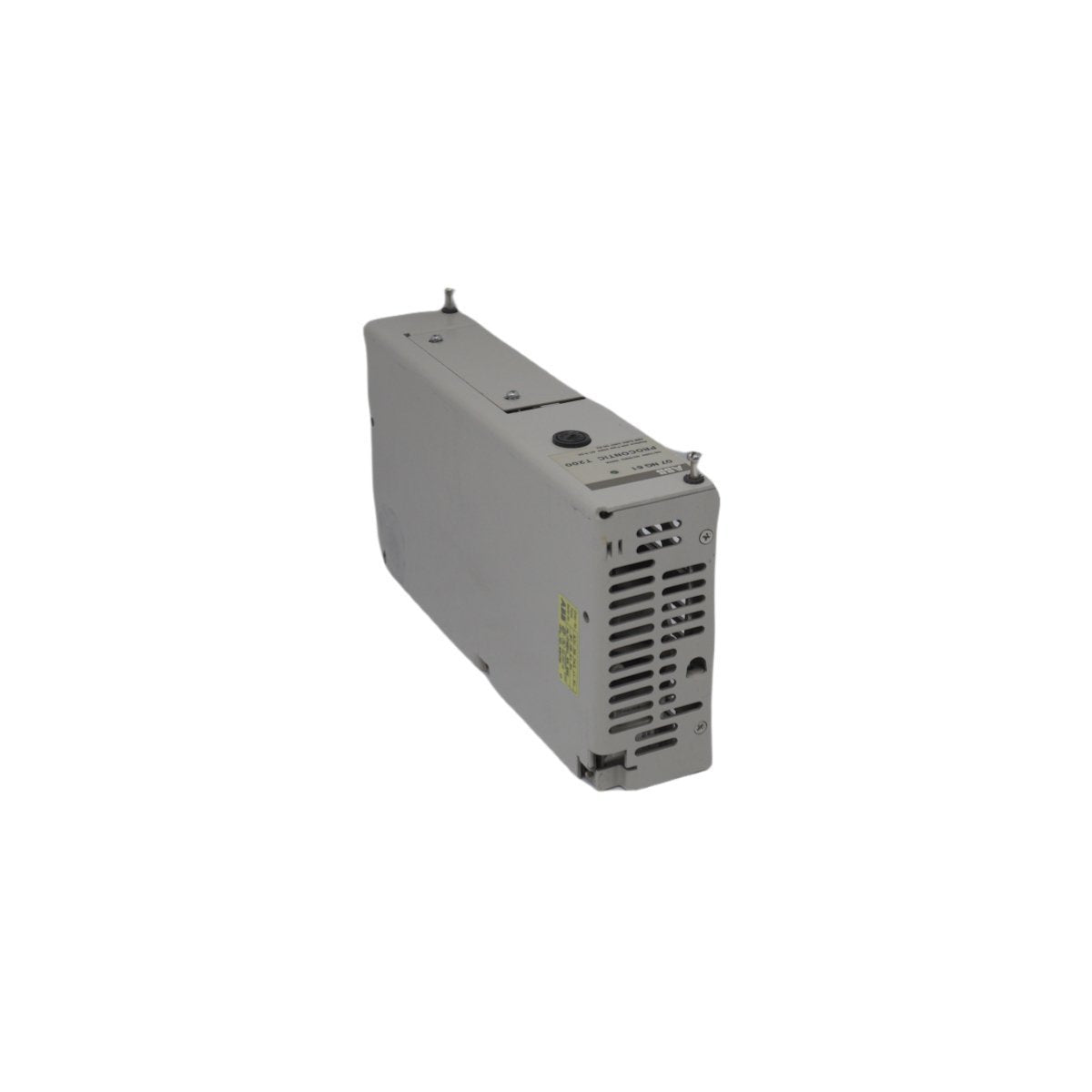

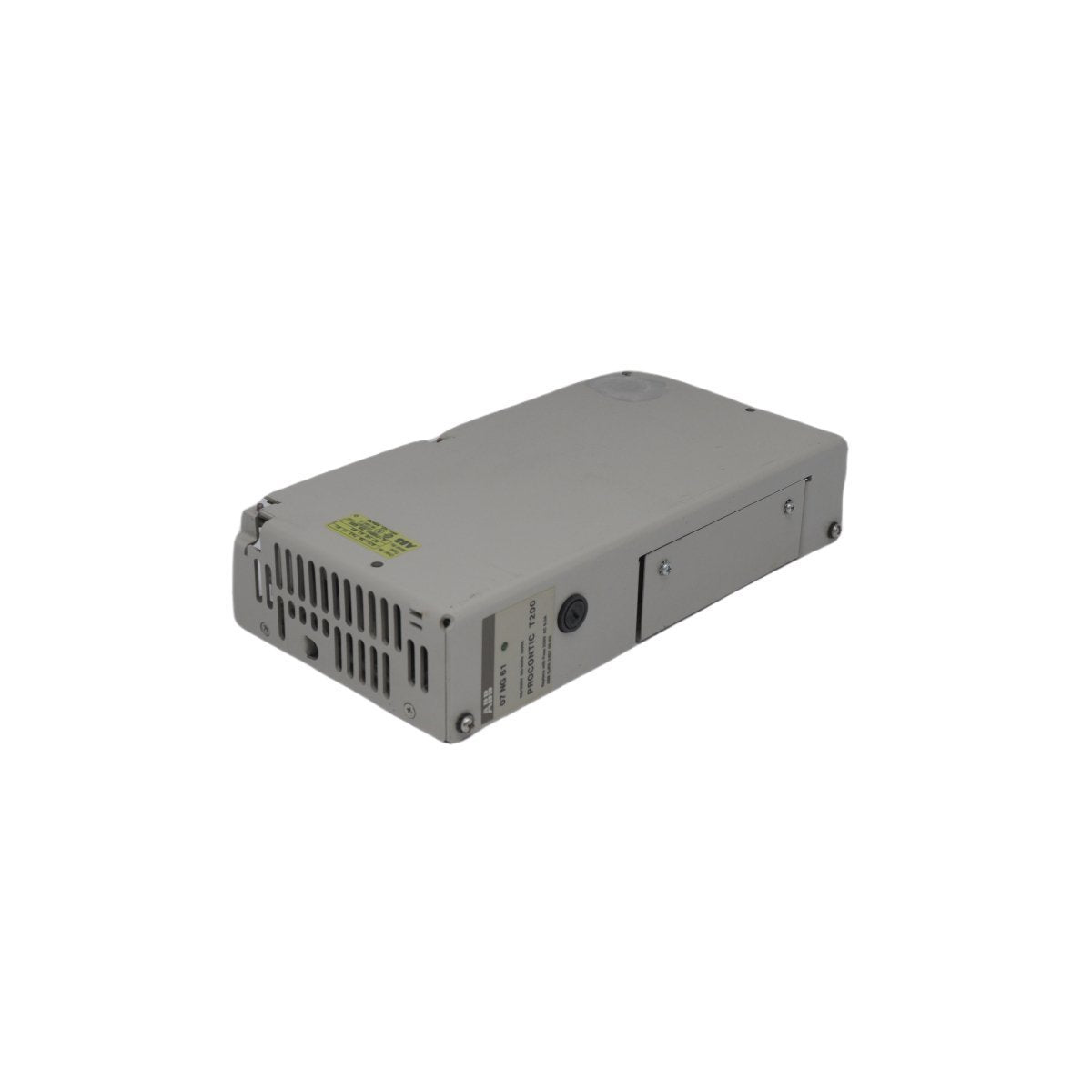

The ABB 07NG61R1 serves as the primary power regulation backbone for the Procontic T200 programmable logic control system. It is specifically engineered to convert industrial-grade input voltages into the stabilized internal bus power required for the operation of CPU modules and I/O racks. By providing a clean, filtered electrical supply, the 07NG61R1 protects sensitive digital logic from line noise, surges, and voltage sags, thereby ensuring the deterministic performance of the DCS environment. This module is critical for maintaining system uptime in legacy automation infrastructures where reliable power distribution is the foundation for complex process control.

Technical Specifications

Model Code Breakdown

Understanding the nomenclature of the 07NG61R1 is essential for ensuring hardware compatibility during replacement:

• 07: This prefix identifies the hardware as part of the ABB 07 series family of controllers and peripheral modules.

• NG: This functional code designates the module as a Power Supply (Netzgerät in German), responsible for internal system voltage regulation.

• 61: Specifies the internal power rating and output capacity tailored for the Procontic T200 chassis requirements.

• R1: Indicates the revision level or version of the electronic board. R1 signifies the standard initial production revision designed for universal T200 rack compatibility.

Installation Guidelines and Wiring

To ensure the longevity of the 07NG61R1 and the connected T200 modules, follow these professional installation procedures:

• Mounting: The module must be seated in the leftmost slot of the Procontic T200 rack. Ensure the locking screws are tightened to provide a secure ground connection to the backplane.

• Thermal Management: Maintain a minimum clearance of 50mm above and below the module to allow for natural convection cooling, as power modules generate heat during voltage conversion.

• Input Wiring: Connect the AC or DC supply (depending on specific site ratings) to the designated screw terminals. Use shielded cabling to minimize electromagnetic interference (EMI).

• Grounding: A low-impedance earth ground must be connected to the PE terminal to protect the system from static discharge and transient surges.

FAQ: Frequently Asked Questions

Is the 07NG61R1 compatible with other Procontic series?

The 07NG61R1 is specifically optimized for the Procontic T200 series. While it shares the "07" prefix with other families, it is not interchangeable with the T300 or AC31 series due to different backplane voltage requirements.

What are the signs of a failing power module?

Common indicators include intermittent CPU resets, "Power Fail" LED illumination, or inconsistent voltage readings on the internal bus. If the module's diagnostic LED is off while input power is present, the internal fuse or regulator may have failed.

Can this module be hot-swapped?

No. To prevent electrical arcing and potential damage to the CPU or I/O modules, the main system power must be disconnected before removing or installing the 07NG61R1.
