Product Overview

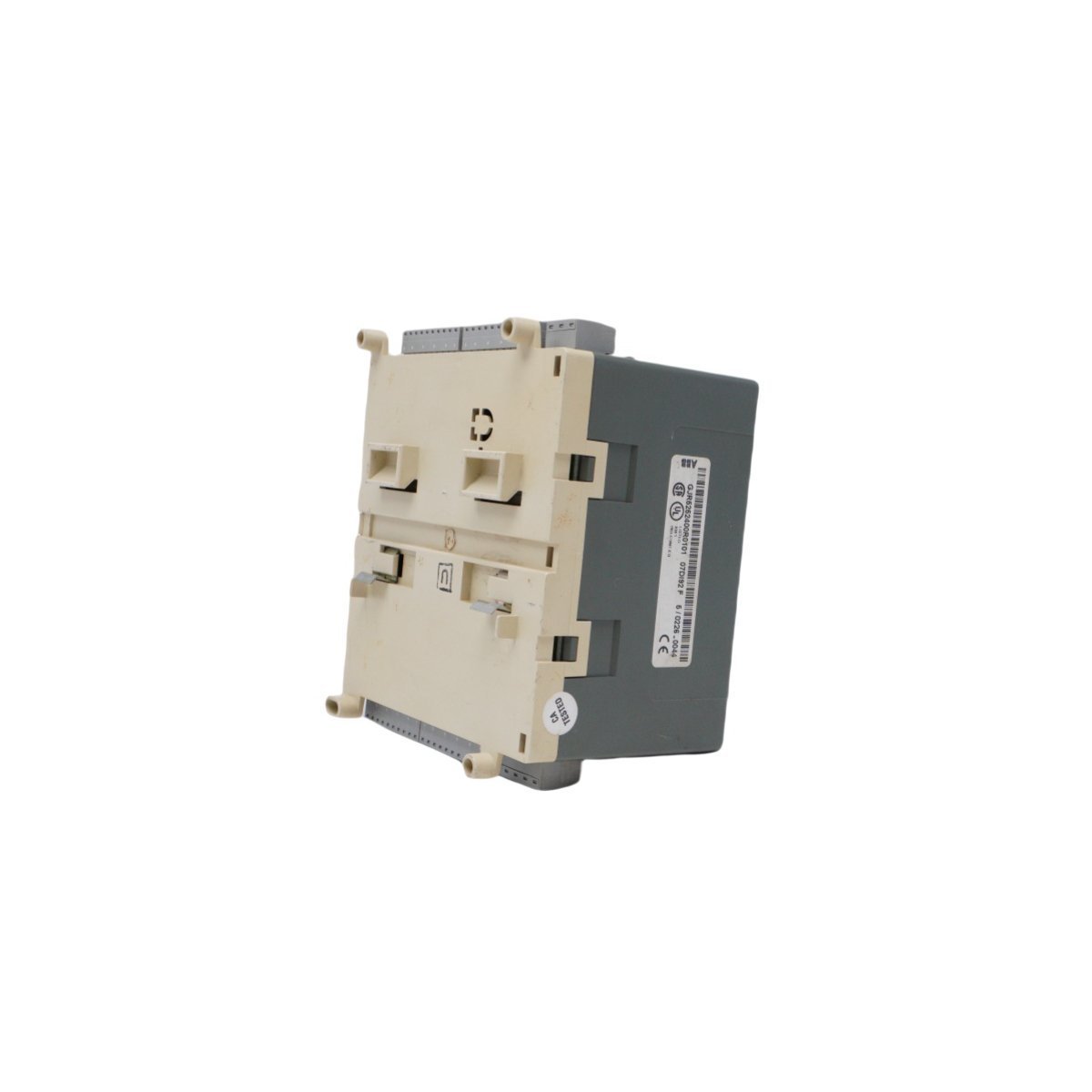

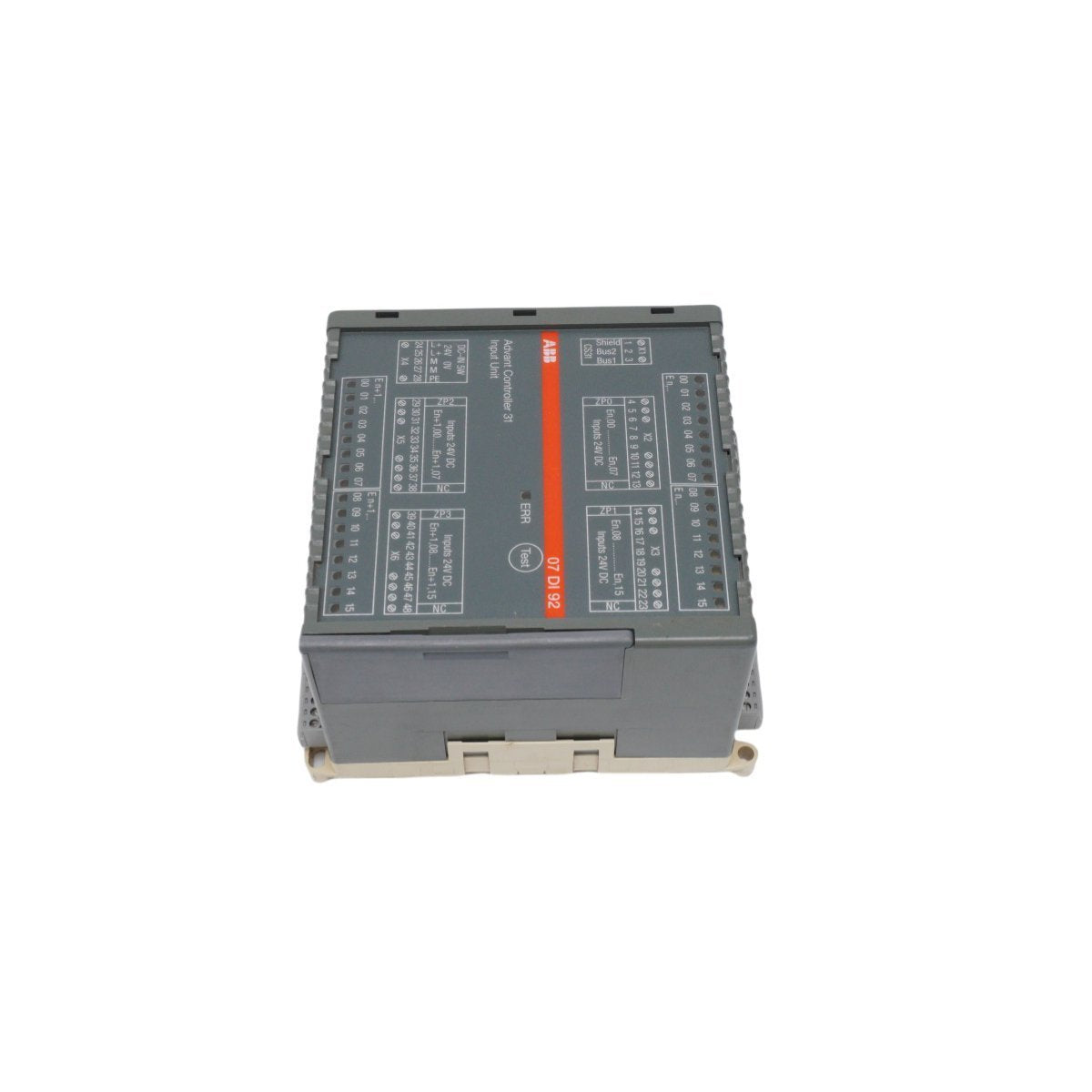

The ABB 07DI92, designated by part number GJR5252400R0101, is a high-density digital interface module engineered for sophisticated Distributed Control Systems (DCS). This module provides 32 independent digital input channels, operating at a nominal 24 VDC. It serves as a vital bridge between field-side discrete devices—such as limit switches, pushbuttons, and proximity sensors—and the central automation processor.

Designed for versatility, the 07DI92 supports both sink and source signal configurations, allowing it to integrate with various industrial sensor types. Its high channel density is optimized for complex automation architectures where cabinet space is at a premium, yet high-speed signal processing is non-negotiable.

Performance and Electrical Integrity

Reliability in harsh industrial environments is achieved through robust galvanic isolation. The 07DI92 features 1500 V AC isolation to protect the internal system bus from electrical transients and ground loops originating in the field. This protection ensures that sensitive control logic remains undisturbed by high-voltage surges or electrical noise.

Installation is streamlined through the use of 1-wire screw terminals and pluggable connectors, allowing for rapid deployment and simplified maintenance during system upgrades. The module is also highly energy-efficient, with a typical power consumption of only 2.5 W, making it an ideal component for large-scale, high-density I/O racks where thermal management is a concern.

Technical Specifications

• Model Number: 07DI92

• Part Number: GJR5252400R0101

• Input Capacity: 32 Channels

• Input Voltage: 24 VDC (Range: 0–30 VDC)

• Configuration: Sink or Source compatible

• Isolation Voltage: 1500 V AC

• Power Consumption: 2.5 W (Typical)

• Terminal Type: Pluggable 1-wire screw terminals

• Protection Class: IP20

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +85°C

• Dimensions: 14.5 x 18 x 15 cm

• Weight: 0.3 kg (Net) / 2.36 kg (Shipping)

• Manufacturing Origin: Sweden

Core Applications

• Discrete Manufacturing: Monitoring high-speed assembly lines and robotic cell feedback.

• Process Automation: Managing status signals from valves, motors, and field-mounted instruments.

• Data Acquisition: Serving as a reliable digital interface for remote telemetry units (RTUs).

• System Modernization: Providing a scalable solution for upgrading legacy DCS hardware to contemporary ABB architectures.
