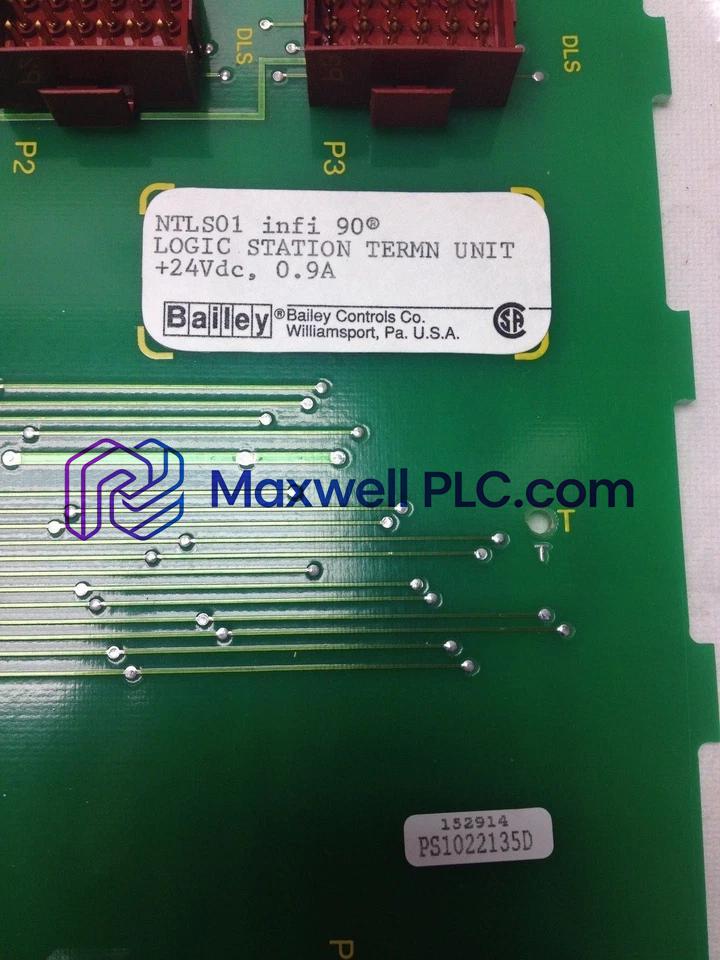

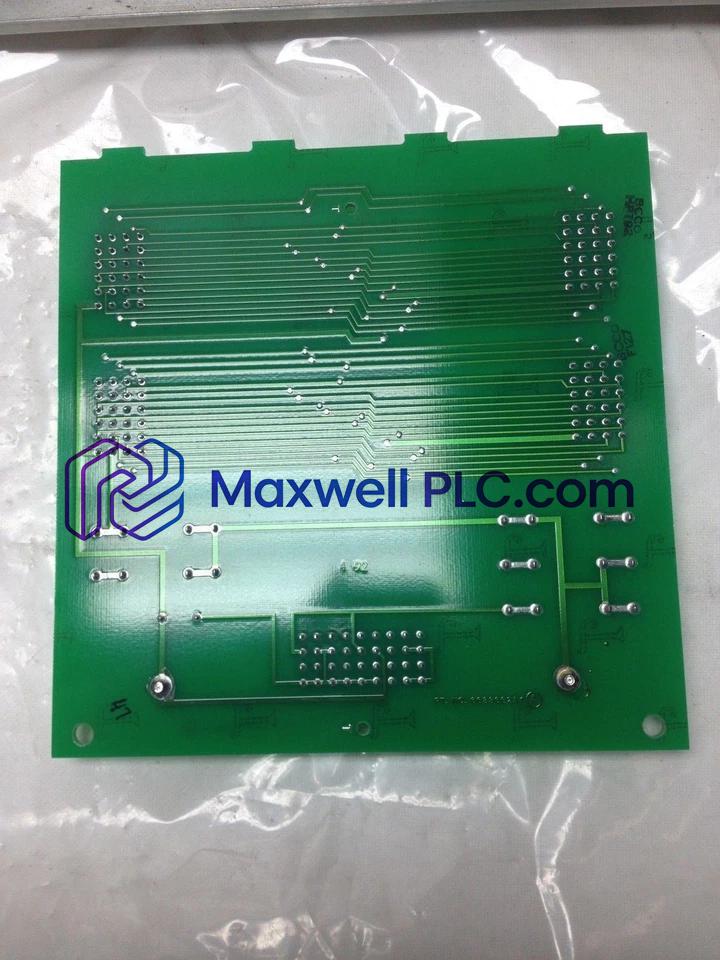

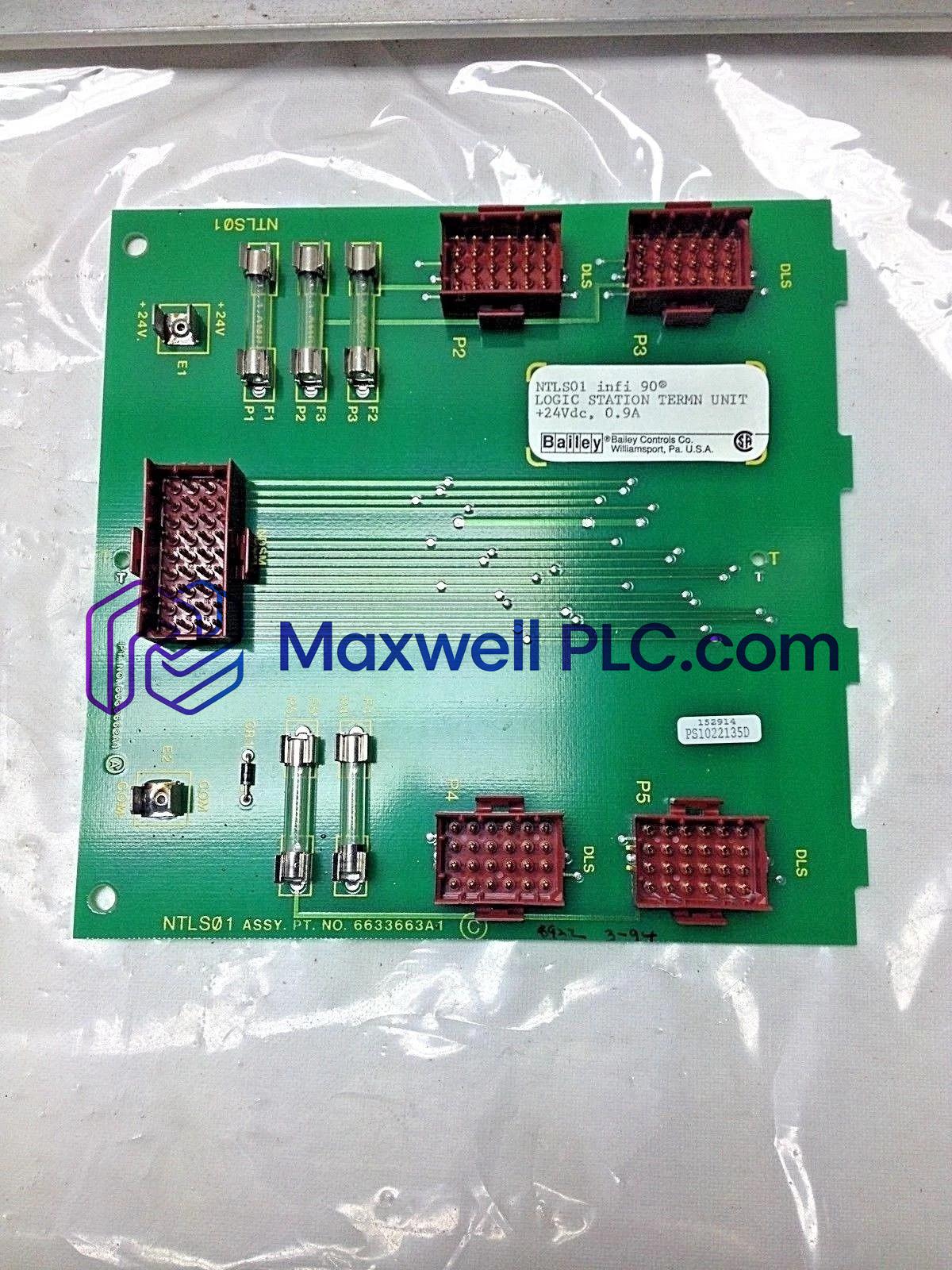

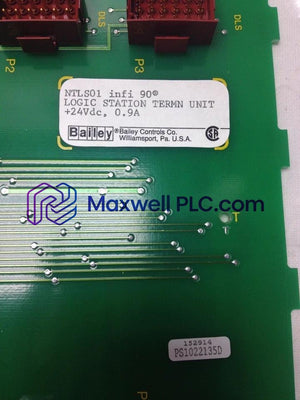

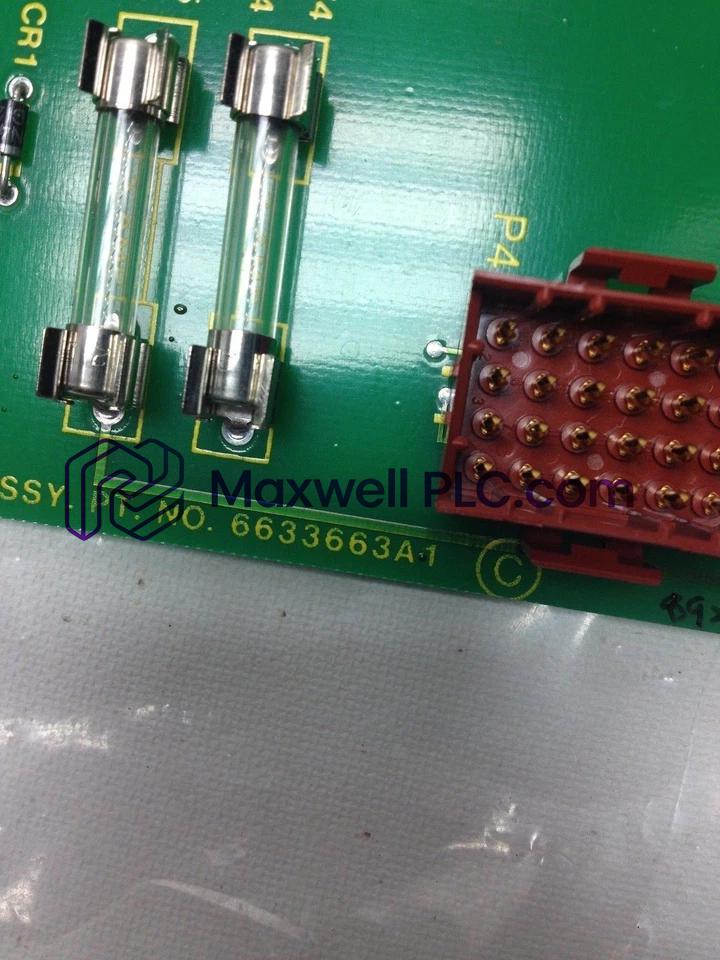

The ABB NTLS01, also cataloged as the NTLS01 Termination Unit, operates as a dedicated hardware component for TTL/CMOS signal isolation and logic station interface mapping within Bailey Network 90 systems.

Module Designation Parameters

The NTLS01 termination assembly belongs to the Bailey Network 90 discrete control hardware line. The base model NTLS01 defines a dedicated logic station termination unit designed to bridge field digital signal levels with system logic controller inputs while delivering 1500 V AC field-to-system galvanic isolation.

Technical Performance Matrix

Deterministic Architecture and Bus Execution

The unit connects directly to system controller modules via internal ribbon cables to enable high-speed signal routing without impacting backplane bus communication velocity. Onboard signal conditioning elements manage input impedance levels to optimize I/O density scaling while maintaining cross-generational firmware flash compatibility with host processor cards.

Package Contents

• 1 x ABB NTLS01 Logic Station Termination Unit

Enclosure Mounting and Cabinet Guidelines

• Mount the termination unit onto designated cabinet mounting rails using standard M4 assembly hardware.
• Route low-voltage TTL/CMOS signal cables separately from 120/230 VAC power conduits to prevent inductive noise.
• Connect chassis earth to the primary grounding bar to ensure effective 1500 V AC field isolation performance.
• Fasten interface ribbon cables using locking latches to maintain vibration-proof connection integrity.

Engineering FAQ

• What is the operational power requirement for the NTLS01 termination unit?

  The module requires a regulated +5 V DC logic power supply, drawing typically 2 to 3 W during standard operation.

• What signal level standards are processed by the NTLS01 interface terminals?

  The unit is fully compatible with standard TTL and CMOS digital logic signal voltage levels.

• What continuous isolation rating exists between field wiring and system electronics?

  The termination assembly features internal dielectric isolation rated at 1500 V AC between field and system sides.

• What is the recommended operating temperature range for the hardware?

  The unit operates reliably across ambient cabinet temperatures ranging from 0 to +60 deg C.

• Does the NTLS01 require active firmware programming upon installation?

  No, the unit functions as a passive hardware interface and does not contain programmable flash memory.

• How does the NTLS01 handle high-humidity industrial environments?

  The unit operates in non-condensing relative humidity environments ranging from 5% to 95%.

• Can the NTLS01 ribbon cables be swapped while power is applied to the rack?

  Power down the host I/O section before disconnecting cables to avoid signal glitches on logic channels.

• What physical enclosure footprint is required for module placement?

  The board features physical dimensions suitable for standard mounting, with shipping dimensions of 20.3 x 2.5 x 17.8 cm.
